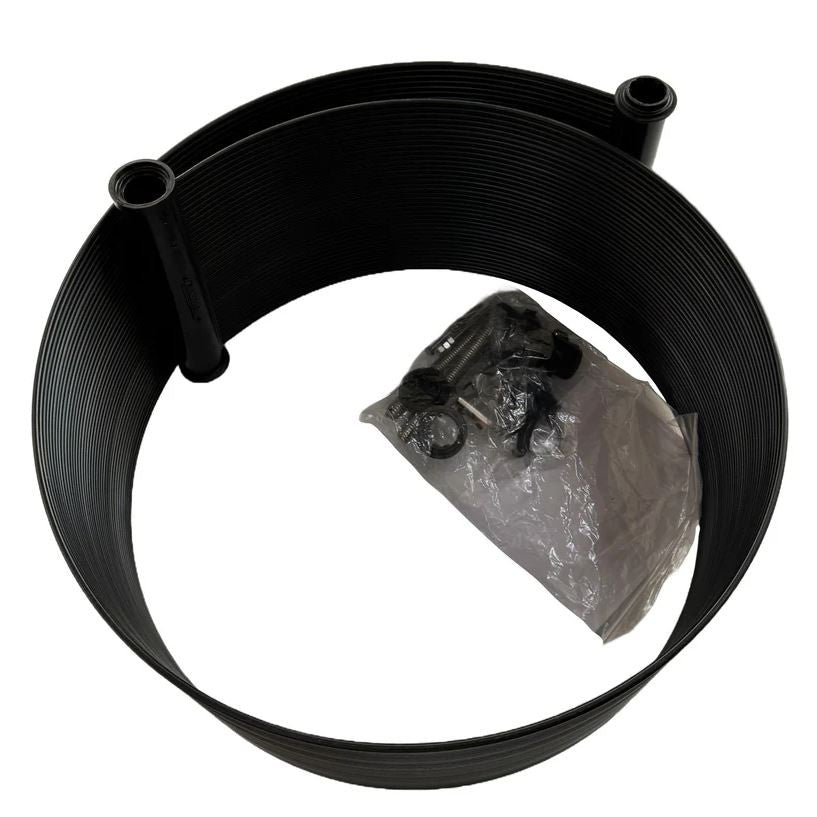

Thermal strap diam. 600 mm
Thermal strap diam. 600 mm
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Available in 5 days.
The thermal strap for stainless steel tanks is the ideal solution for controlling and regulating the temperature of your containers. Specifically designed for tanks with a diameter of Ø 600 mm, it offers reliable performance and versatility in any situation.
Main Technical Features
- Tank diameter: Ø 600 mm
- Tank circumference: 1880 mm
- Standard strap length: 1560 mm
- Surface area per module: 0.48 sqm
- Weight: 800 g/m²
- Module height: 336 mm
- Material: Durable and elastic polypropylene
Resistance and Reliability
Made from quality polypropylene, the strap maintains excellent performance at temperatures ranging from -20°C to +50°C (supports brief peaks up to 80°C) and withstands pressures up to 3 bar. It remains elastic over time, ensuring great durability and reliability season after season.
Versatility of Use
Works perfectly with hot and cold water, glycol solutions, small percentages of alcohol, and various brines. This versatility makes it suitable for multiple enological and agricultural applications, adapting to your specific needs.
Ease of Installation and Maintenance
The quick-connect fitting system allows for series or parallel connections between adjacent straps, while threaded fittings easily connect to pipes. It can be dismantled and reassembled in minutes for cleaning, seasonal storage, or transfer to other containers.

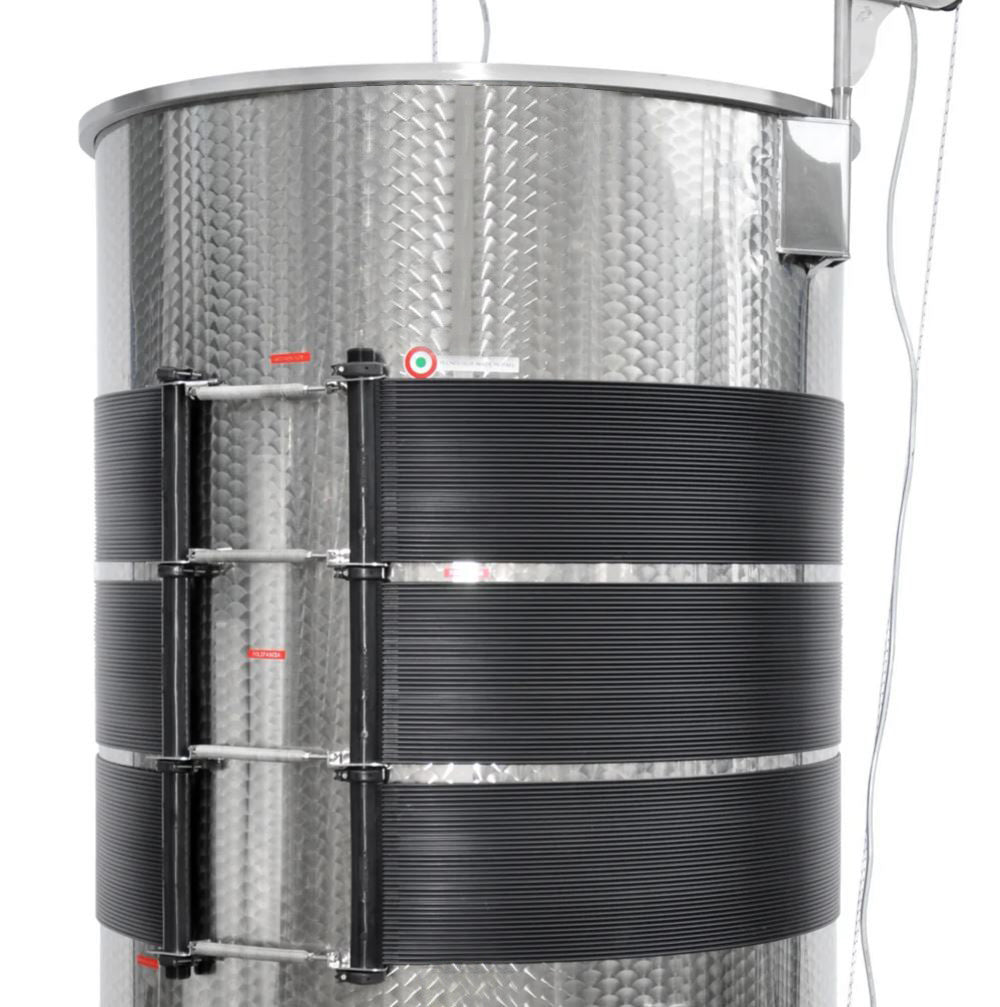

Flexible Installation

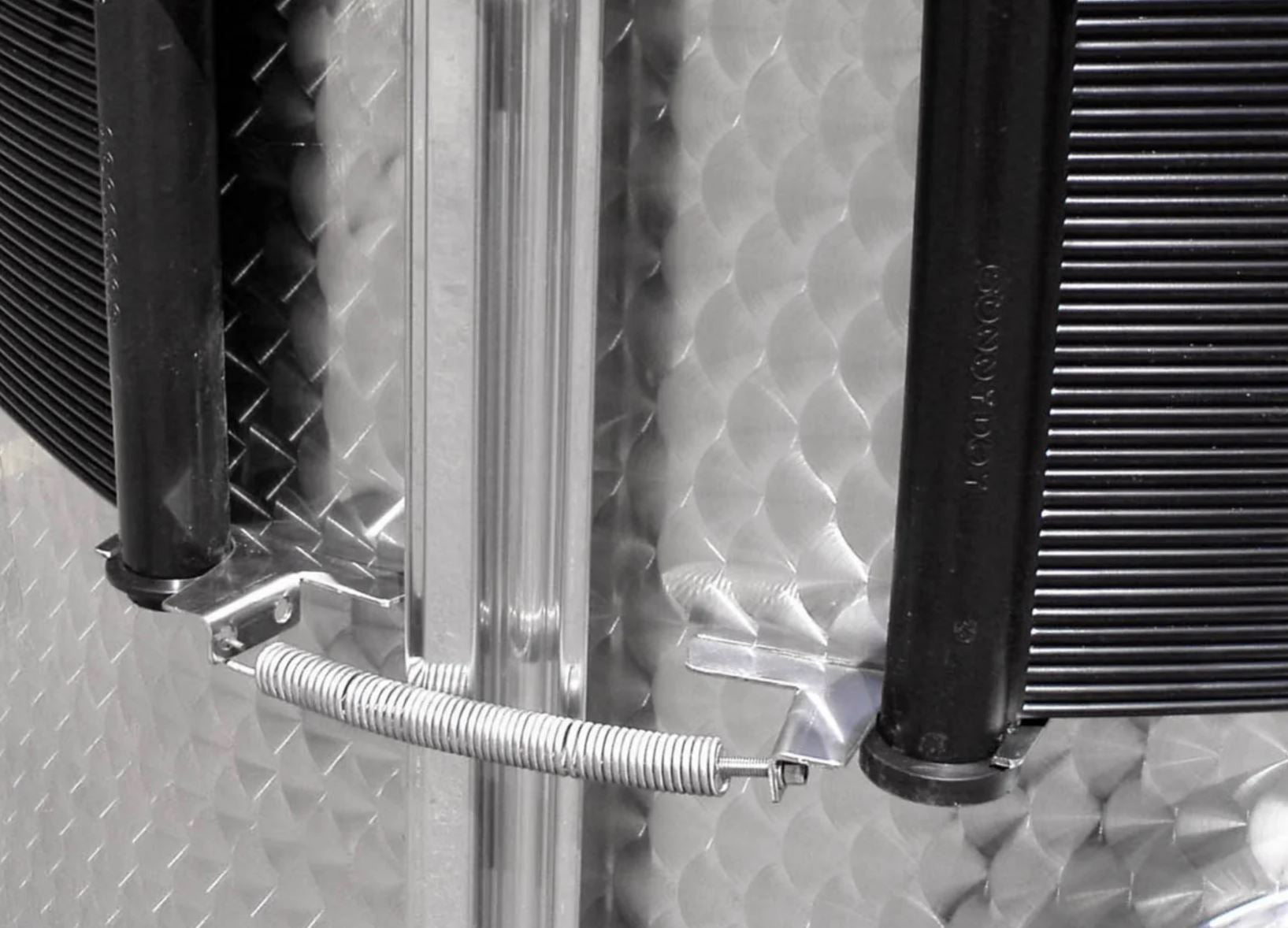

Wrap the strap in a circular or continuous spiral around the tank, distributing it across the entire hull and bottoms according to your needs. The adjustable stainless steel bracket with a pre-tensioning device ensures perfect contact with the tank wall, automatically compensating for thermal expansions.
Superior Thermal Performance
Thanks to the direct contact with the tank wall, thermal exchange is optimal and immediate. The strap generates very little condensation during cooling and none during heating, keeping your systems efficient. A probe can be inserted for precise monitoring of the circulating fluid temperature.
Connection and Compliance
It easily connects to the conditioning system with sealed PVC or polypropylene fittings, ensuring maximum safety and reliability of the installation.
Practical Cleaning and Maintenance
Externally, it slightly conditions the room and can be washed with the same detergents used for tanks, simplifying cleaning and hygiene operations.

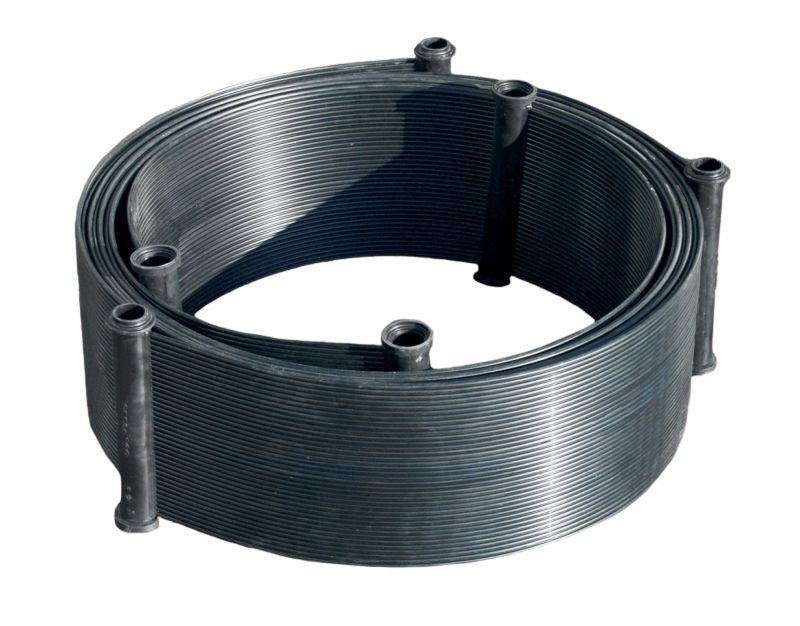

Modularity and Scalability
Each module is combinable with others using special fittings: you can join up to 10 modules to adapt the strap to the specific dimensions of your tank.
