Description
Description
Available in 5 days.

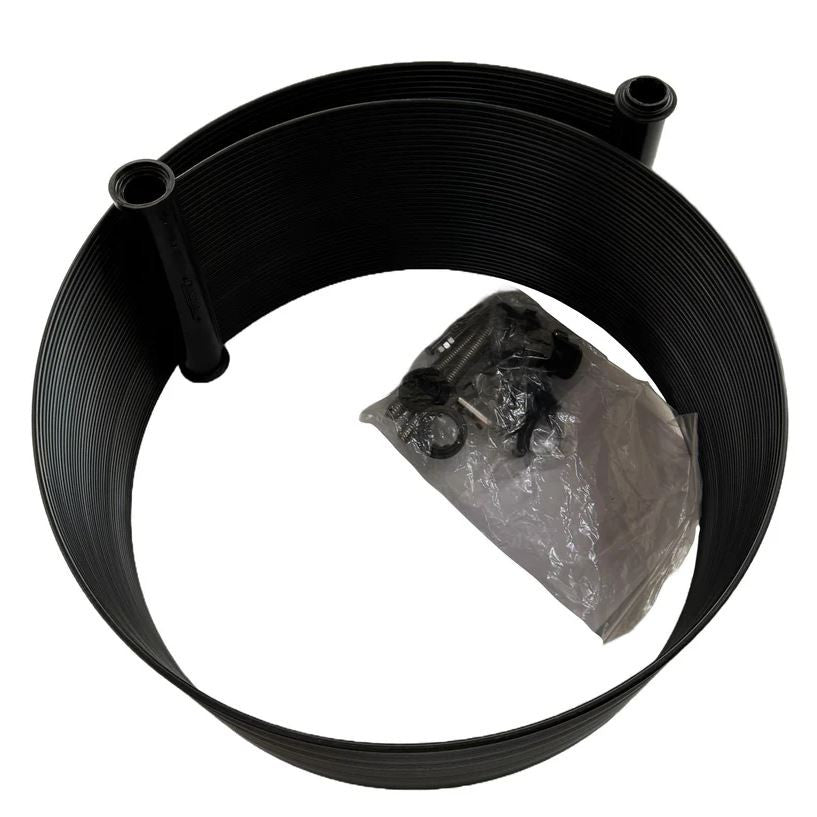

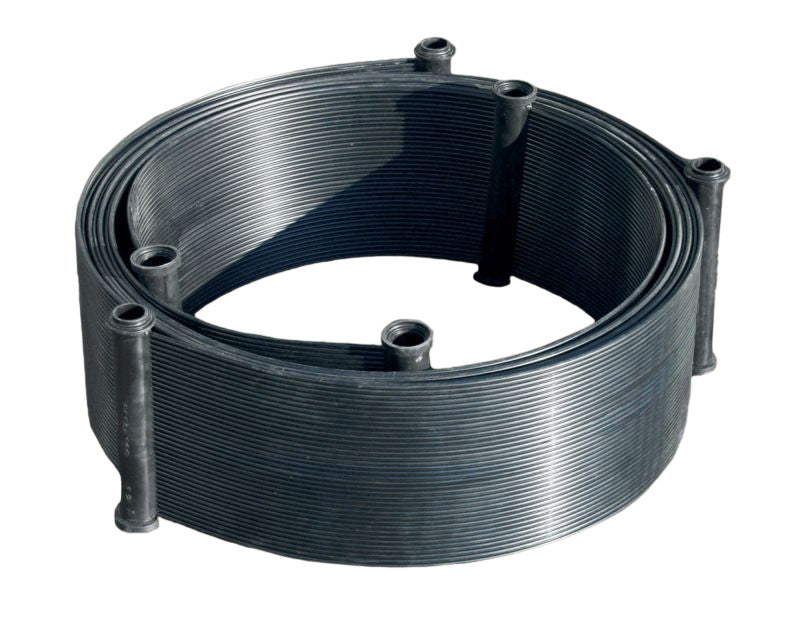

The Thermal Strap for stainless steel tanks with Ø 2200 mm is the ideal solution to maintain the temperature of your storage tanks, ensuring precise and reliable thermal control throughout the year.
Technical Features
- Tank diameter: Ø 2200 mm
- Tank circumference: 6970 mm
- Standard strap length: 6650 mm
- Surface area per module: 2.06 sqm
- Weight: 800 g/m²
- Material: Polypropylene
- Thermal resistance: 3 bar at +50°C (up to 80°C for short periods)
- Guaranteed elasticity: down to -20°C
- Module height: 336 mm
Compatibility and Versatility
Works equally well with hot and cold water, glycol solutions, small percentages of alcohol, and various brines. Perfect for any thermal control needs in your cellar or agricultural business.
Simple and Flexible Connection
Each thermal strap connects to adjacent ones either in series or in parallel using special quick-connect fittings, while the pipes connect with threaded fittings. Up to 10 modules can be joined together to fully cover the tank.
Professional Installation and Fixing

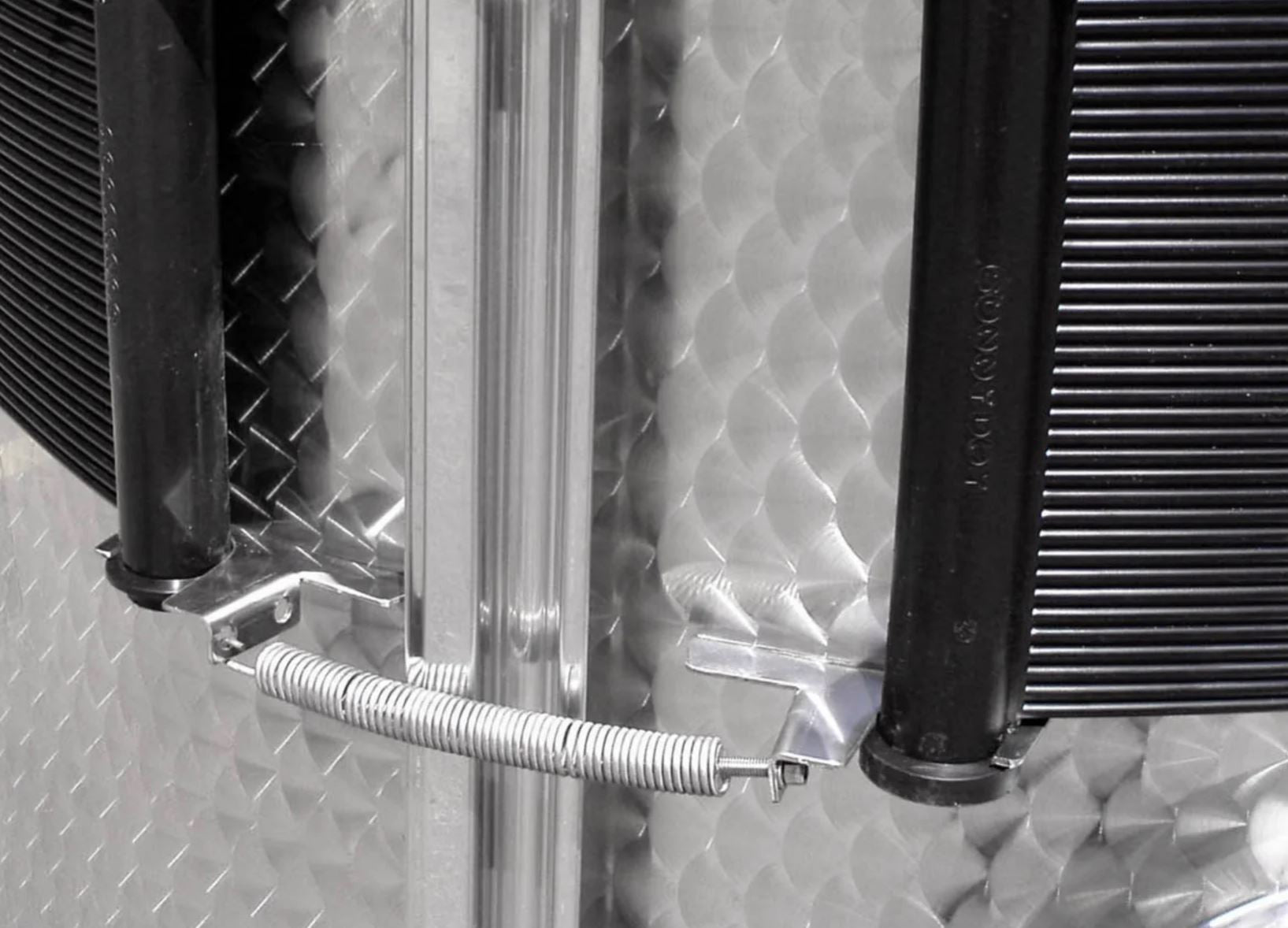

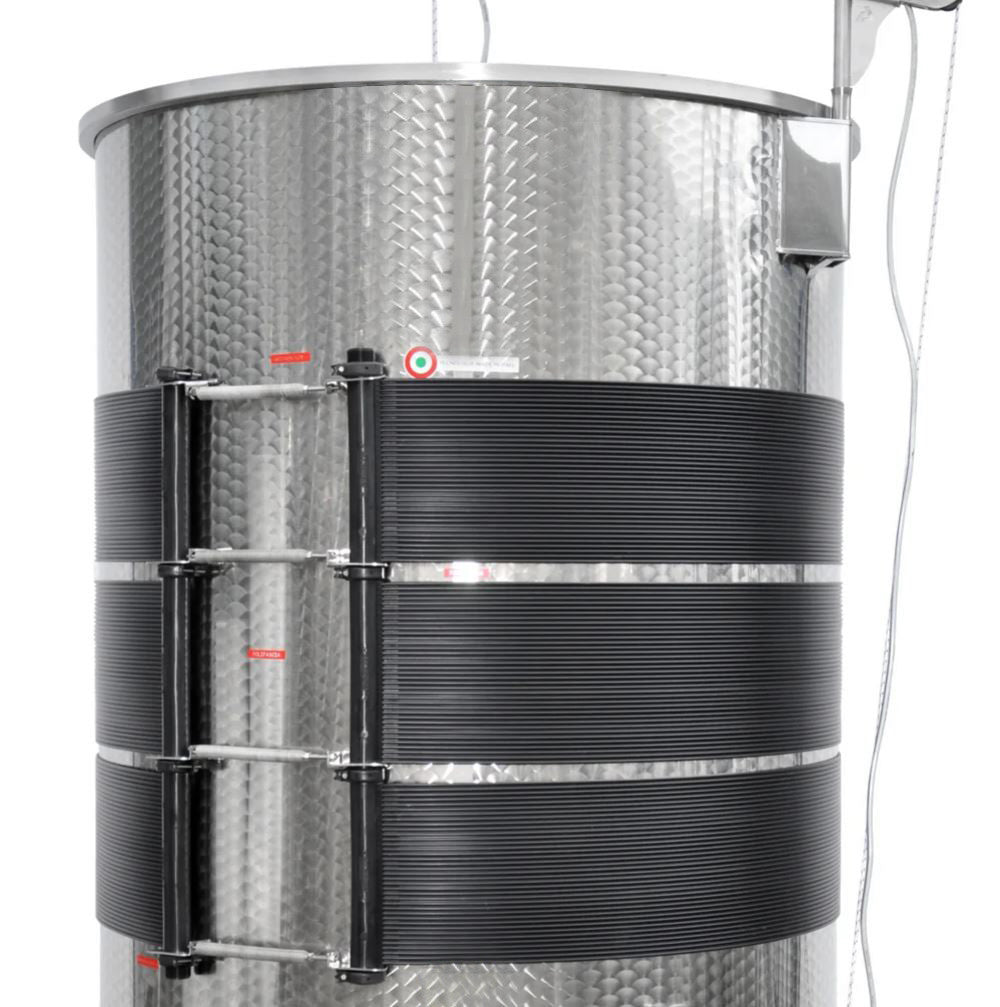

Fixed using a easily adjustable stainless steel bracket, equipped with a pre-tensioning device that automatically compensates for thermal expansions. The strap can be wrapped in a circular manner, in a continuous spiral, or distributed over the entire hull and bottoms of the tank.
Superior Thermal Performance
Ensures excellent thermal exchange thanks to direct contact with the tank wall. A probe can be inserted to monitor the temperature of the circulating fluid. During cooling, it produces very little condensation, while in the heating phase it is practically free of it.
Practicality and Maintenance
Completely disassemblable and reassemblable for easy cleaning, storage at the end of the season, or transfer from one container to another. It can be easily washed with the same detergents used for tanks. Connection to the conditioning system with guaranteed tight PVC or polypropylene fittings.
Environmental Conditioning
Externally, it also slightly conditions the room, helping to maintain a more comfortable working environment.
