Thermal wrap diam. 1100 mm
Thermal wrap diam. 1100 mm
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Available in 5 days.

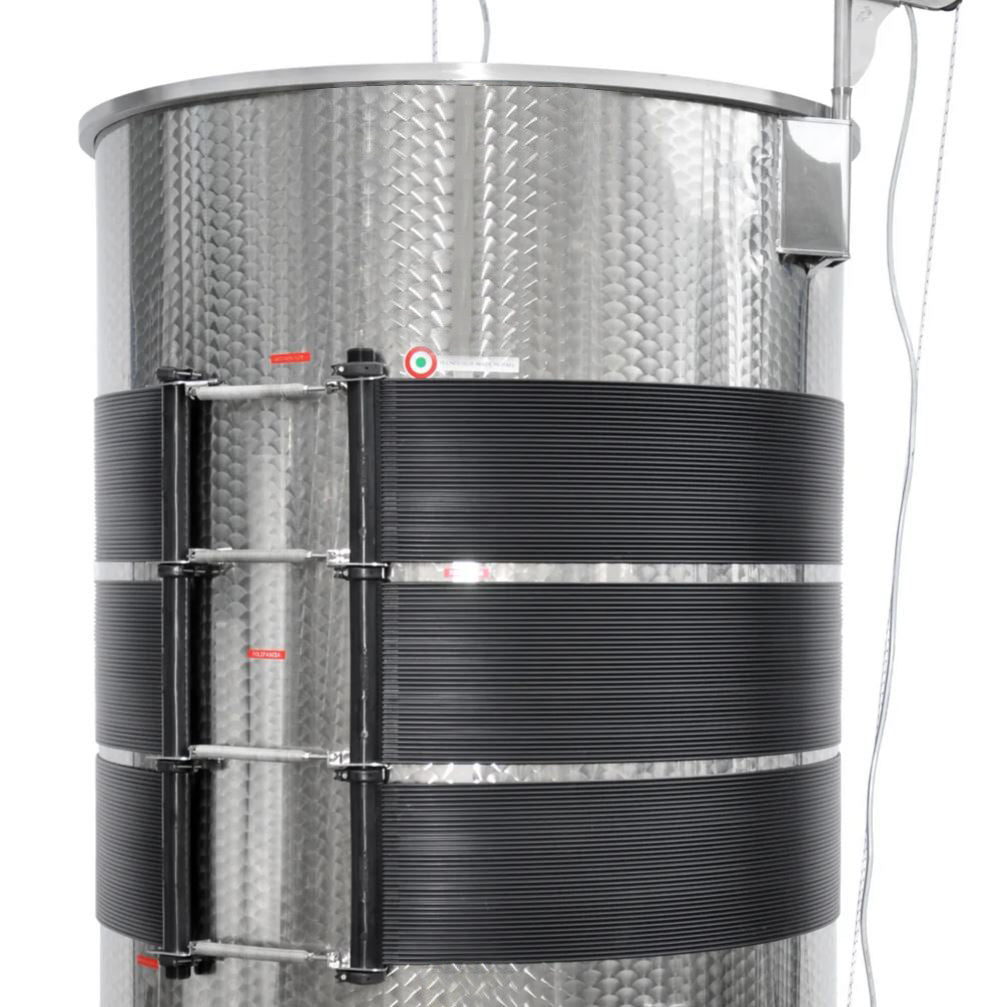

The THERMAL WRAP is the ideal solution for controlling the temperature of your stainless steel tanks in the cellar, on the farm, or in any winemaking facility. It easily wraps around the tank with a diameter of 1100 mm, ensuring effective heat exchange and precise temperature management of the fluid.
Technical Specifications
- Tank diameter: Ø 1100 mm
- Tank circumference: 3450 mm
- Standard wrap length: 3130 mm
- Surface area per module: 0.97 sqm
- Weight: 800 g/m²
- Module height: 336 mm
- Material: Polypropylene
- Operating temperature: from -20°C to +50°C (brief periods up to 80°C)
- Pressure resistance: 3 bar
Connections and Installation
Each wrap easily connects to adjacent ones in series or parallel using special quick-connect fittings, while the system pipes connect with sealed threaded fittings. You can mount up to 10 connected modules to completely cover the tank.
Versatility of Use
The thermal wrap works perfectly with hot water, cold water, glycol solutions, small percentages of alcohol, and brines. Thanks to its elastic polypropylene construction, it remains flexible even at very low temperatures, maintaining performance over time.
It can be easily disassembled and reassembled for cleaning, end-of-season storage, or transferring from one tank to another, making it extremely practical and versatile.
Fixing and Thermal Compensation

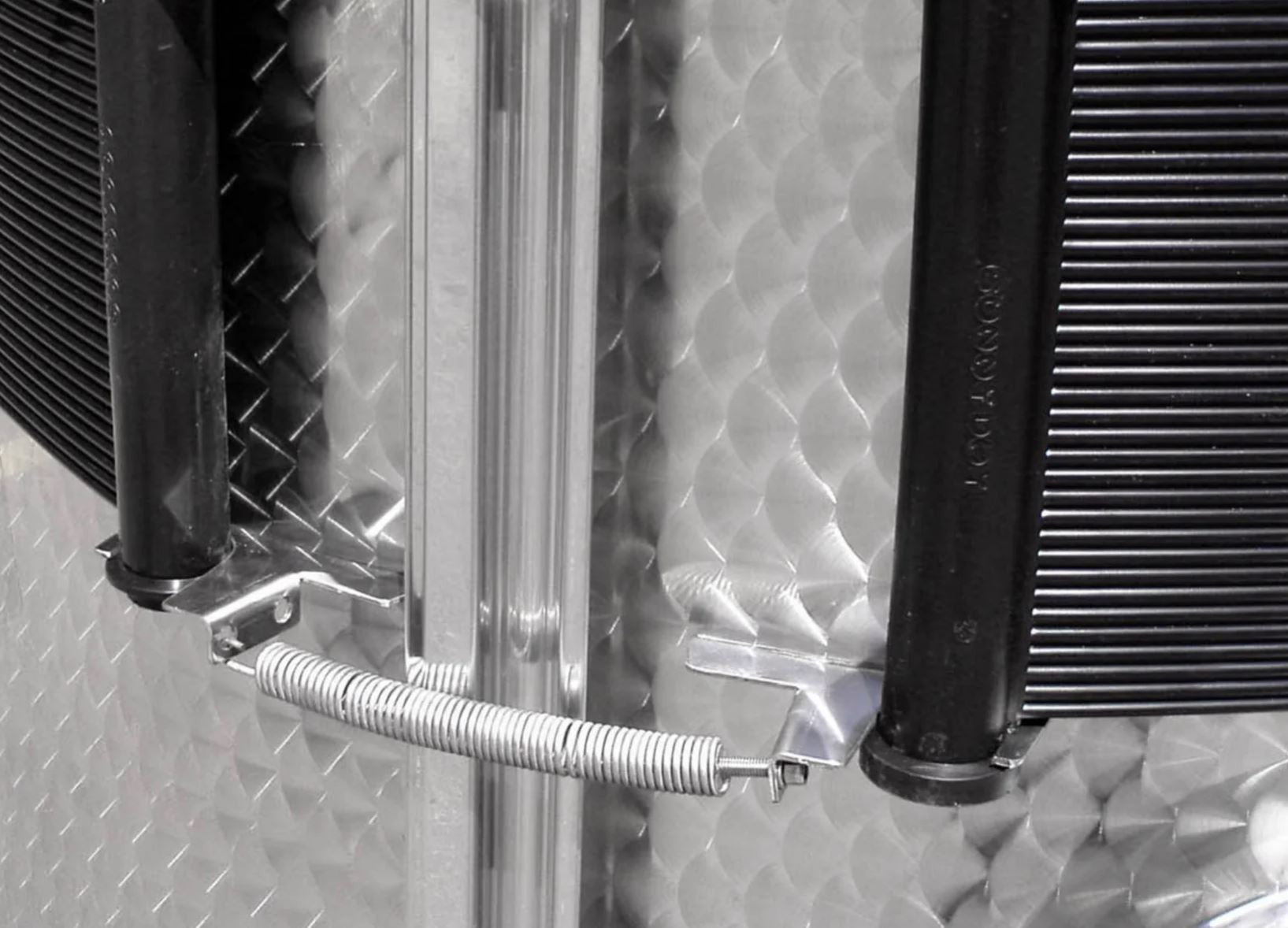

The wrap is fixed to the tank with a easily adjustable stainless steel bracket, equipped with a pre-tensioning device that automatically compensates for thermal expansions, ensuring optimal contact with the tank wall at all times.
Thermal Performance and Monitoring
The direct contact with the tank wall ensures an excellent heat exchange. During the cooling phase, it produces very little condensation, while during the heating phase, it produces none at all. It is possible to insert a probe for monitoring the temperature of the circulating fluid, keeping everything under control.
Integration with the System
The thermal wrap easily connects to the conditioning system with sealed PVC or polypropylene fittings. It also slightly conditions the external environment and can be washed with the same detergents used for tanks, simplifying maintenance.
Discover how this solution can optimize the thermal management of your tanks and improve the quality of your wine and agricultural products!
