Thermal strap diam. 2860 mm
Thermal strap diam. 2860 mm
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Available in 5 days.
The Thermal Strap is the ideal solution for maintaining the optimal temperature of your stainless steel tanks. Designed for tanks with diameter 2860 mm, it guarantees reliable and long-lasting thermal control for your cellar and agricultural needs.
Technical Features
- Tank diameter: Ø 2860 mm
- Tank circumference: 8980 mm
- Standard strap length: 8660 mm
- Surface area per module: 2.68 sqm
- Weight: 800 g/m²
- Module height: 336 mm
- Material: Polypropylene
- Resistance: 3 bar at +50°C (up to 80°C for a short time)
- Elasticity: Maintained down to -20°C
Versatility and Compatibility
Works perfectly with hot and cold water, glycol solutions, small percentages of alcohol, and various brines. The modules connect easily in series or parallel using special quick-connect fittings, while the connection to the pipes occurs via threaded fittings. It is compatible with conditioning systems that use tight PVC or polypropylene fittings.
Installation and Assembly

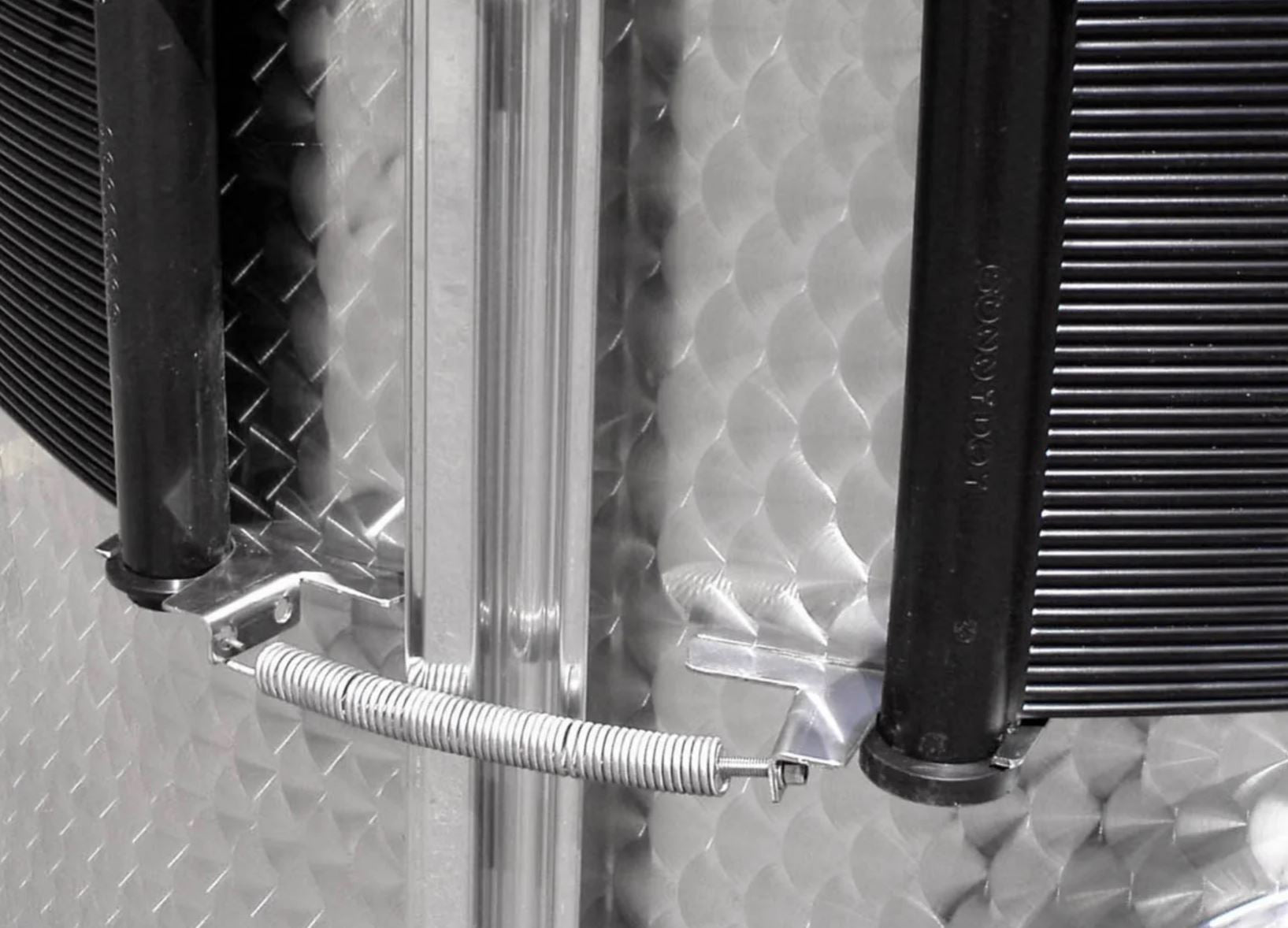

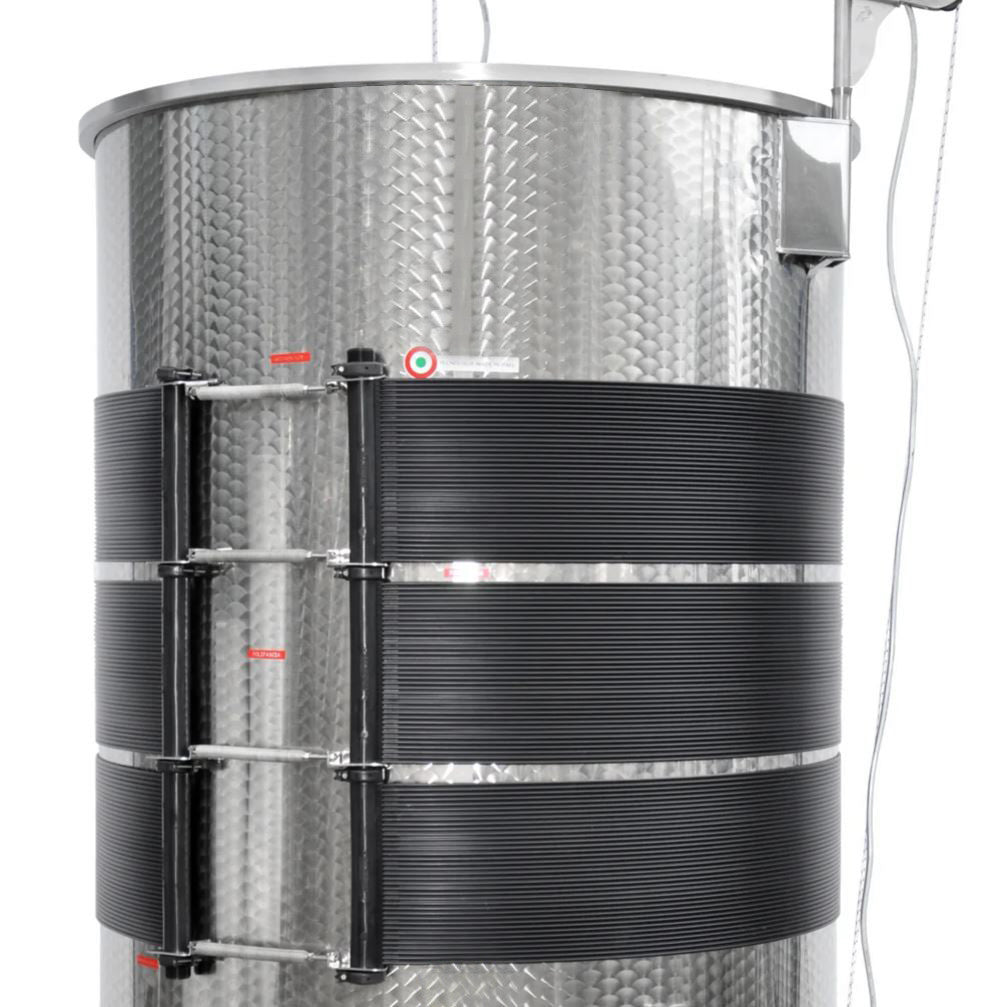

The strap easily wraps around the tank in a circular or continuous spiral manner, and can be distributed over the entire hull and bottoms. It is fixed with an easily adjustable stainless steel bracket, equipped with a pre-tensioning device that automatically compensates for thermal expansions. The disassemblability allows for frequent cleaning, end-of-season storage, and transfer between different containers without difficulty.
Superior Thermal Performance
Thanks to direct contact with the tank wall, the strap guarantees excellent thermal exchange. It produces minimal condensation during cooling and none during heating. It is possible to insert a probe for temperature control of the circulating fluid, allowing for precise and constant monitoring. The exterior also slightly conditions the surrounding environment and can be cleaned with the same detergents used for tanks.

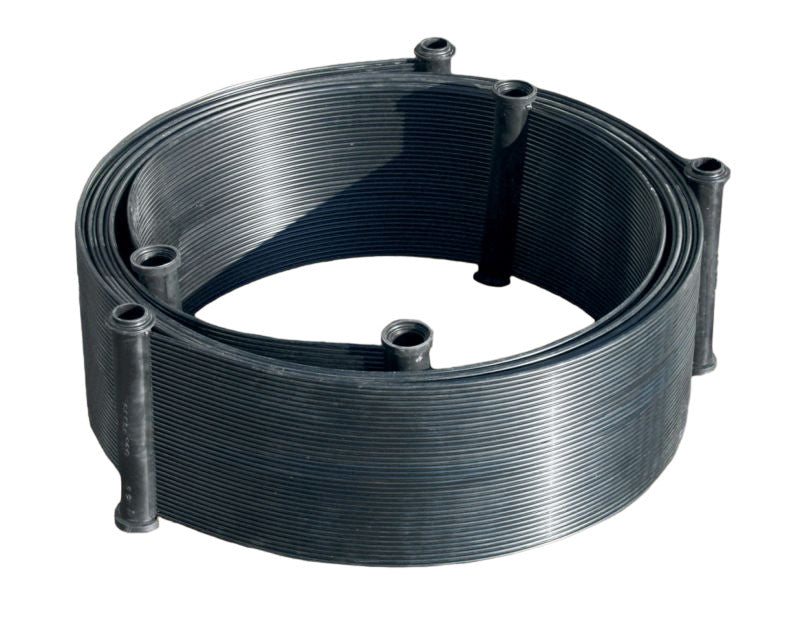

Modular Composition
Each module has a height of 336 mm and can be combined with other modules up to 10 connected pieces via special fittings, allowing you to fully customize the installation based on your specific needs.
