Description
Description

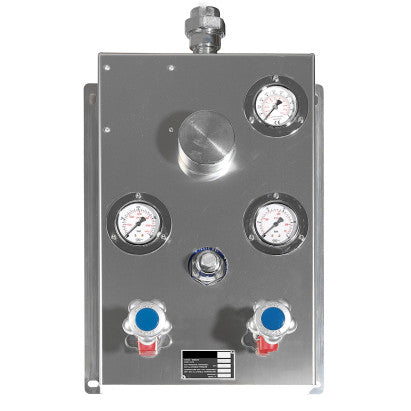

Nitrogen Decompression Unit STAR G.1 for 50 sqm.
Entirely constructed in stainless steel.
The system's main function is to deliver decompressed gas with an output regulation range between 15 and 40 mbar, using source gas from cylinders or cylinder packs at 200 bar.
The product undergoes pressure testing and functional testing before sale in accordance with internal operating instructions under ISO 9001 quality system and Directive 2014/68/EU PED.
The product falls within the scope of Directive 2014/68/EU PED.
Delivery rate: 50 Nm3/h
Maximum pressure: PN230
Operating temperature: -20 °C / +60 °C
Inlet connections: W21.7 x 14f/1"
Outlet connections: G 1"
Ambient temperature: -20 °C / +50 °C
Environmental protection: IP55
Weight: 12 kg
1d = Operating pressure gauge;
1e = Operating pressure adjustment wheel;
1b = Cylinder pressure gauge;
1c = Pressure gauge after first reduction;
1a = Cylinder connection;
The product is mounted on the wall with 4 anchors Ø8 or Ø6, at a convenient height for cylinder accommodation and panel operation.
