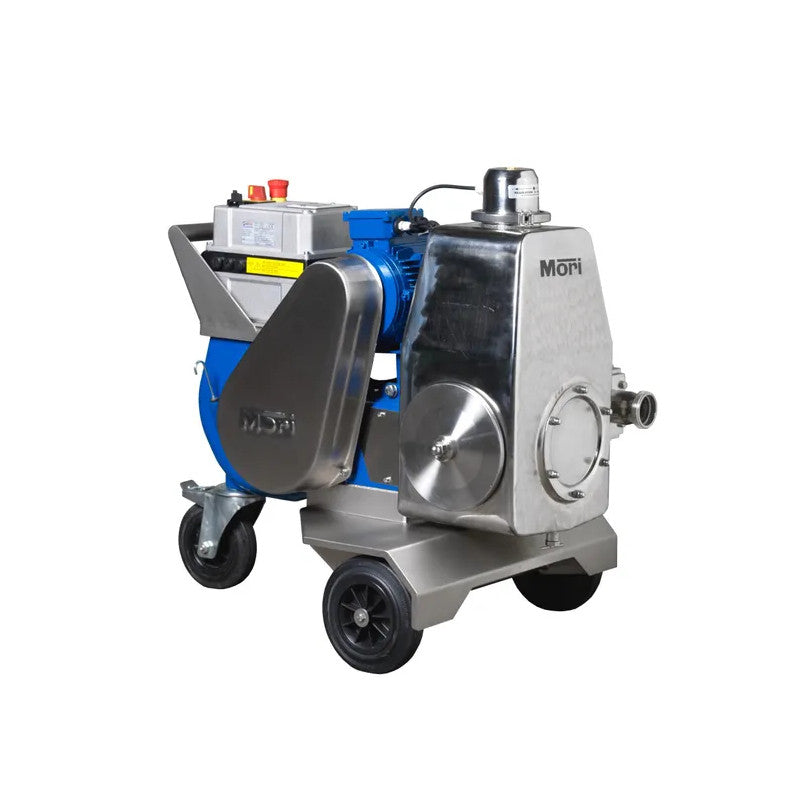

Piston pump "ps 55"
Piston pump "ps 55"
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Available in 20 days
A = 500 mm.
B = 800 mm.
C = 750 mm.
Power supply = 380 V.
Weight = 95 kg.
Flow rate = 110 - 50 Ton/h.
Speed = 2.
Power = 1.5/1.0 Kw - 400 V.
Piping = DN 50 - 40.
A winning card for MORI in terms of reliability and performance, piston pumps have made history in Italian winemaking, undergoing very few but essential modifications over time.
The PS series pumps have a cast reducer body and a stainless steel chamber through which the liquid to be transferred enters, which is sucked and pushed in one of two directions by the closing and opening of food-grade rubber ball valves, with tap inversion.
The pump chamber is isolated from other components by a mechanical seal.
The advantages of these pumps are therefore robustness and high sustainable prevalence during transfers over long distances, in addition to high self-priming capability.
The available models are all two-speed, complete with an automatic pressure switch to adapt to the filling operations of small containers.
Can be equipped with wired control, remote control, and electronic inverter.
Suitable for transferring wine, must, pomace, juice, fruit pulp, and vinegar.
The pump body, inverter, cylinders, covers, and other internal parts are made of Aisi 304 stainless steel, including the trolley, electrical system holder, and belt guard.
Double-acting piston pumps with 2 speeds, self-priming with the possibility of dry operation.
Automatic pressure switch on the 2 speeds that starts and stops the motor by operating the end-of-tube tap.
Exclusive system for cleaning the bell.
Cap for total liquid discharge from the pump body.
