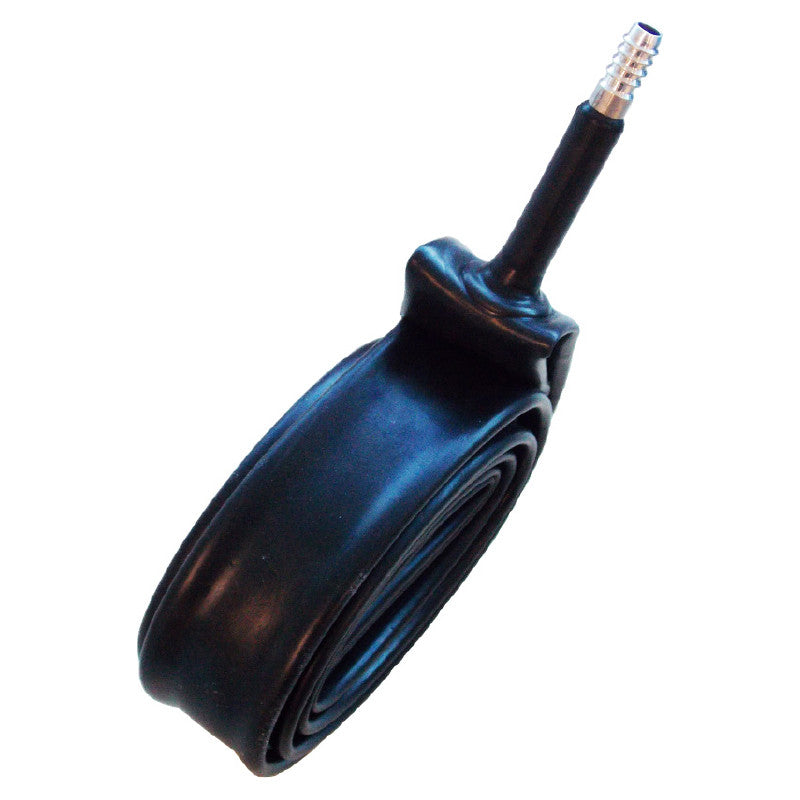

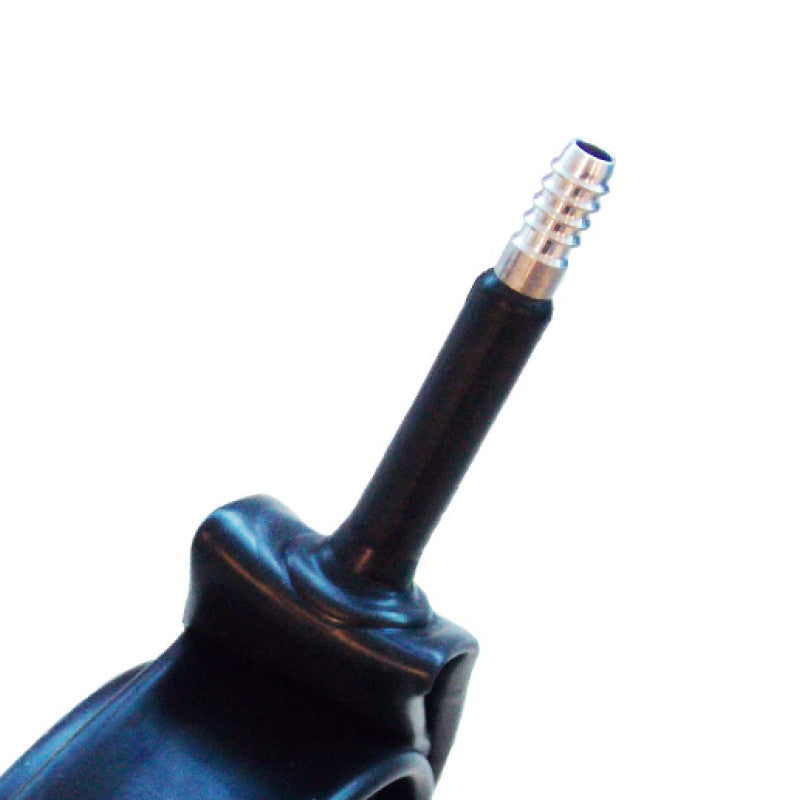

Air chamber d. 800 black steel support
Air chamber d. 800 black steel support
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
The reliable solution for your tanks: an air chamber specifically designed for floats in stainless steel and fiberglass tanks. Compatible with always full flat bottom, conical, and bulged models, it guarantees total impermeability once inflated, effectively protecting the inner surface of the tank.
Made from non-toxic materials approved for food contact, this air chamber ensures maximum safety for your food applications, complying with the strictest international standards.
How to install it correctly:
- Check the condition of the plastic vent valve on the float: check its integrity and, if necessary, clean or replace it.
- Remove the new air chamber from the package and insert the nozzle into the hole of the float, wrapping it around the edge like a bicycle wheel.
- Connect the pump's rubber tube to the nozzle of the air chamber and secure it with clamps to prevent any leaks.
- Inflate the air chamber until reaching the "green" zone on the pump's pressure gauge.
- Secure the recovery cord before placing the float in the tank.
Technical specifications:
- Material: EPDM 70 ±5 SH/A Black
- Operating temperature: -20 / +105 °C
- Inflation pressure: 0.6 Bar
- Diameter: 800 mm
- Valve: Steel support
- Regulatory compliance: FDA CFR Title 21 Part 177.2600 and Regulation (EC) No. 1935/2004
Your payment information is processed securely. We do not store credit card details nor do we have access to your card information.
Description
Description
The reliable solution for your tanks: an air chamber specifically designed for floats in stainless steel and fiberglass tanks. Compatible with always full flat bottom, conical, and bulged models, it guarantees total impermeability once inflated, effectively protecting the inner surface of the tank.
Made from non-toxic materials approved for food contact, this air chamber ensures maximum safety for your food applications, complying with the strictest international standards.
How to install it correctly:
- Check the condition of the plastic vent valve on the float: check its integrity and, if necessary, clean or replace it.
- Remove the new air chamber from the package and insert the nozzle into the hole of the float, wrapping it around the edge like a bicycle wheel.
- Connect the pump's rubber tube to the nozzle of the air chamber and secure it with clamps to prevent any leaks.
- Inflate the air chamber until reaching the "green" zone on the pump's pressure gauge.
- Secure the recovery cord before placing the float in the tank.
Technical specifications:
- Material: EPDM 70 ±5 SH/A Black
- Operating temperature: -20 / +105 °C
- Inflation pressure: 0.6 Bar
- Diameter: 800 mm
- Valve: Steel support
- Regulatory compliance: FDA CFR Title 21 Part 177.2600 and Regulation (EC) No. 1935/2004
