Air chamber d. 700 black steel support
Air chamber d. 700 black steel support
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
The reliable solution for your tanks

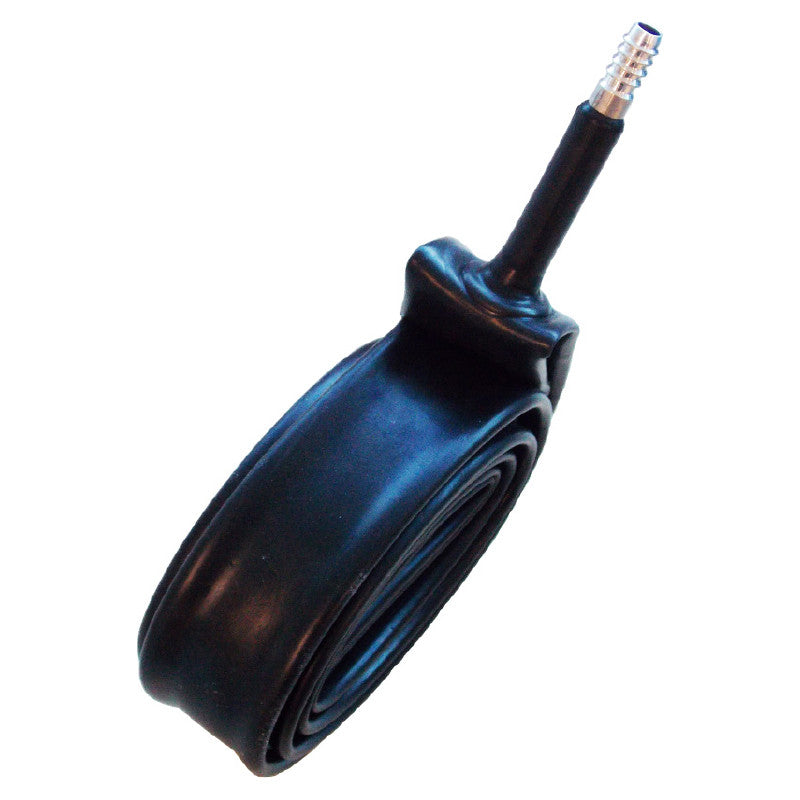

This air chamber for float is the essential component to ensure the perfect operation of automatic filling systems for stainless steel and fiberglass tanks. Compatible with all flat bottom, conical, and bulged models, it guarantees total impermeability and impeccable sealing once inflated.
Made with non-toxic EPDM materials approved for food contact according to the most stringent international regulations (FDA CFR Title 21 Part 177.2600 and Regulation (EC) No. 1935/2004), it ensures maximum safety and reliability over time.
How to install the air chamber in a few simple steps:
- Carefully check the plastic vent valve on the float: verify its integrity and clean or replace it if necessary.

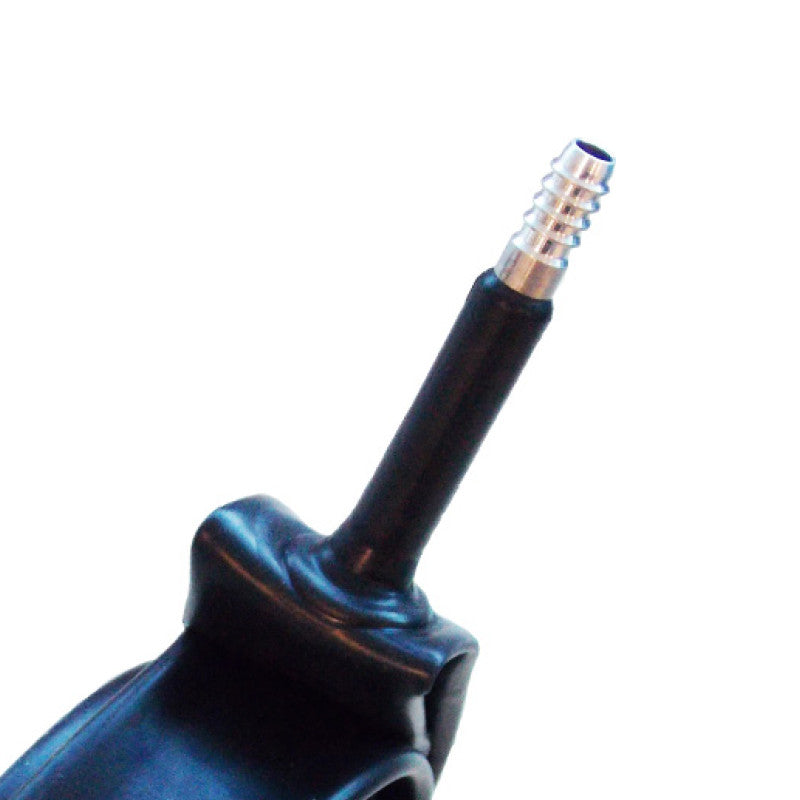

- Remove the new air chamber from the package and insert the nozzle into the hole of the float, wrapping it around the edge like a bicycle wheel.
- Connect the pump's rubber tube to the nozzle of the air chamber and secure it tightly with clamps to prevent any leaks.
- Inflate the air chamber until reaching the "green" zone on the pump's pressure gauge.
- Secure the recovery cord before placing the float inside the tank.
Technical specifications:
- Material: EPDM 70 ±5 SH/A Black
- Operating temperature: -20 °C to +105 °C
- Inflation pressure: 0.6 Bar
- Compliance: FDA CFR Title 21 Part 177.2600 and Regulation (EC) No. 1935/2004
- Support: Steel
- Diameter: 700 mm
