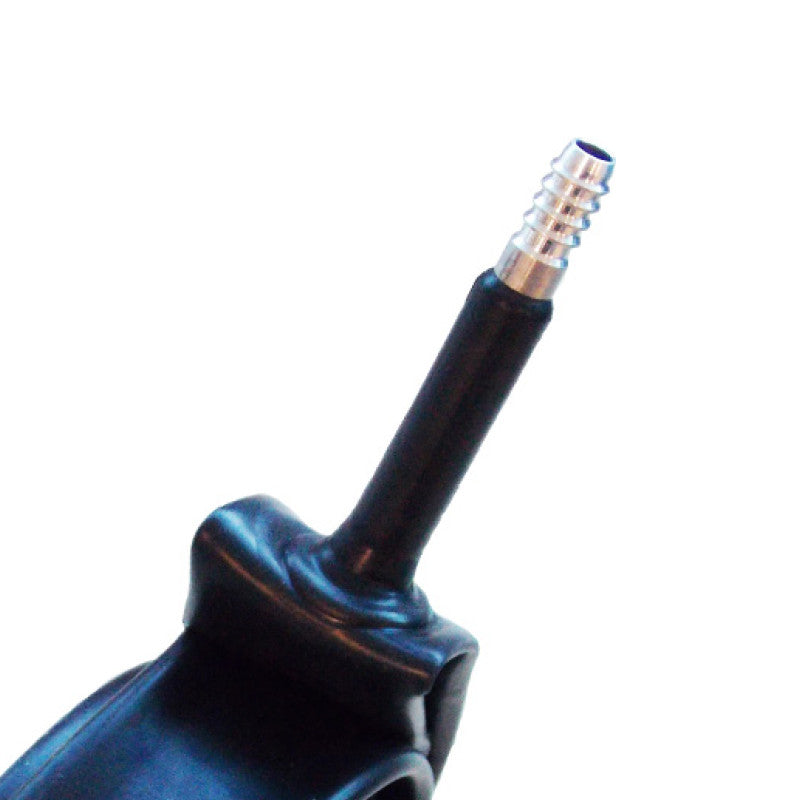

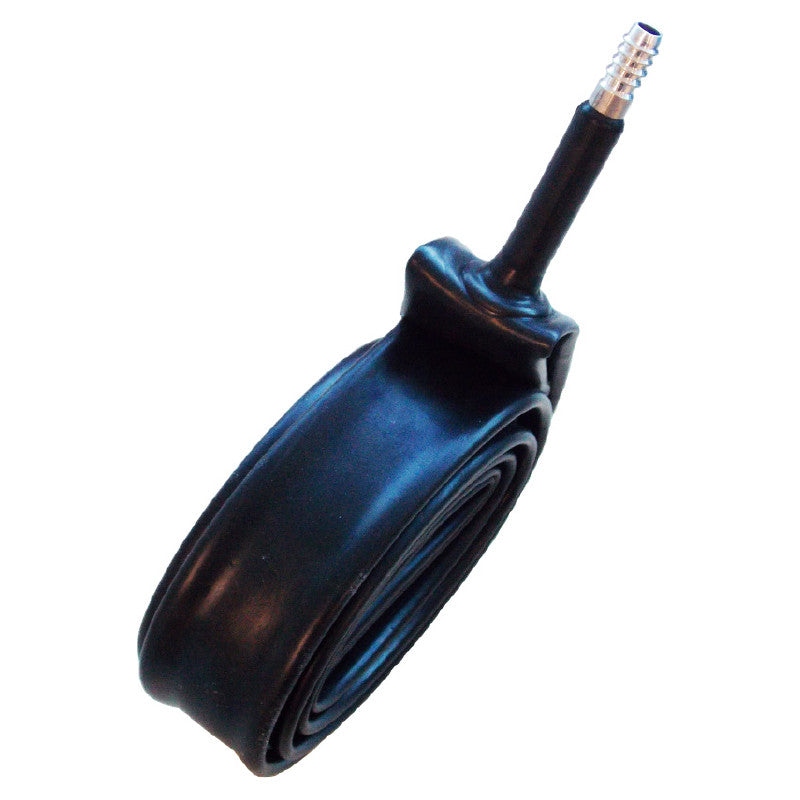

Air chamber d. 1300 black steel puncture
Air chamber d. 1300 black steel puncture
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Discover our air chamber for float with a diameter of 1300 mm, the reliable and durable solution for stainless steel and fiberglass tanks. Perfect for flat bottom, conical, and domed models, this air chamber ensures total waterproofing between the float and the inner surface of the tank once properly inflated.
Made with non-toxic EPDM materials approved for food contact, it guarantees maximum safety and regulatory compliance. A reliable product that will never leave you high and dry!
Installation Instructions
- Carefully check the plastic vent valve on the float to ensure integrity; clean or replace it if necessary.
- Insert the nozzle of the new air chamber into the hole of the float, wrapping it around the edge like a bicycle wheel.
- Connect the rubber hose from the pump to the nozzle of the air chamber and secure it with clamps to prevent leaks.
- Inflate the air chamber until reaching the "green" zone on the pump's pressure gauge.
- Secure the recovery cord before placing the float in the container.
Technical Features
- Diameter: 1300 mm
- Material: EPDM 70 ±5 SH/A Black with steel puncture
- Operating Temperature: -20 / +105 °C
- Inflation Pressure: 0.6 Bar
- Regulatory Compliance: Approved for food use according to FDA CFR Title 21 Part 177.2600 and Regulation (EC) No. 1935/2004
