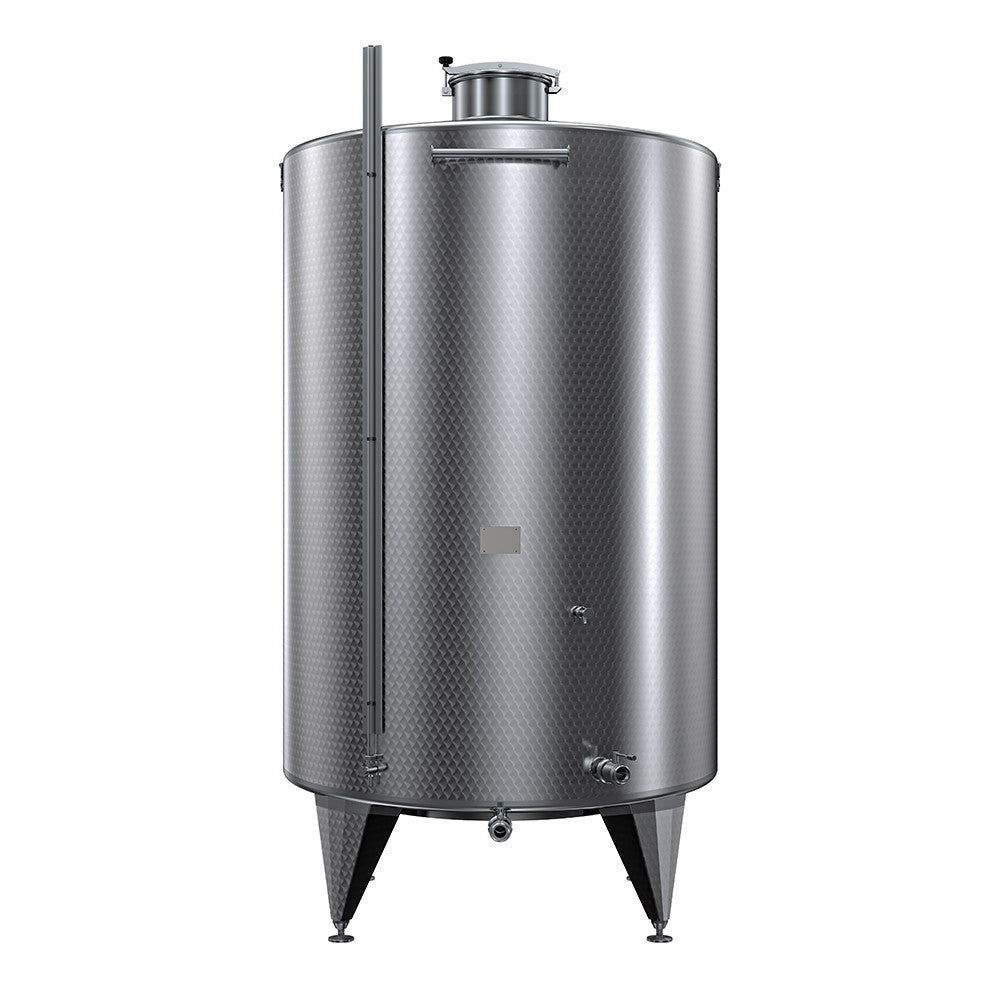

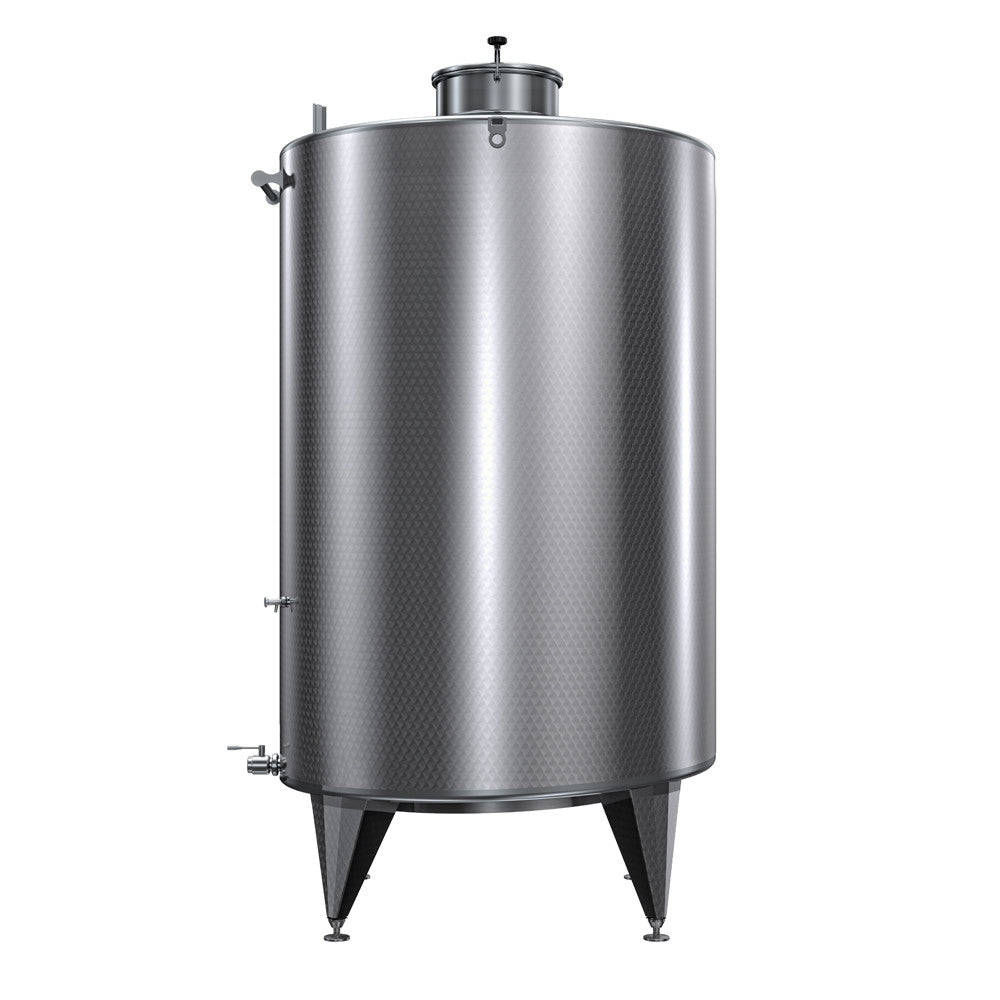

Custom inclined bottom storage tank ø 1400 from 3400 to 5000 lt
Custom inclined bottom storage tank ø 1400 from 3400 to 5000 lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Professional storage tank made of AISI 304 stainless steel, the ideal solution for preserving oil, wine, and food liquids in optimal conditions. Designed and built entirely in Italy with excellent quality materials.

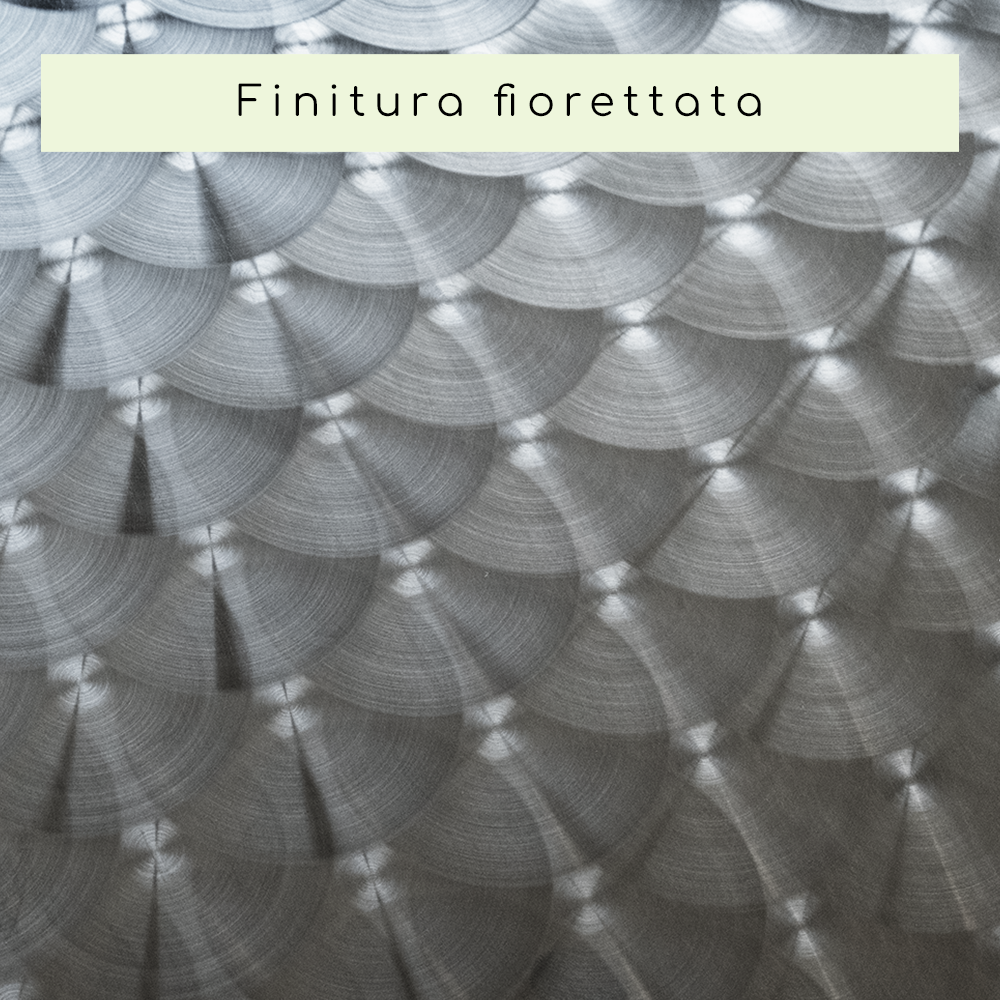

Equipped with a 4% inclined flat bottom for optimal drainage, it features an elegant and durable brushed external finish, while the interior is polished to ensure hygiene and facilitate cleaning.
Technical specifications:
- Effective diameter (Øe): 1430 mm
- Total height (Htot):
- 3400 lt: 2865 mm
- 4200 lt: 3365 mm
- 5000 lt: 3865 mm
- Steel thickness at the bottom: 2 mm
- Steel thickness at the top: 1.5 mm
- Steel thickness at the shell: 1.5 mm
Cooling jacket included (with thermometer and probe holder):
- Height: 750 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 3.4 sqm
- Operating pressure: 3 bar max
- Inlet/outlet connections: 3/4" male gas fitting
The tank comes complete with:

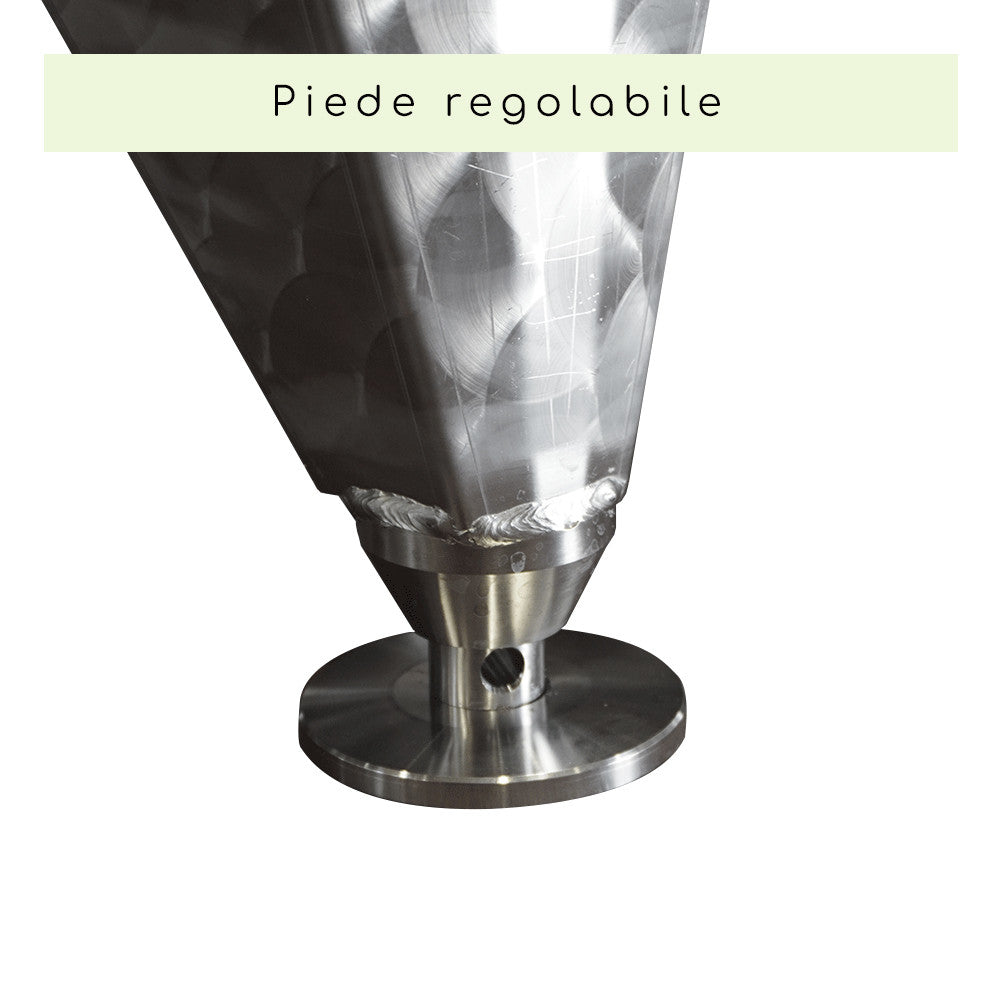

- 3 welded feet, height 500 mm
- Drain with selectable valve

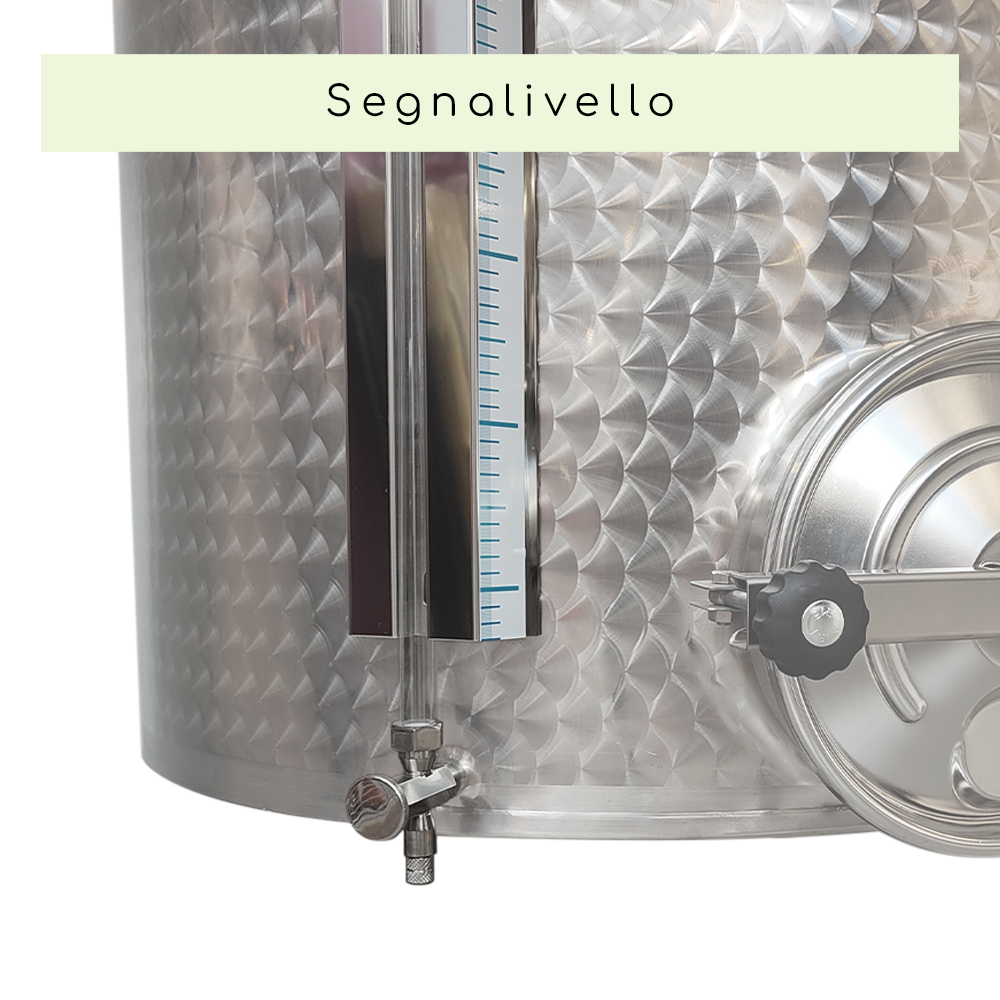

- Protection level indicator in stainless steel with transparent plexiglass tube and stainless steel protection; adhesive millimeter indication, shut-off valve, and column drain included

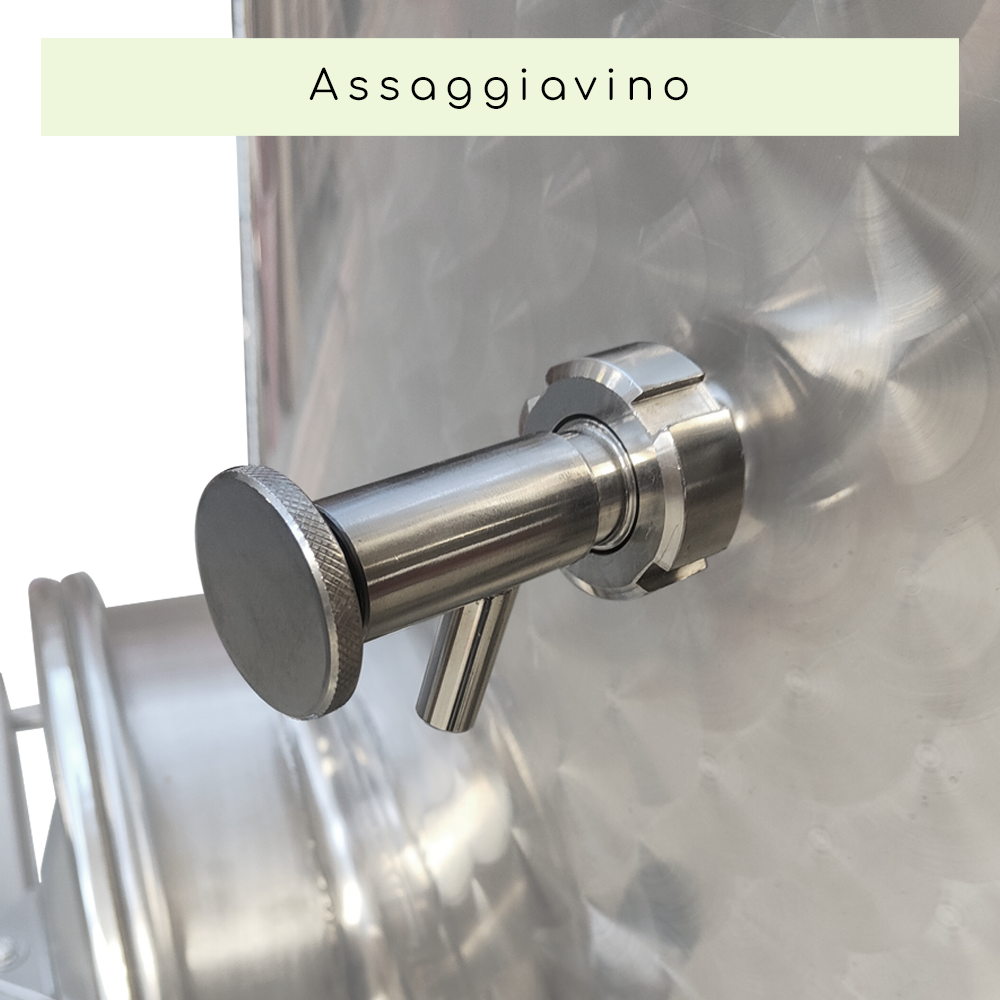

- Stainless steel sampling tap with DIN 15 connection

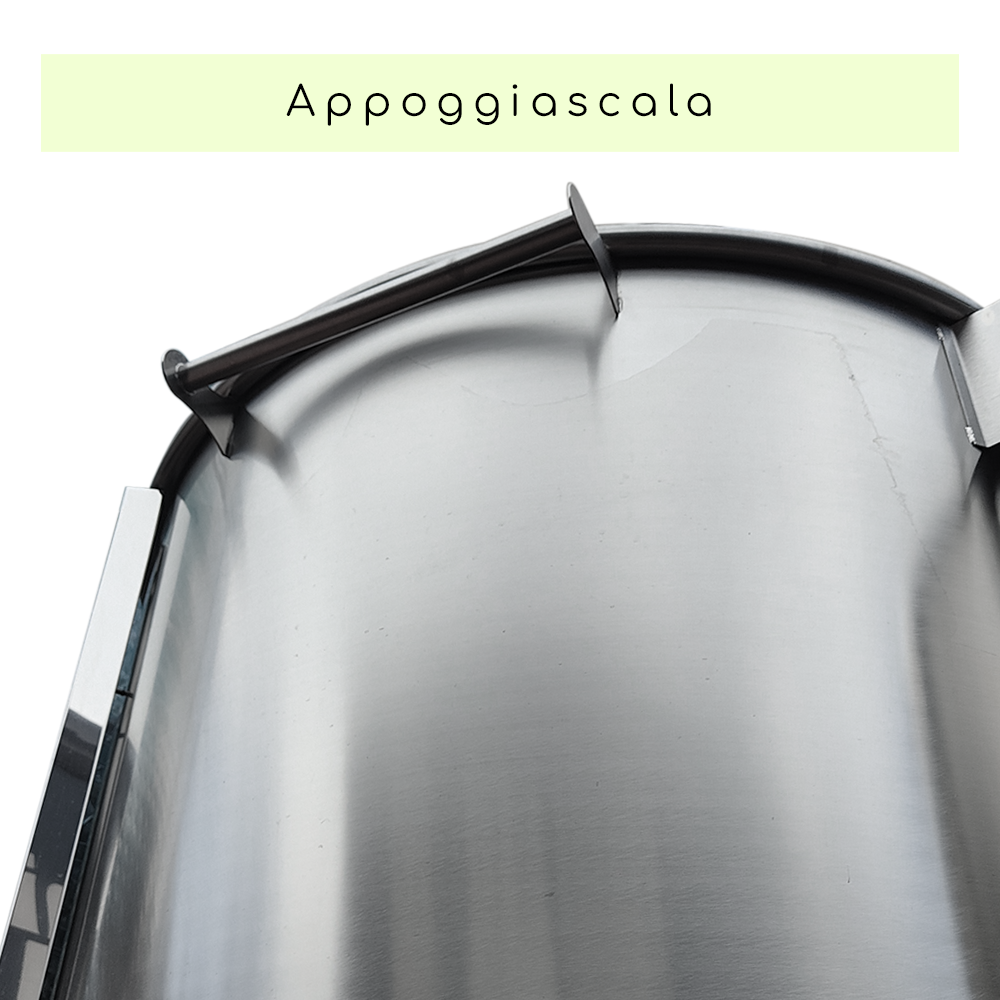

- Stainless steel ladder support, length 500 mm, positioned on top

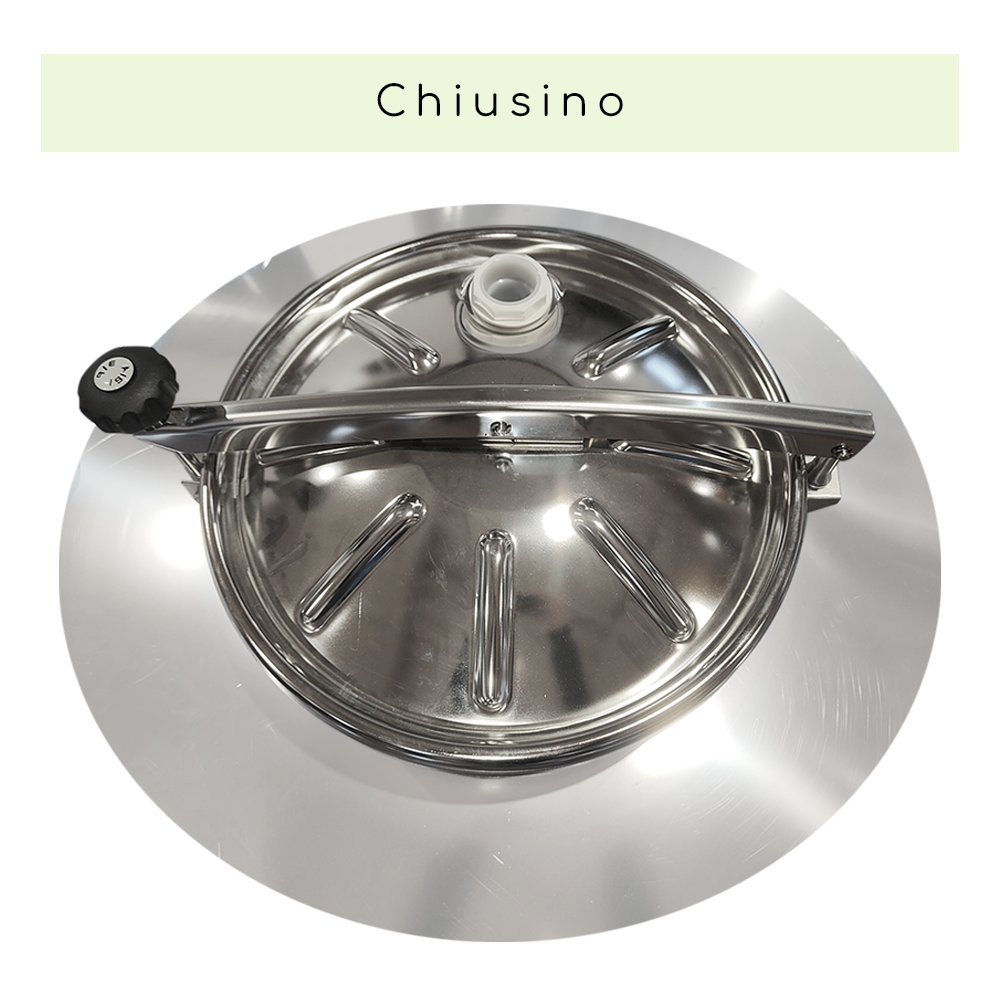

- Top hatch with PVC vent valve
Authentic product entirely Made in Italy, made with high-quality materials to ensure reliable performance over time.
