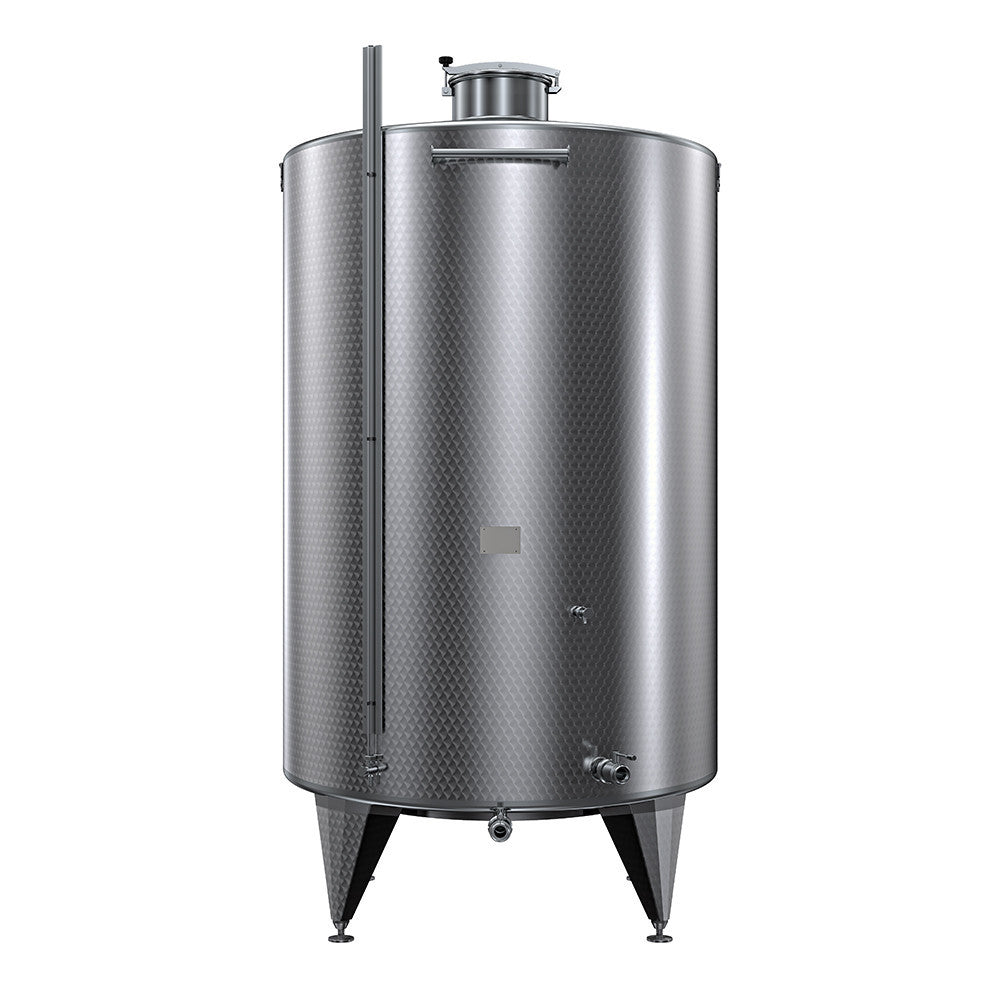

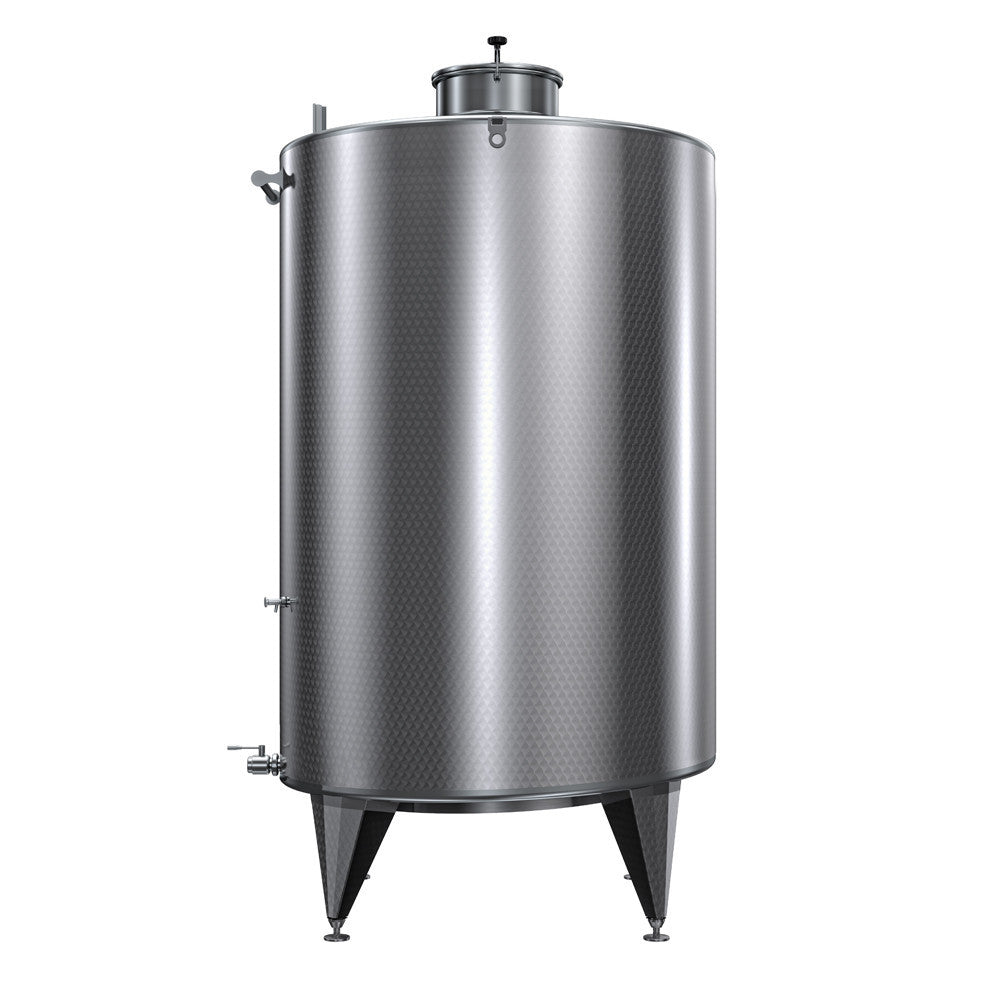

Inclined flat bottom storage tank custom ø 2420 from 10000b to 25000a l
Inclined flat bottom storage tank custom ø 2420 from 10000b to 25000a l
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
AISI 304 Stainless Steel Tank for professional storage of oil, wine, and food-grade liquids. A robust and reliable solution, entirely Made in Italy, designed to ensure maximum quality and durability over time.

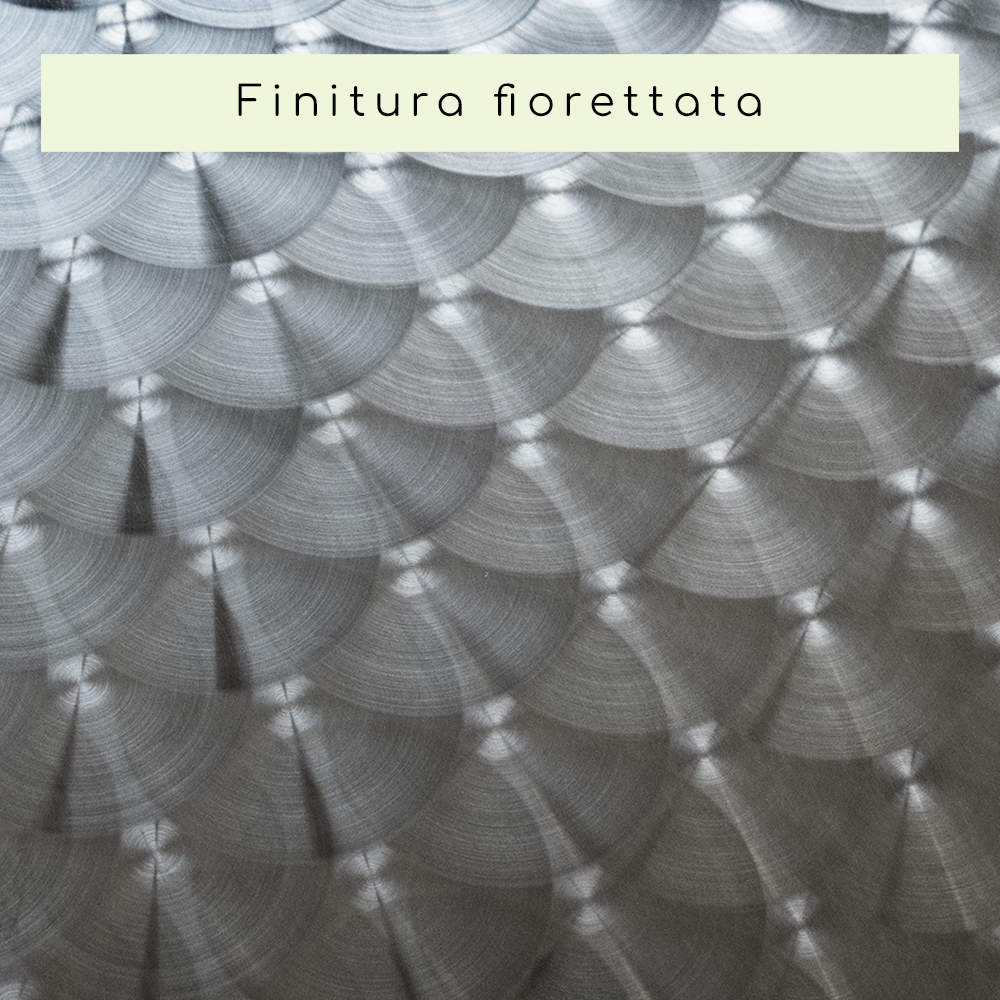

The flat bottom inclined at 4% ensures complete emptying of the contents, while the external satin finish and internal polished finish guarantee optimal aesthetics and hygiene.
Technical Specifications
- Actual Diameter (Øe): 2420 mm
-
Available Heights (Htot):
- LT 10000B: 3435 mm
- LT 12500B: 3935 mm
- LT 15000A: 4685 mm
- LT 20000A: 5685 mm
- LT 25000A: 6685 mm
- Steel Thickness: Bottom 3 mm | Roof 2 mm | Shell 1.5 mm
-
Cooling Jacket Included:
- Height: 900 mm
- Steel Thickness: 0.7 mm
- Exchange Surface: 4.9 sqm
- Operating Pressure: 3 bar max
- Connections: 3/4" Gas male stub
- Equipment: thermometer and probe holder included
Complete Standard Equipment

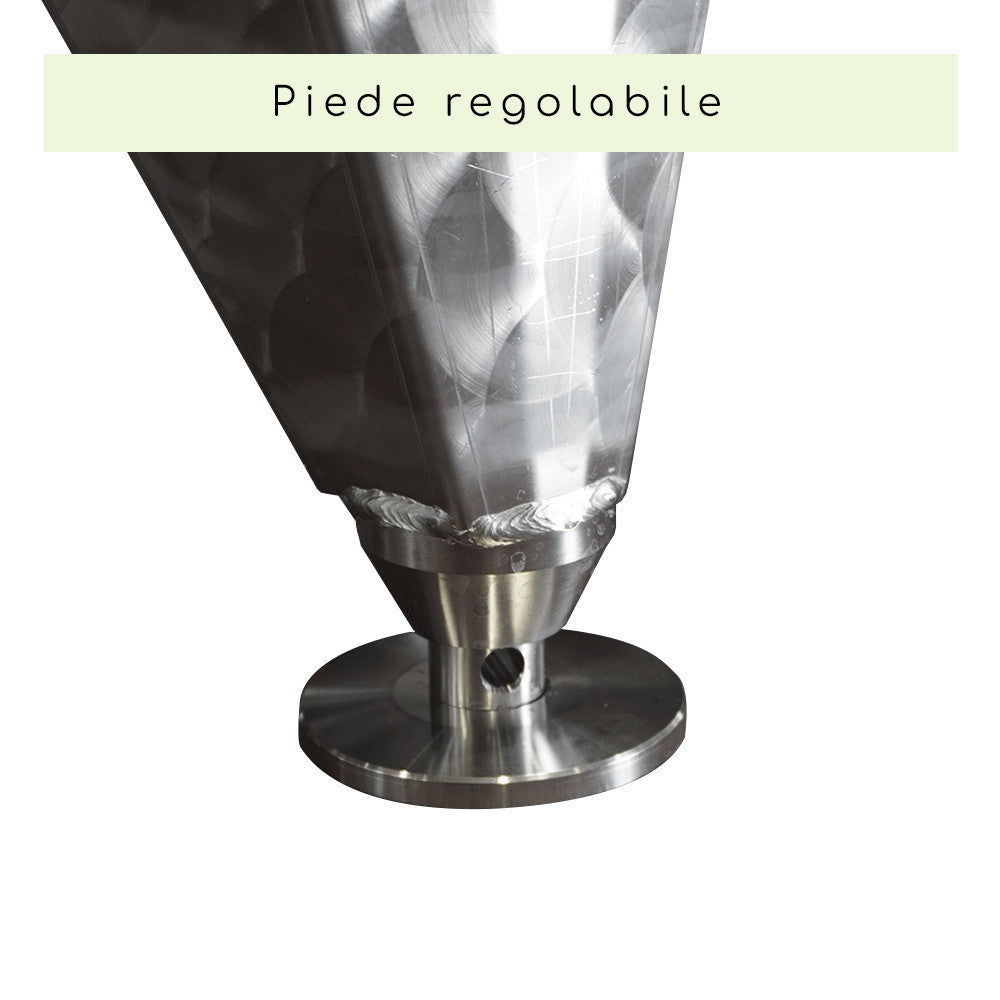

- Welded feet (from 5 to 7 depending on diameter)
- Drain with valve of choice

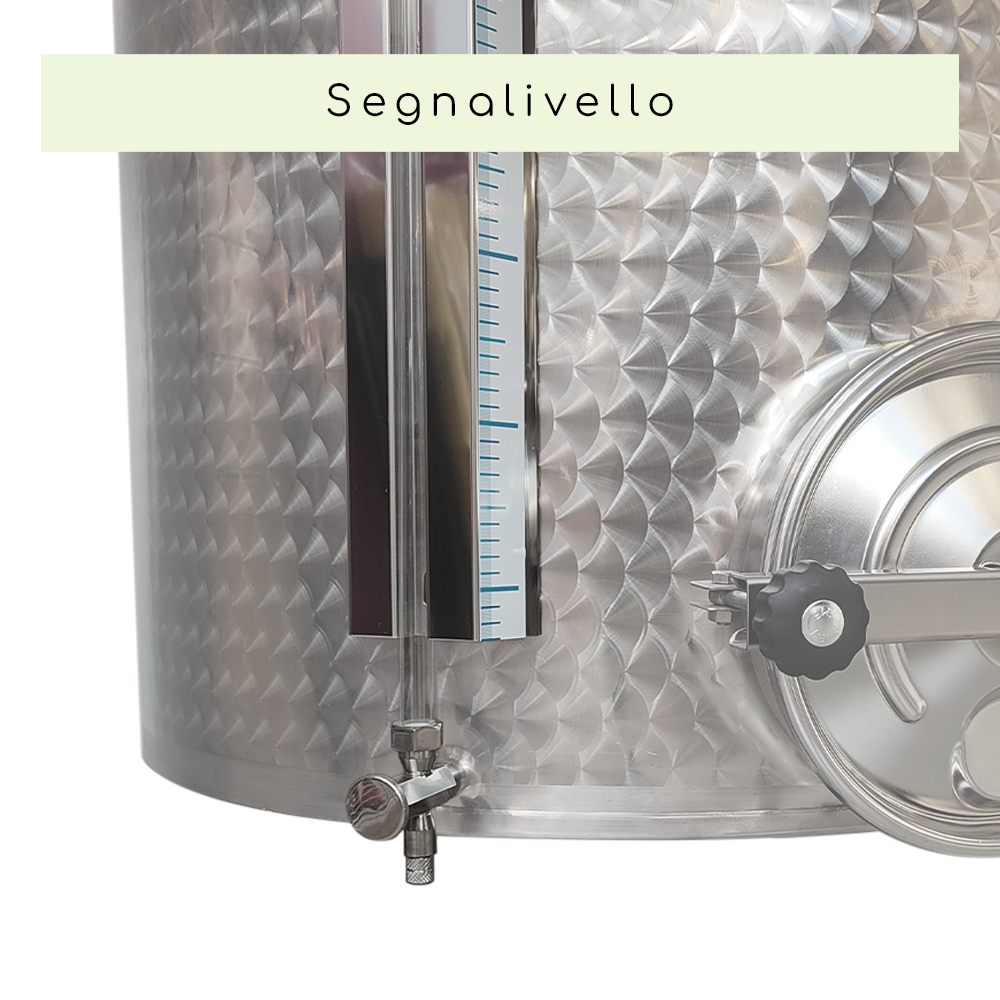

- Stainless steel protective level indicator with plexiglass tube, adhesive millimeter indication, shut-off valve, and column drain

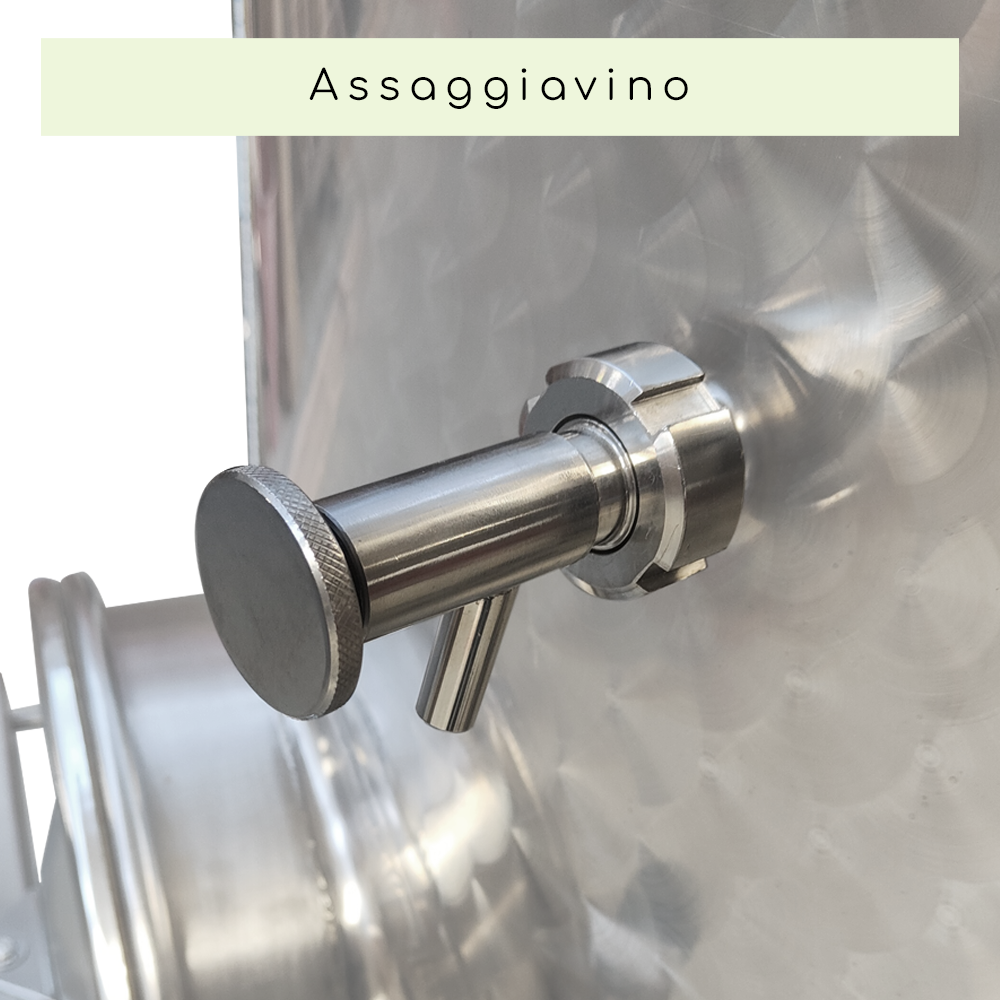

- Stainless steel screw-type sample tap with DIN 15 connection

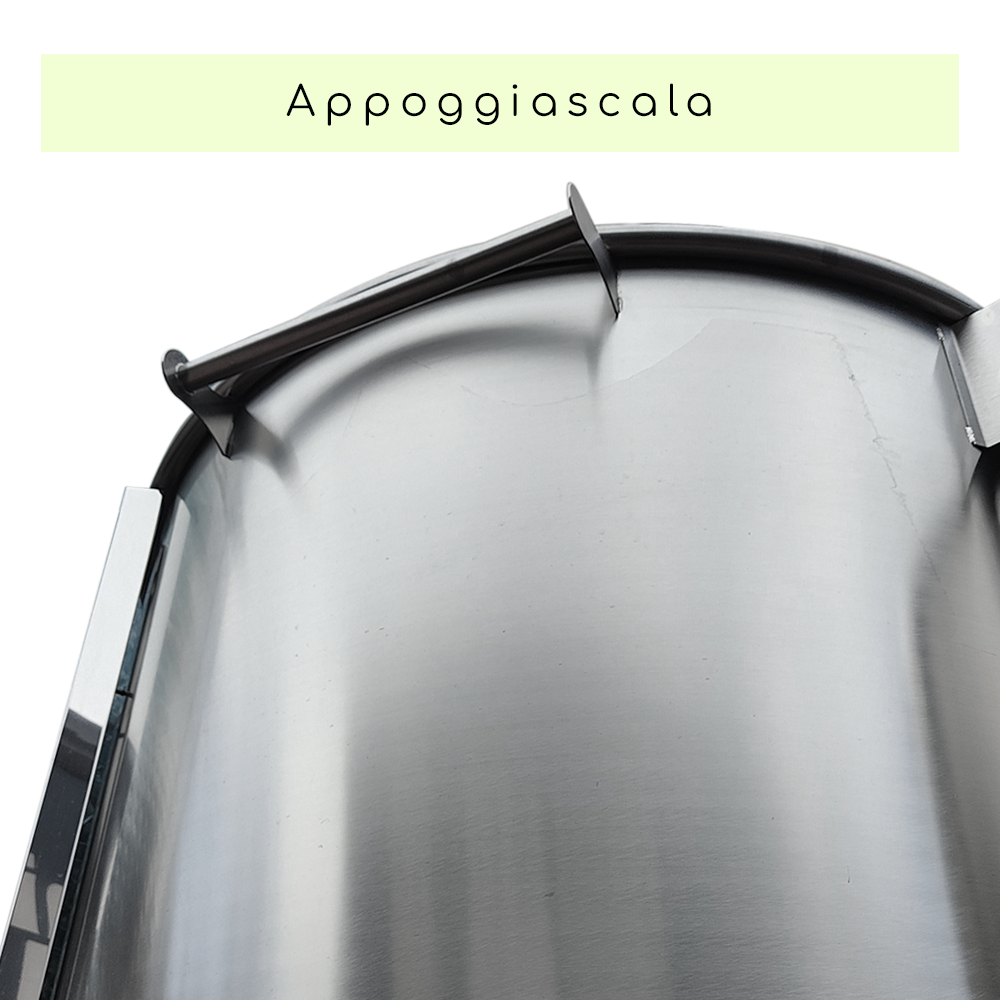

- Stainless steel ladder rest (length 500 mm) positioned at the top

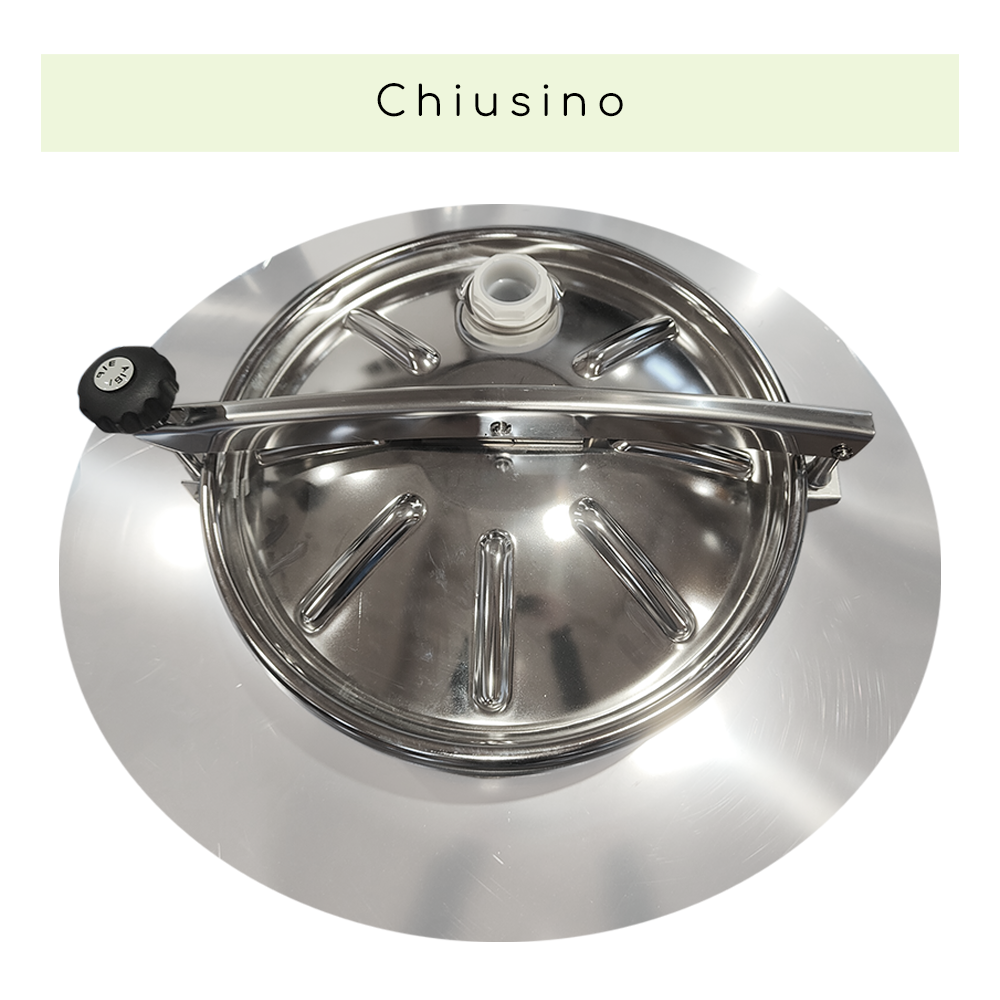

- Upper manhole with PVC vent valve
Product entirely made in Italy with excellent quality materials.
