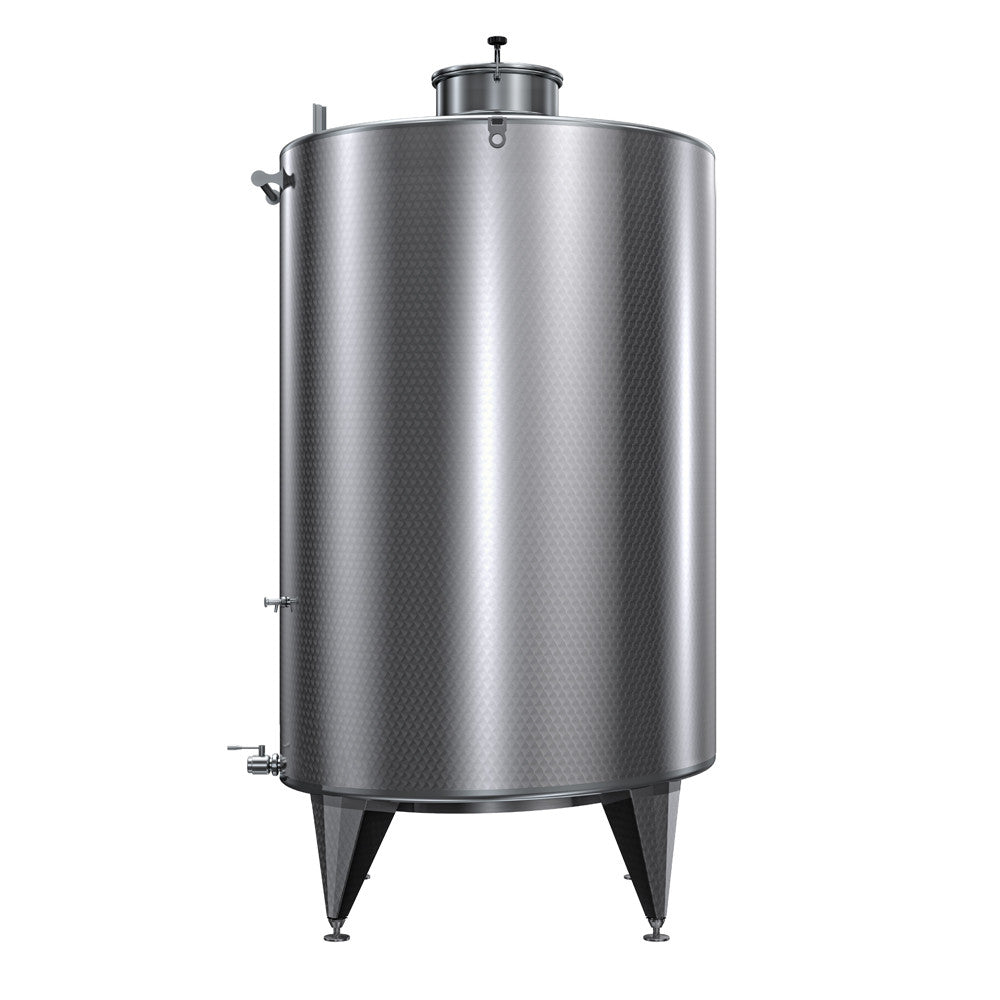

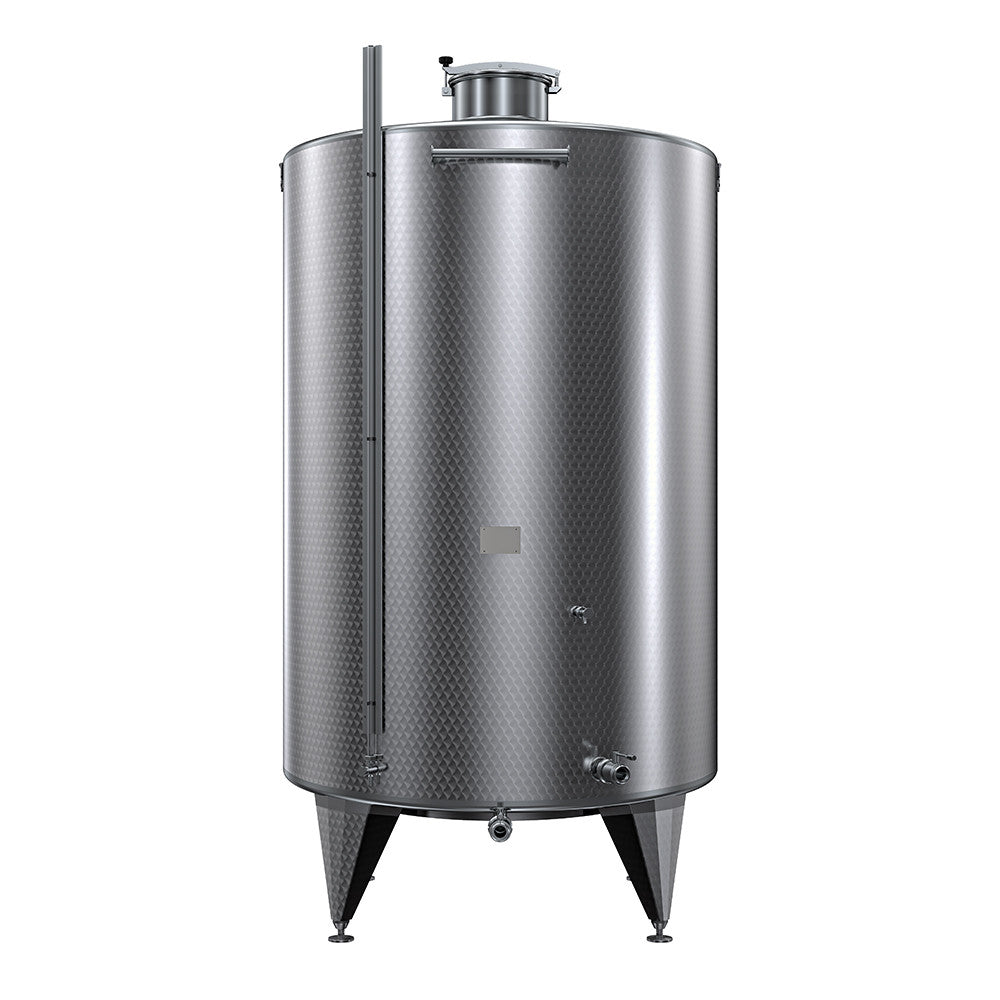

Custom inclined bottom storage tank ø 1600 from 4300 to 6300 lt
Custom inclined bottom storage tank ø 1600 from 4300 to 6300 lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description

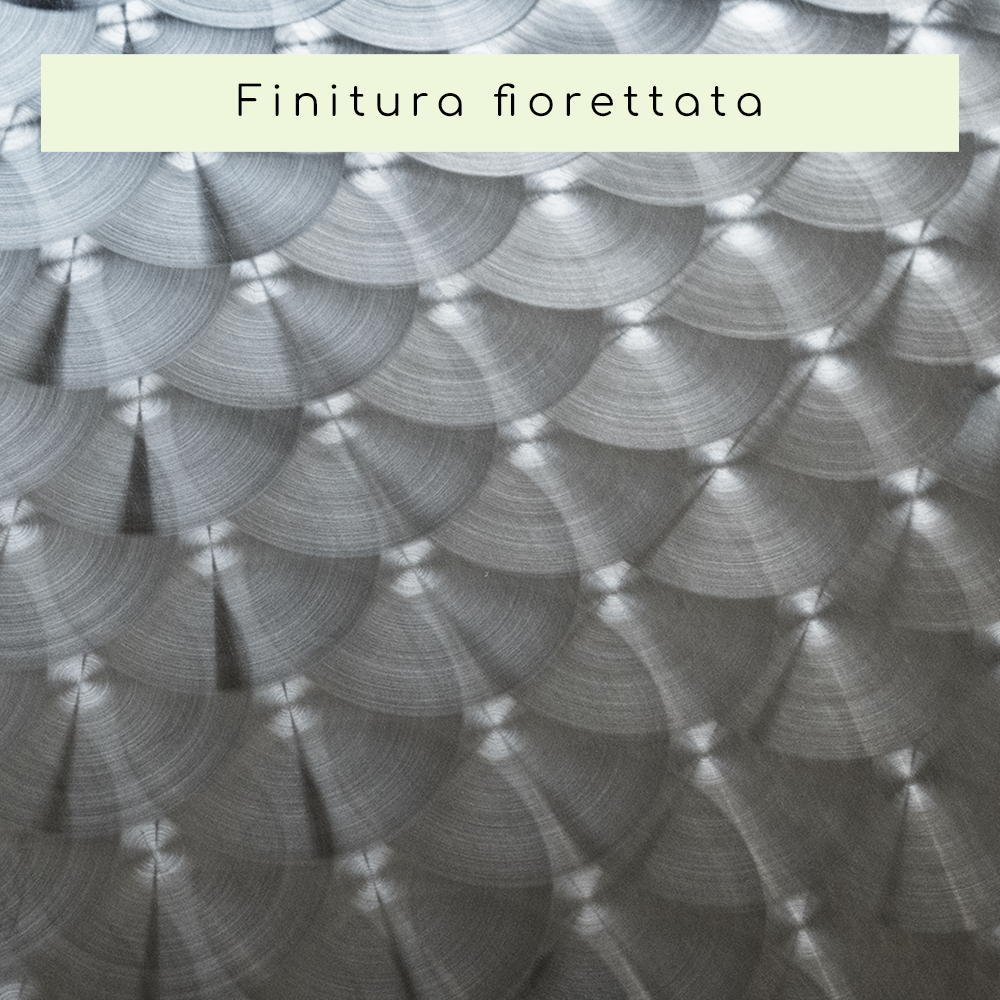

The professional storage tank that does not compromise on quality. Made entirely of AISI 304 stainless steel, this container is the ideal choice for those working with wine, oil, and food liquids who want to leave nothing to chance. 4% inclined bottom for optimal drainage, elegant brushed external finish, and polished internal finish for easy cleaning.
Main Technical Specifications:
- Effective diameter: Ø 1600 mm
- Available heights:
- 4300 liters: 2880 mm
- 5300 liters: 3380 mm
- 6300 liters: 3880 mm
- Steel thicknesses: Bottom 2 mm | Top and shell 1.5 mm
Integrated Cooling Jacket:
- Height: 750 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 3.8 sqm
- Operating pressure: 3 bar max
- Connections: 3/4" male gas fitting
- Included: thermometer and probe holder
Complete Accessories Included in the Price:

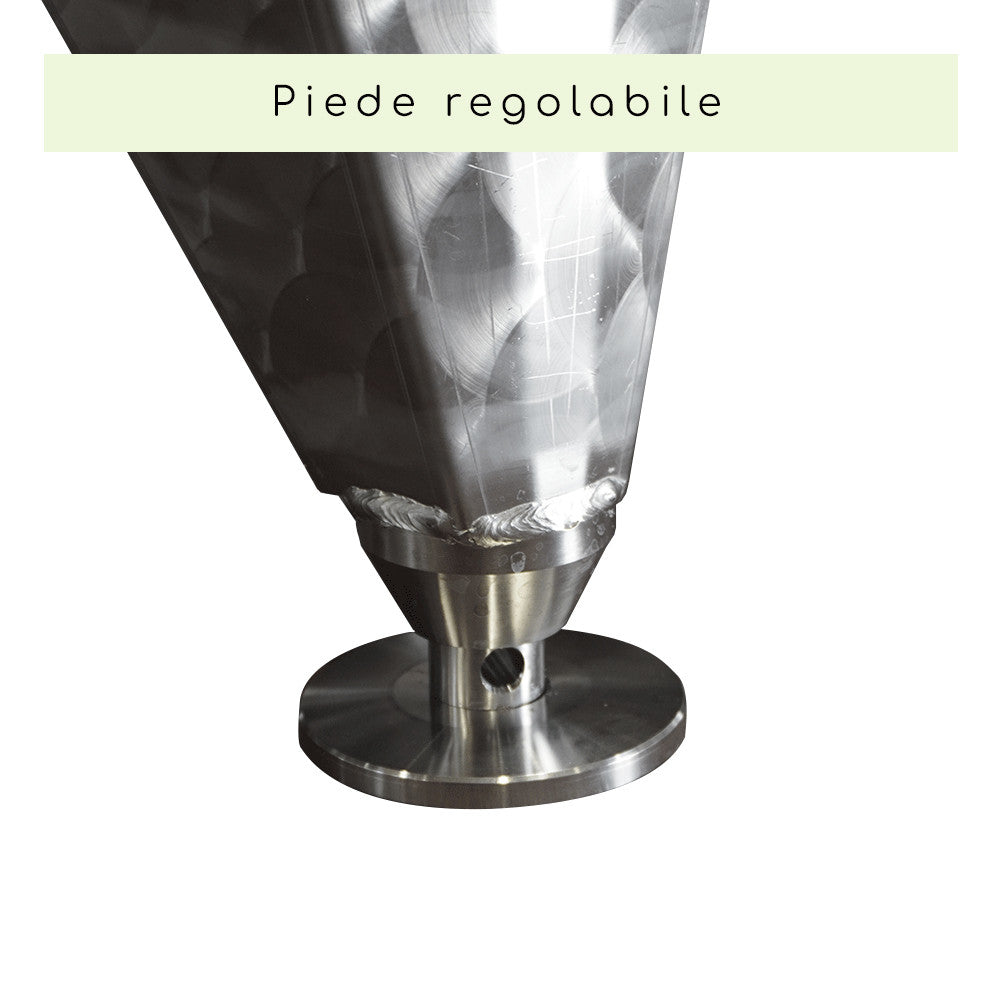

- 3 welded steel feet (height 500 mm)
- Drain with valve selectable according to your needs

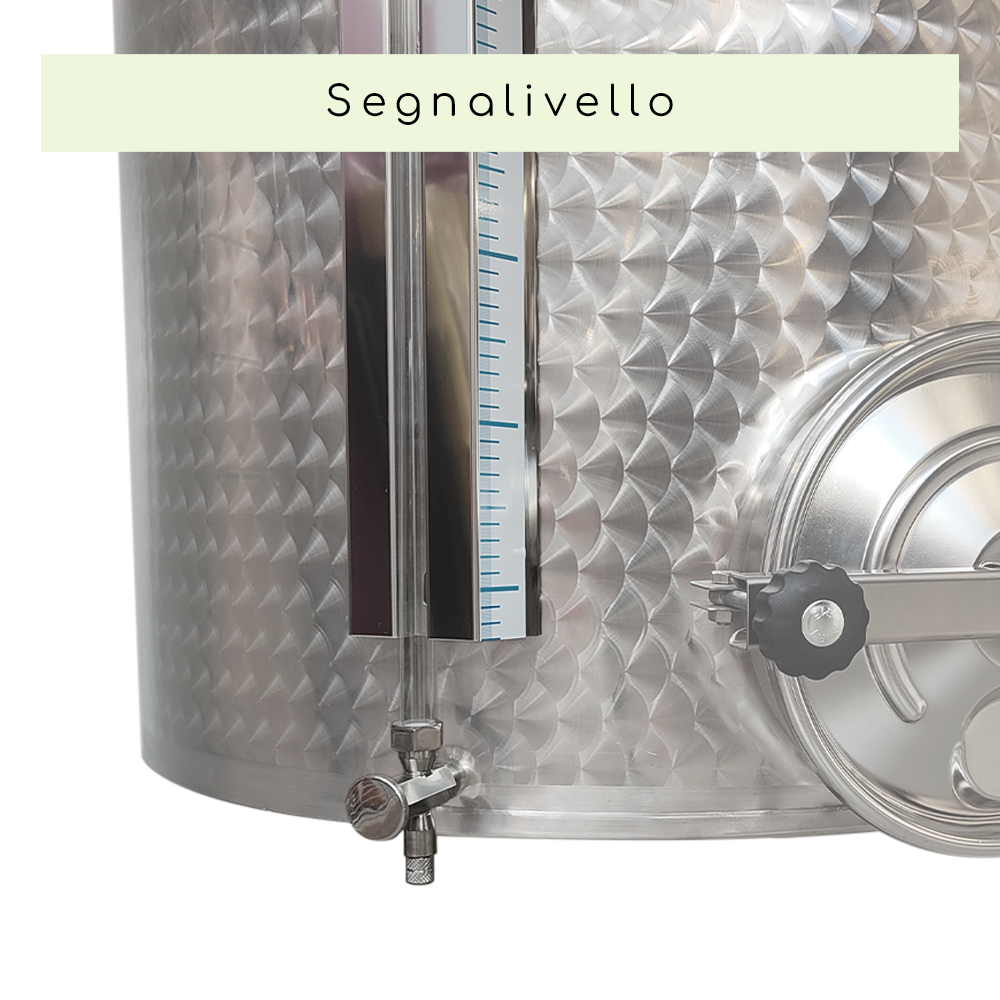

- Protection level indicator in stainless steel with transparent plexiglass tube, stainless steel protection, adhesive millimeter indication, shut-off valve, and column drain

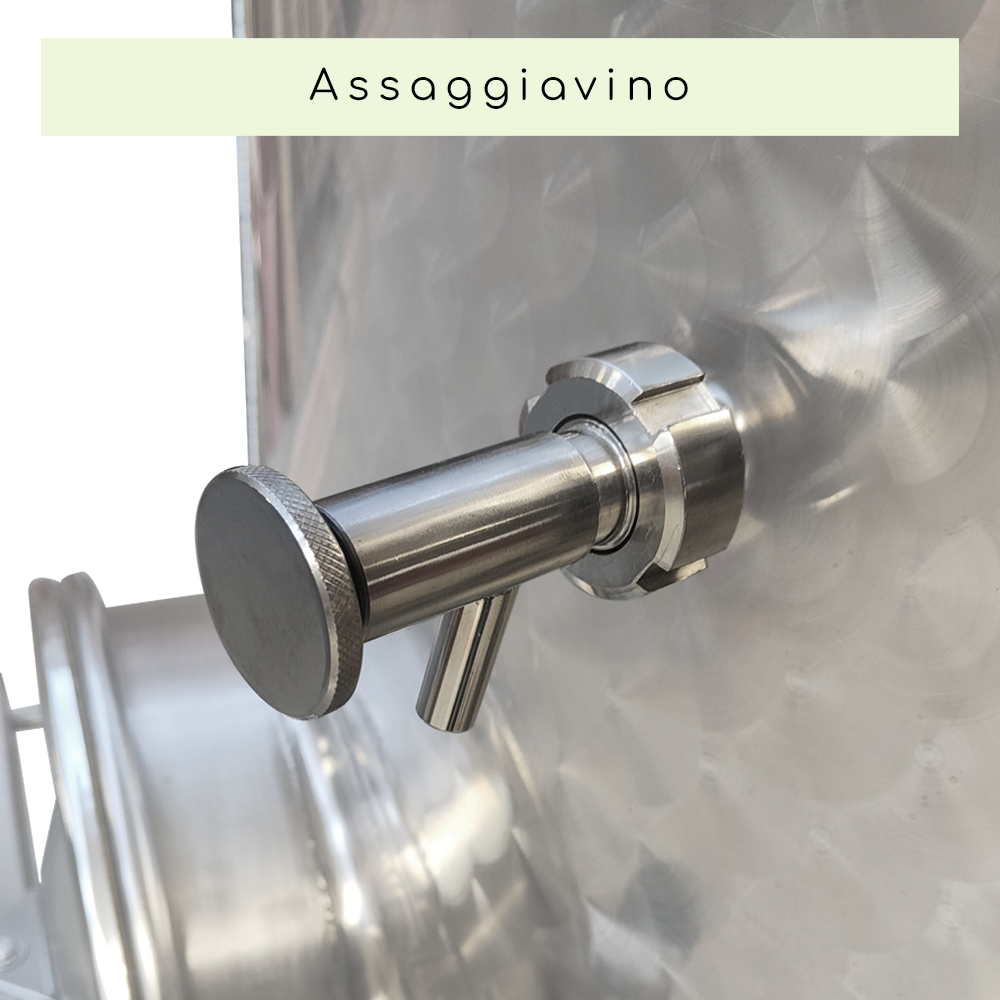

- Stainless steel sampling tap with DIN 15 connection

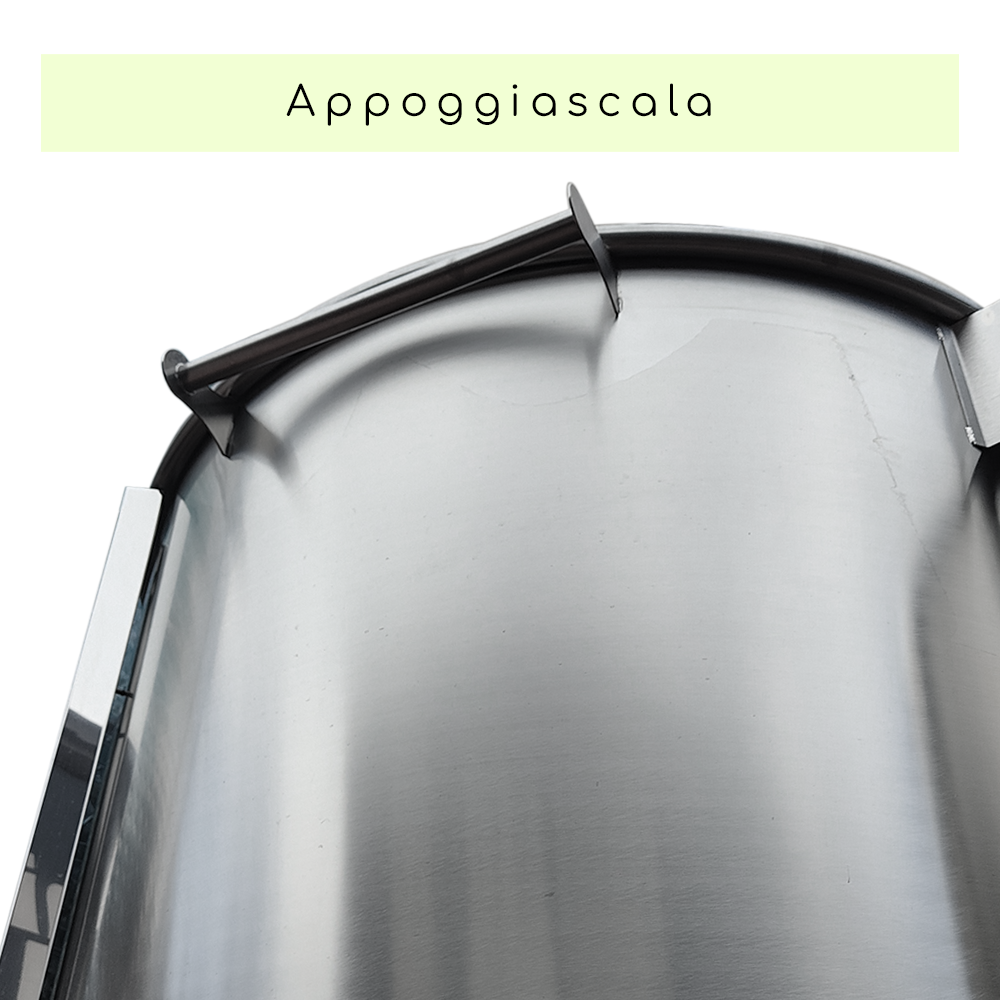

- Stainless steel ladder support (length 500 mm) positioned on top for safe access

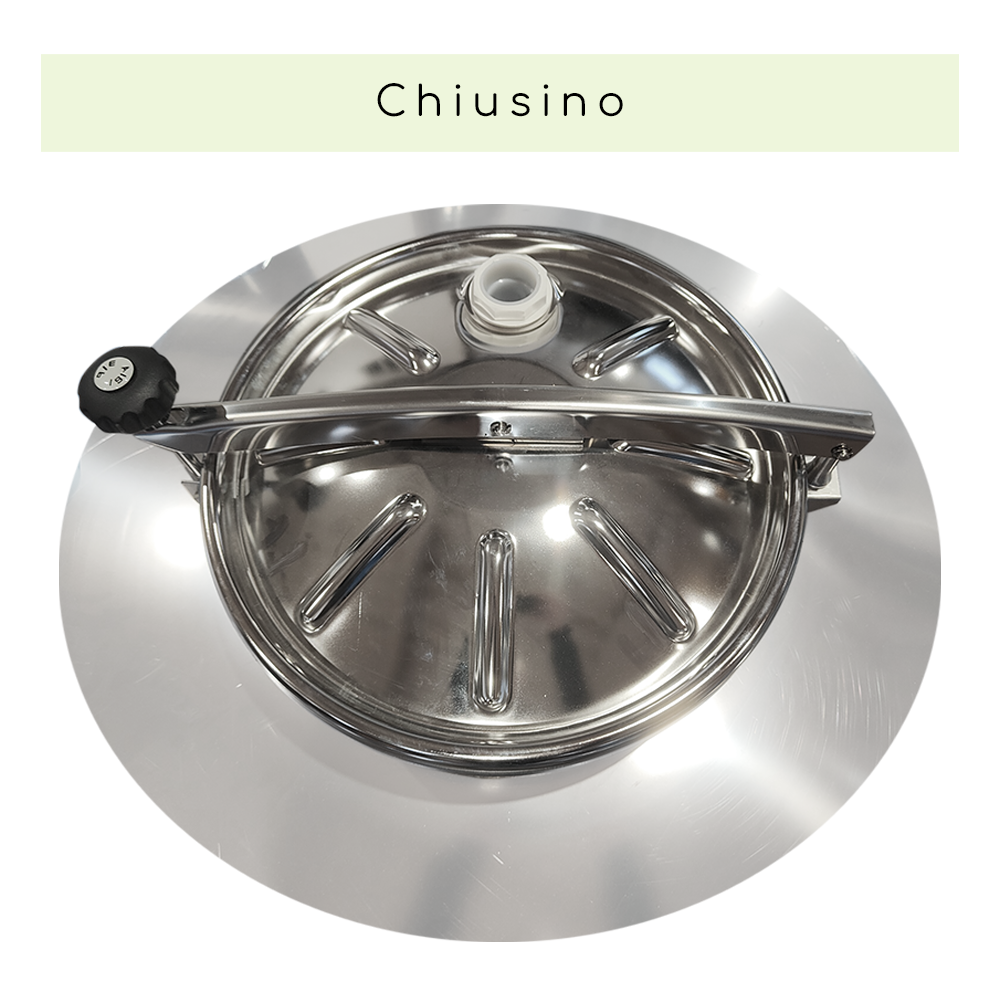

- Top hatch with PVC vent valve
100% Made in Italy. Every detail is crafted with top-quality materials because we know your work deserves only the best.
