Custom flat bottom storage tank ø 2230 from 11500 to 22000a lt
Custom flat bottom storage tank ø 2230 from 11500 to 22000a lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description

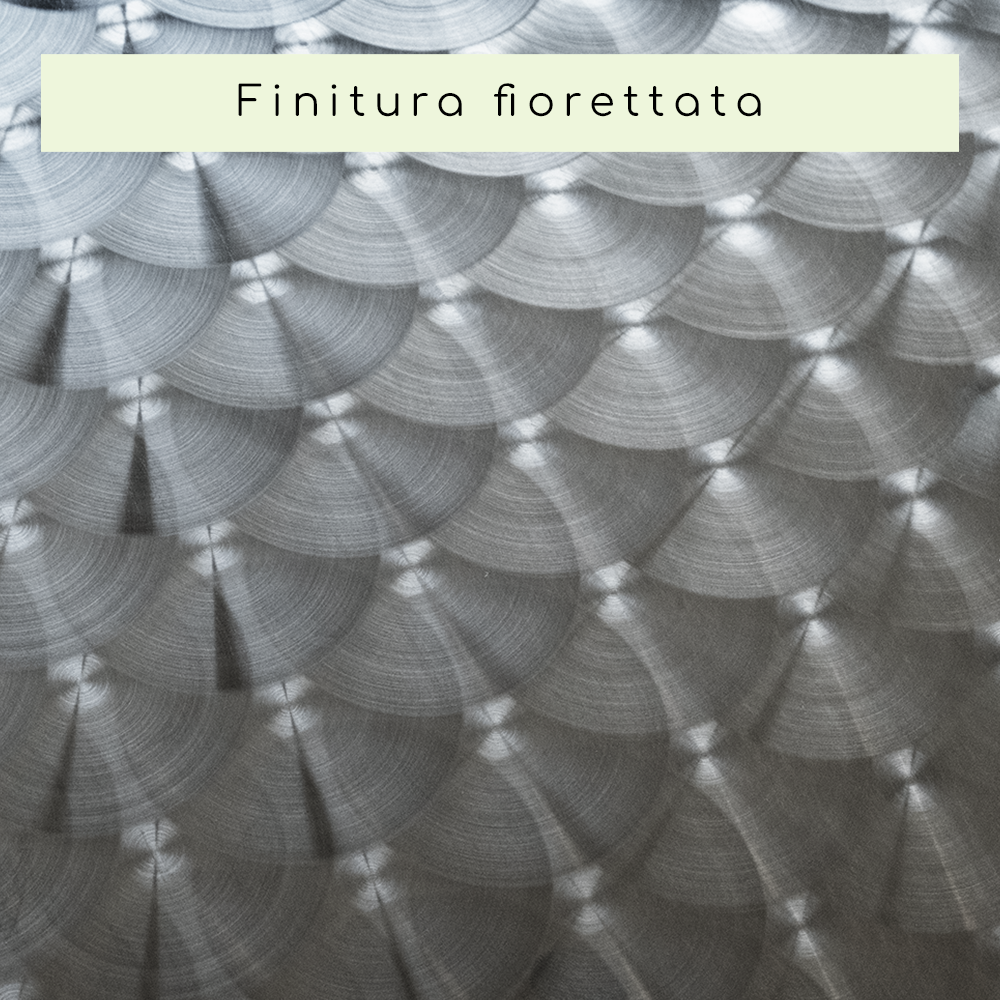

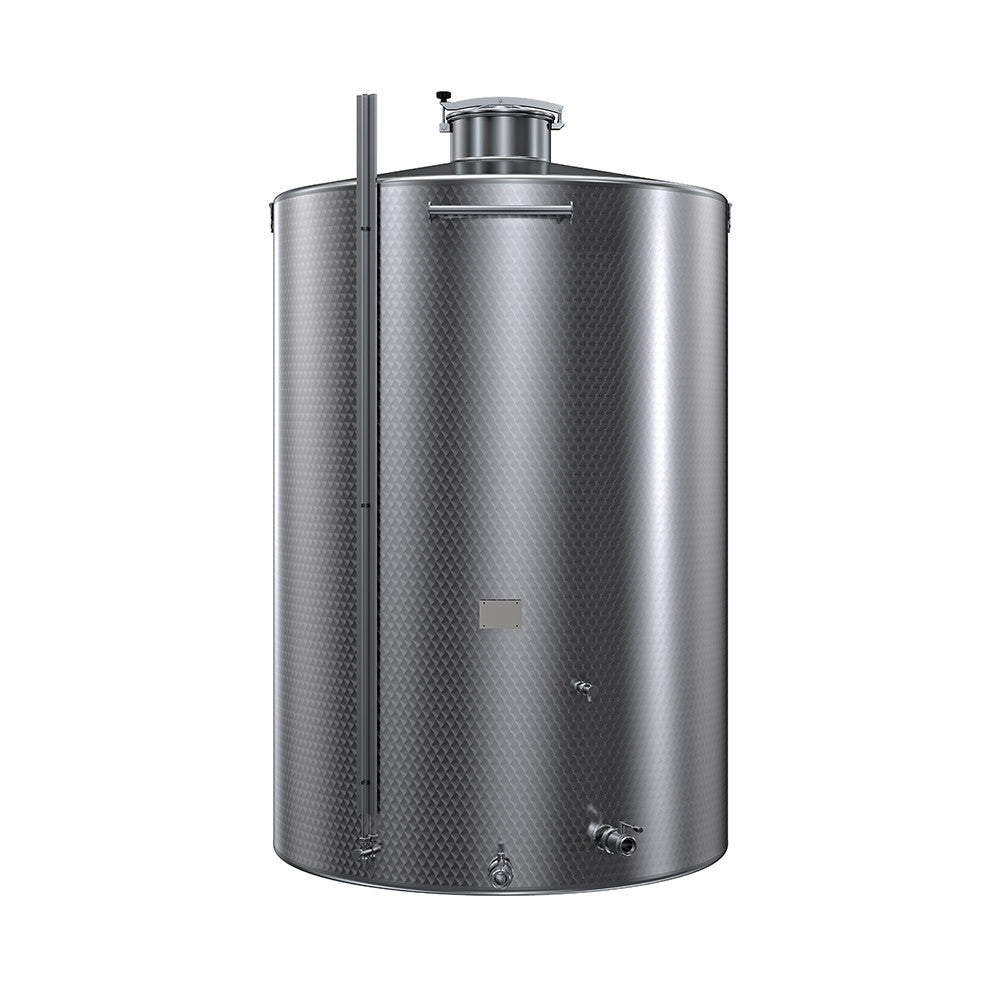

The flat bottom storage tank CUSTOM Ø 2230 is the ideal solution for safely and hygienically storing oil, wine, and food liquids. Completely made of AISI 304 stainless steel, it guarantees maximum durability and corrosion resistance, with an elegant brushed external finish and a shiny internal finish for impeccable cleaning.
Available in 4 different capacities:
- 11,500 liters – Height 3,295 mm
- 12,500 liters (M) – Height 3,545 mm
- 16,000 liters – Height 4,545 mm
- 22,000 liters (A) – Height 6,045 mm
Construction specifications:
- Effective diameter (Øe): 2,230 mm
- Bottom steel thickness: 3 mm
- Roof steel thickness: 2 mm
- Cylinder steel thickness: 1.5 mm
Cooling jacket included:
- Height: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 5.2 sqm
- Operating pressure: 3 bar max
- Connections: 3/4" male Gas fitting (inlet/outlet)
- Complete with thermometer and probe holder
Accessories and complete equipment:
- Drain with valve of choice according to needs

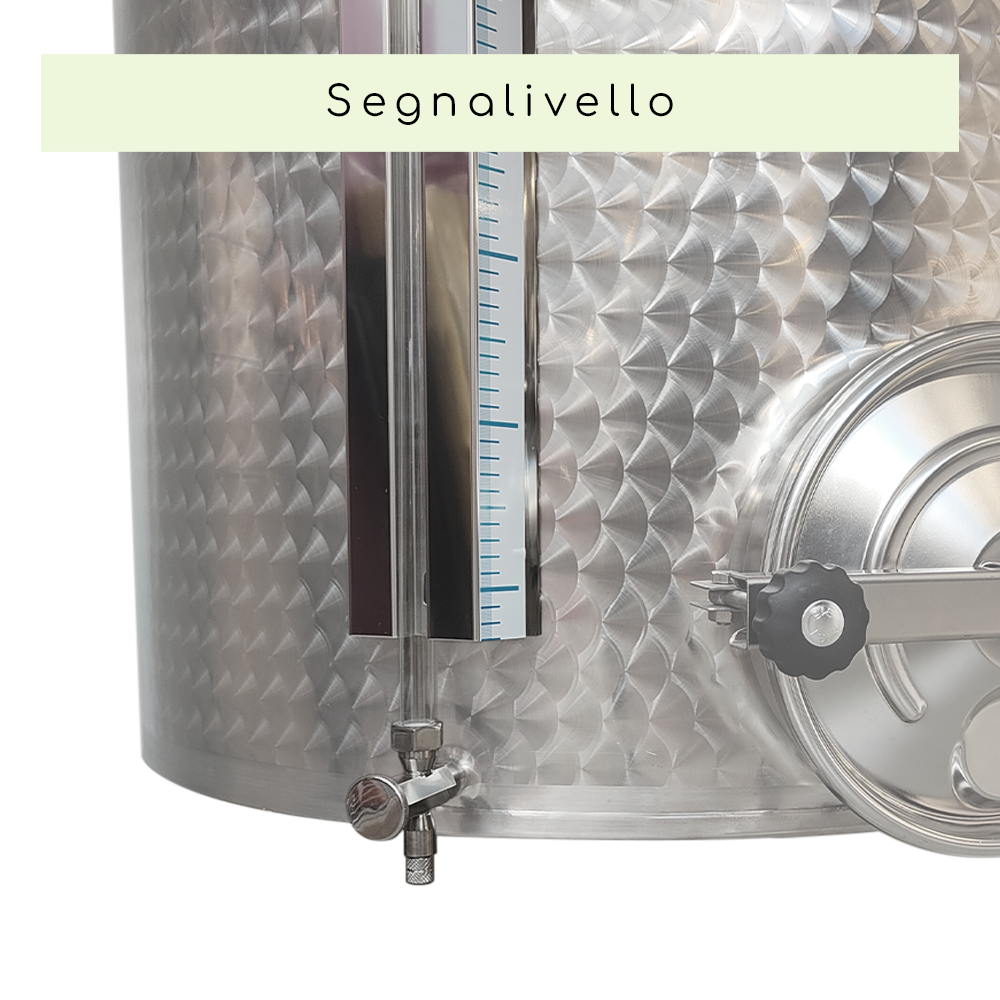

- Protection level indicator in stainless steel with plexiglass tube and stainless steel protection, adhesive millimeter indication, shut-off valve, and column drain

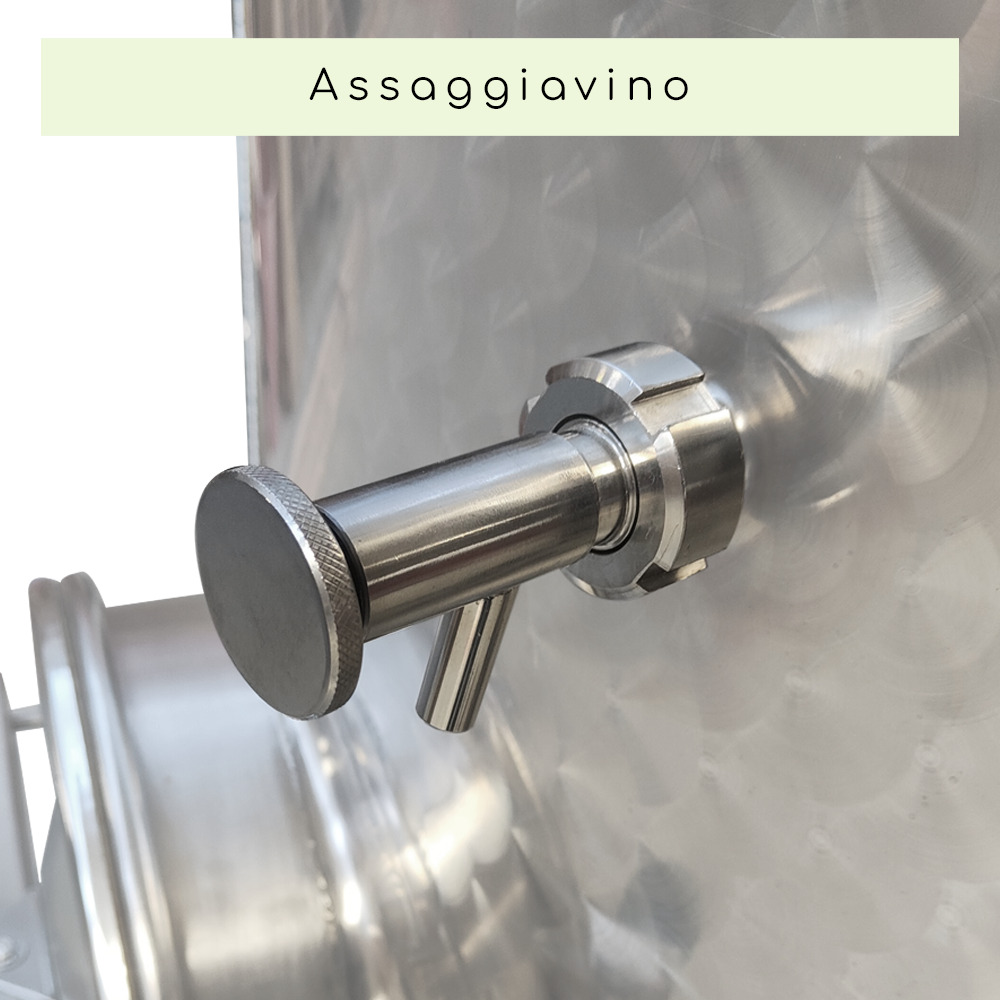

- Stainless steel sample tap with DIN 15 fitting

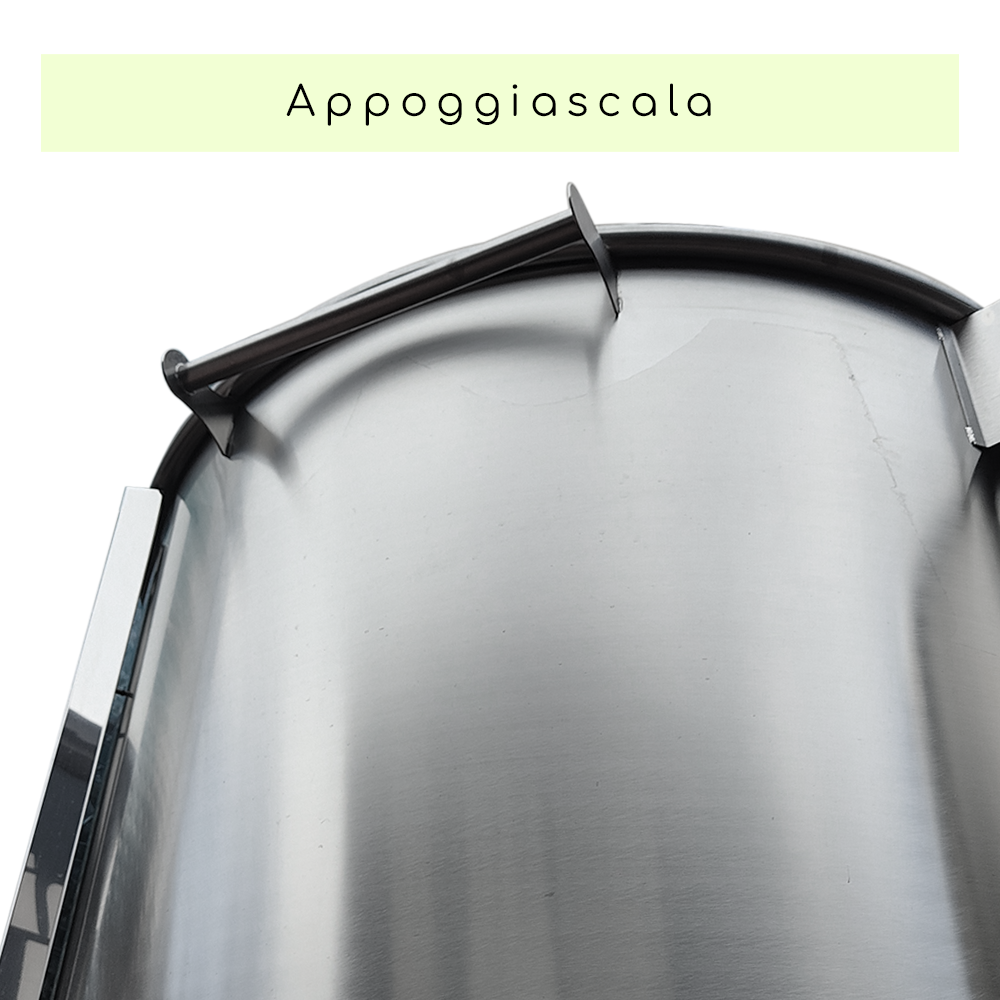

- Stainless steel ladder support (length 500 mm) positioned at the top

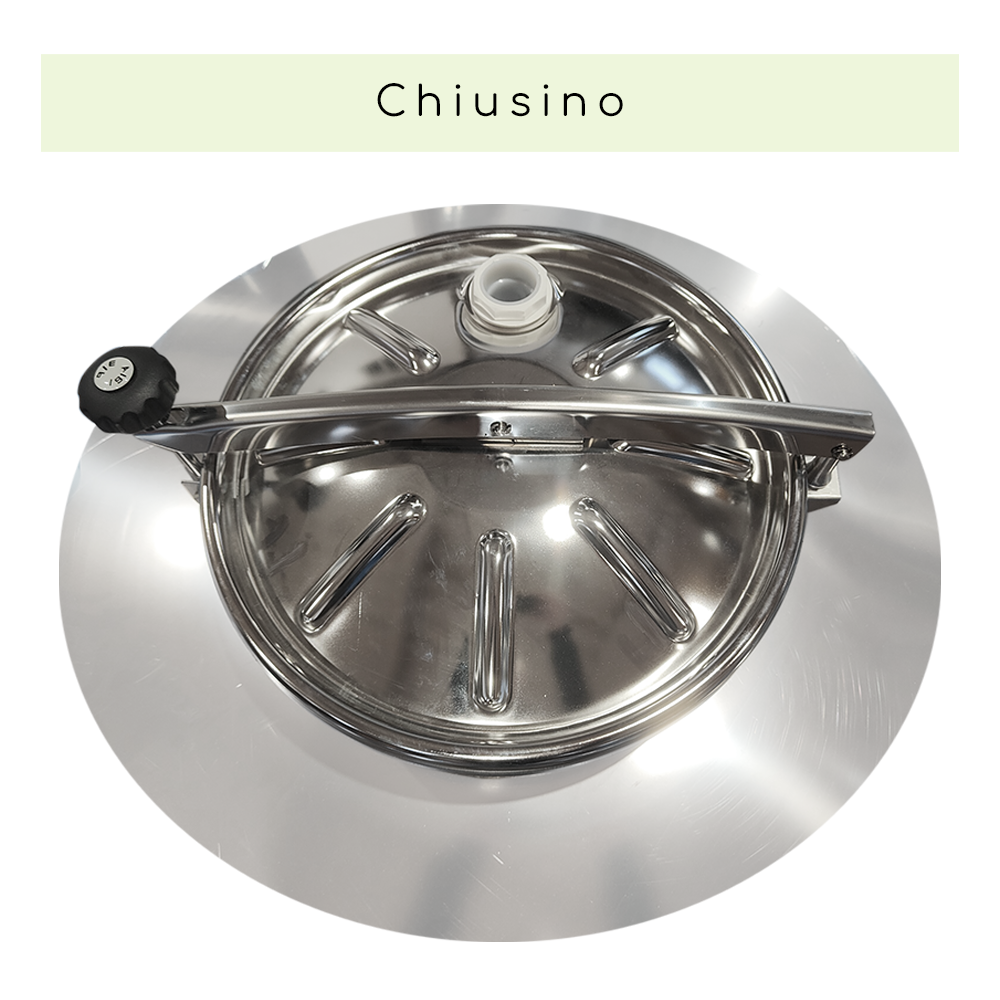

- Upper hatch with PVC vent valve
Authentically Made in Italy – Product entirely made with high-quality materials, to ensure reliability and performance over time.
