Always full air tank flat bottom custom ø 2230 from 10500 to 21000 lt
Always full air tank flat bottom custom ø 2230 from 10500 to 21000 lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description

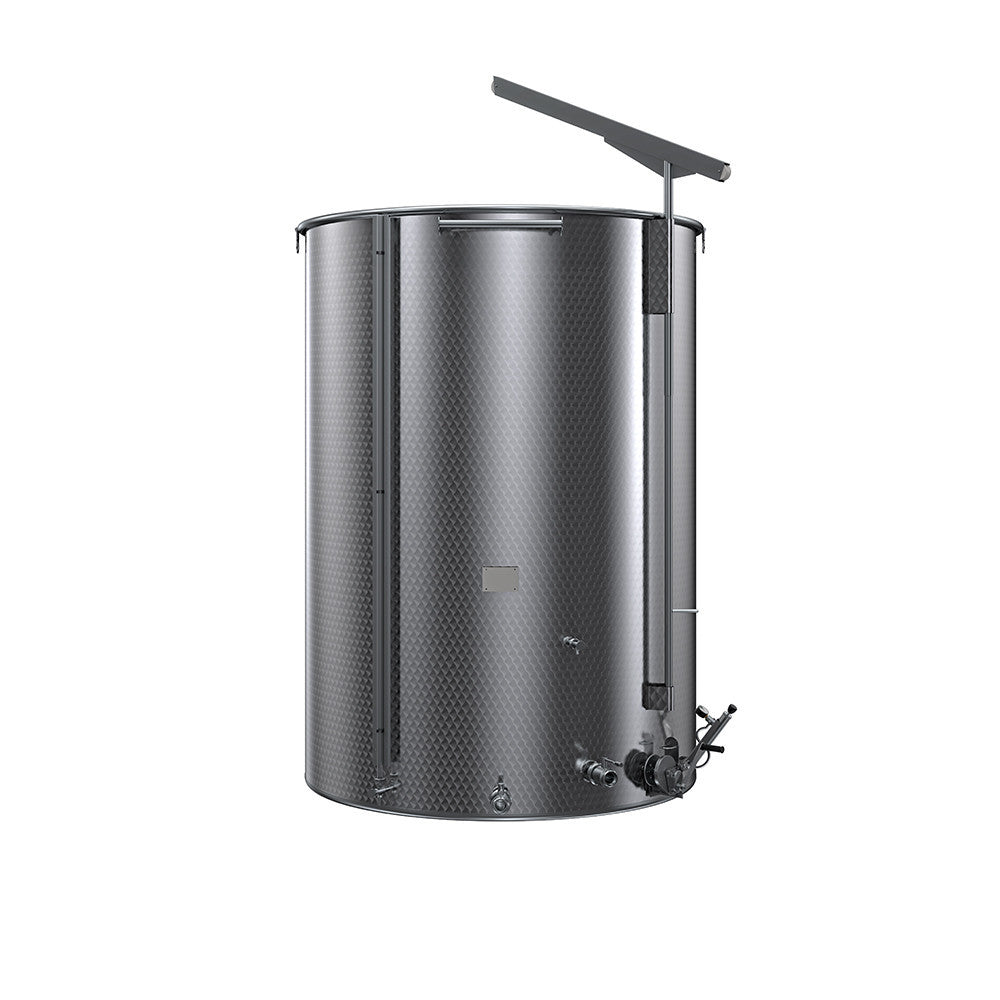

The always full pneumatic air tank for your cellar needs

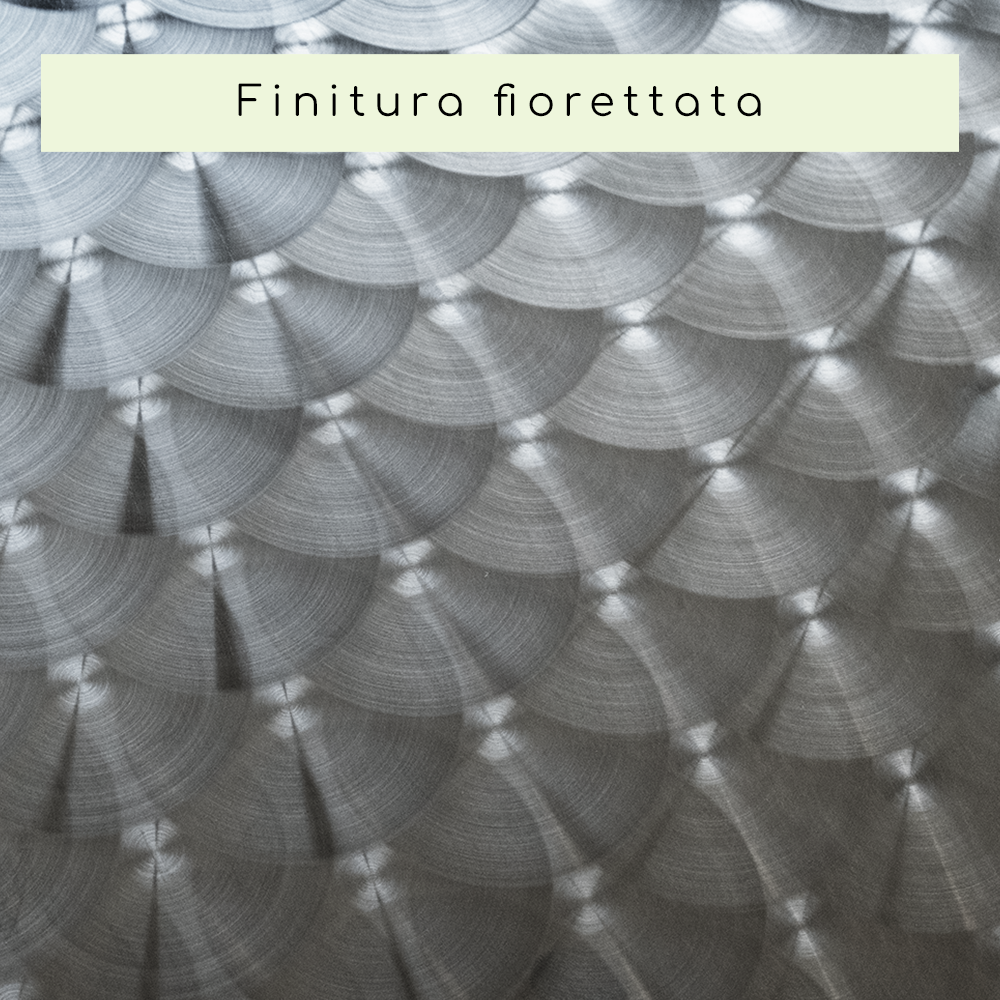

This container made of AISI 304 stainless steel is the ideal solution for the optimal storage of oil, wine, and food liquids. Carefully designed with attention to detail, it features a flat bottom and a refined external finish combined with a shiny interior that ensures hygiene and ease of cleaning.
Technical specifications of the tank:
- Effective diameter (Øe): 2230 mm
- Bottom steel thickness: 3 mm
- Cylinder steel thickness: 1.5 mm
Available heights WITH ARM (Htot):
- 10,500 LT: 3500 mm
- 11,500 LT: 3750 mm
- 15,500 LT: 4750 mm
- 21,000 LT: 6250 mm
Available heights WITHOUT ARM (Htot):
- 10,500 LT: 2750 mm
- 11,500 LT: 3000 mm
- 15,500 LT: 4000 mm
- 21,000 LT: 5500 mm
Cooling jacket (including thermometer and probe holder):
- Jacket height: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 4.9 sqm
- Operating pressure: 3 bar max
- Inlet/outlet connections: 3/4" male gas fitting
Complete equipment included in the tank:

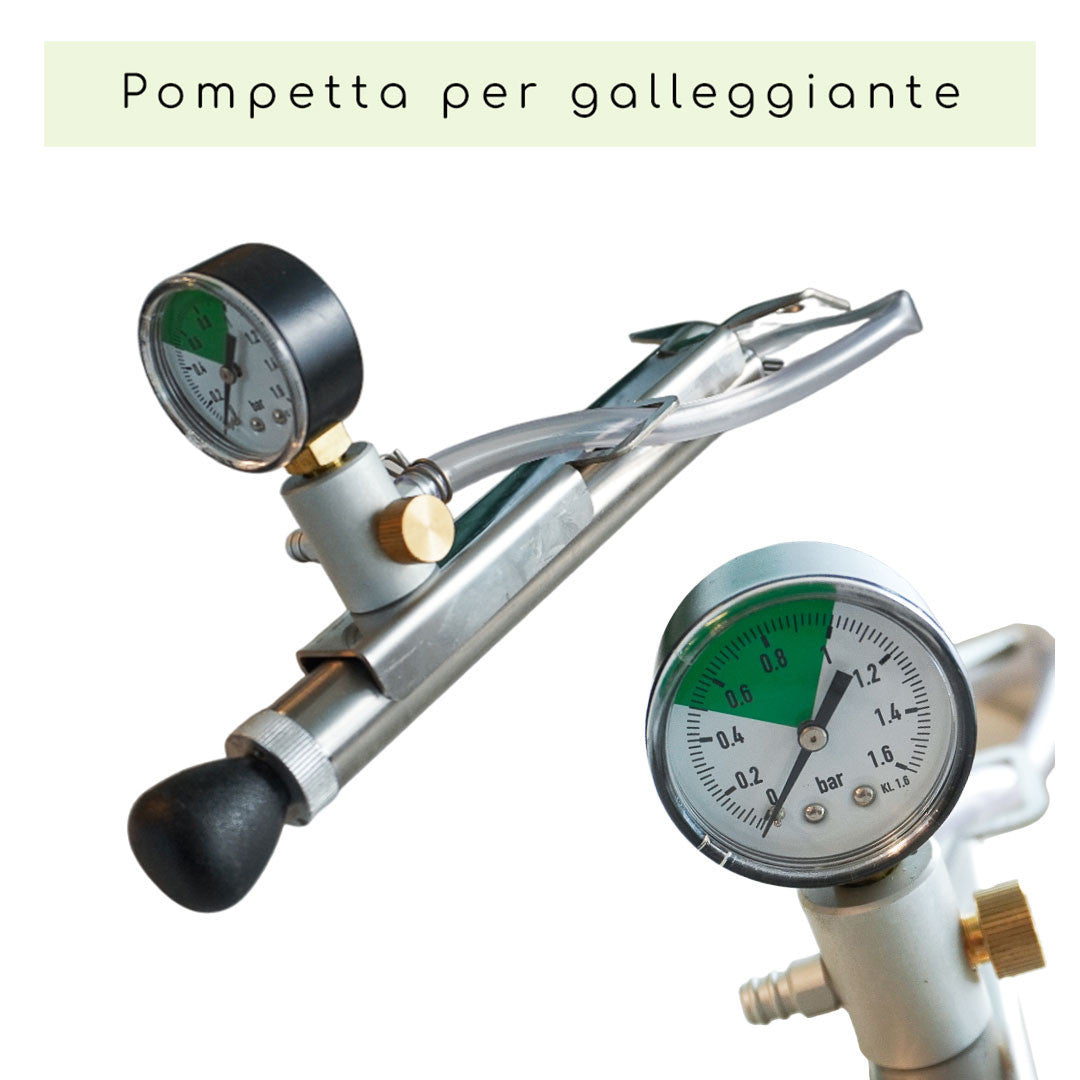

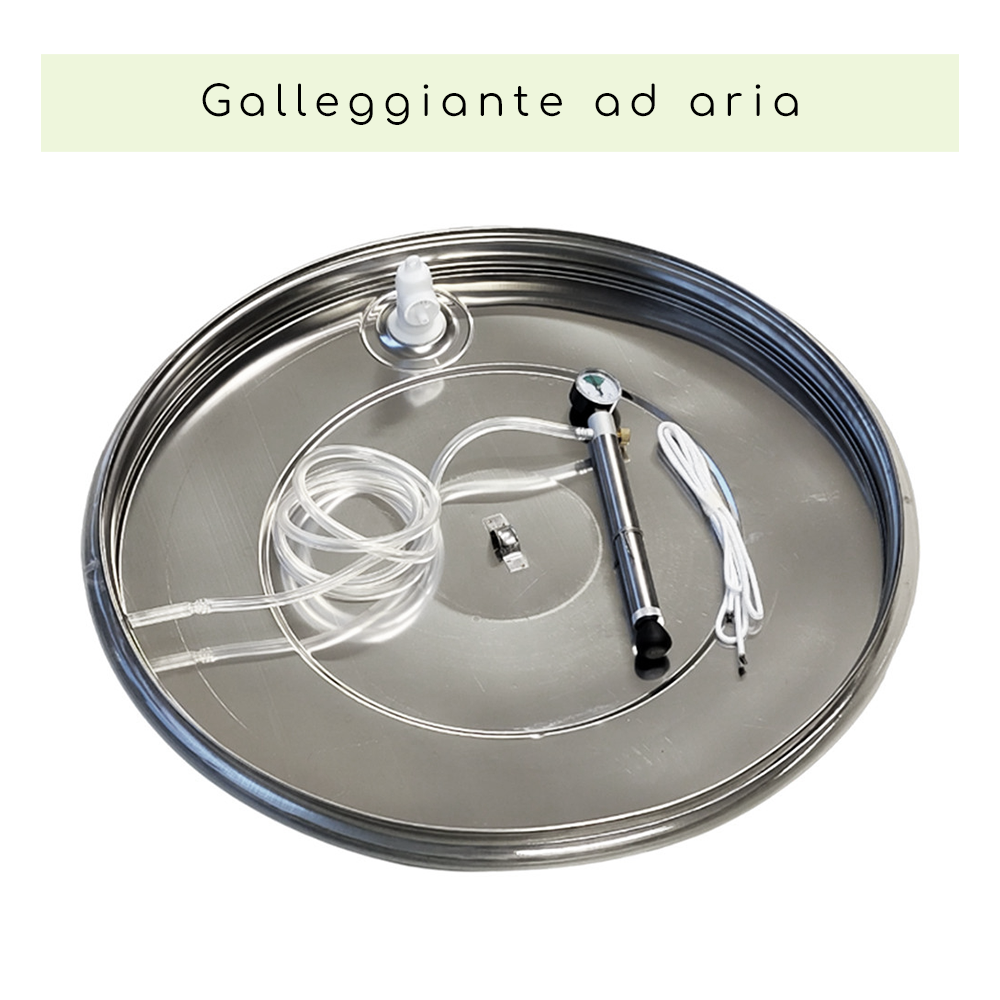

- Floating cover with air chamber and complete kit (air chamber, pump, and plastic vent valve)
- Discharge with valve of choice

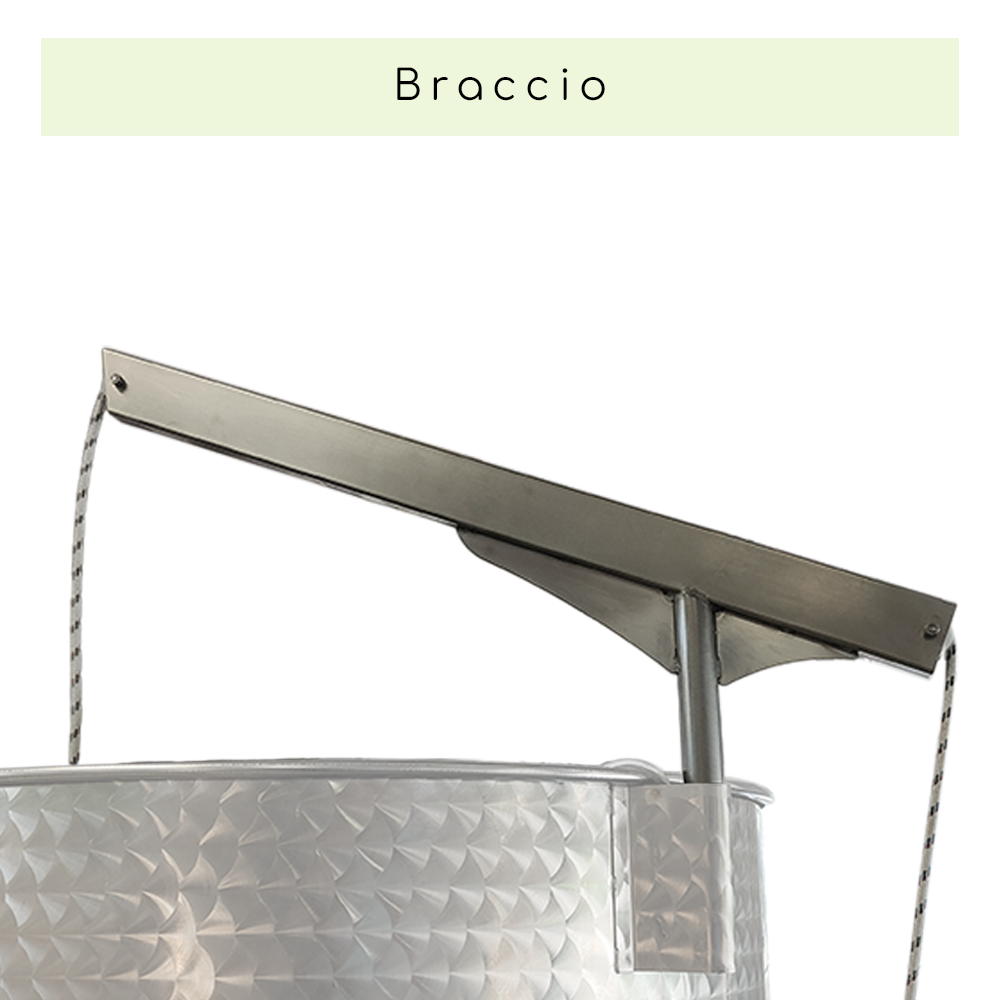

- Removable and pivoting floating lifting arm in AISI 304 steel

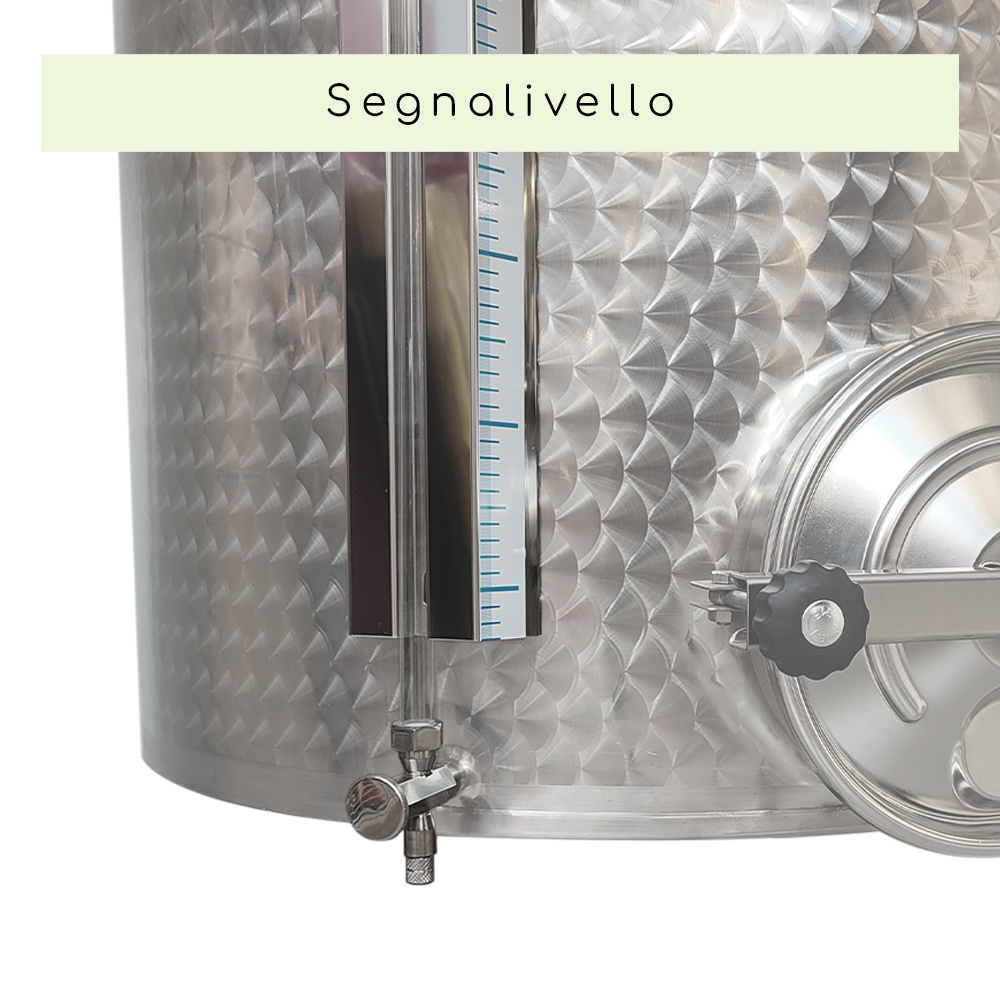

- Inox level indicator with plexiglass tube and stainless steel protection, complete with adhesive millimeter indication, shut-off tap, and column discharge

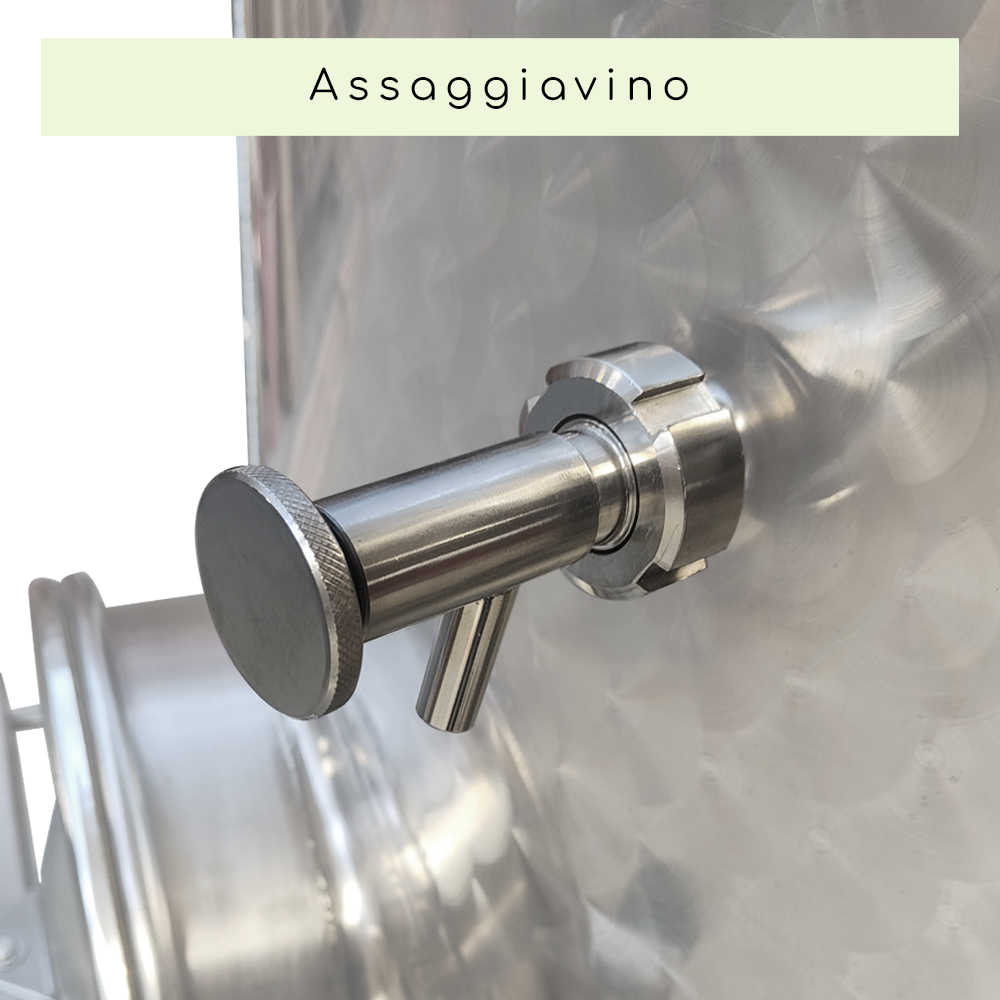

- Stainless steel screw sample tap with DIN 15 fitting

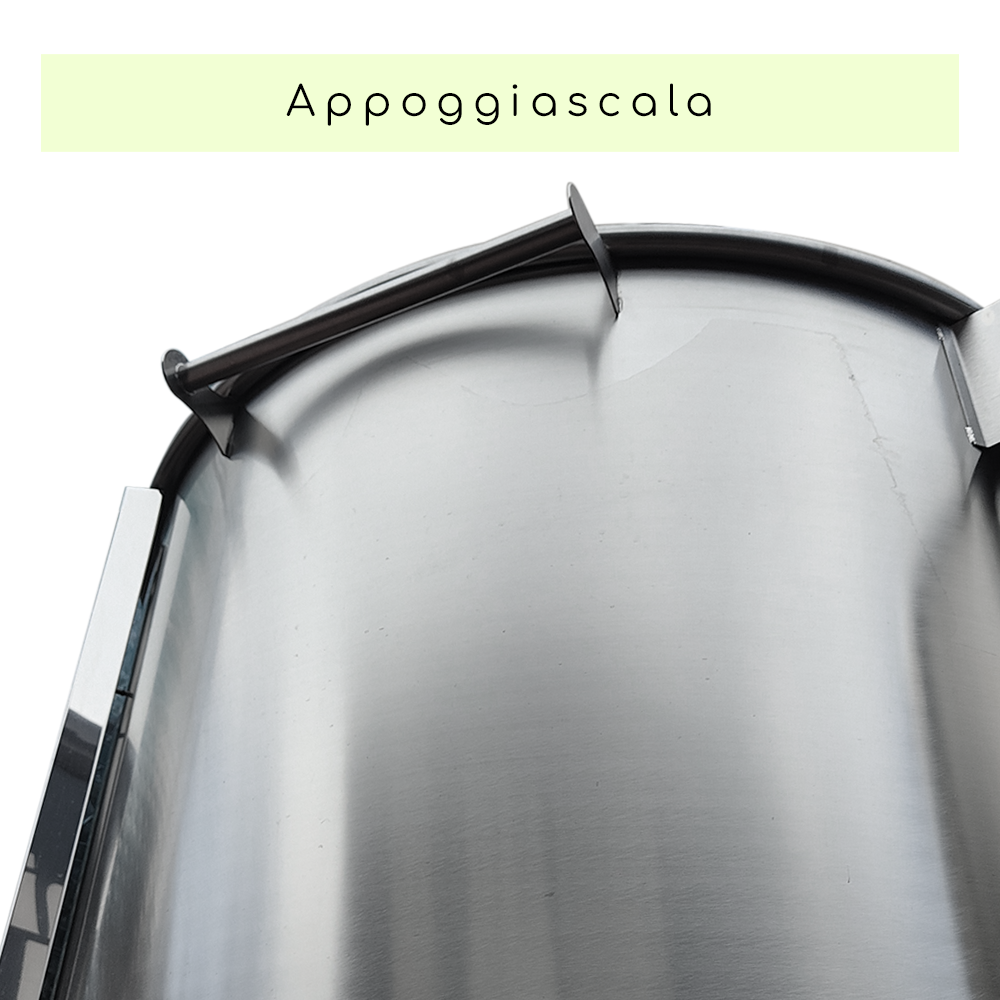

- Stainless steel ladder support 500 mm long positioned on top
- Floating lifting winch in painted galvanized steel
100% Made in Italy – A product made with high-quality materials, built to last over time and ensure the best performance in your cellar.
