Always-full air tank flat bottom custom ø 1400 from 2300 to 4700 lt
Always-full air tank flat bottom custom ø 1400 from 2300 to 4700 lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description

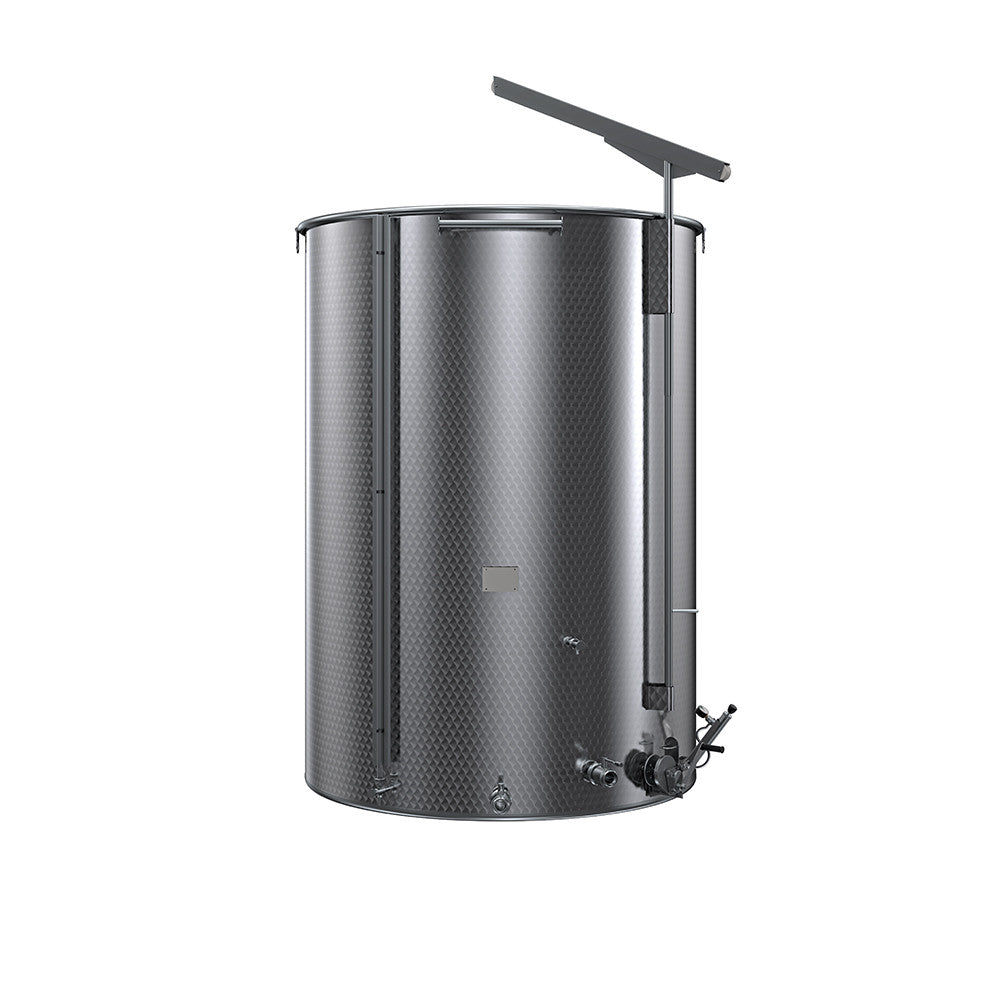

Always-Full Air Tank in Stainless Steel AISI 304 – the ideal solution for storing oil, wine, and food-grade liquids while adhering to the highest quality standards. This combined pneumatic air container is designed to ensure reliable and long-lasting performance.

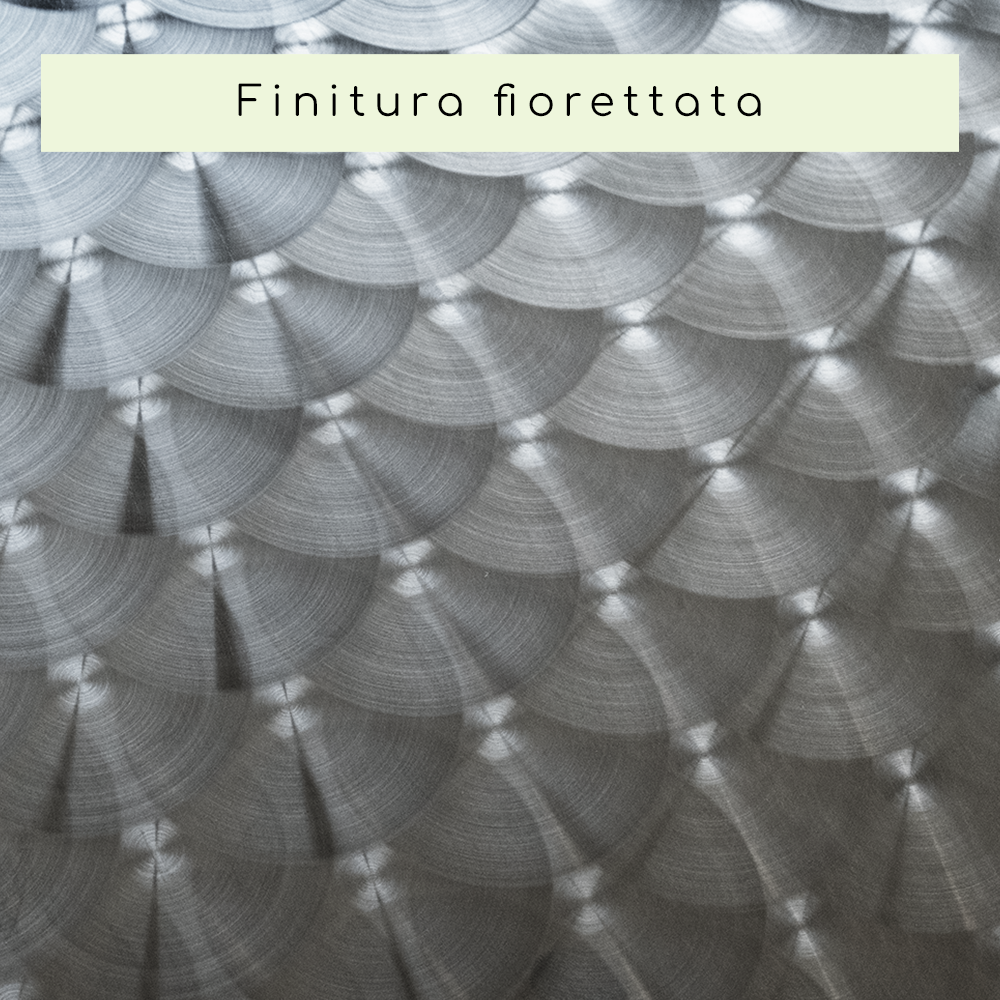

Exclusive Finishes: flat bottom with an external satin finish that elegantly contrasts with the polished internal surface, for easy cleaning and impeccable presentation.
Main Technical Specifications:
- Effective Diameter (Øe): 1430 mm
- Bottom Steel Thickness (Sp. F): 2 mm
- Shell Steel Thickness (Sp. V): 1.5 mm
Container Height WITH ARM (Htot):
- LT 2300: 2020 mm
- LT 3000A: 2520 mm
- LT 4000A: 3020 mm
- LT 4700A: 3520 mm
Container Height WITHOUT ARM (Htot):
- LT 2300: 1500 mm
- LT 3000A: 2000 mm
- LT 4000A: 2500 mm
- LT 4700A: 3000 mm
Cooling Band Complete with:
- Integrated Thermometer and Probe Port
- Band Height: 750 mm
- Steel Thickness: 0.7 mm
- Exchange Surface: 3.4 sqm
- Operating Pressure: max 3 bar
- Inlet/Outlet Connections: 3/4" Gas Male Stub
Complete Equipment Included in the Price:

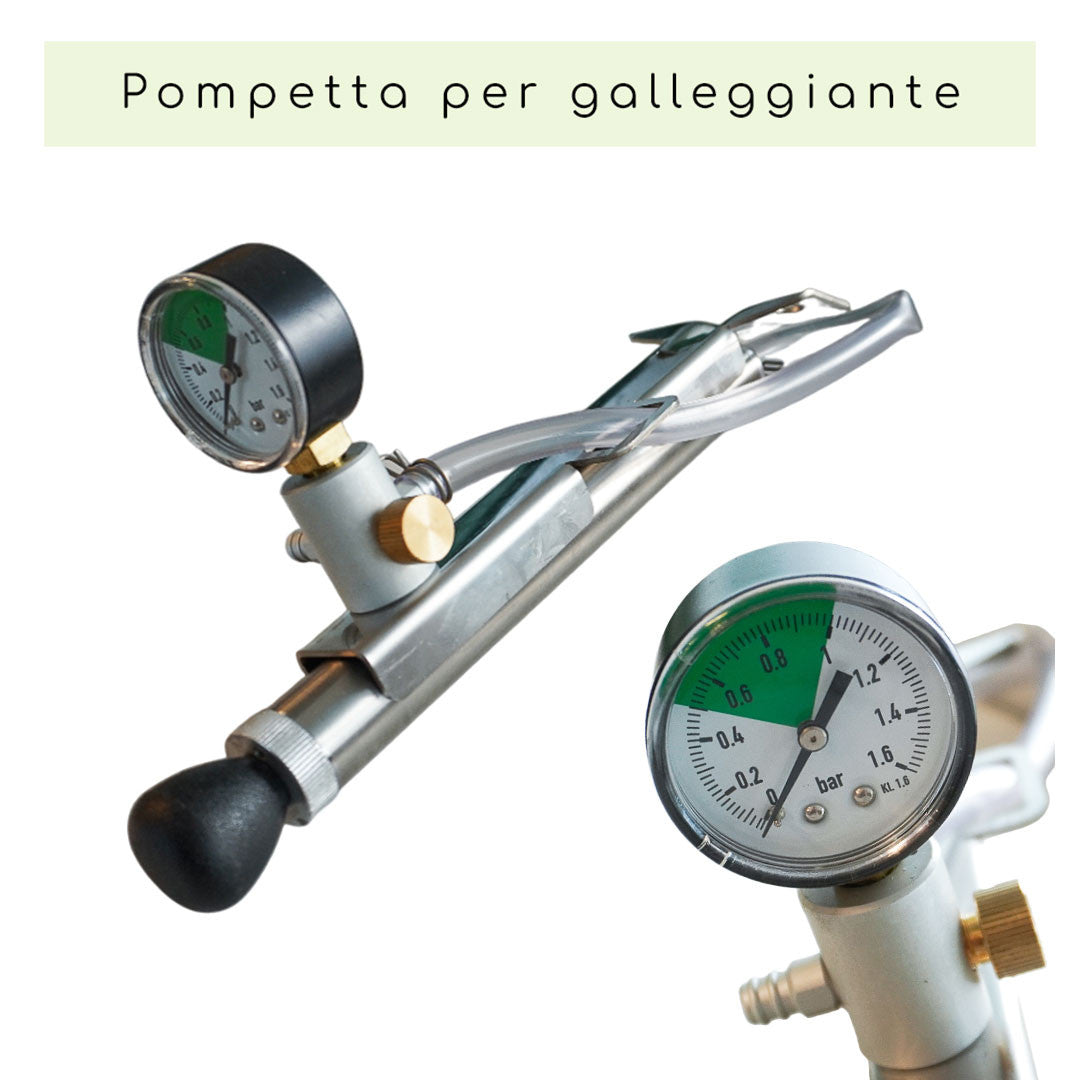

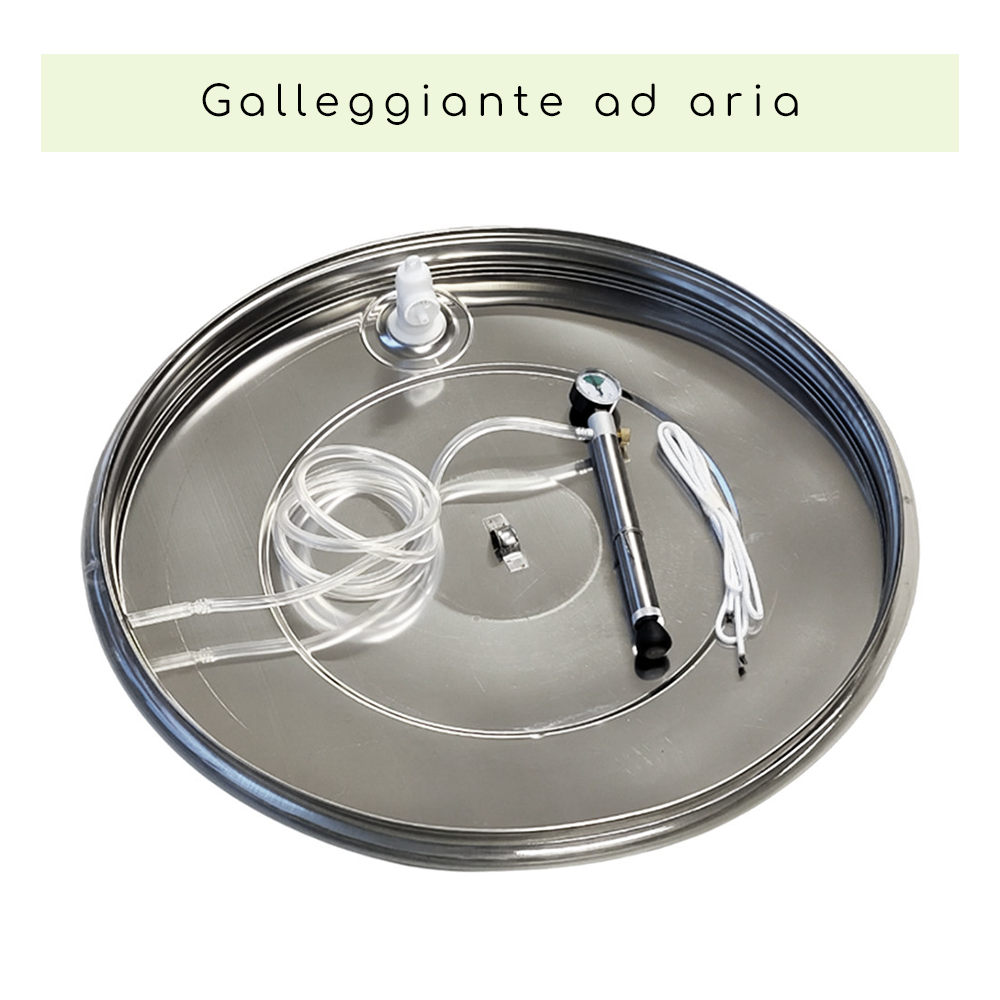

- Floating Lid with Air Chamber and Complete Kit (air chamber, pump, and plastic vent valve)
- Drain with Valve of Choice

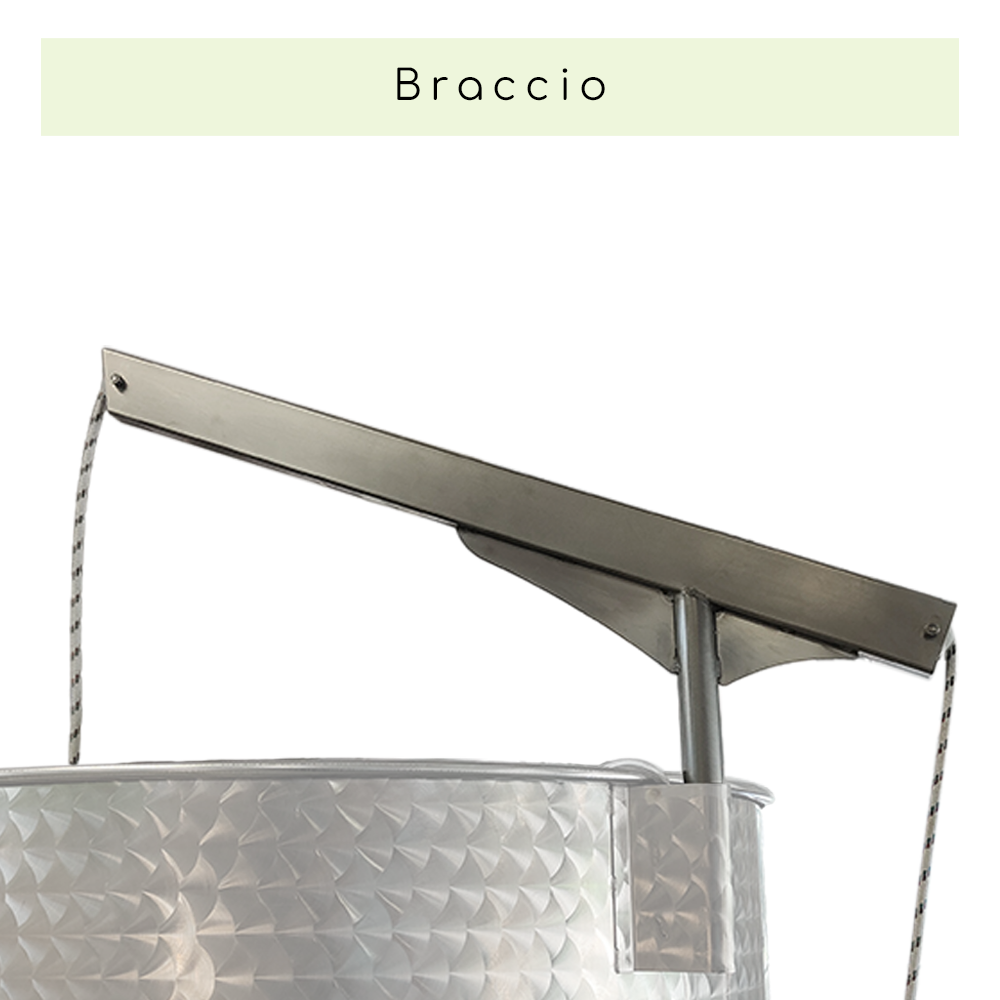

- Detachable and Pivoting Floating Lift Arm in AISI 304 Steel

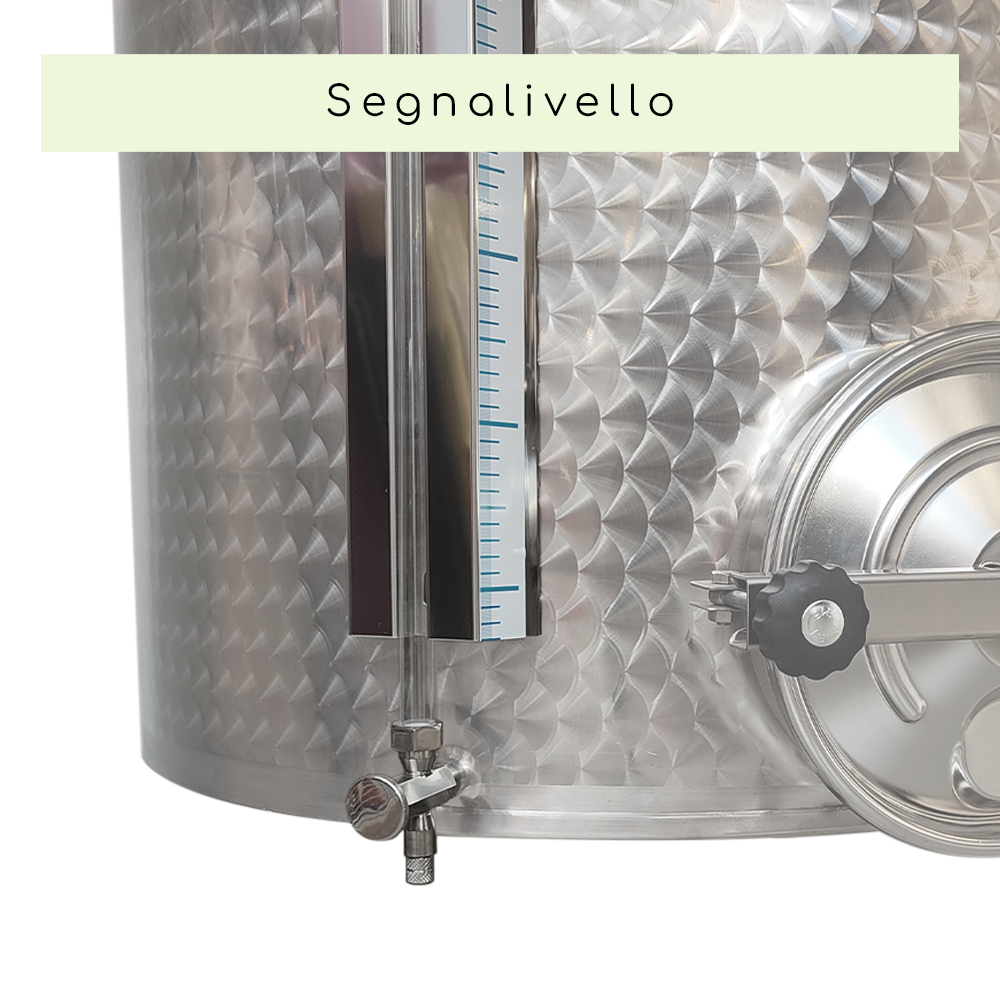

- Stainless Steel Level Indicator with Plexiglass Tube and Stainless Steel Protection, equipped with Adhesive Millimeter Indication, Shut-off Tap, and Column Drain

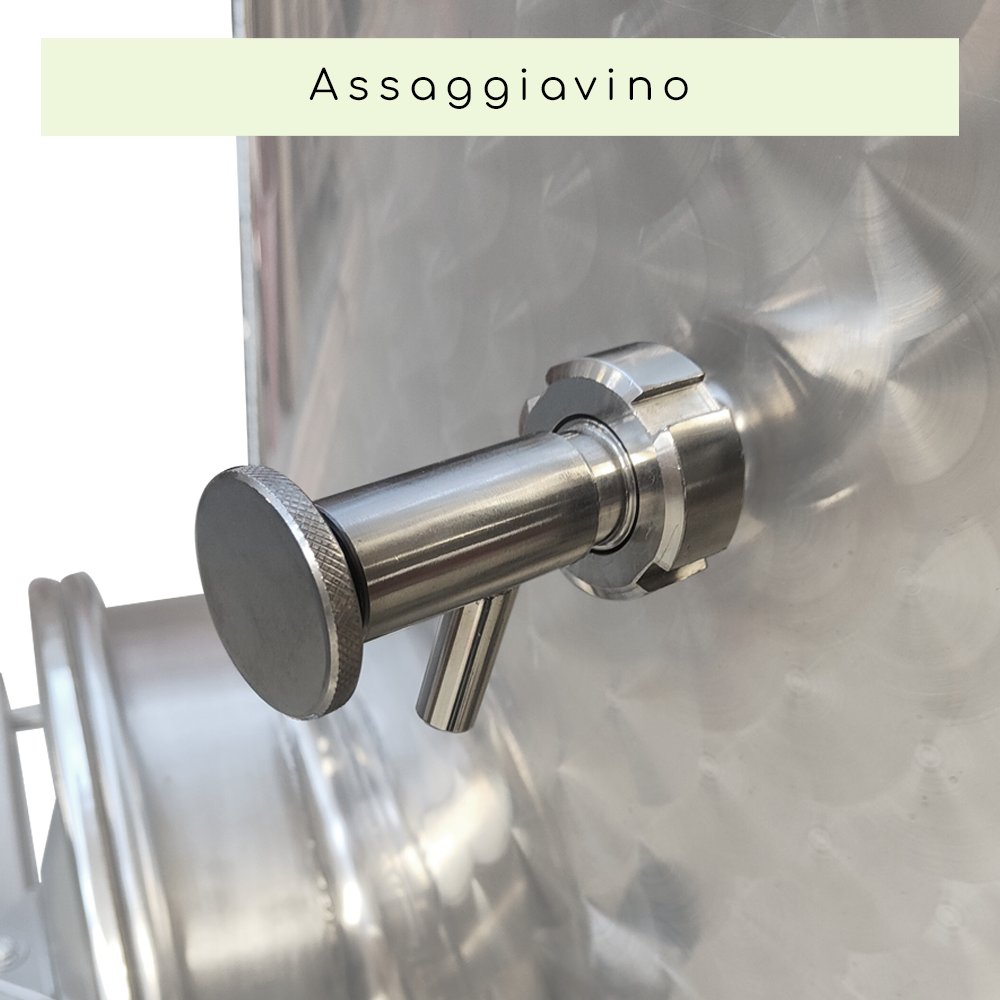

- Stainless Steel Sample Tap with DIN 15 Connection

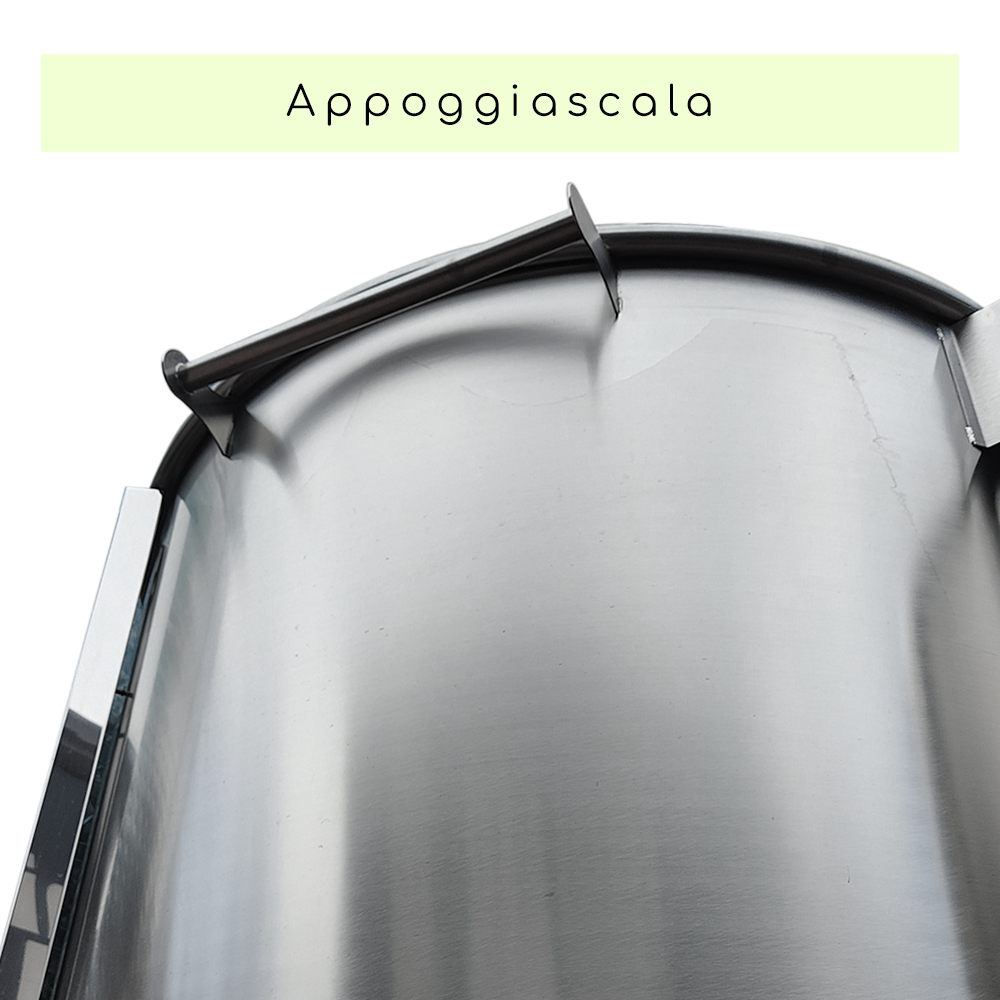

- Stainless Steel Ladder Rest, 500 mm Length, Positioned on Top
- Painted Galvanized Steel Floating Lift Winch
Guaranteed Quality: authentic product 100% Made in Italy, crafted with excellent quality materials to ensure reliability and longevity.
