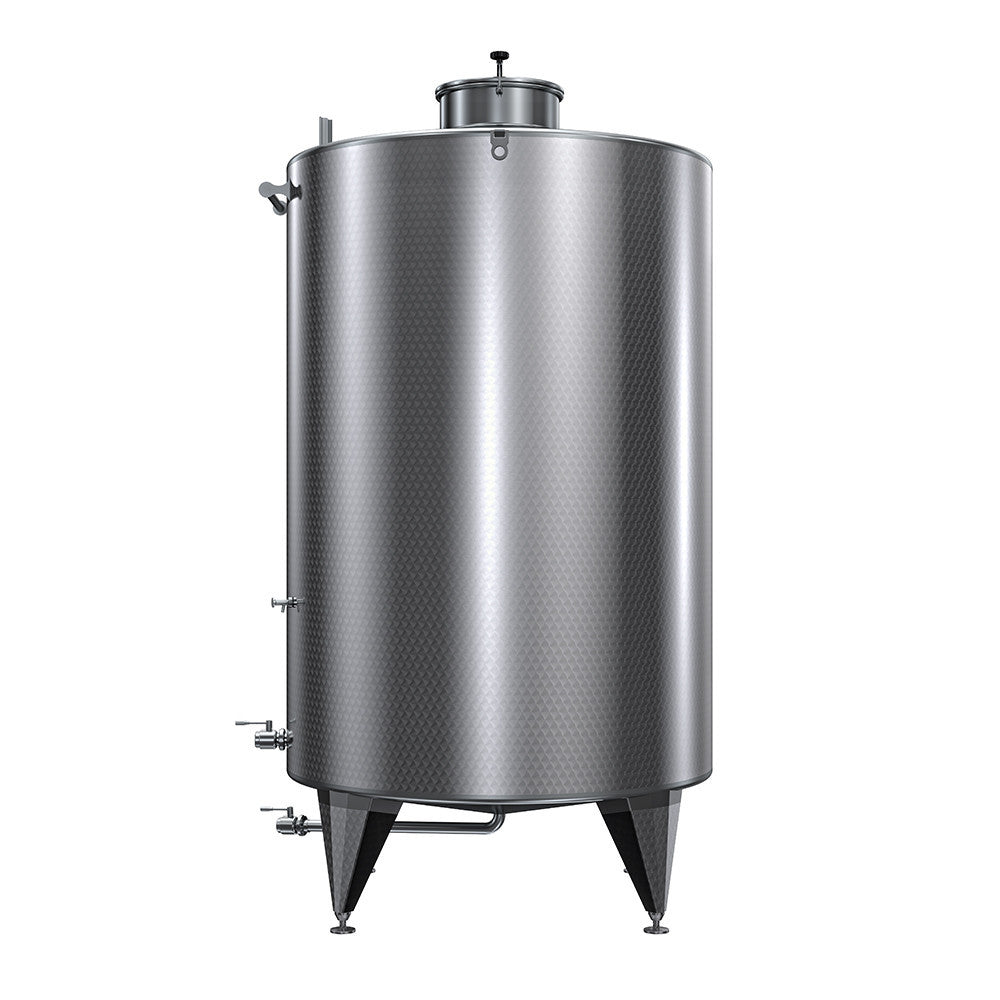

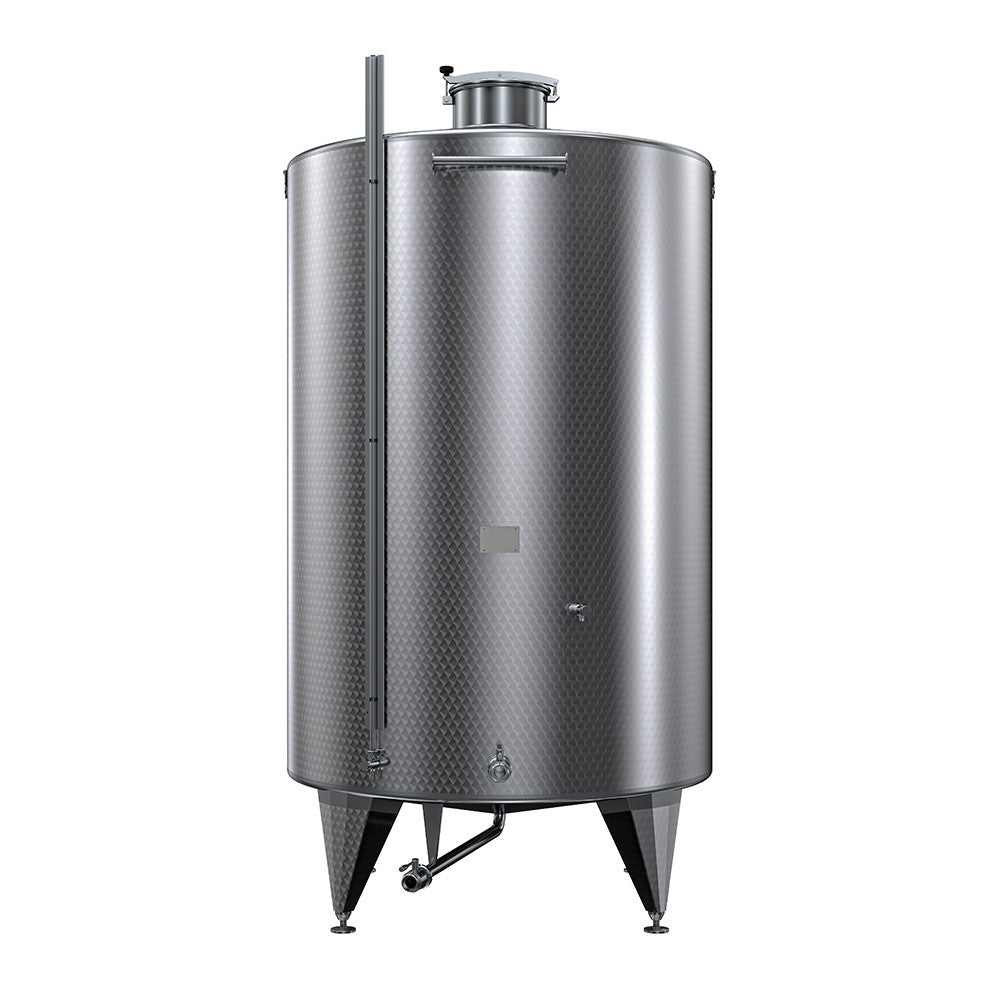

Conical bottom storage tank custom ø 2590 from 15000b to 30000a l
Conical bottom storage tank custom ø 2590 from 15000b to 30000a l
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
The Professional Tank for Perfect Preservation of Your Liquids
Choose the quality and reliability of this AISI 304 stainless steel storage tank, the ideal solution for preserving oil, wine, and food-grade liquids in the best conditions. Entirely made in Italy with excellent quality materials, it guarantees durability and superior performance over time.
Construction Features
- Effective Diameter (Øe): 2590 mm
- 11% Conical bottom for optimal drainage

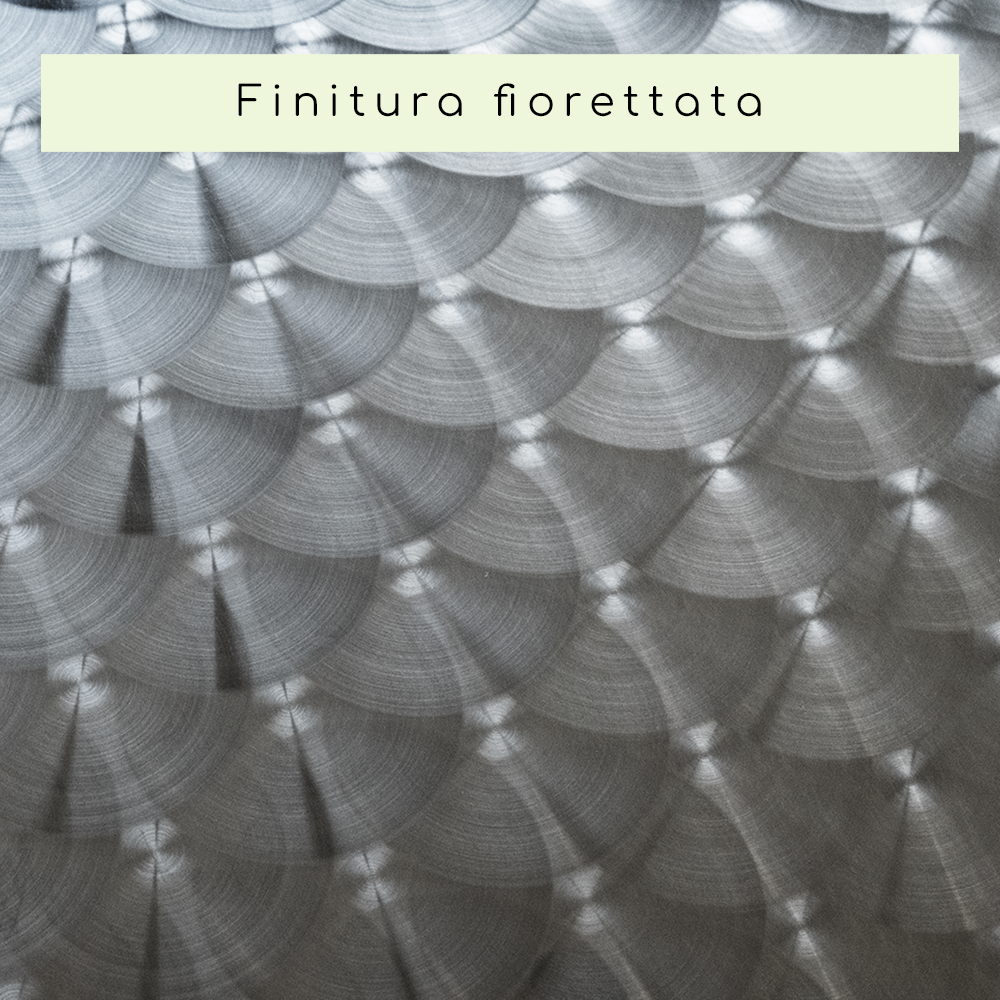

- External satin finish and internal polished finish for hygiene and aesthetics
- Bottom steel thickness: 3 mm
- Roof steel thickness: 2 mm
- Shell steel thickness: 1.5 mm
Capacity Selection
Available in four different capacities with specific heights:
- 15000 liters (model B): height 4205 mm
- 20000 liters (model B): height 5205 mm
- 25000 liters (model B): height 6205 mm
- 30000 liters (model A): height 6705 mm
Integrated Cooling Jacket
The tank is equipped with a cooling jacket for thermal control of preservation:
- Jacket height: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 4.9 sqm
- Operating pressure: 3 bar max
- Inlet and outlet connections: 3/4" Gas male stub
- Included: thermometer and probe holder
Standard Accessories and Equipment
The tank comes complete with everything you need:

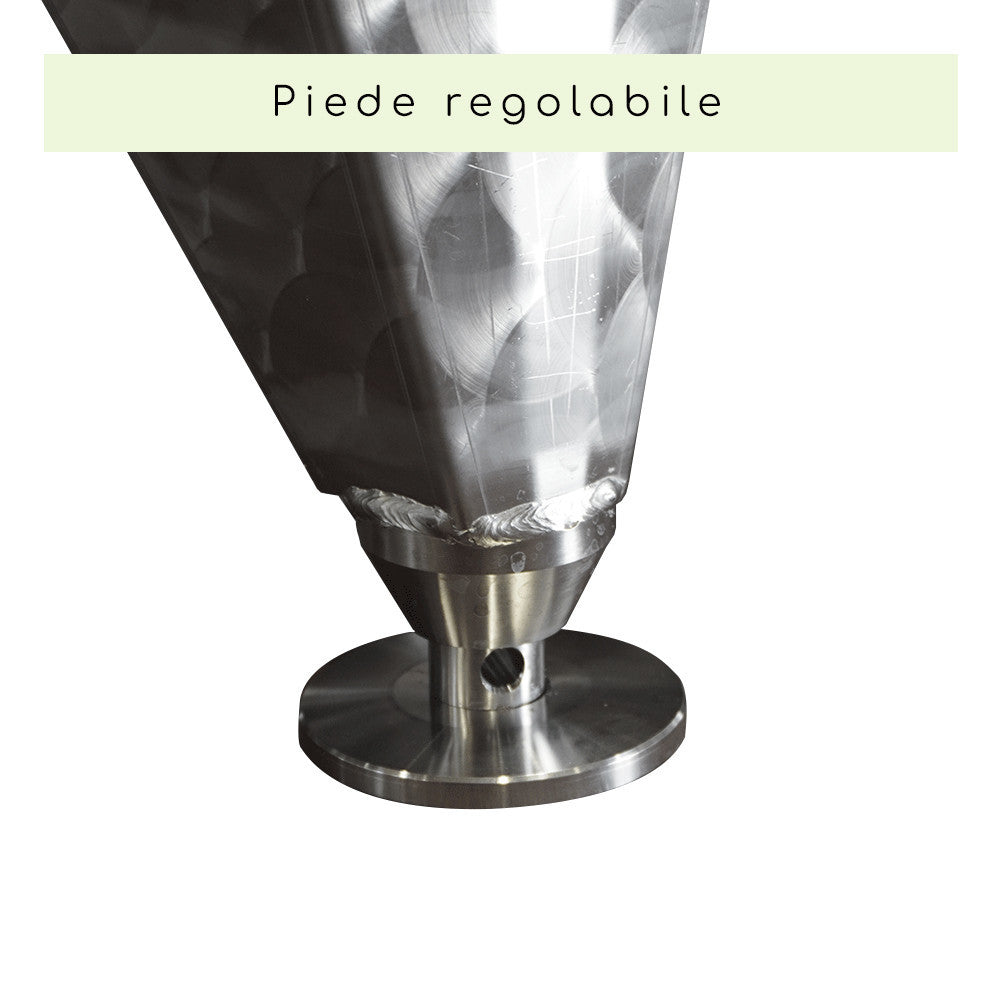

- Welded feet (from 5 to 7 depending on the diameter)
- Drain with valve of choice

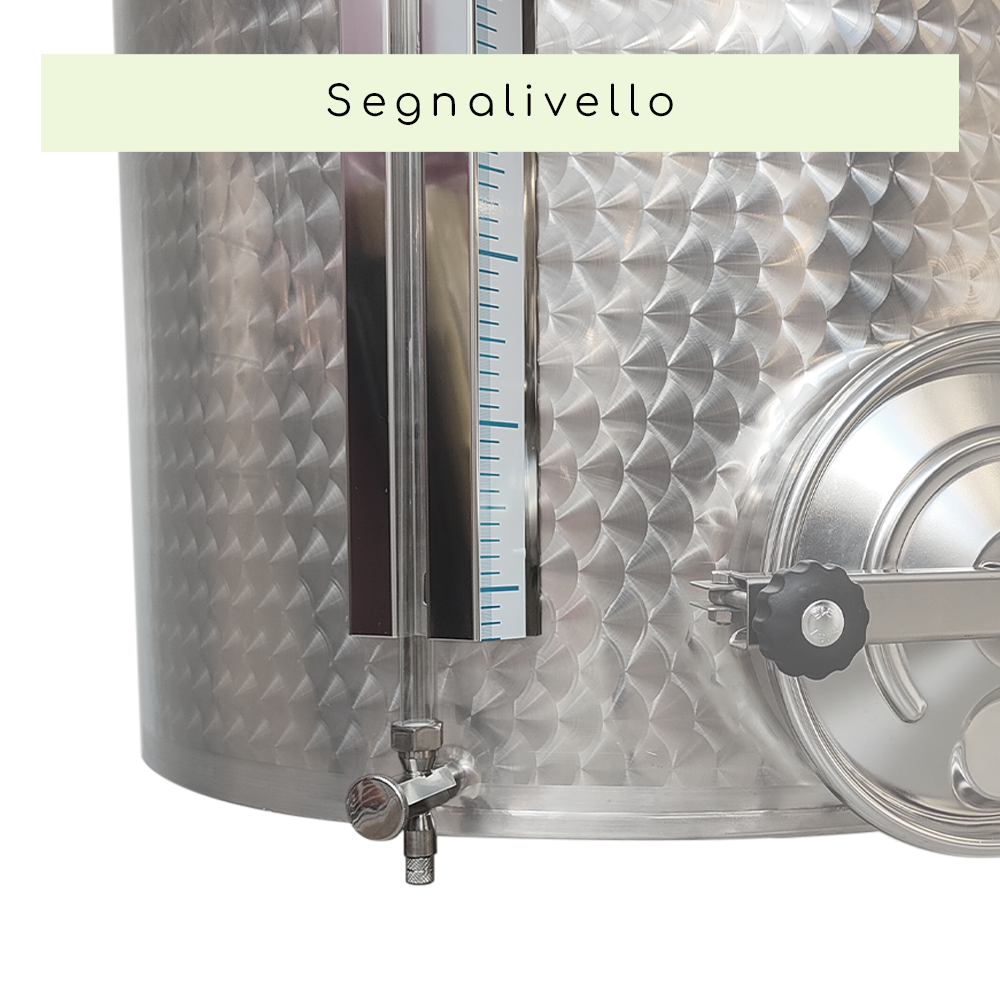

- Stainless steel level indicator with plexiglass tube, protective stainless steel tube, adhesive millimeter indication, shut-off tap, and column drain

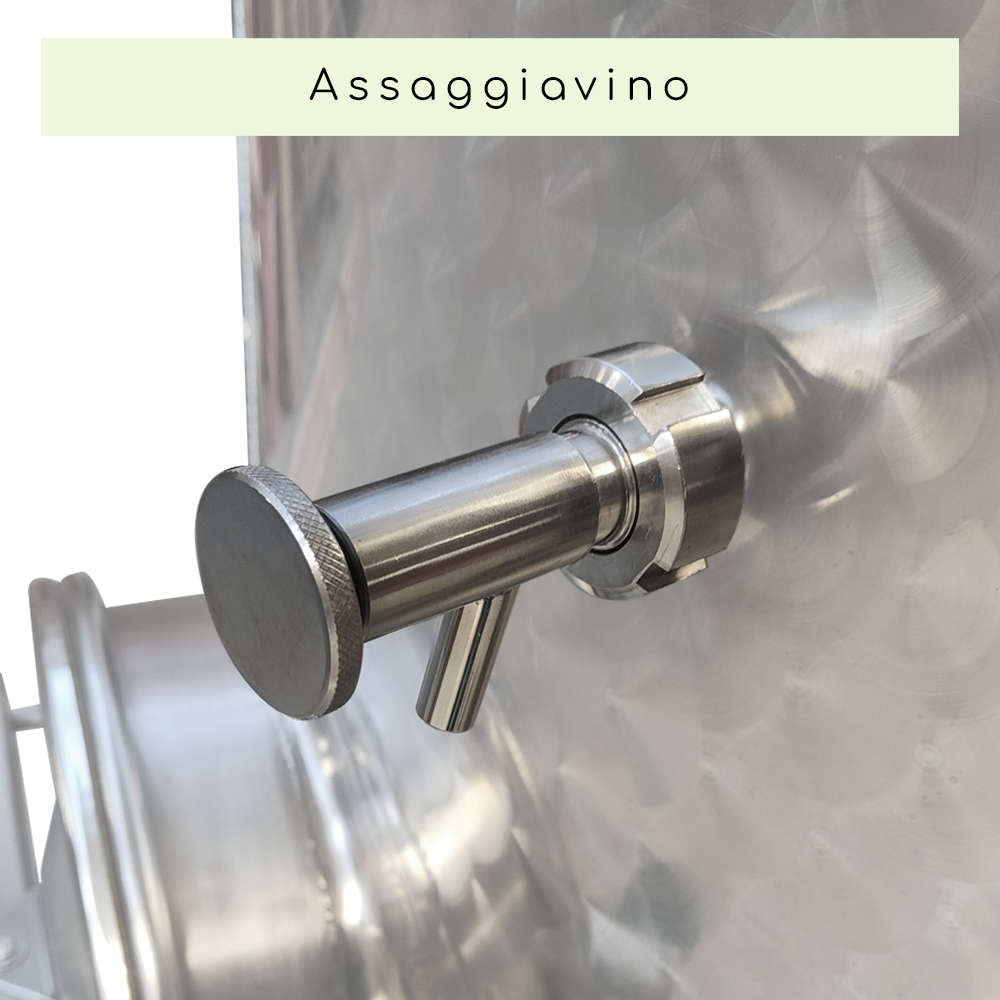

- Stainless steel screw-type sample tap with DIN 15 connection

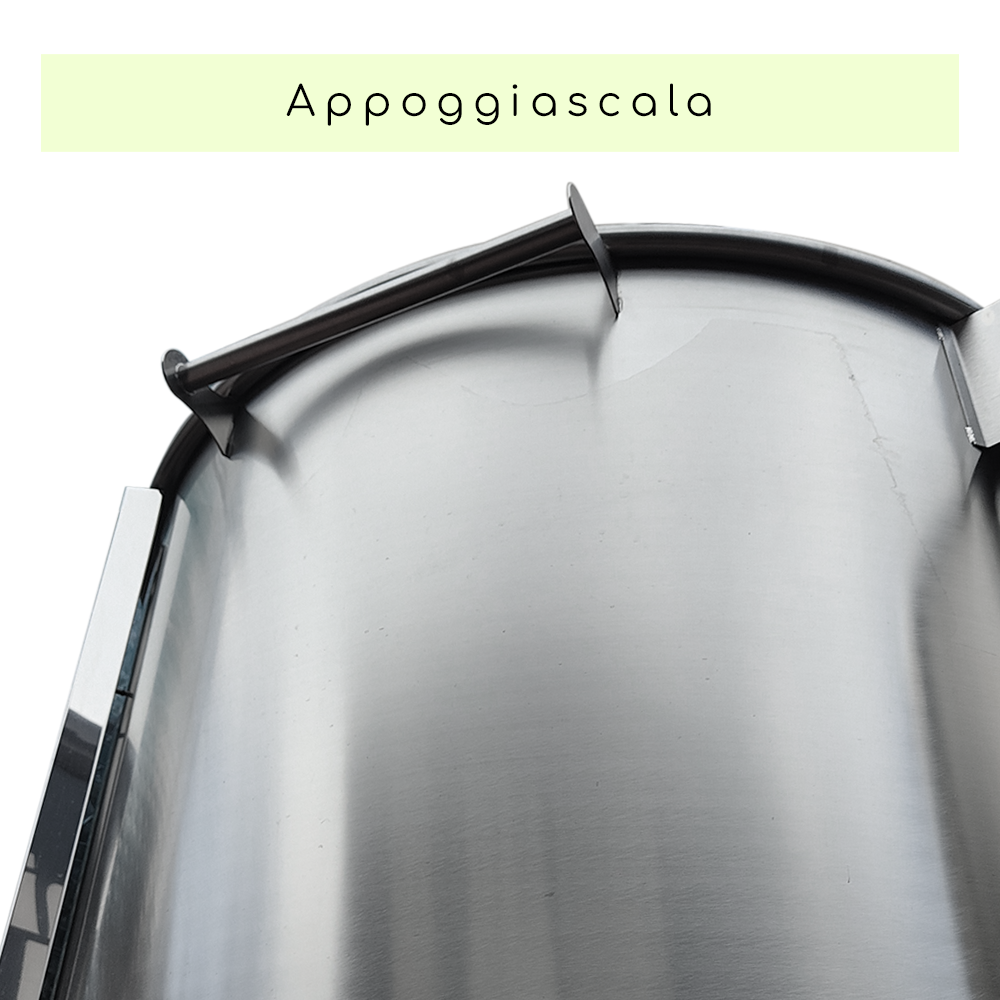

- Stainless steel ladder rest (length 500 mm) positioned at the top

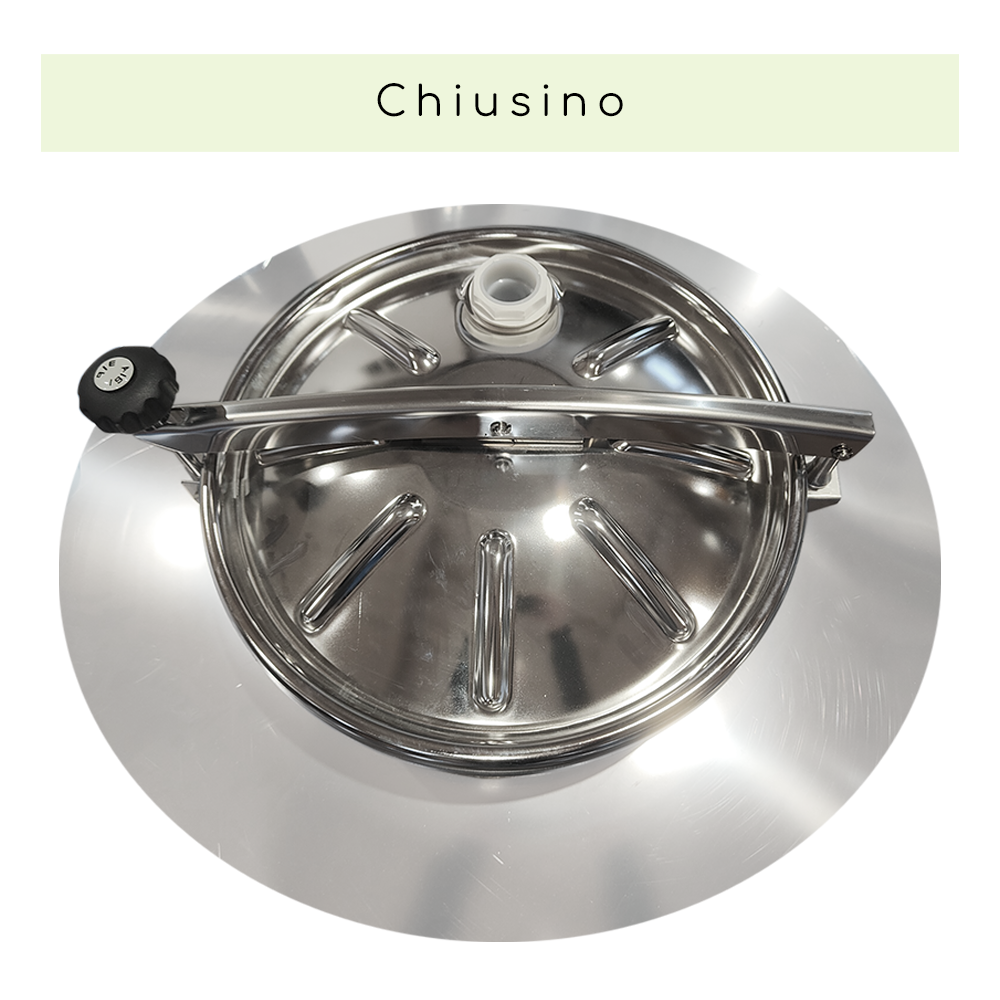

- Upper manhole with PVC vent valve
Quality Guarantee Made in Italy
This tank is a genuine Italian product, entirely made with top-quality materials. Choose excellence for the storage of your precious products.
