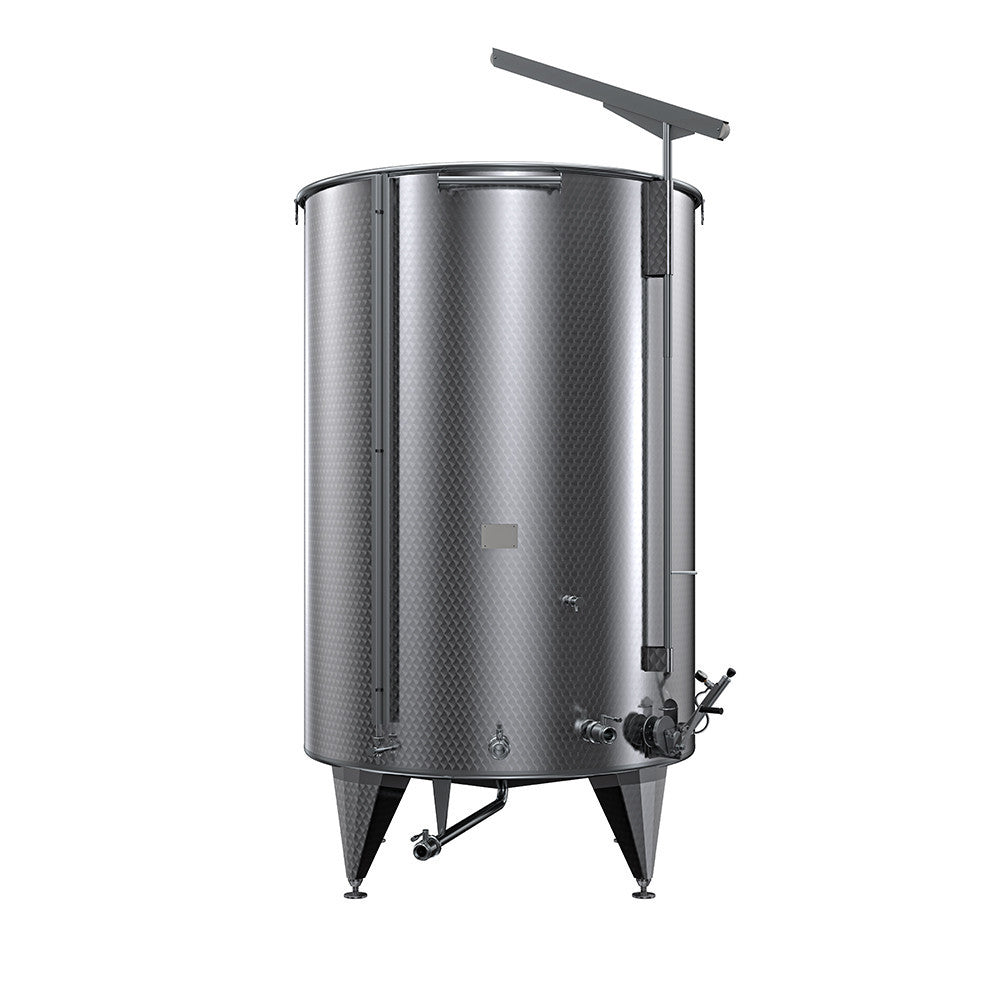

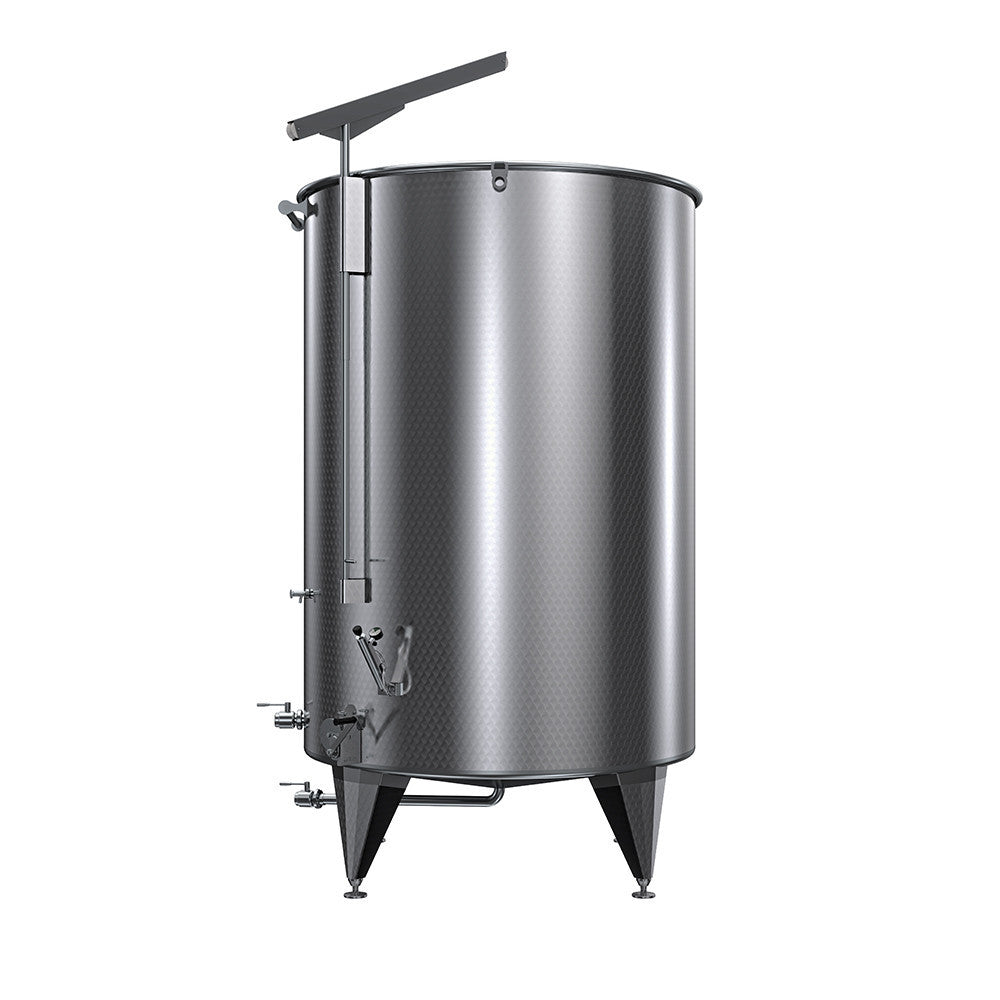

Air tight tank conical bottom custom ø 2420 from 10000b to 25000a lt
Air tight tank conical bottom custom ø 2420 from 10000b to 25000a lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
The Pneumatic Always-Full Tank Ensuring Quality and Reliability

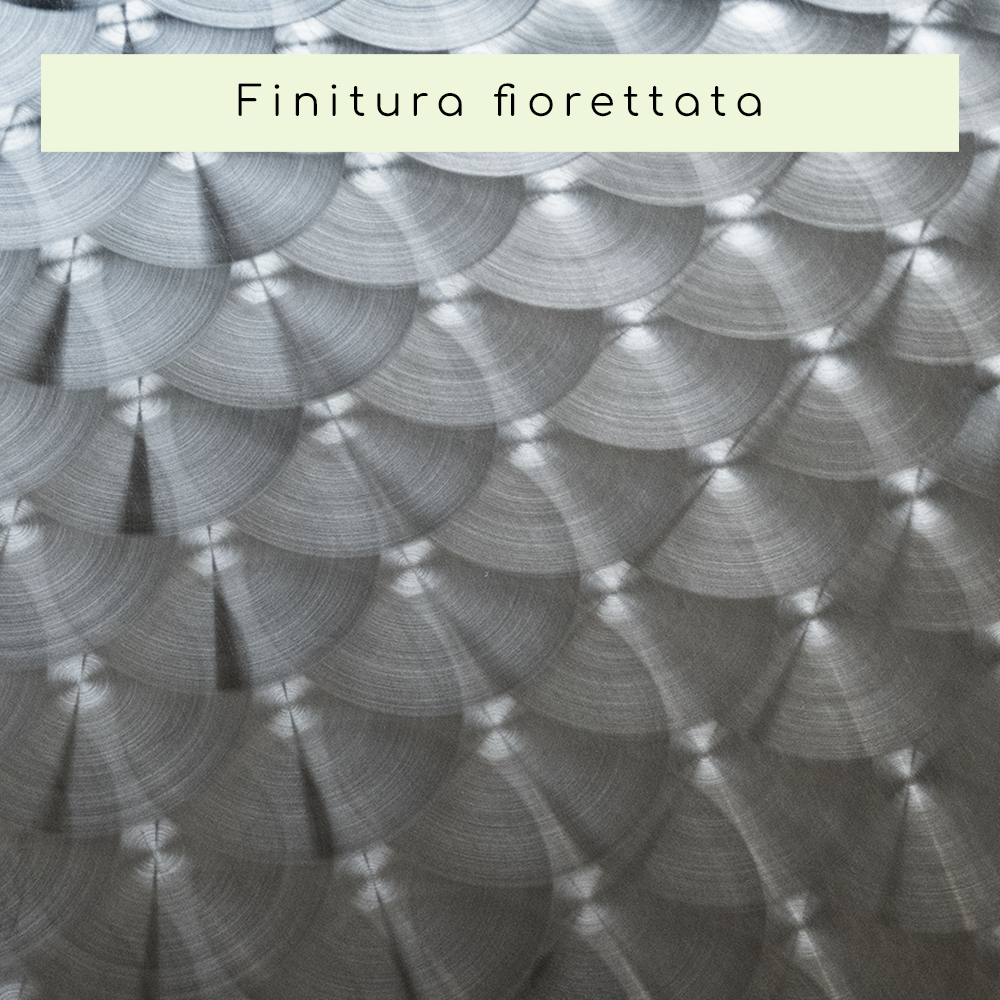

Made entirely of stainless steel AISI 304, this tank is the ideal choice for storing oil, wine, and food liquids while preserving their characteristics. The 11% conical bottom ensures perfect sedimentation and clean extraction of the product, while the external satin finish combined with the internal polished finish guarantees aesthetics and hygiene.
Main Technical Specifications:
- Actual Diameter: Ø 2420 mm
- Steel Thickness: 3 mm at the bottom, 1.5 mm at the shell
- Available from 10,000 to 25,000 liters with varying heights
Total Heights WITH ARM:
- 10,000 L: 3495 mm
- 12,500 L: 3995 mm
- 15,000 L: 4745 mm
- 20,000 L: 5745 mm
- 25,000 L: 6745 mm
Total Heights WITHOUT ARM:
- 10,000 L: 2895 mm
- 12,500 L: 3395 mm
- 15,000 L: 4125 mm
- 20,000 L: 5145 mm
- 25,000 L: 6145 mm
Cooling Band (including thermometer and probe port):
- Height: 900 mm
- Steel Thickness: 0.7 mm
- Exchange Surface: 5.8 sqm
- Operating Pressure: 3 bar max
- Connections: 3/4" Gas male nipple
Complete Equipment Included:

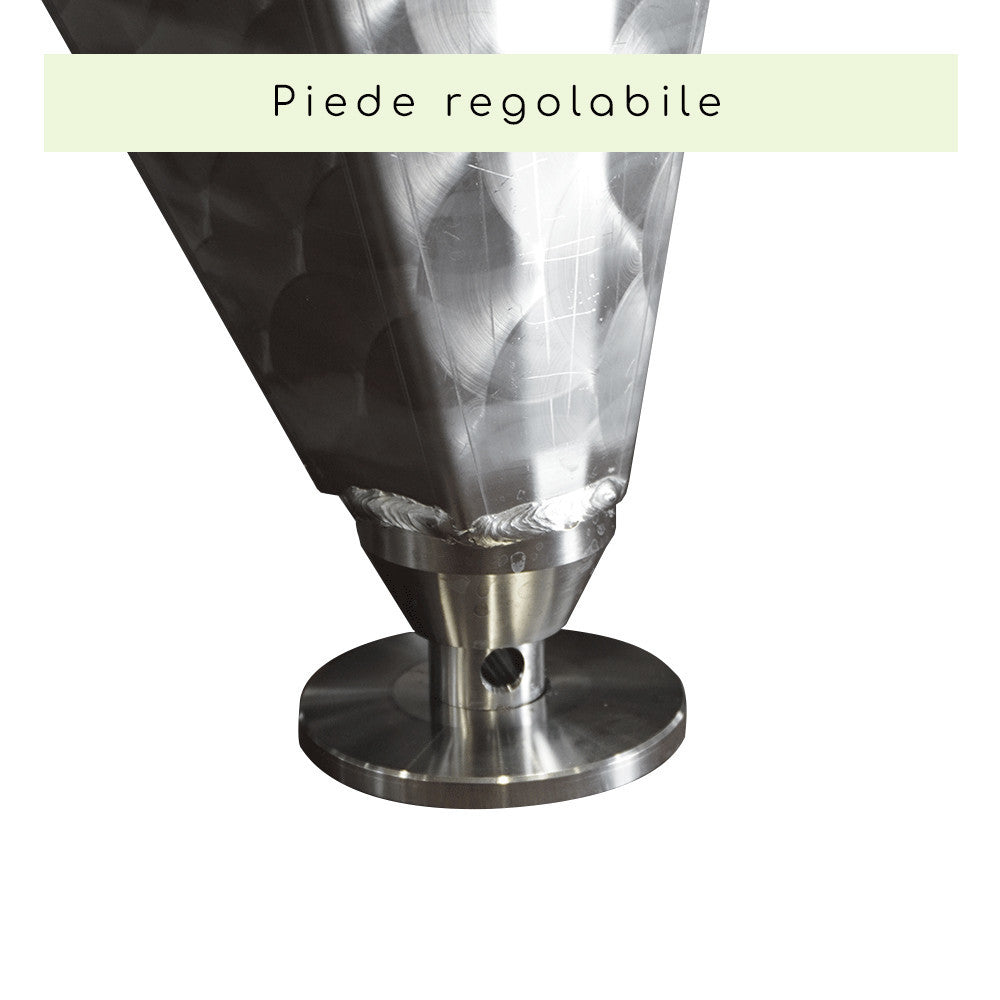

- Welded feet (from 5 to 7 depending on size)

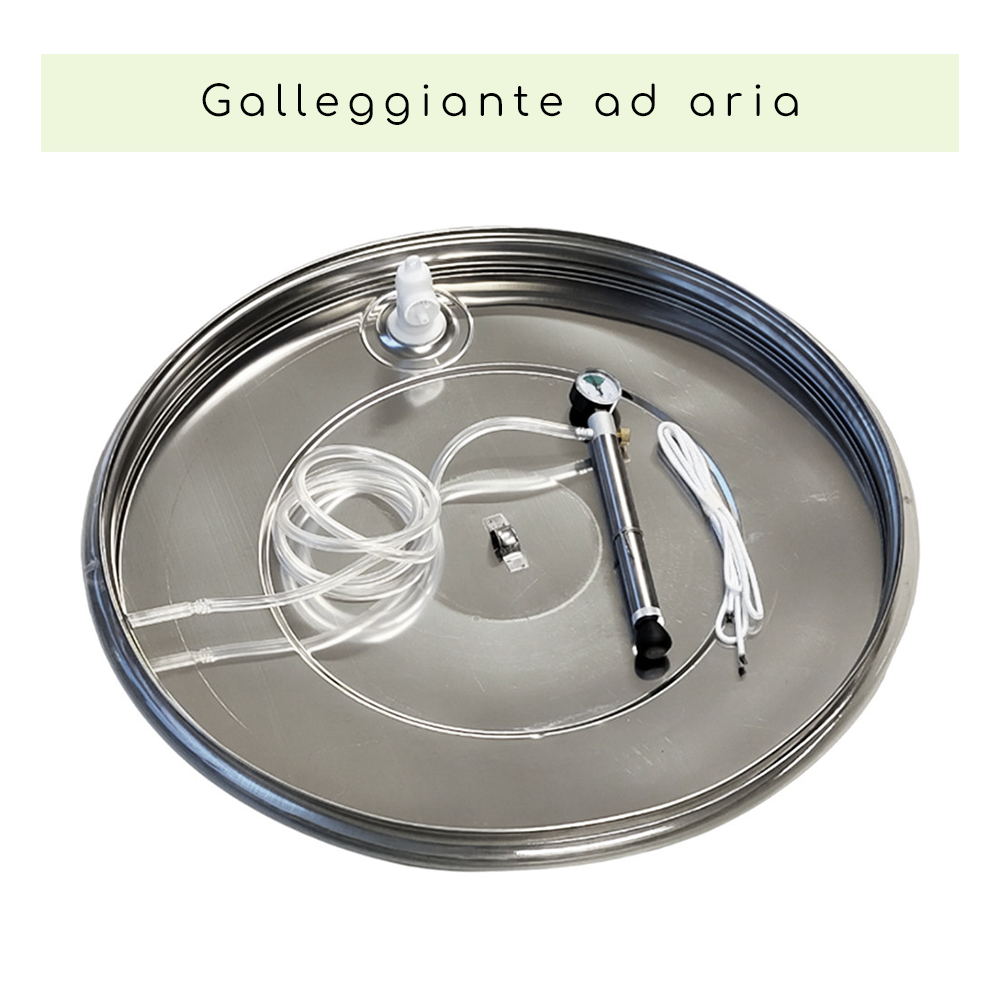

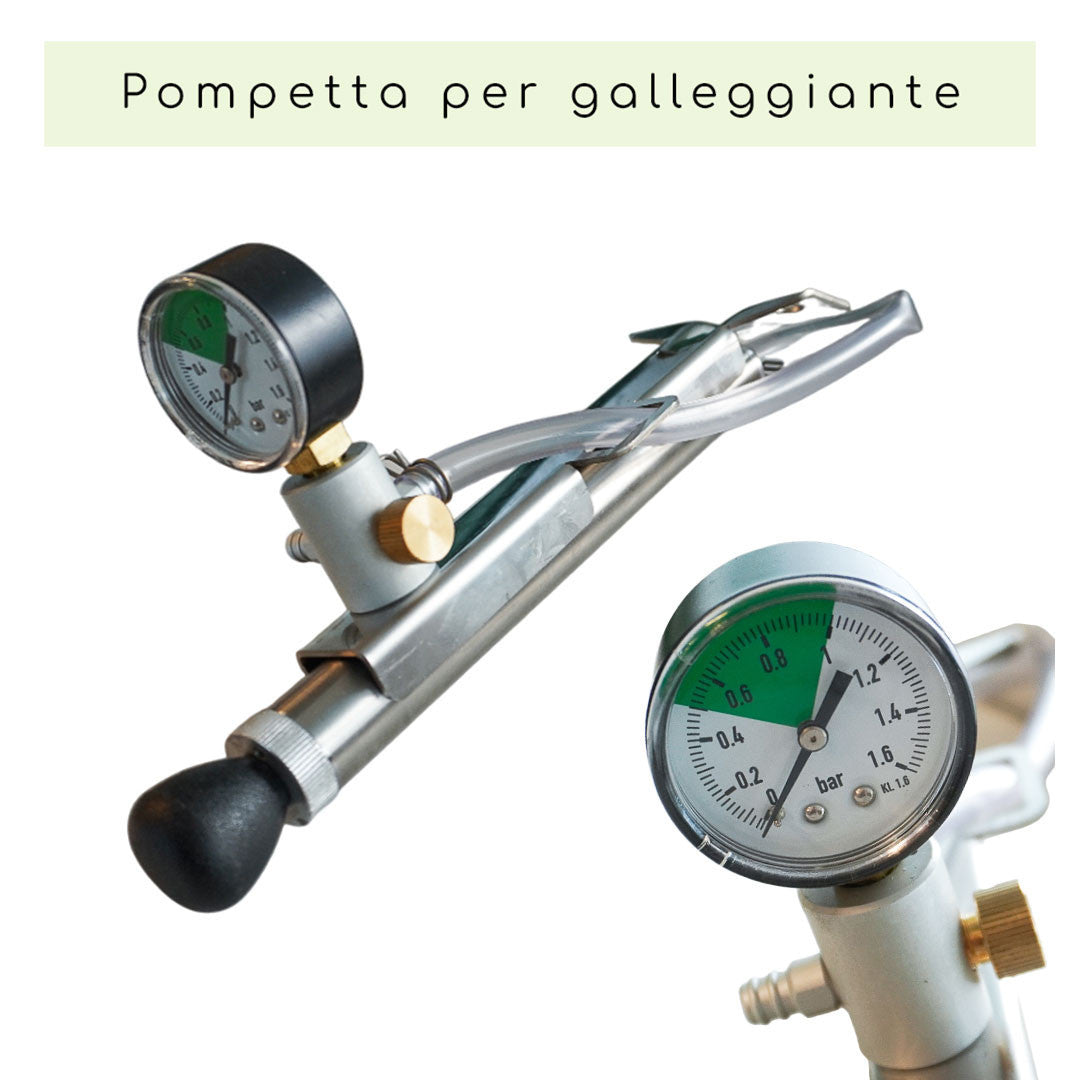

- Floating lid with air chamber complete kit: air chamber, pump, and plastic vent valve
- Drain with valve of choice

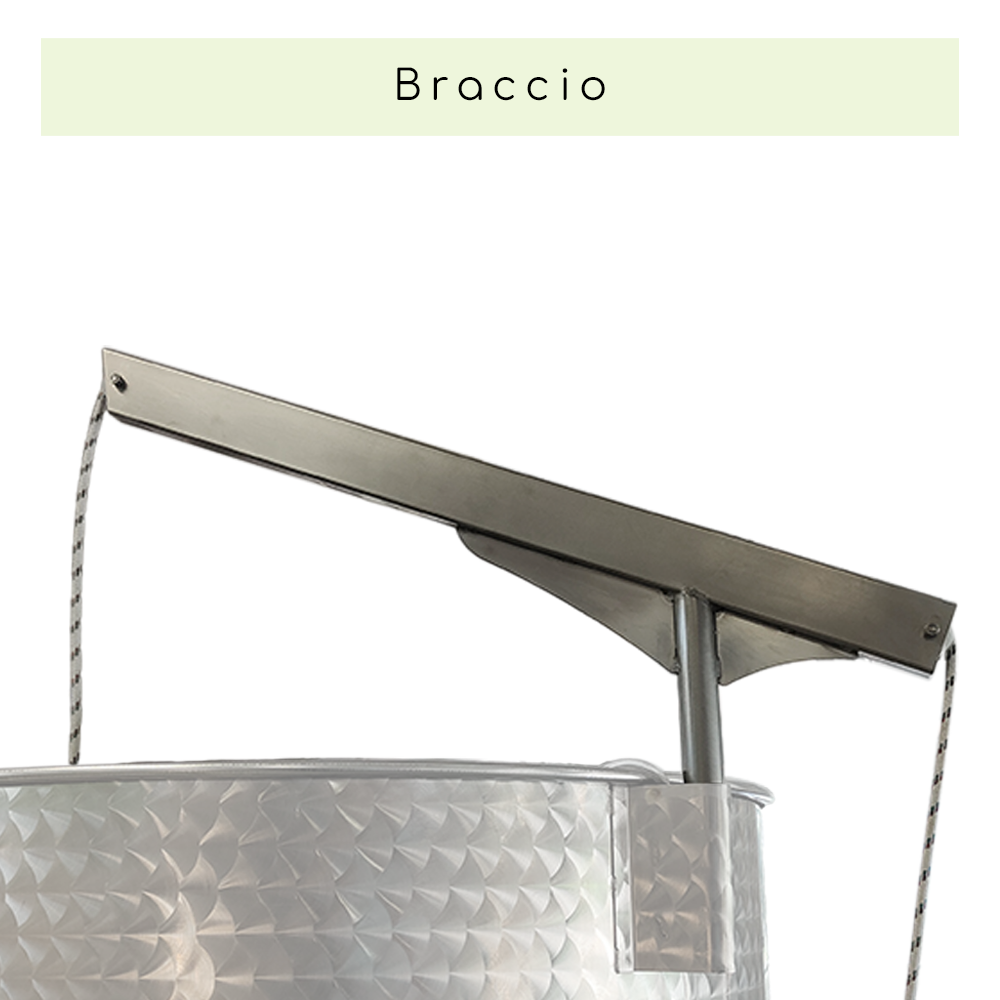

- Detachable and pivoting floating lifting arm in stainless steel AISI 304

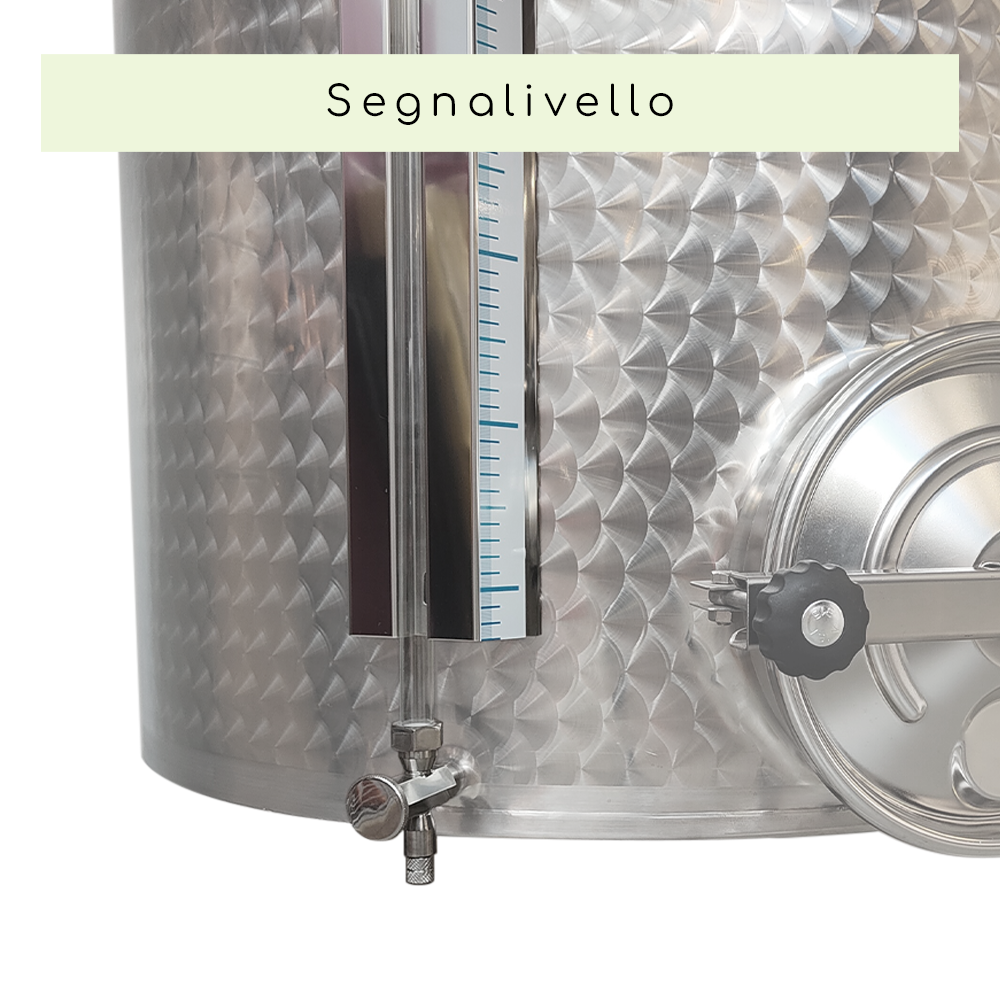

- Stainless steel protection level indicator with plexiglass tube, stainless steel protection, adhesive millimeter indication, shut-off tap, and column drain

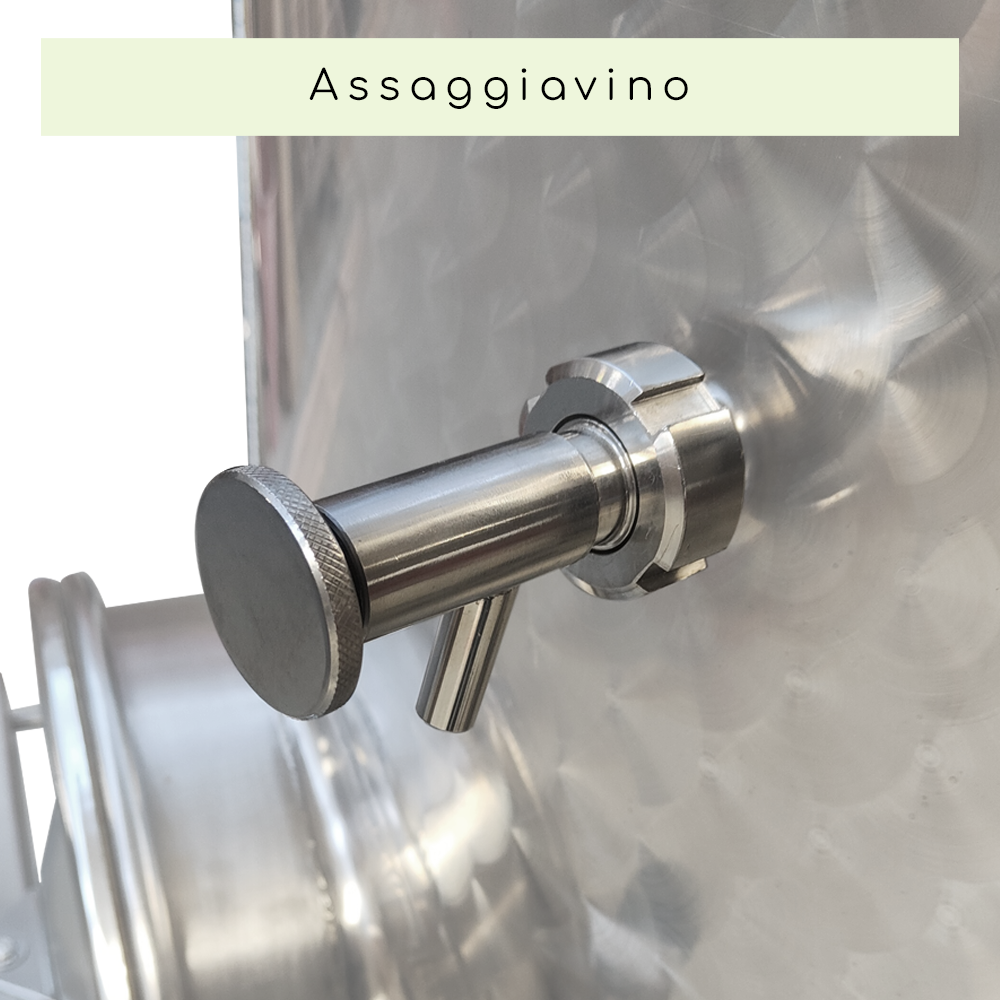

- Stainless steel screw sample tap with DIN 15 connection

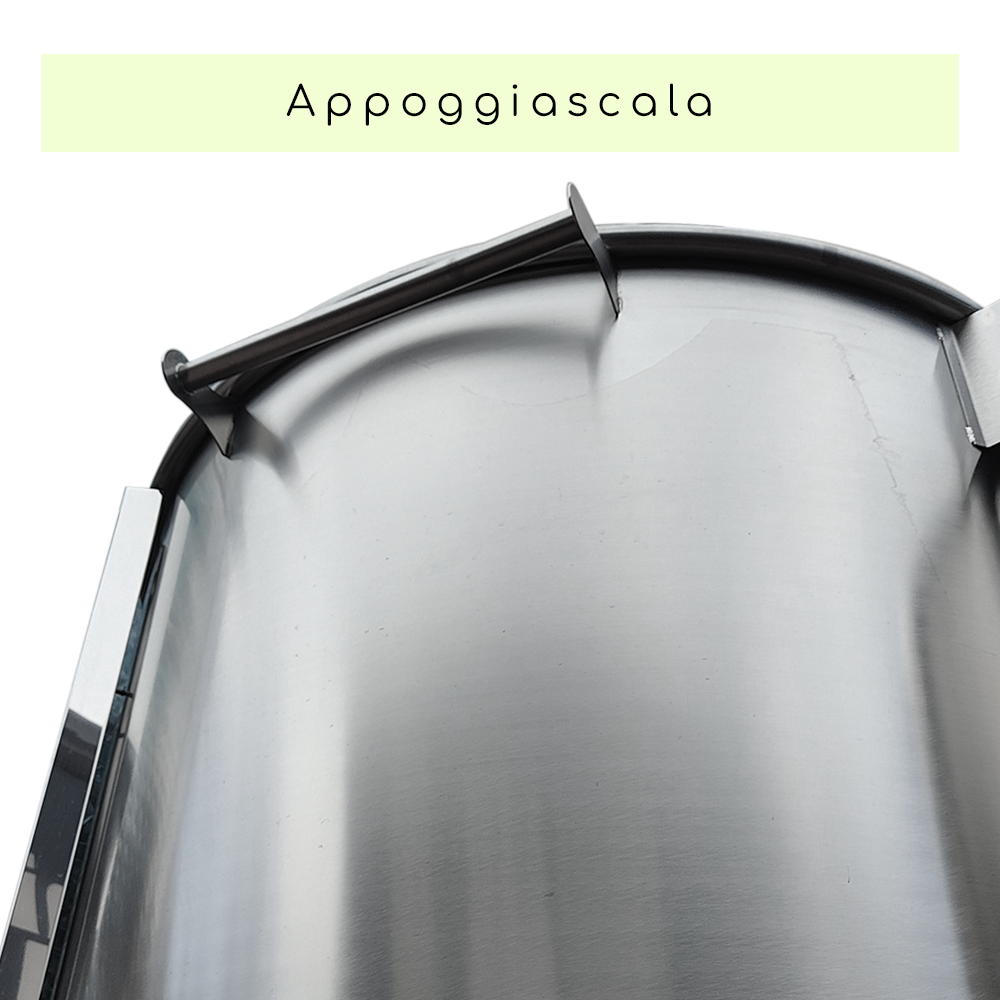

- Stainless steel ladder rest (length 500 mm) positioned at the top
- Painted galvanized steel floating lifting winch
Guaranteed Quality: Authentic product entirely Made in Italy, made with excellent quality materials
