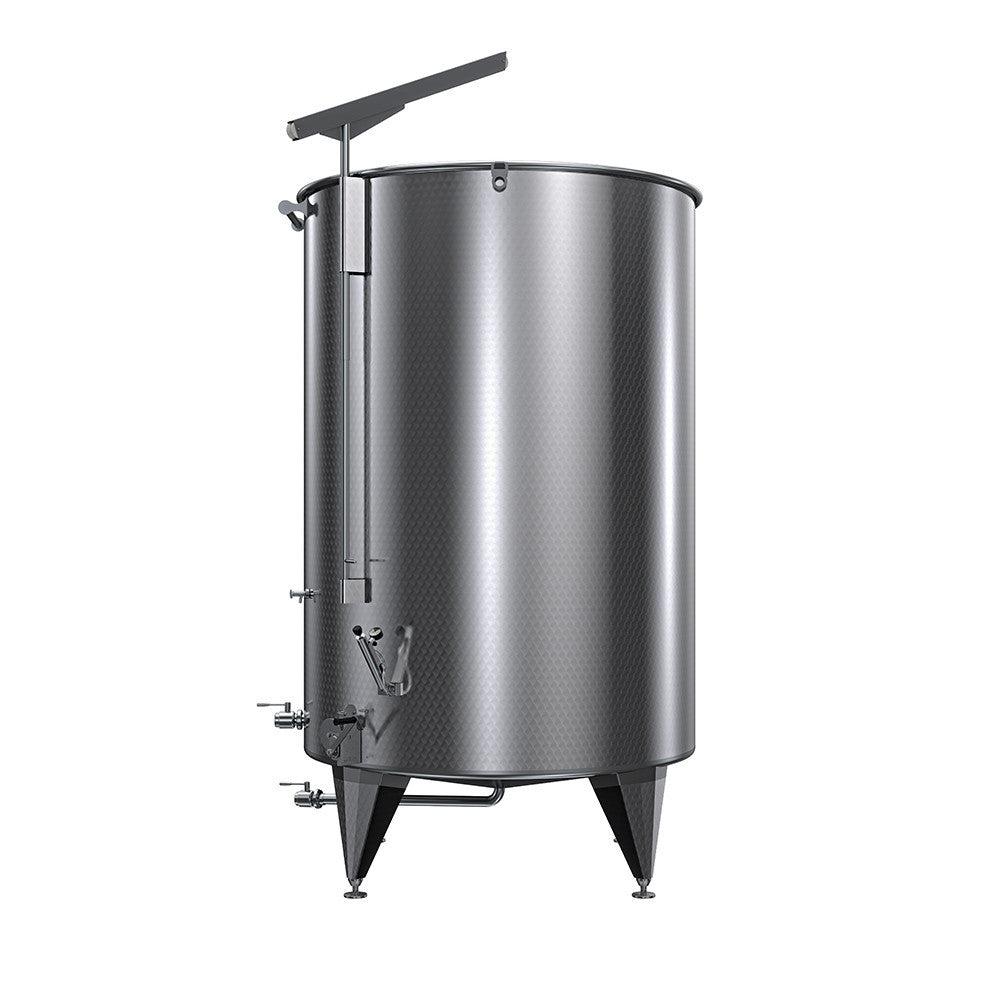

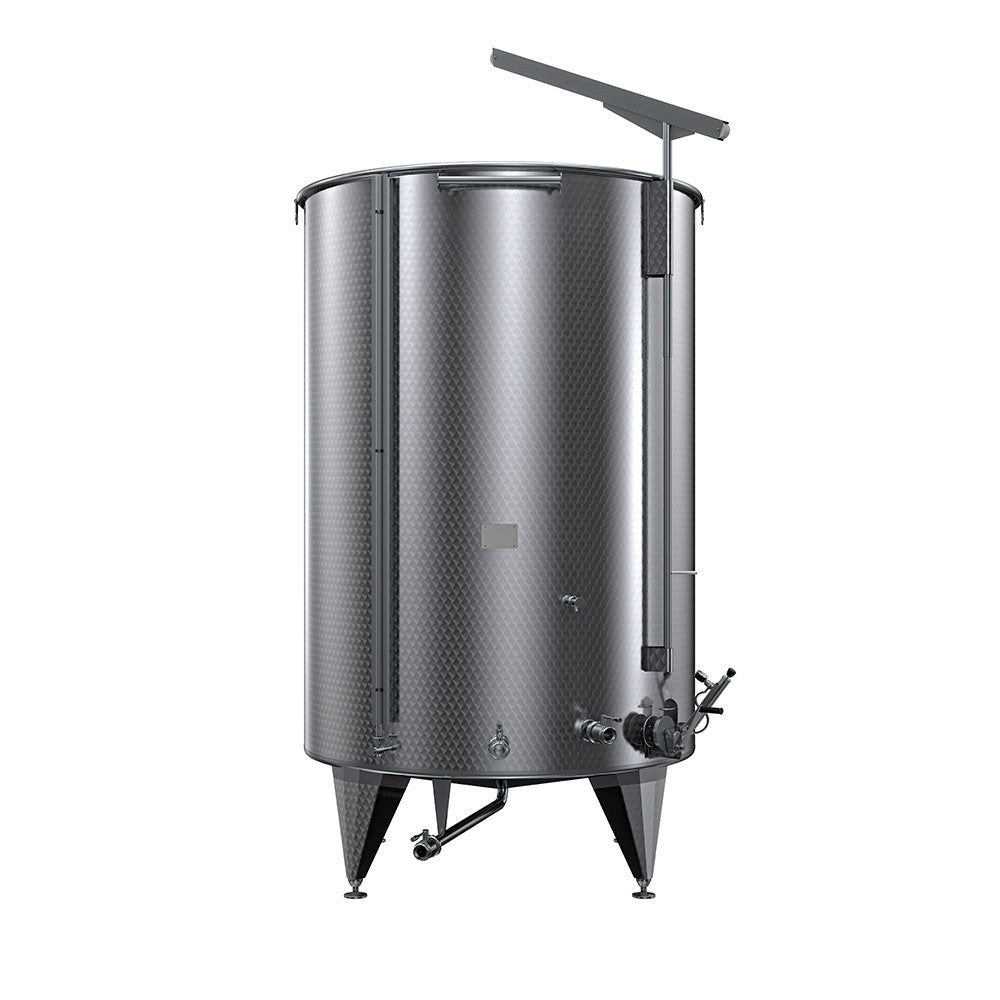

Air tight tank conical bottom custom ø 2230 from 10500 to 21000 lt
Air tight tank conical bottom custom ø 2230 from 10500 to 21000 lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
Always-full pneumatic air tank in stainless steel AISI 304, the ideal solution for professional storage of oil, wine, and food liquids. Entirely made in Italy with excellent quality materials.
Main Technical Specifications:
- Effective diameter (Øe): 2230 mm
- 11% conical bottom for optimal drainage
- Bottom steel thickness: 3 mm
- Shell steel thickness: 1.5 mm

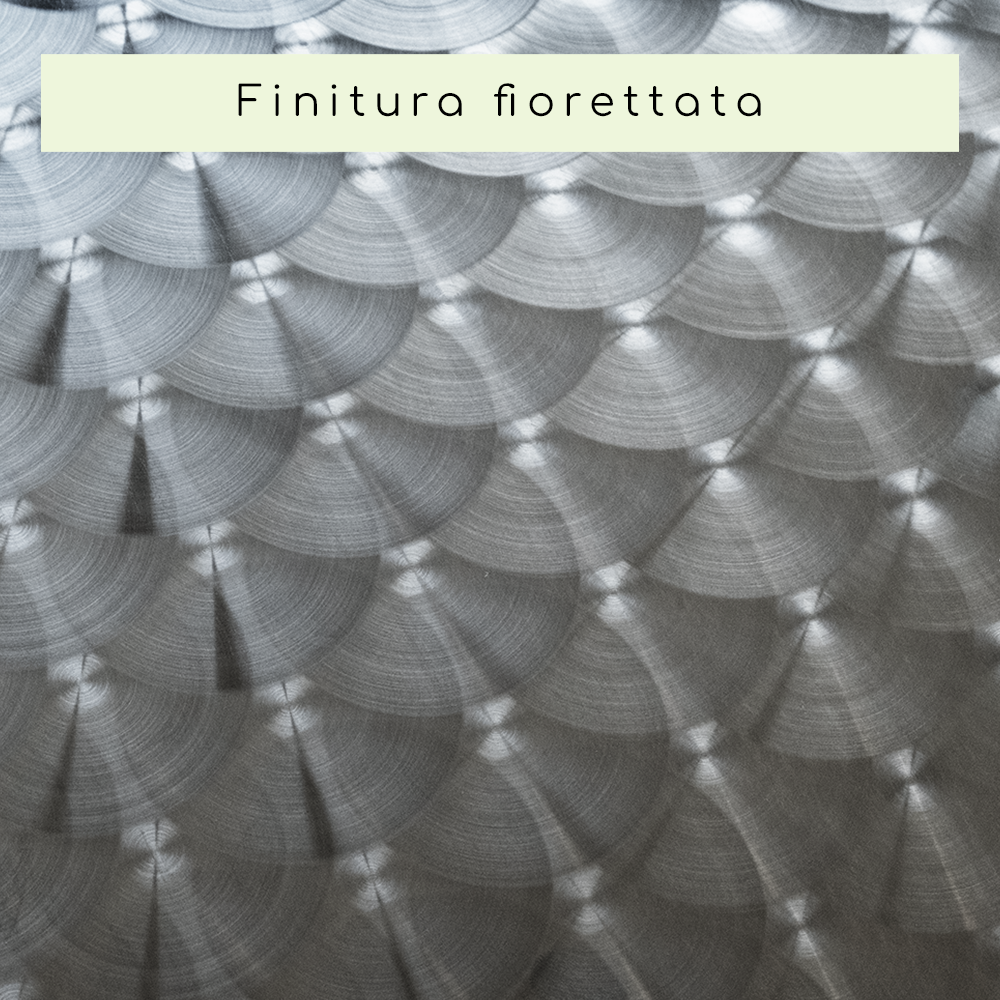

- External satin finish and internal polished finish for durability and hygiene
Container Height WITH ARM (Htot):
- 10,500 liters: 4,125 mm
- 11,500 liters: 4,375 mm
- 15,500 liters: 5,375 mm
- 21,000 liters: 6,875 mm
Container Height WITHOUT ARM (Htot):
- 10,500 liters: 3,375 mm
- 11,500 liters: 3,625 mm
- 15,500 liters: 4,625 mm
- 21,000 liters: 6,125 mm
Cooling Band (included):
- Height: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 5.2 sqm
- Maximum operating pressure: 3 bar
- Complete with thermometer and probe port
- Inlet/outlet connections: 3/4" Gas male stub
Complete Equipment:

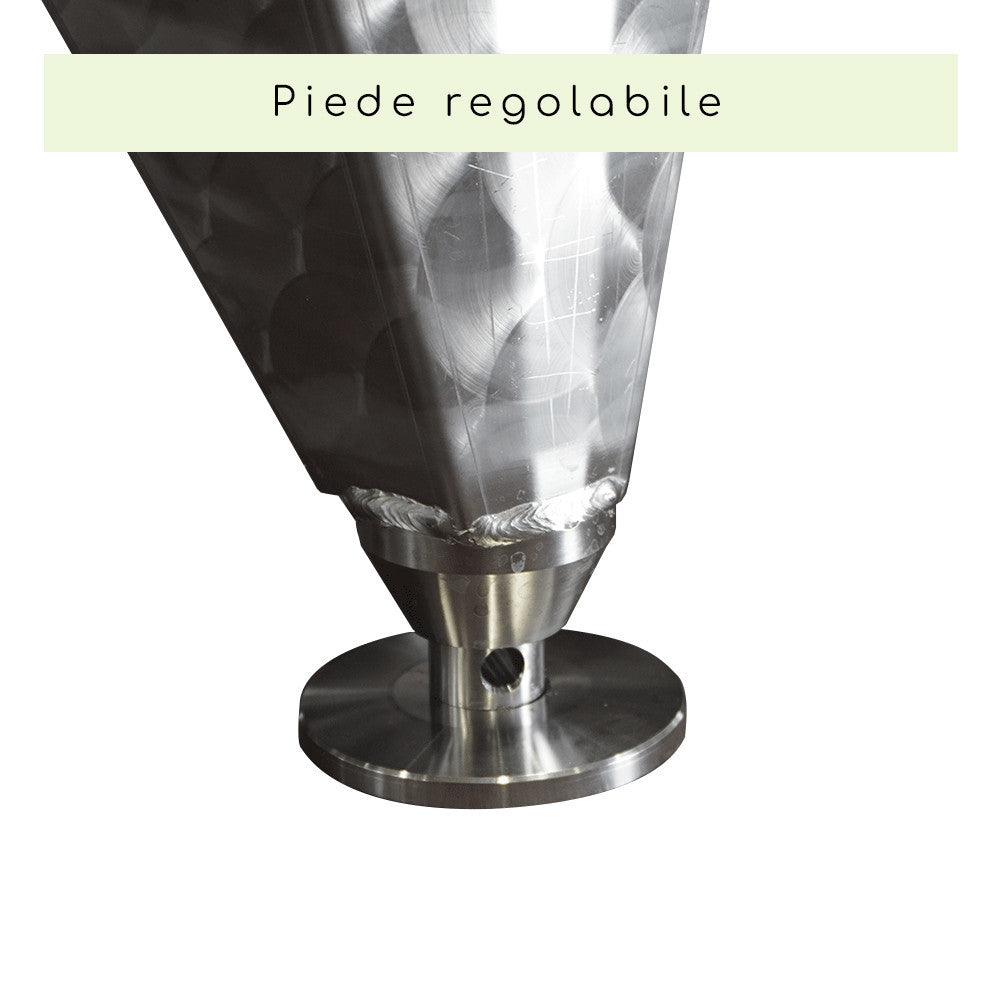

- Welded feet (from 5 to 7 depending on diameter)

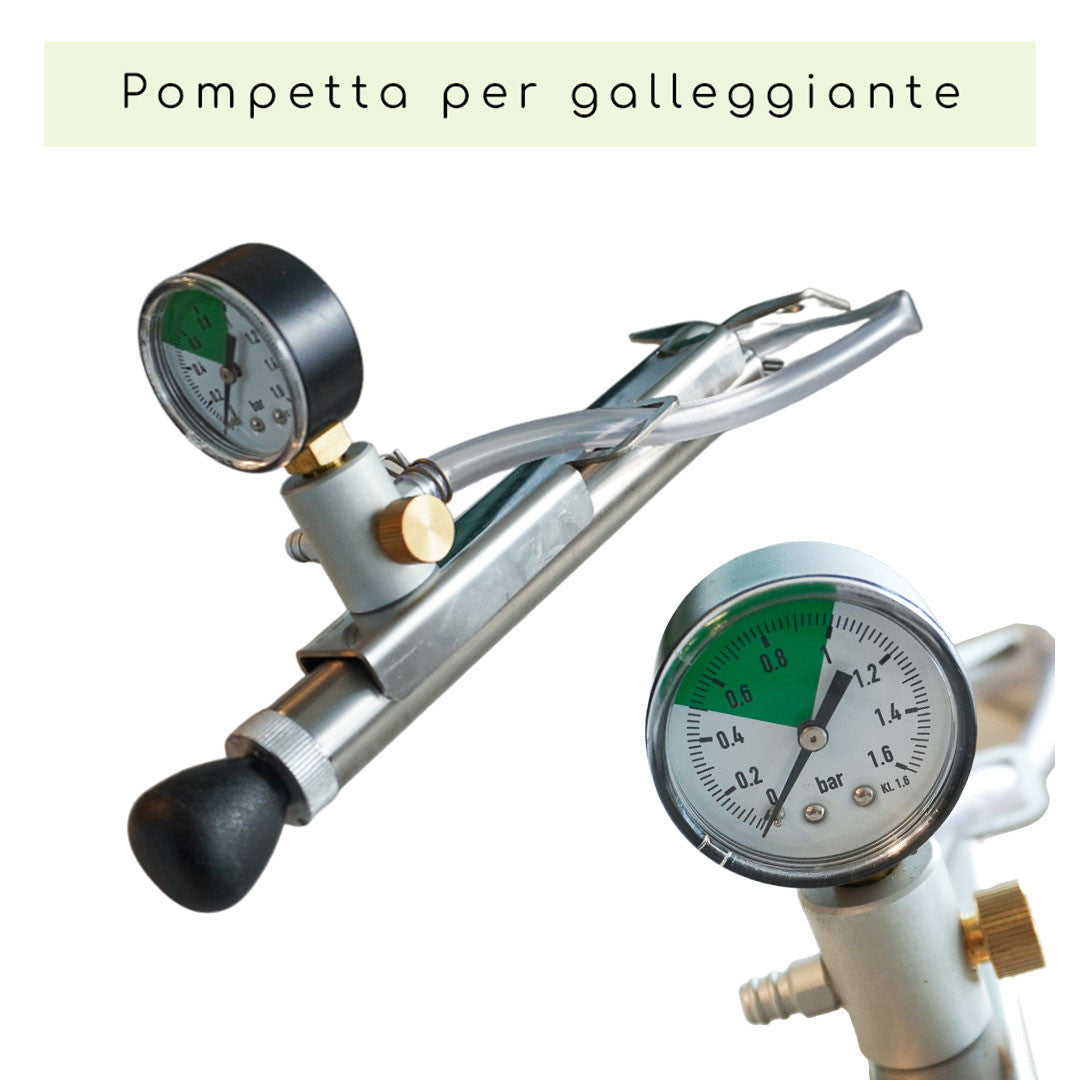

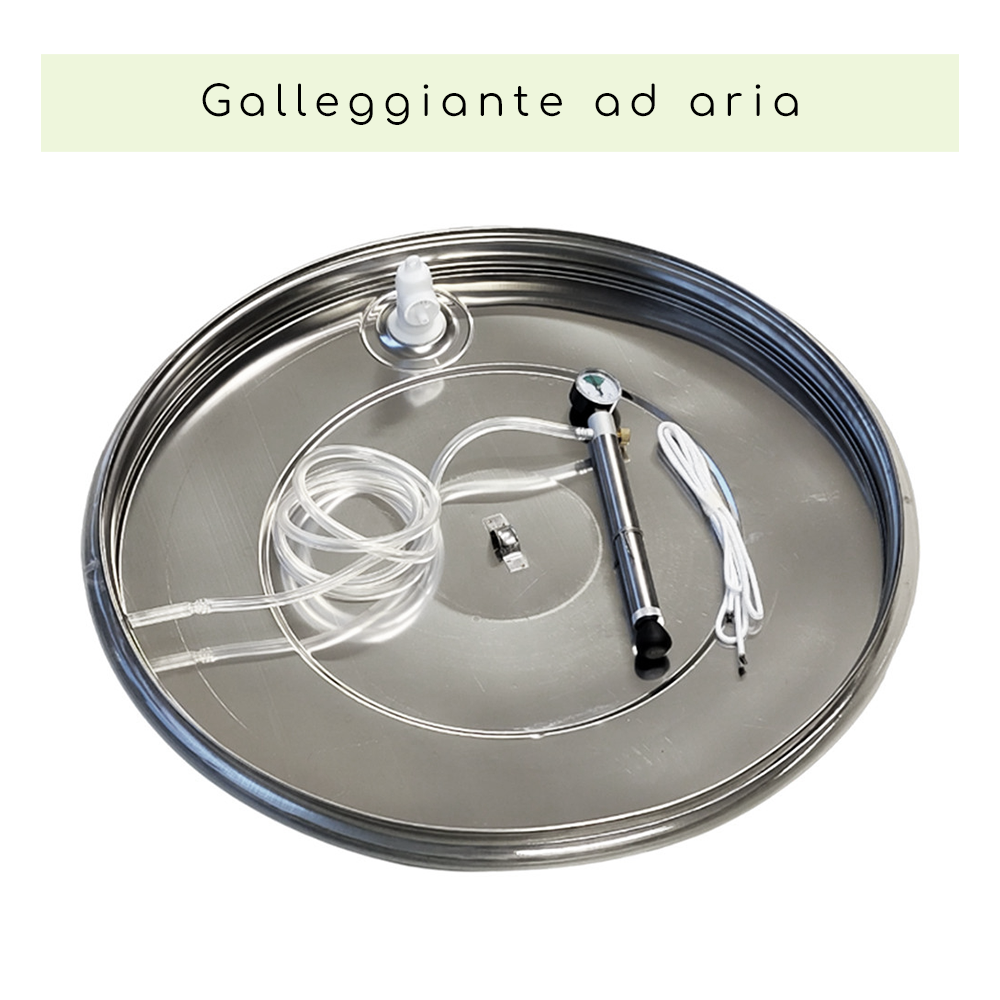

- Floating lid with air chamber and complete kit (air chamber, pump, plastic vent valve)
- Drain with valve of choice

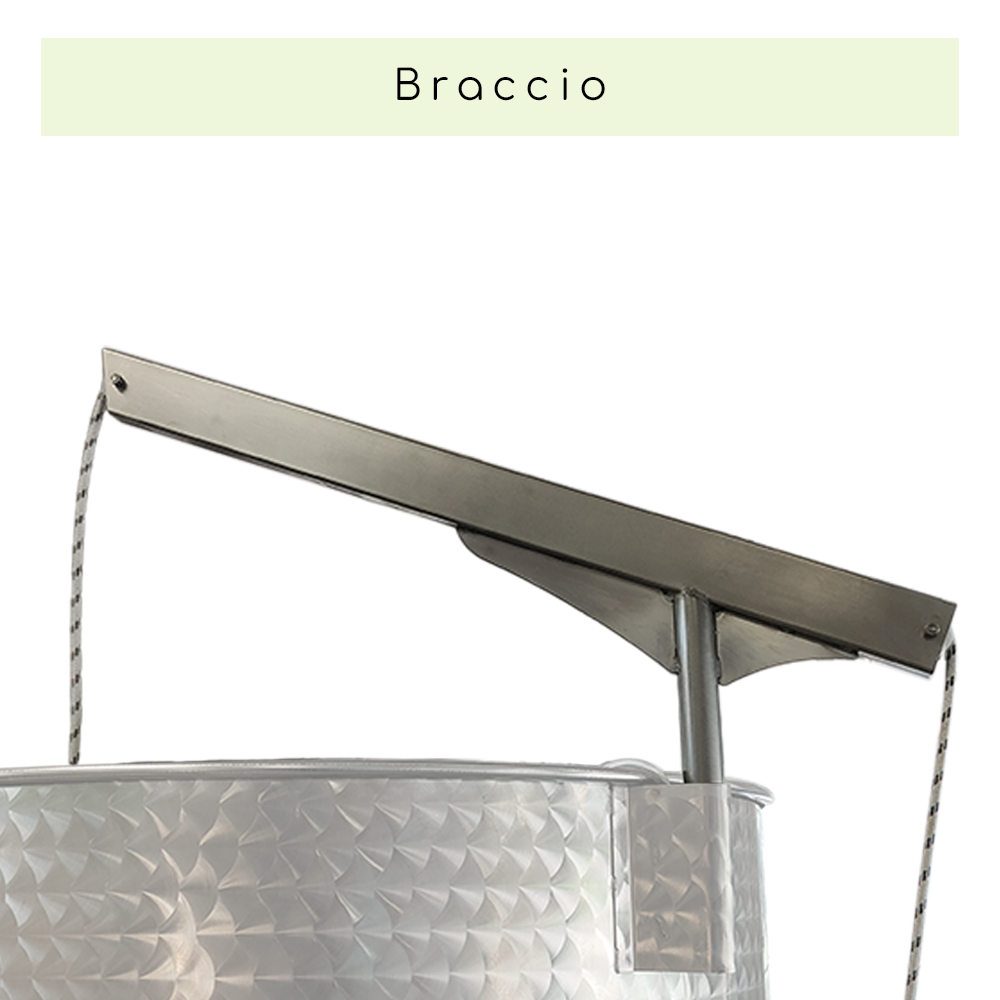

- Detachable and pivoting floating lifting arm in AISI 304 steel

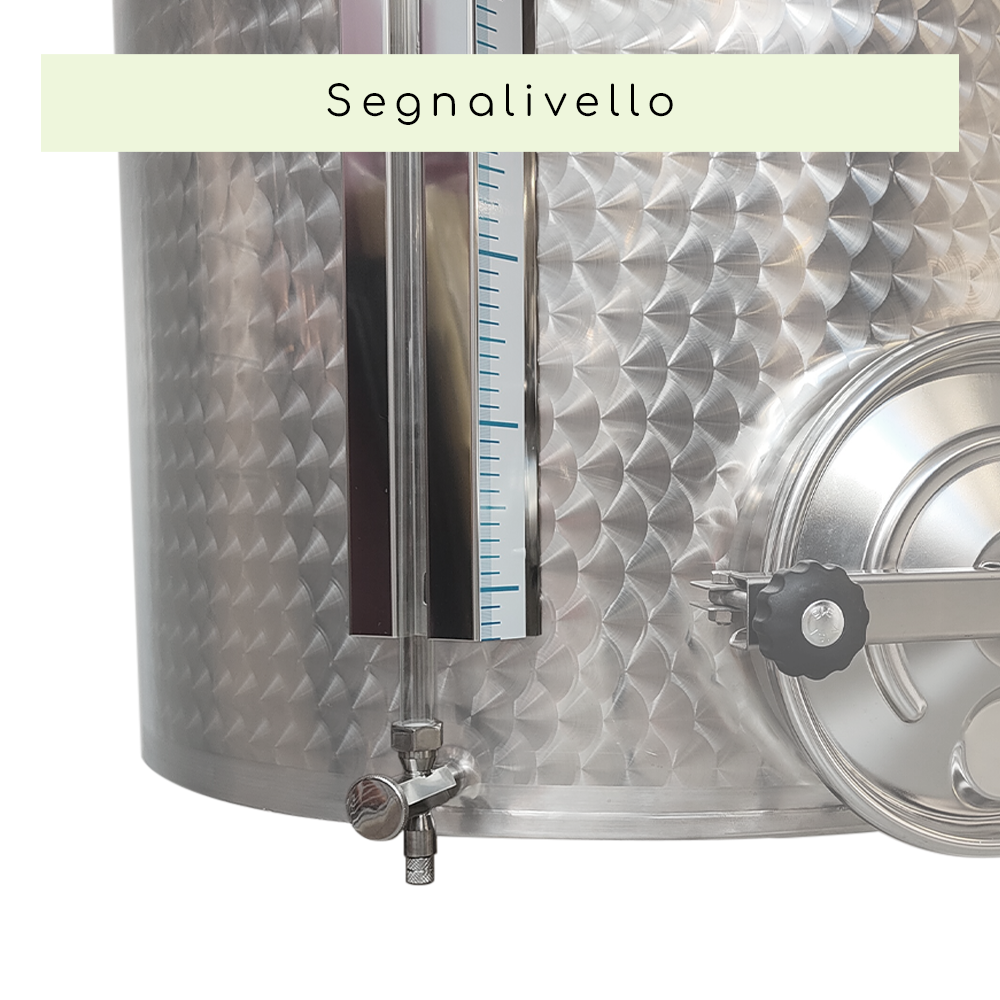

- Stainless steel level indicator with plexiglass tube and stainless steel protection, adhesive millimeter indication, shut-off tap, and column drain

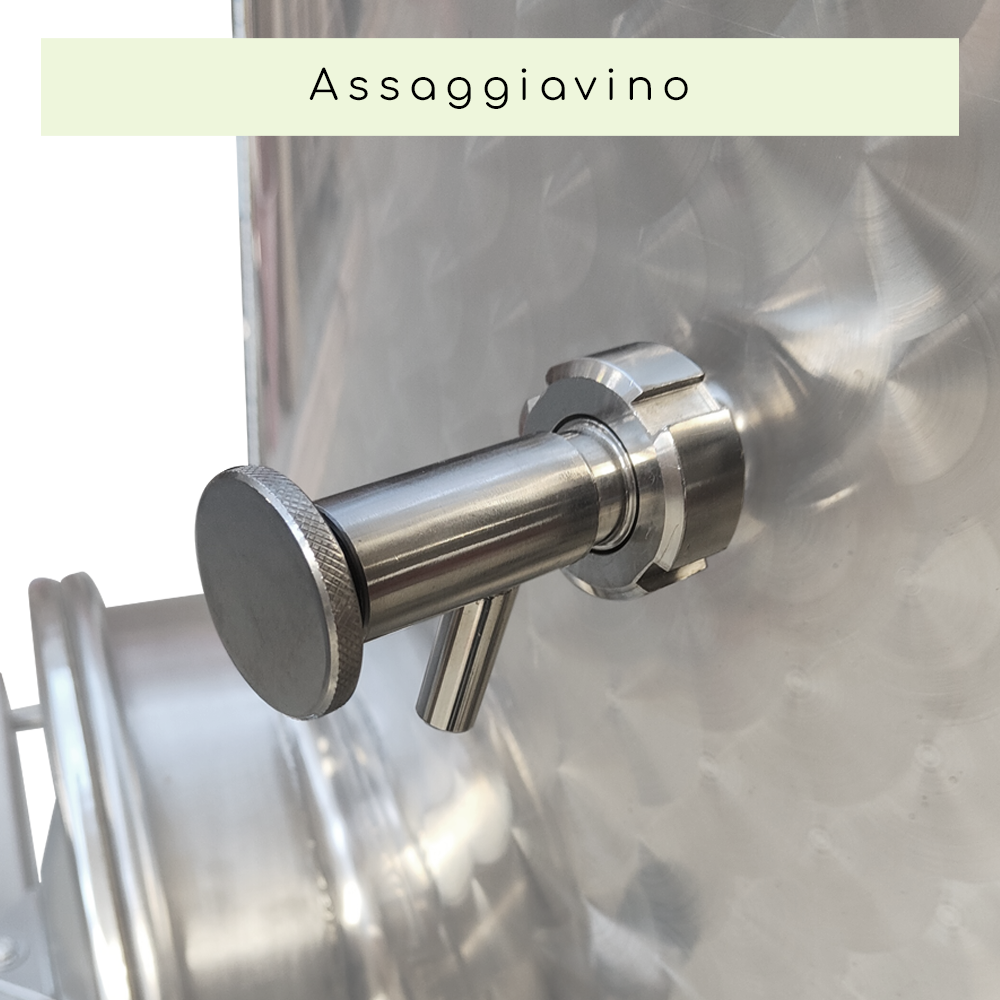

- Stainless steel sample tap with DIN 15 connection

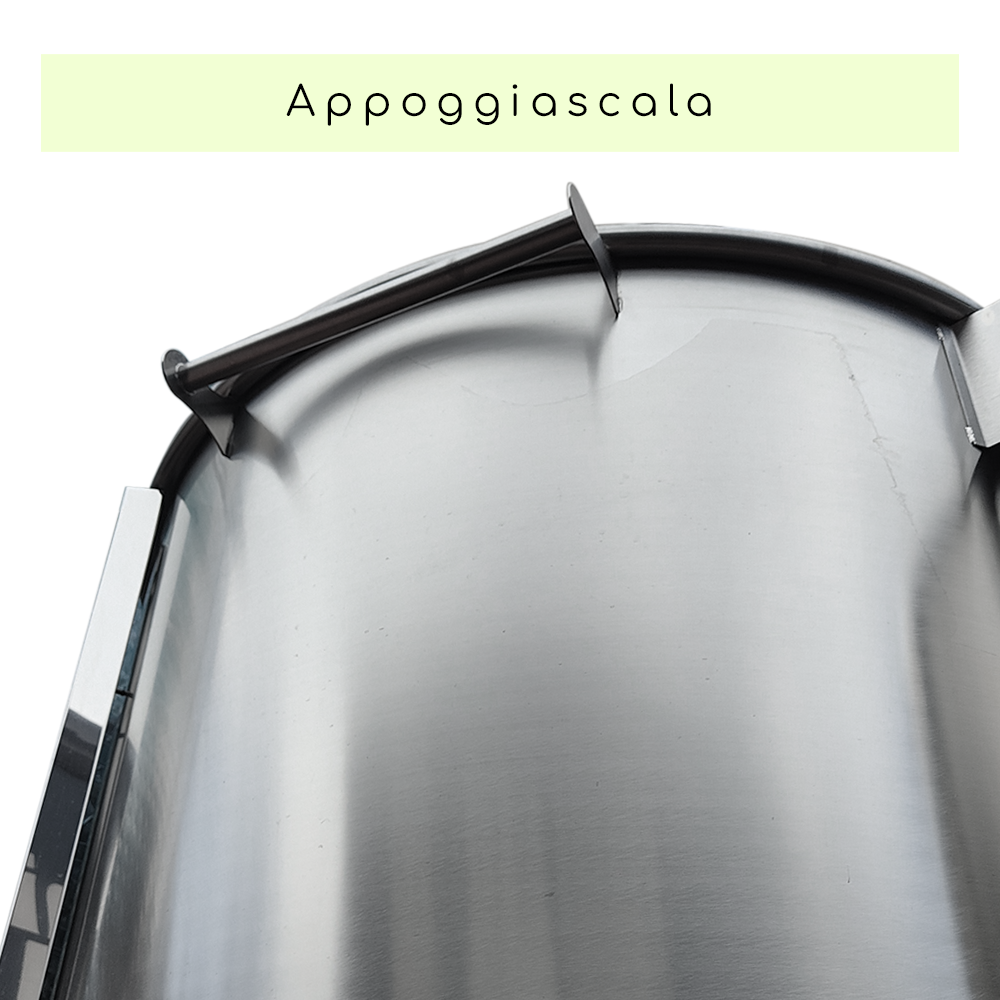

- Stainless steel ladder rest (length 500 mm) positioned at the top
- Painted galvanized steel floating lifting winch
Guaranteed Quality: Authentic product entirely Made in Italy, made with high-quality materials for reliable performance over time.
