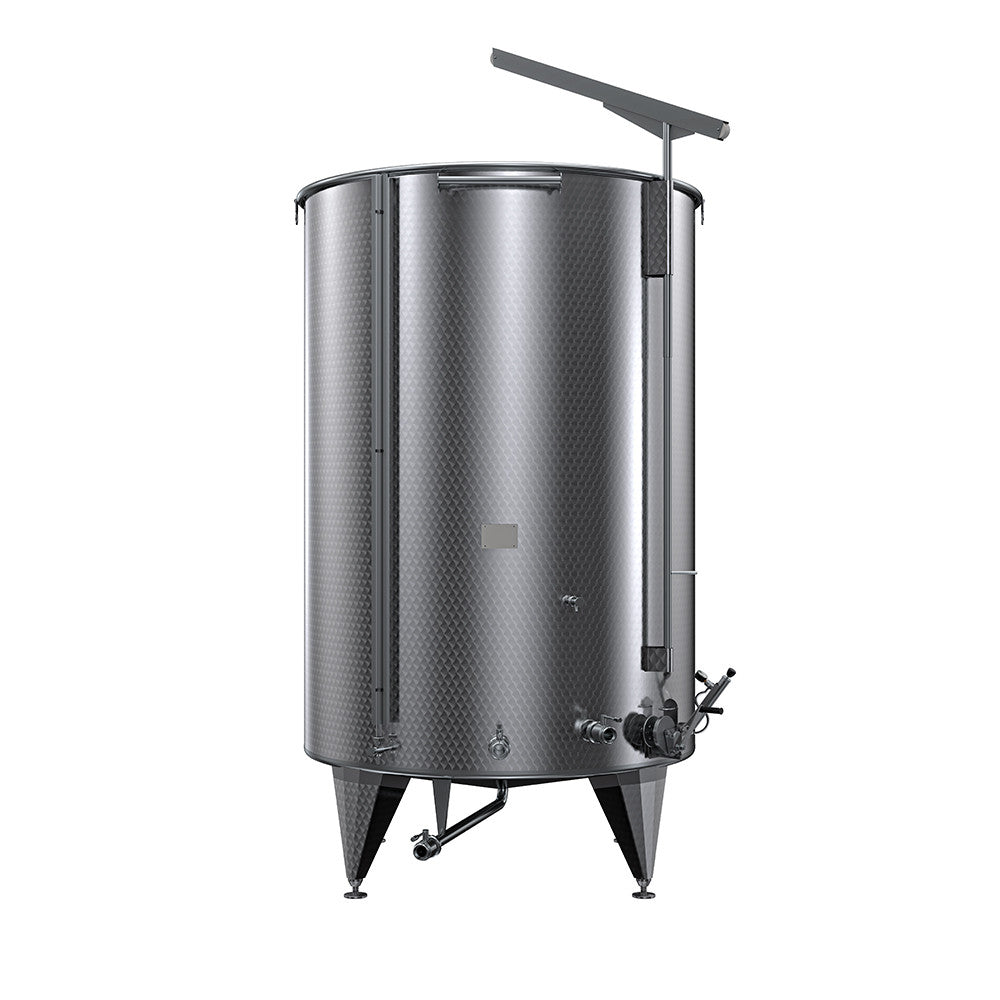

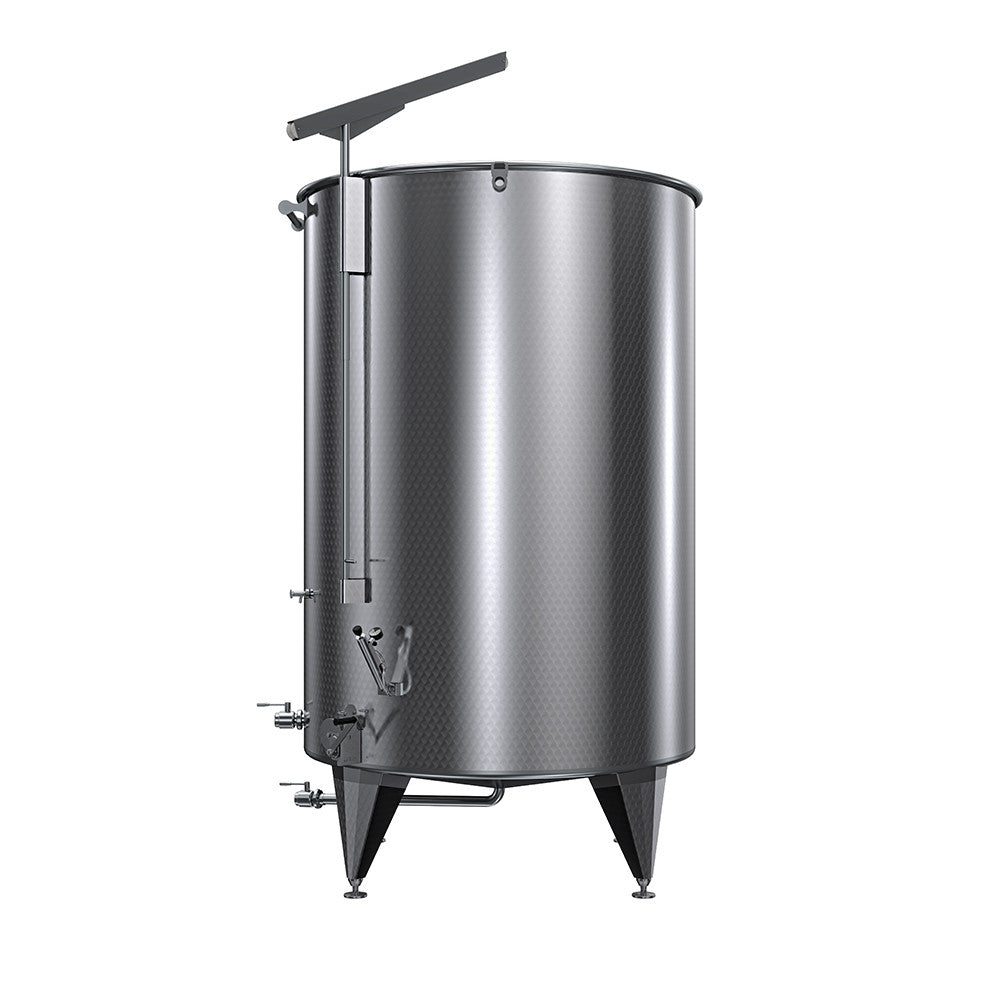

Custom conical bottom air tank ø 2100 from 7500 to 12500 lt
Custom conical bottom air tank ø 2100 from 7500 to 12500 lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description
Premium quality pneumatic always full air tank, made of certified AISI 304 stainless steel. The ideal solution for the professionally correct storage of oil, wine, and food liquids that require the highest hygiene and preservation standards.
Technical and construction specifications:
- Effective diameter: Ø 2100 mm
- Selectable capacity: from 7500 to 12500 liters
- Conical bottom: 11% inclination for optimal sediment discharge

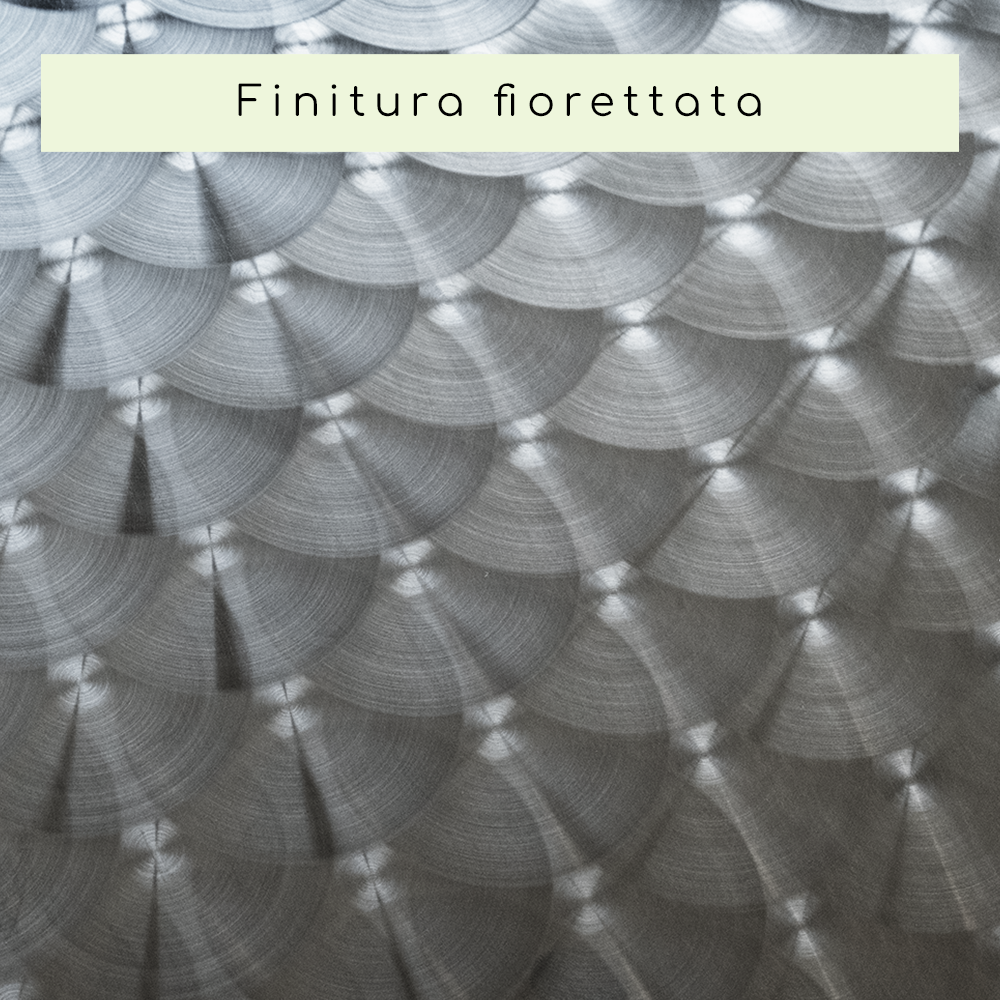

- Finishes: brushed external, glossy internal for maximum hygiene
- Steel thickness bottom: 3 mm (guaranteed robustness)
- Steel thickness cylinder: 1.5 mm
Available total heights:
- Model 7500 LT with arm: 3495 mm | without arm: 2895 mm
- Model 10000 LT with arm: 4245 mm | without arm: 3645 mm
- Model 12500 LT with arm: 4995 mm | without arm: 4395 mm
Integrated cooling system:
- Cooling jacket height 900 mm with thermometer and probe holder included
- Steel thickness jacket: 0.7 mm
- Heat exchange surface: 4.9 sqm
- Maximum operating pressure: 3 bar
- Inlet/outlet connections: 3/4" male gas fitting
Complete equipment included in the price:

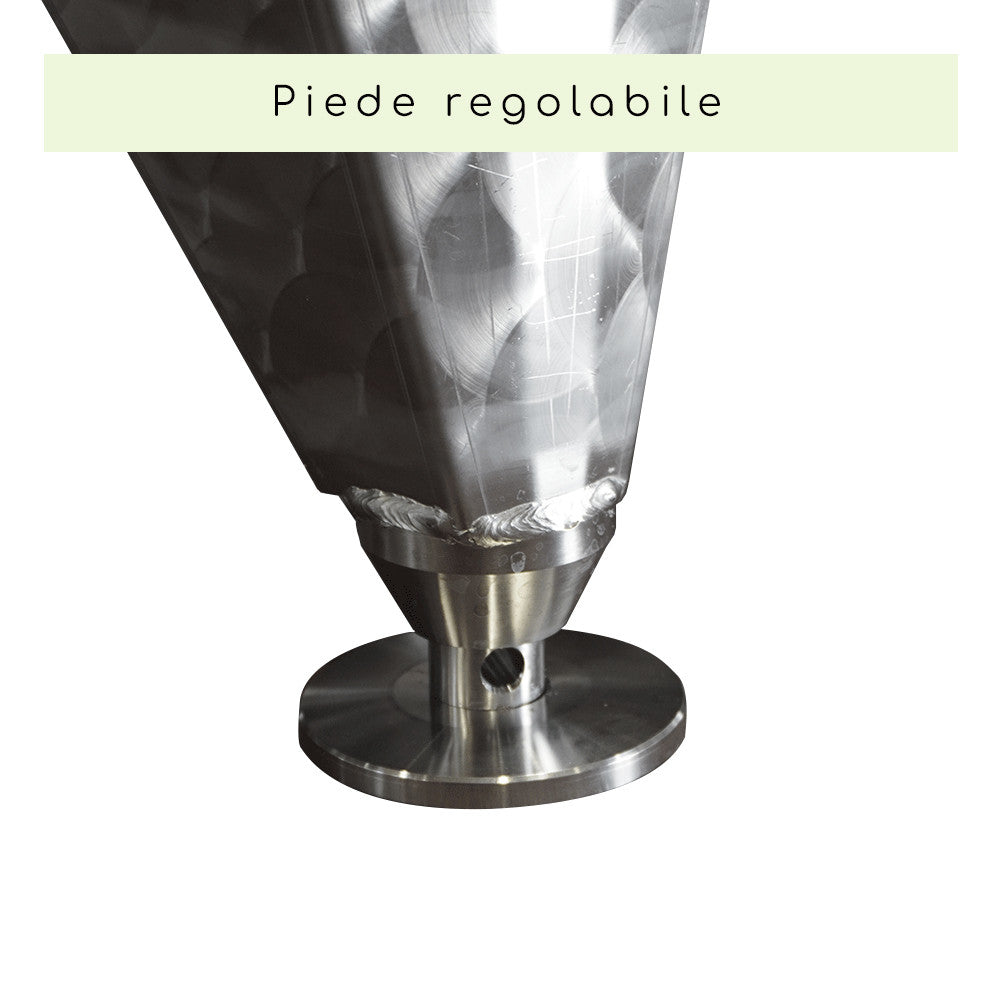

- 5 welded steel feet (height 500 mm) for absolute stability

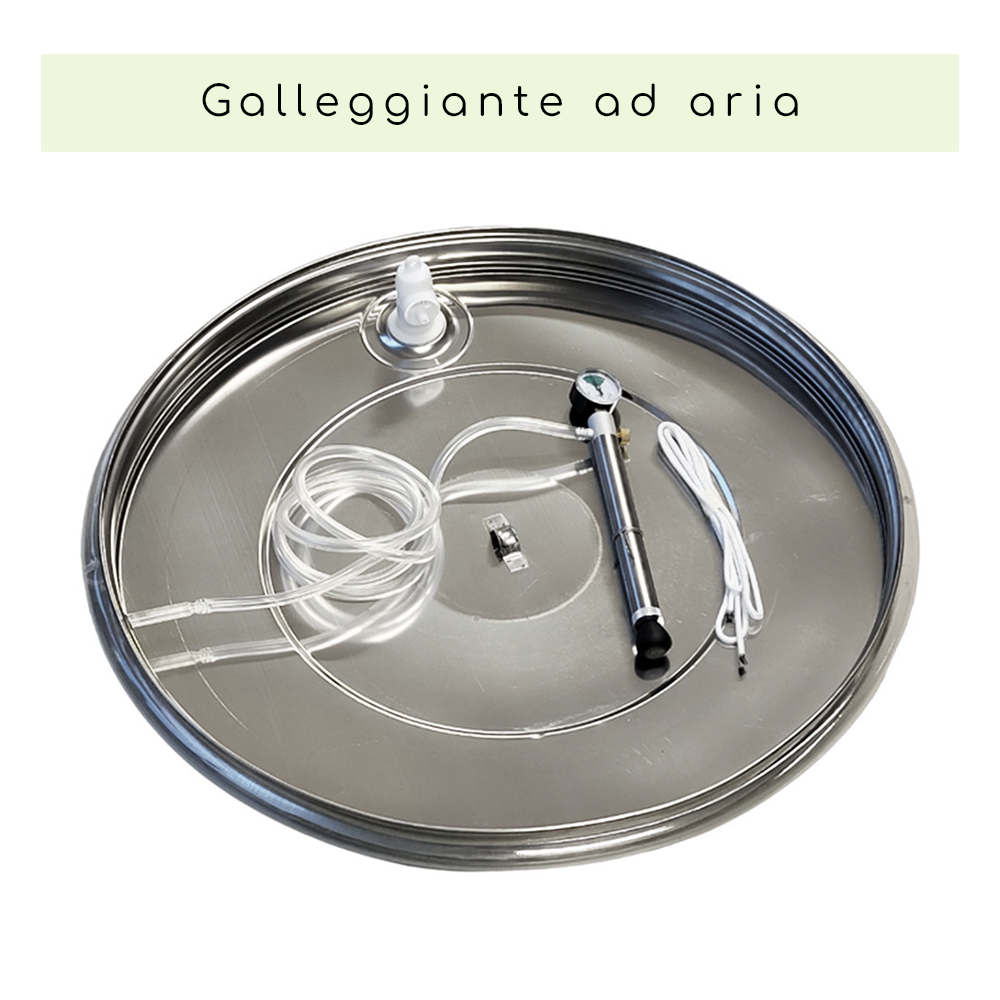

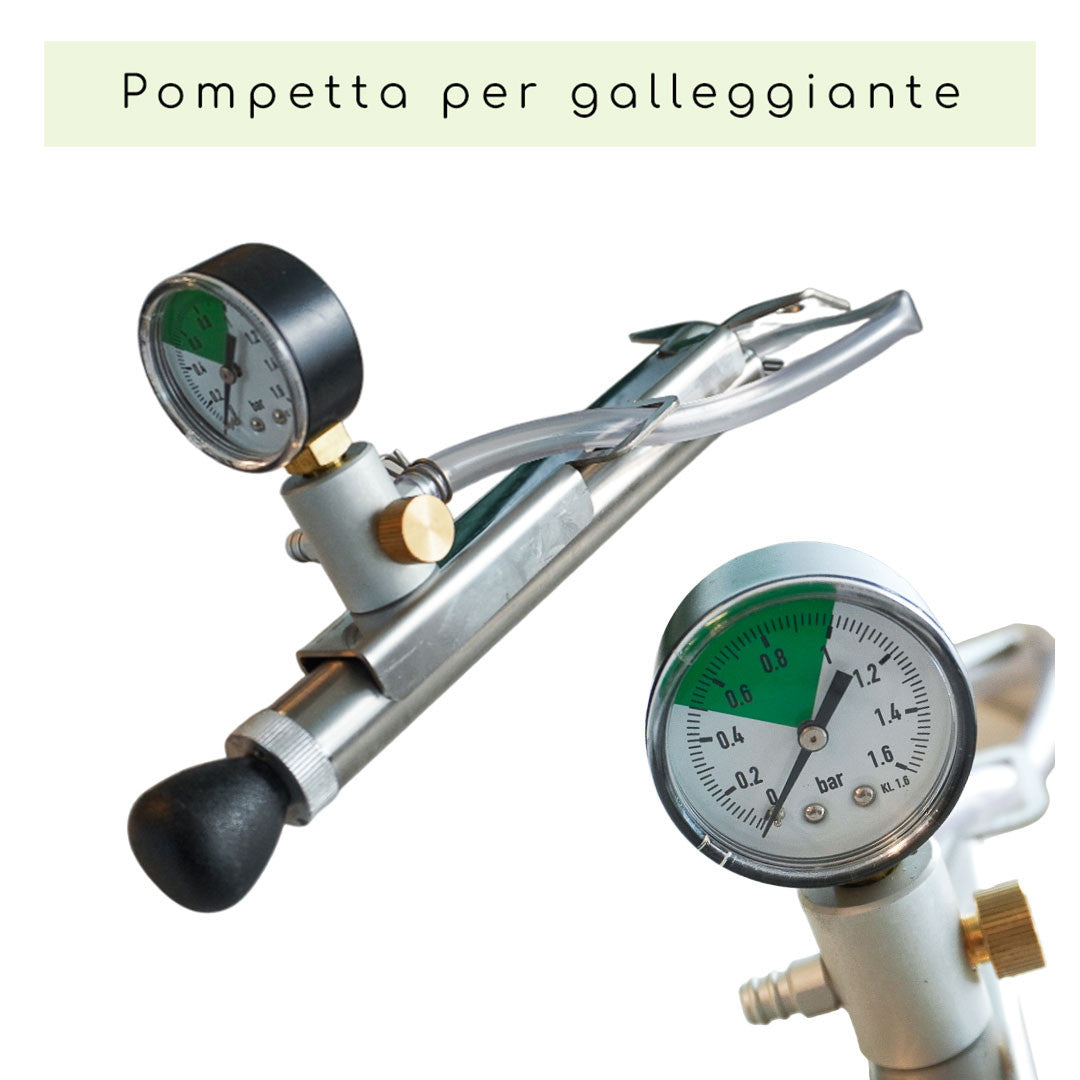

- Floating cover with air chamber with complete mounted kit (air chamber, manual pump, plastic vent valve)

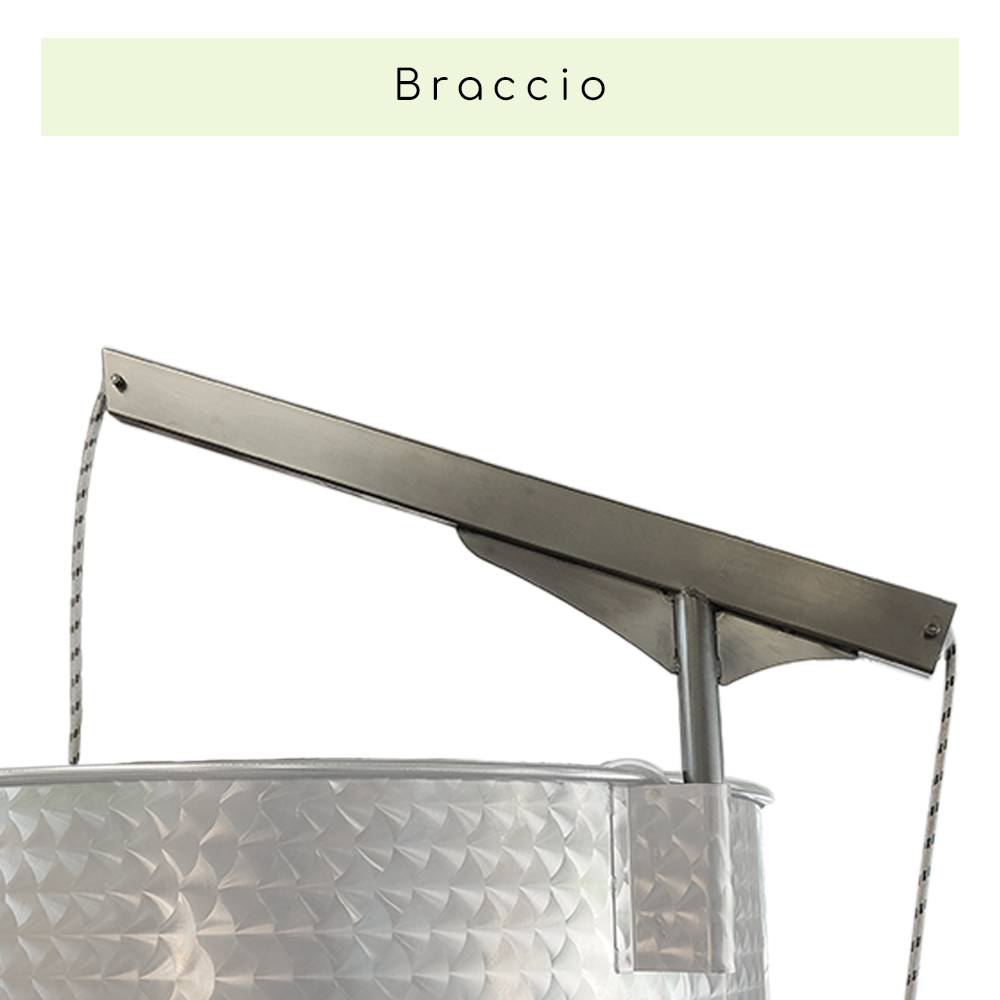

- Removable and pivoting floating lifting arm in AISI 304
- Drain with valve of your choice according to needs

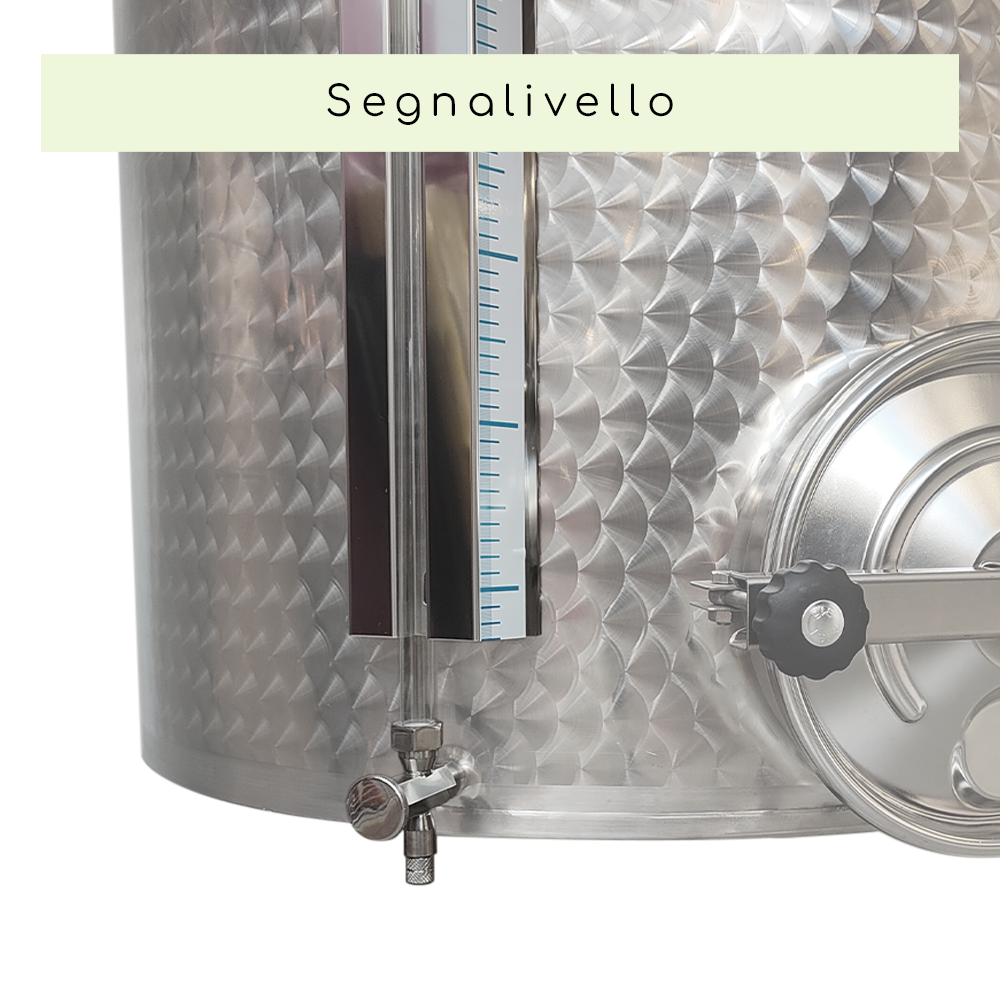

- Protection level indicator in stainless steel: plexiglass tube, stainless steel protection with adhesive millimeter scale, shut-off tap, and column drain

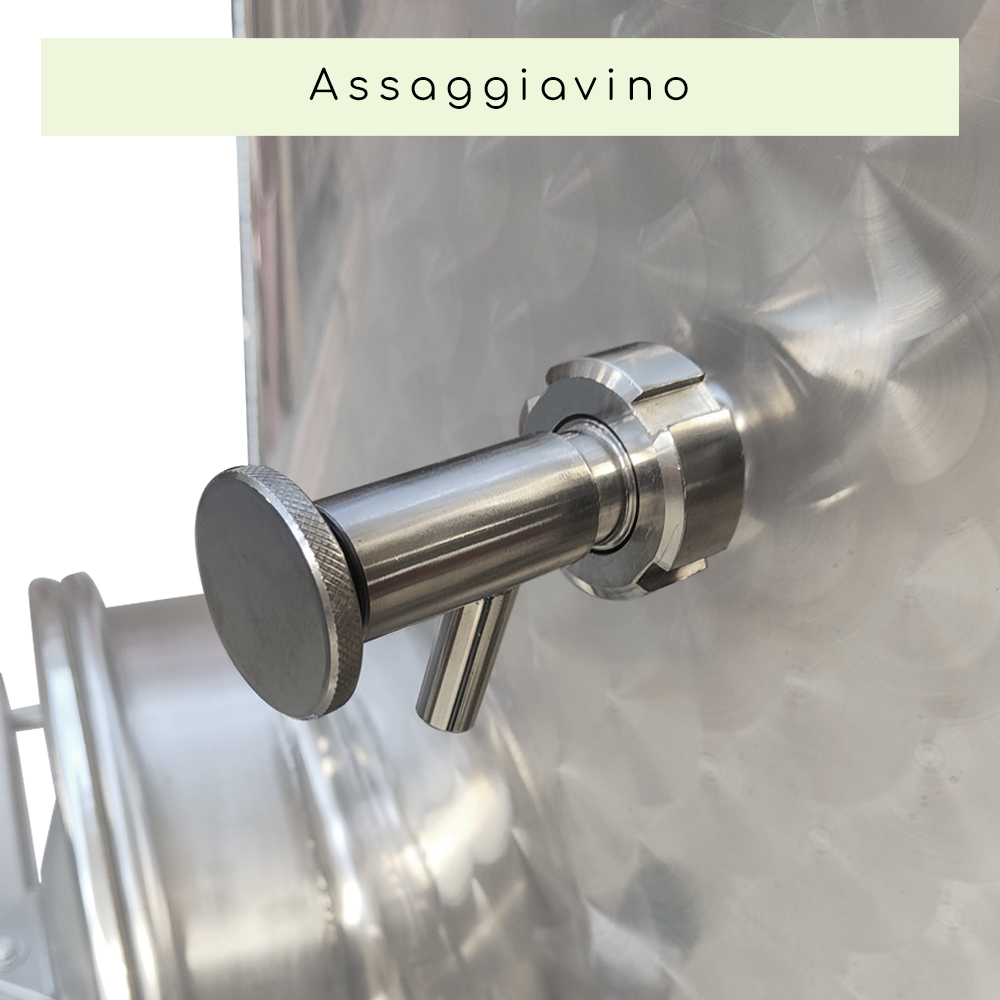

- Stainless steel sample tap with DIN 15 fitting for quick quality control

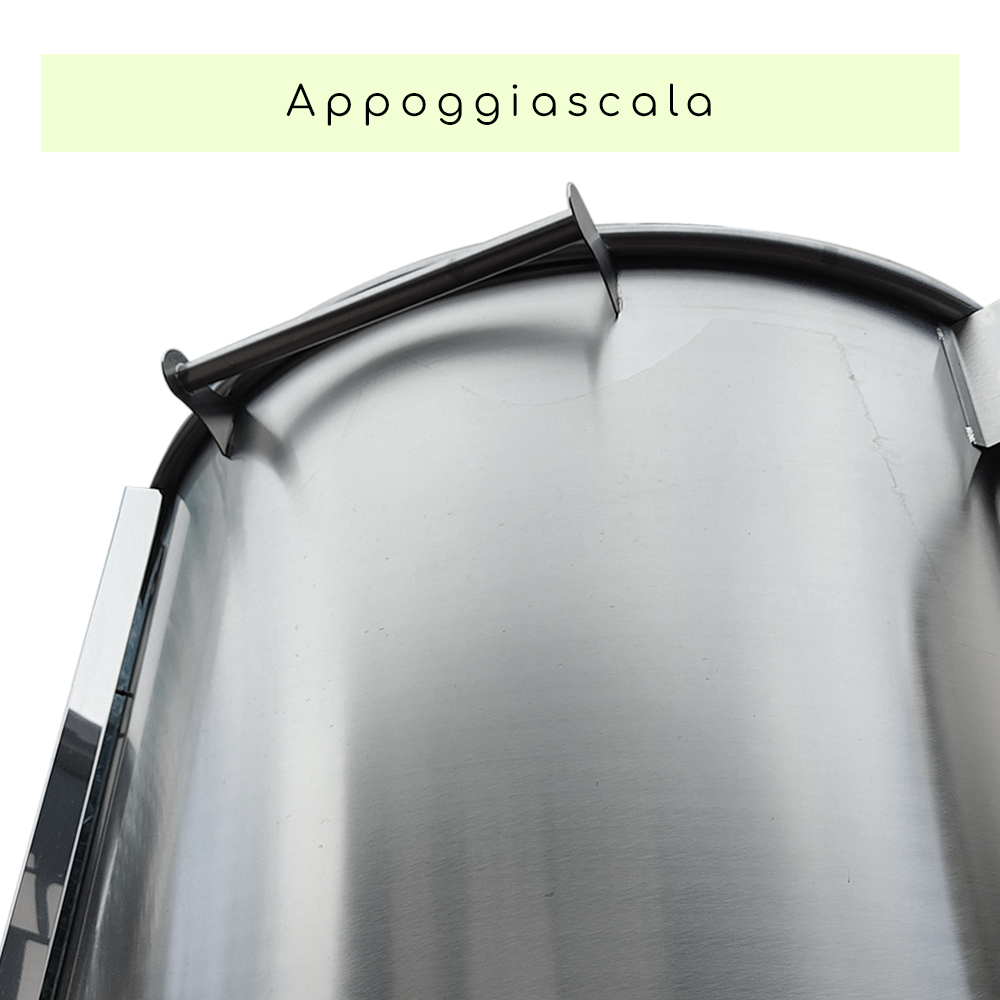

- Stainless steel ladder support (length 500 mm) positioned on top
- Floating lifting winch in painted galvanized steel
Certification and origin: Product 100% Made in Italy, built with excellent quality materials selected to ensure durability, food hygiene, and performance over time.
