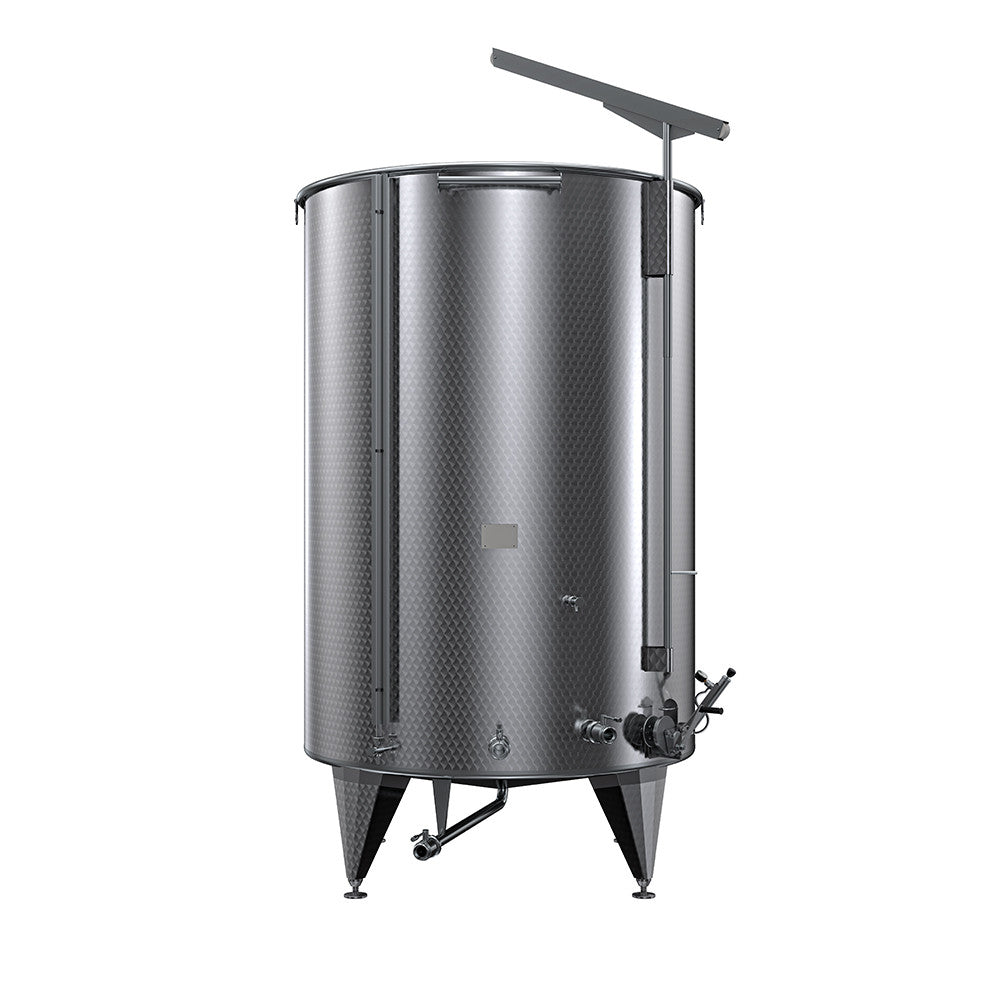

Always full air tank conical bottom custom ø 1600 from 3000 to 6000 lt
Always full air tank conical bottom custom ø 1600 from 3000 to 6000 lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description

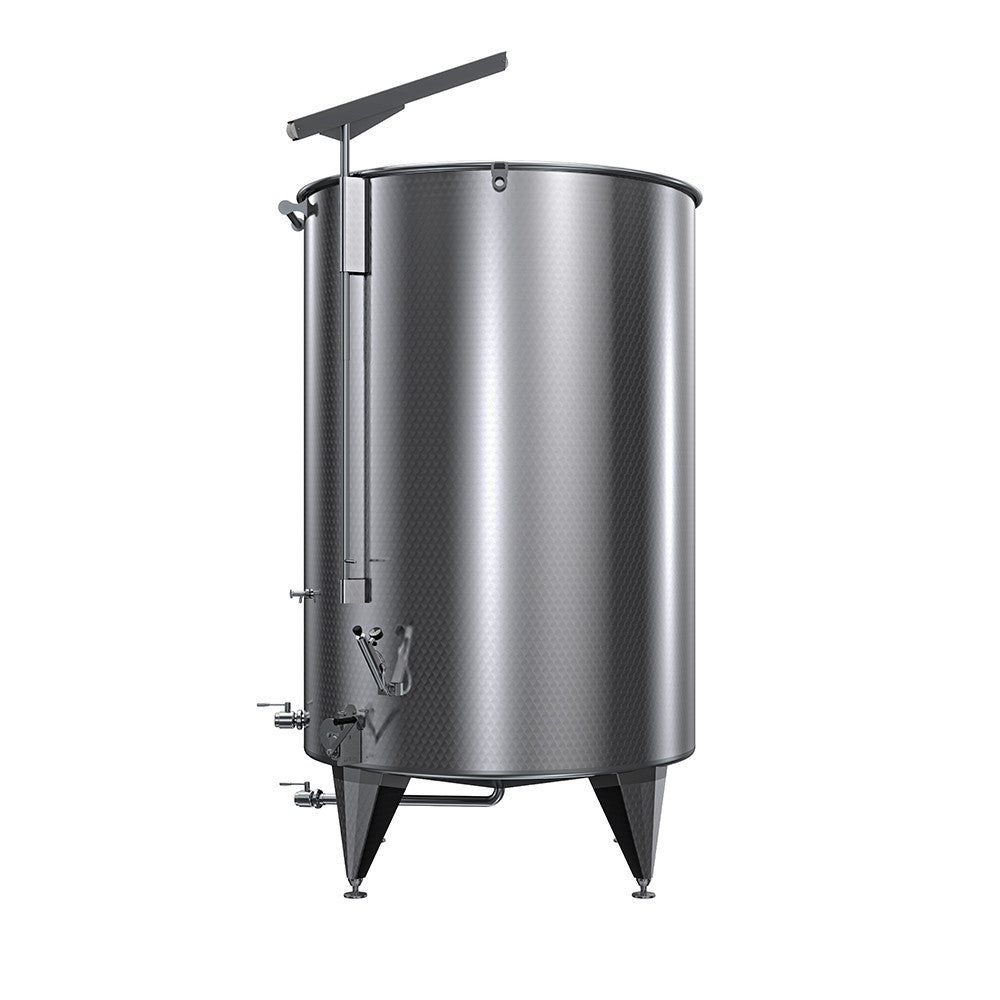

Professional Pneumatic Air Stainless Steel AISI 304 Always-Full Tank, the ideal solution for storing oil, wine, and food-grade liquids with reliability and precision. Made entirely in Italy with excellent quality materials.

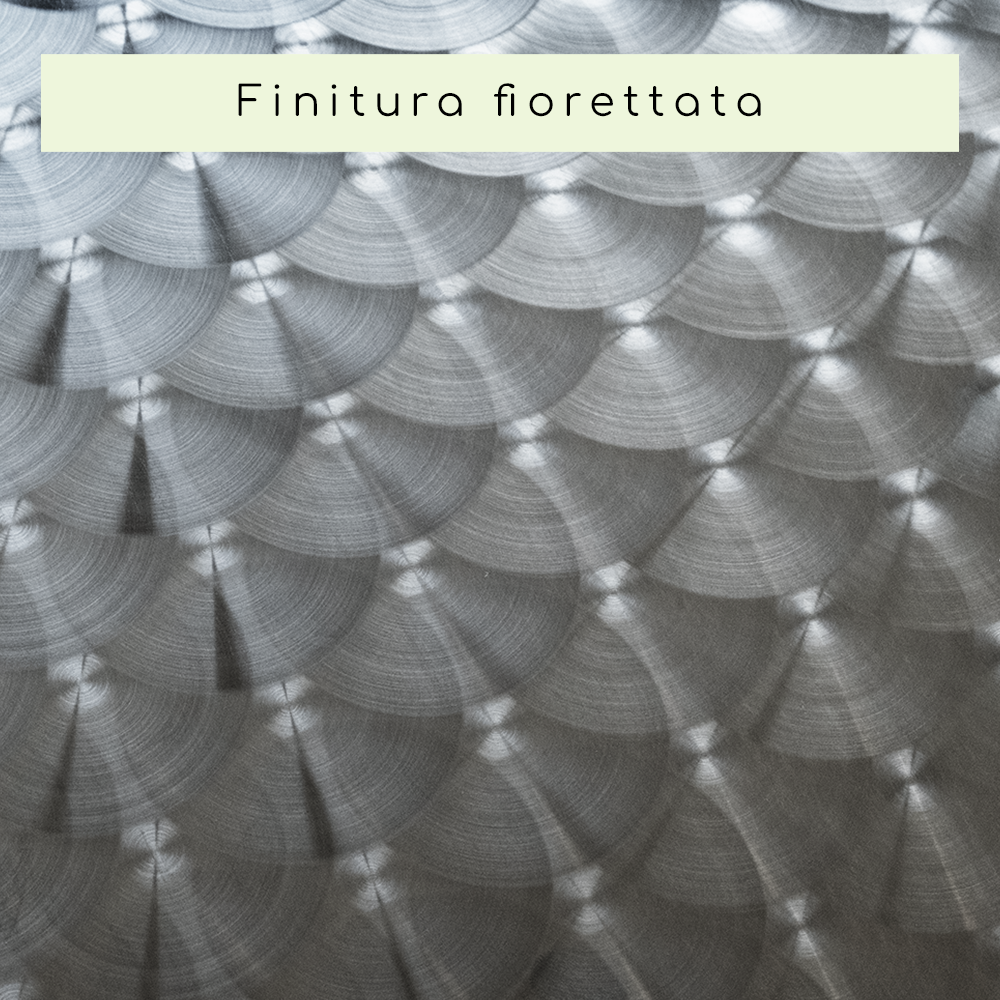

Featuring an 11% conical bottom for optimal drainage, elegant external satin finish, and polished internal finish ensuring hygiene and ease of cleaning.
Main Technical Specifications:
- Effective Diameter (Øe): 1600 mm
- Bottom Steel Thickness: 2 mm
- Shell Steel Thickness: 1.5 mm
Total Container Height WITH ARM:
- 3000 LT: 2620 mm
- 4000 LT: 3120 mm
- 5000 LT: 3620 mm
- 6000 LT: 4120 mm
Total Container Height WITHOUT ARM:
- 3000 LT: 2000 mm
- 4000 LT: 2500 mm
- 5000 LT: 3000 mm
- 6000 LT: 3500 mm
Cooling Band Included:
- Height: 750 mm
- Steel Thickness: 0.7 mm
- Exchange Surface: 3.8 sqm
- Operating Pressure: max 3 bar
- Connections: 3/4" Gas Male Stub (inlet and outlet)
- Equipment: thermometer and probe holder
Complete Tank Equipment:
- No. 3 welded stainless steel feet, height 500 mm

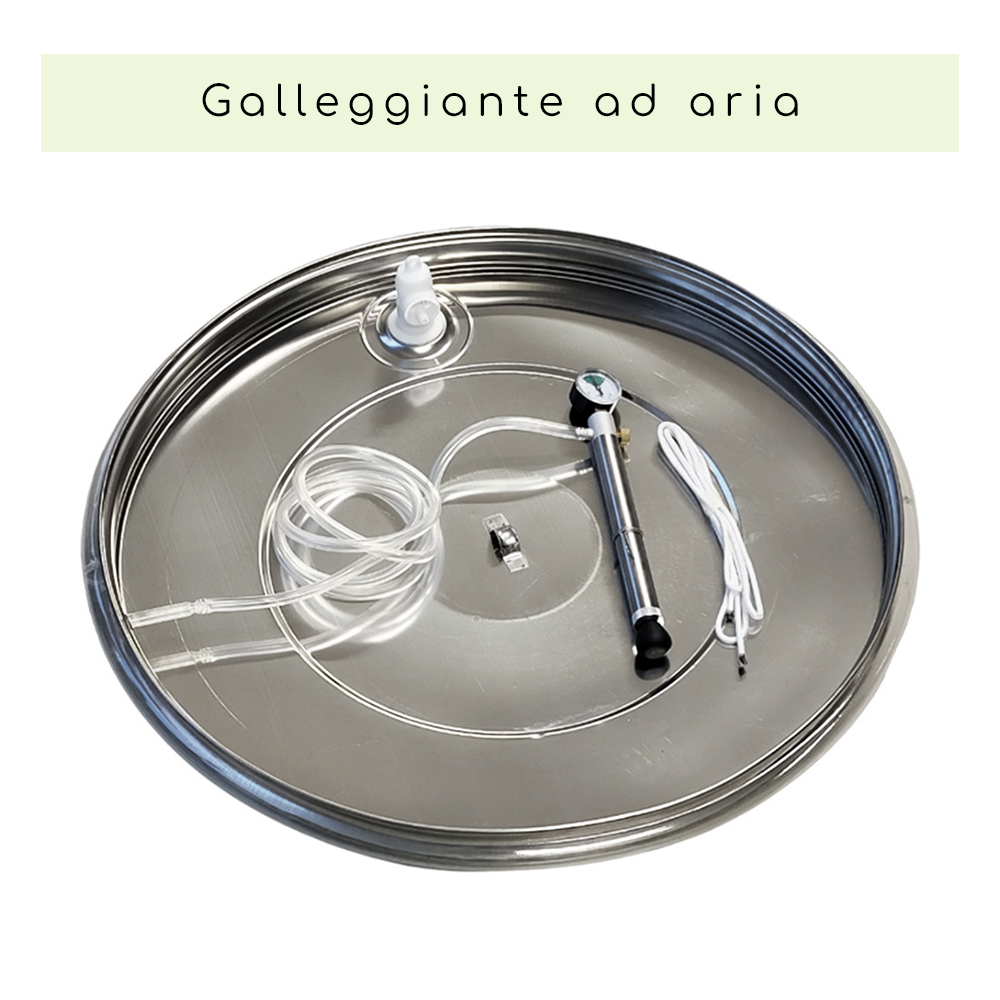

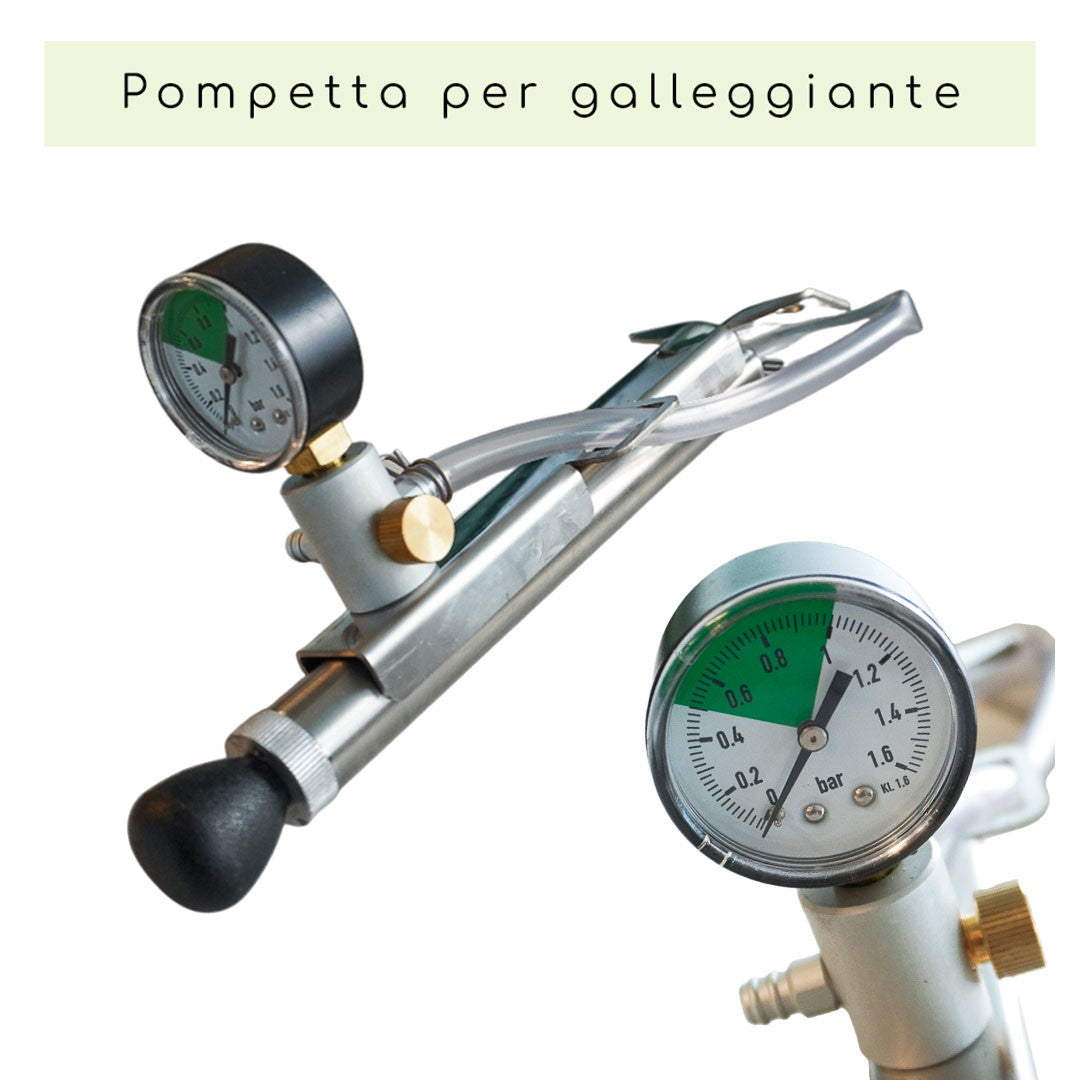

- Floating lid with air chamber and complete kit (air chamber, pump, plastic vent valve)
- Drain with configurable valve according to needs

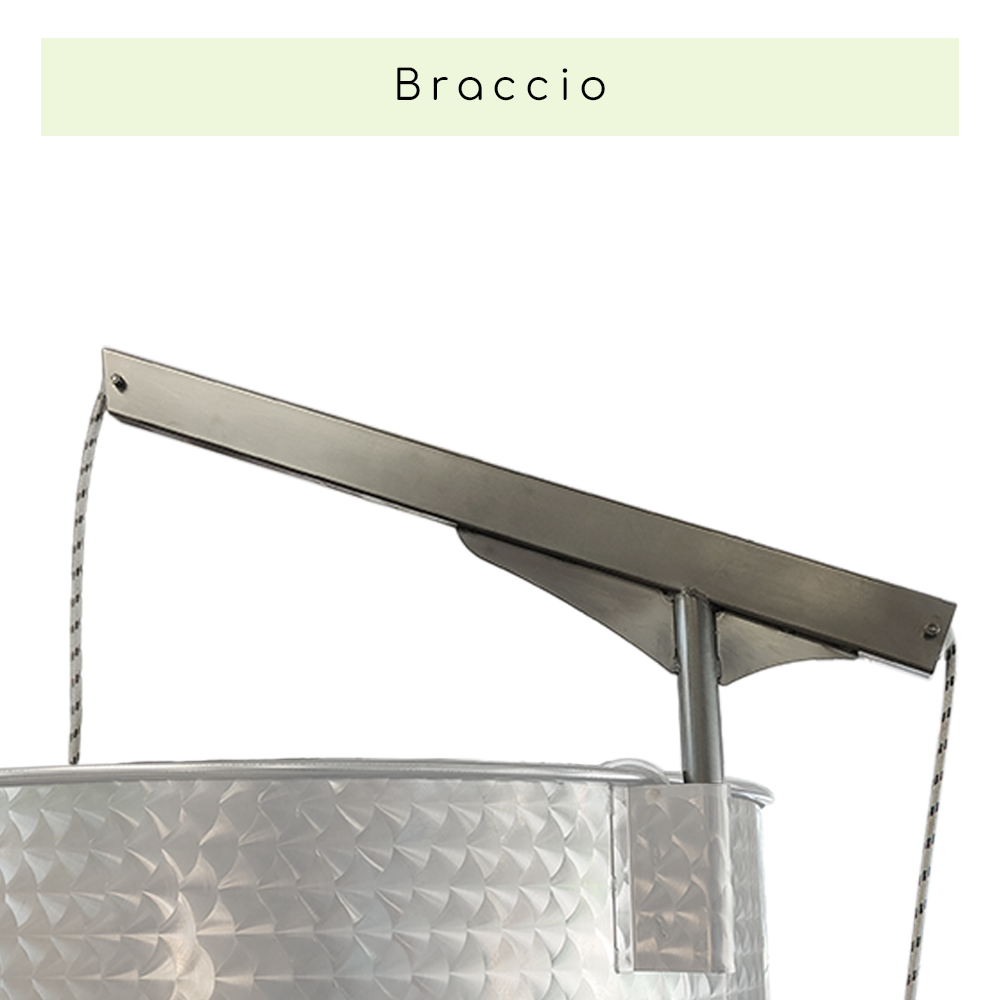

- Detachable and pivoting floating lifting arm in AISI 304 steel

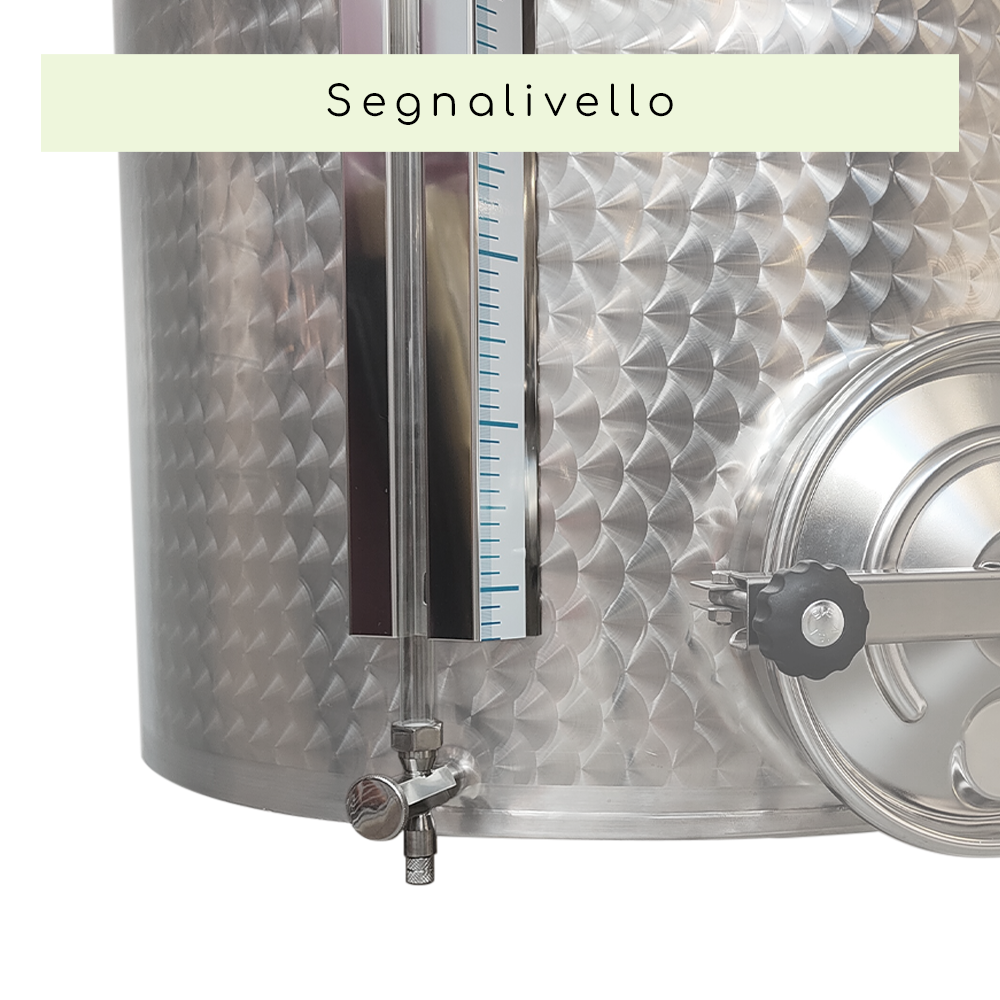

- Stainless steel level indicator with plexiglass tube and adhesive millimeter indication, shut-off tap, and column drain

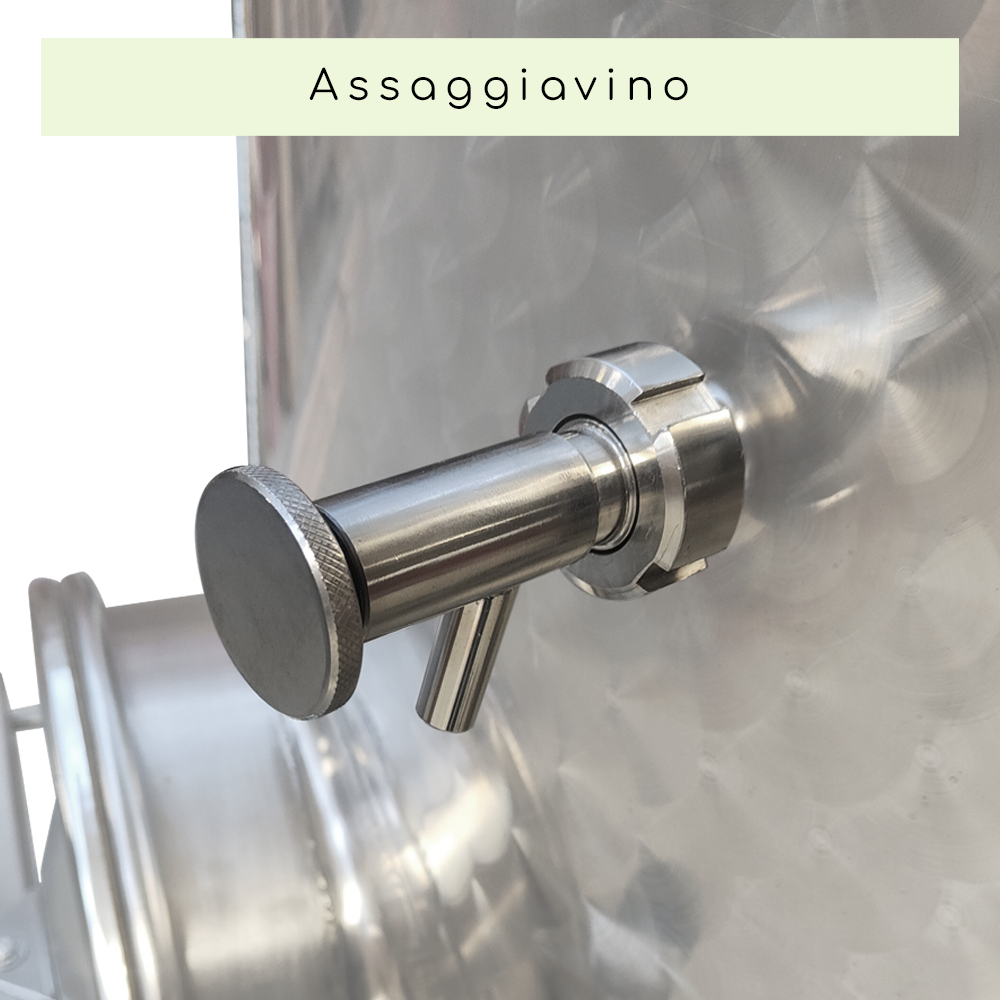

- Stainless steel screw sample tap with DIN 15 connection

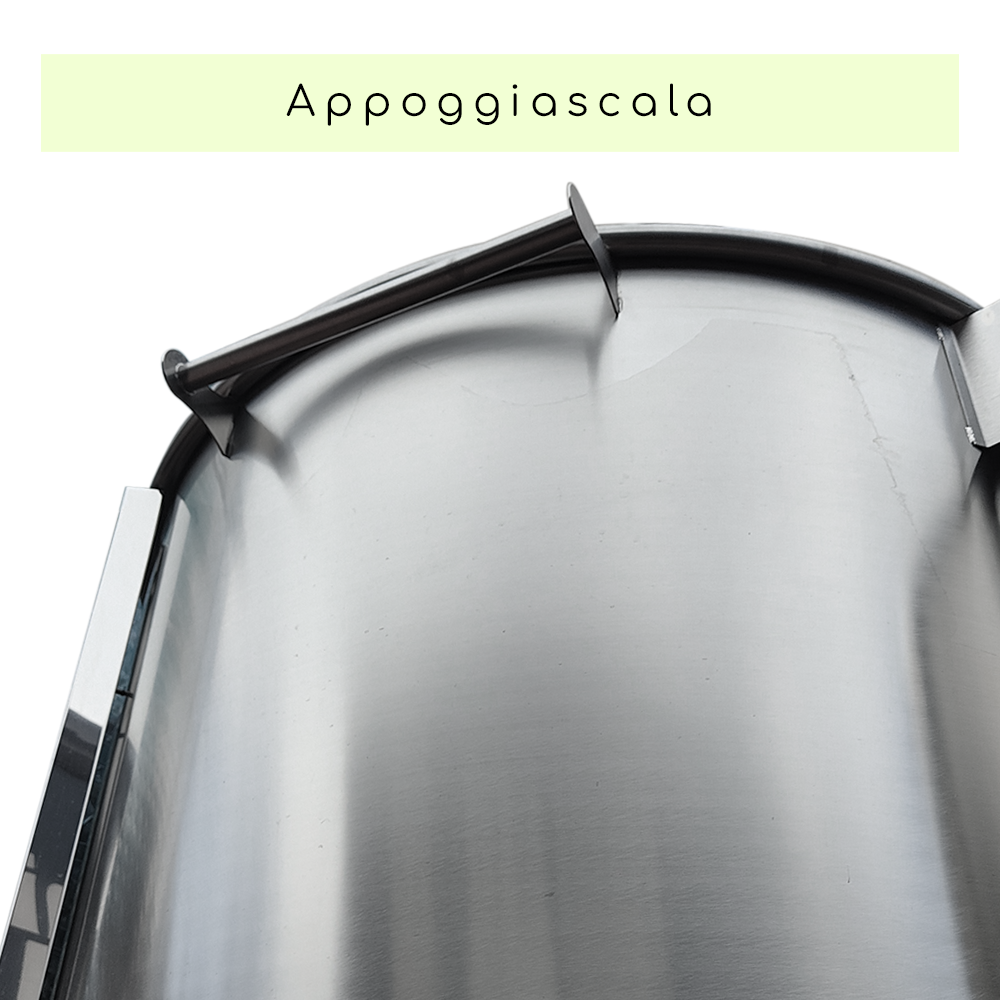

- Stainless steel ladder rest, length 500 mm, positioned at the top
- Painted galvanized steel floating lifting winch
Entirely Made in Italy, constructed with top-quality materials to ensure durability and superior performance over time.
