Refrigerant coil a304 h. 560 mm
Refrigerant coil a304 h. 560 mm
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
Perfectly Control the Temperature During Winemaking with the A304 Cooling Coil. This heat exchange device is specifically designed for winemakers who wish to precisely manage the temperature of the must and wine, ensuring optimal harvest quality.

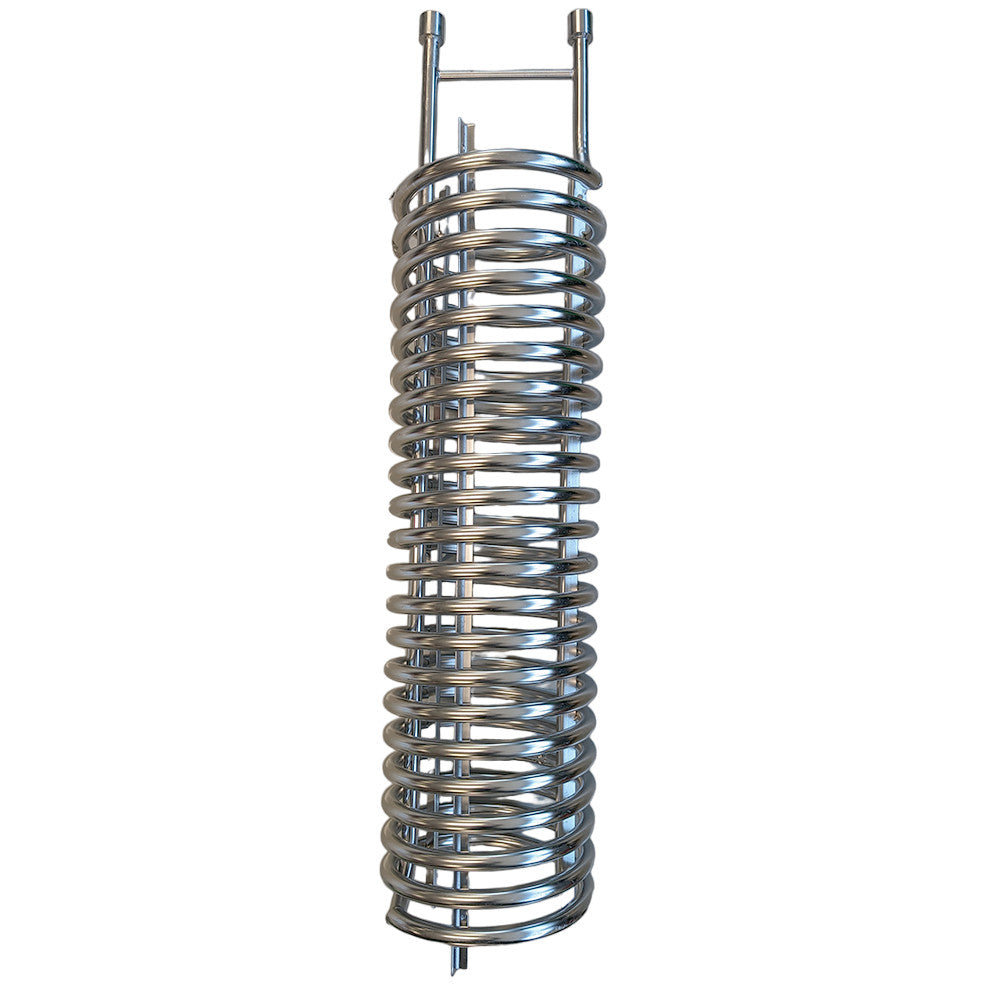

The coil consists of a small-diameter tube wound upon itself, allowing high-speed circulation of the cooling liquid. Thanks to this configuration, you achieve an excellent heat exchange coefficient, ensuring effective and uniform temperature control without any risk of product damage.
Main Advantages:
- Direct immersion in the must or wine without thermal bridging to the outside
- No thermal shock or mechanical effect that compromises harvest quality
- High-speed circulation of the cooling liquid to maximize heat exchange
- Reliable and long-lasting operation over time
Technical Specifications:
- Exchange coefficient: from 200 to 700 kcal/h·m²·°C
- Exchange surface: from 0.6 m² to 2.8 m²
- Height: 560 mm
- Material: AISI 304 (high-quality stainless steel)
- Tube: Ø 22 mm, thickness 1.2 mm, Total footprint Ø 270 mm
- Finish: Electrochemical polishing
- Connections: 1/2" male thread, length 200 mm
- Maximum operating pressure: 3 bar
