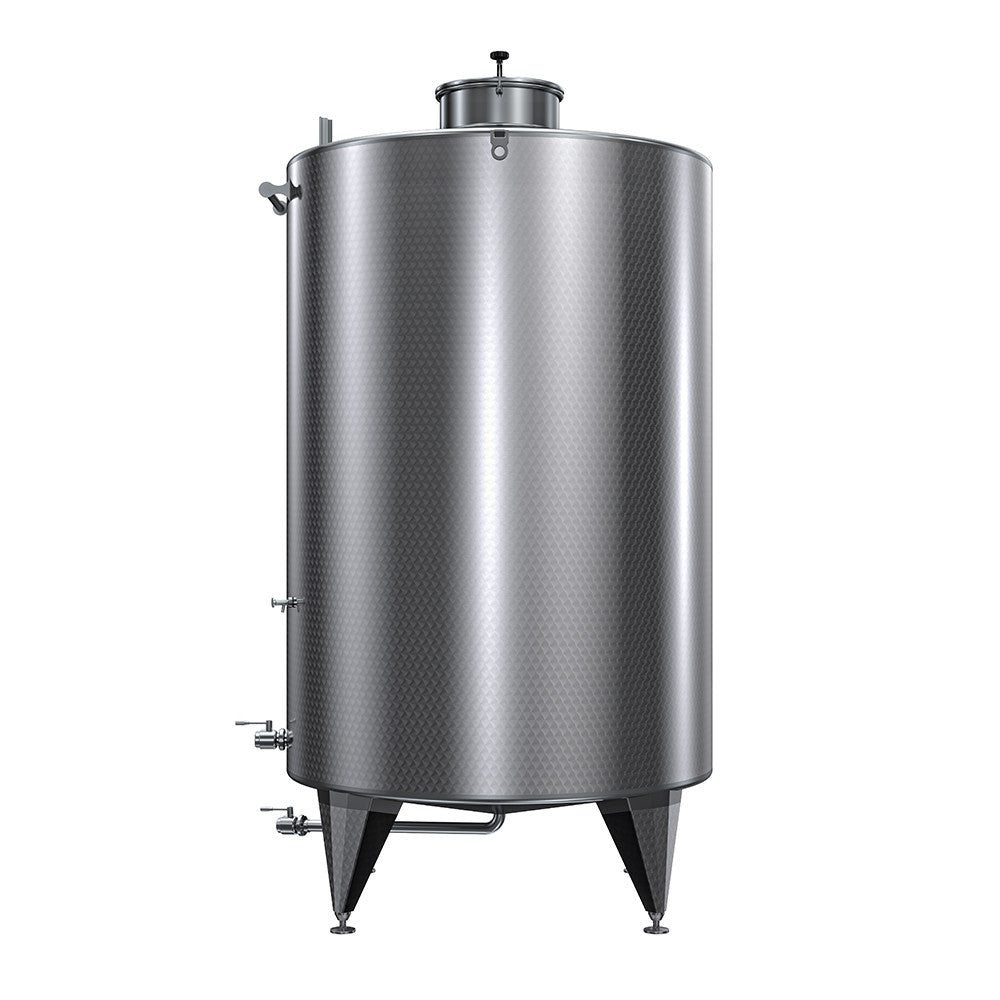

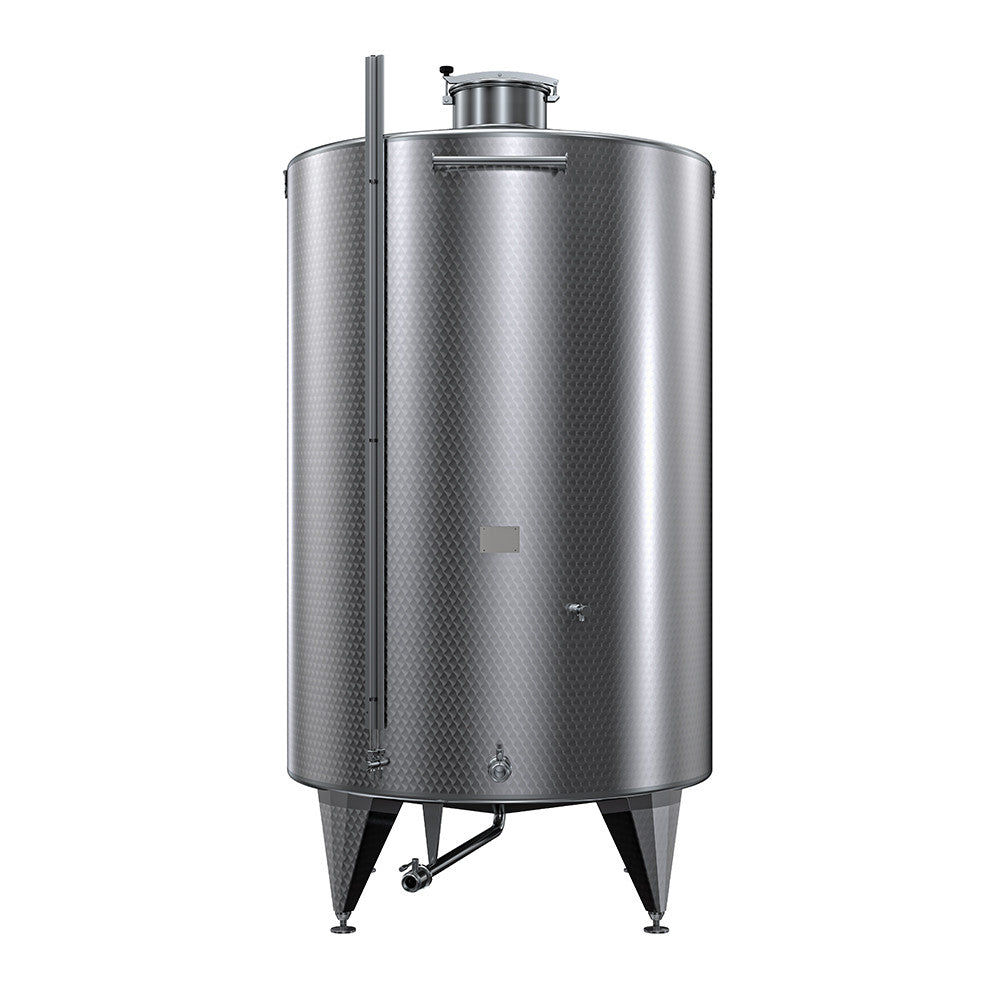

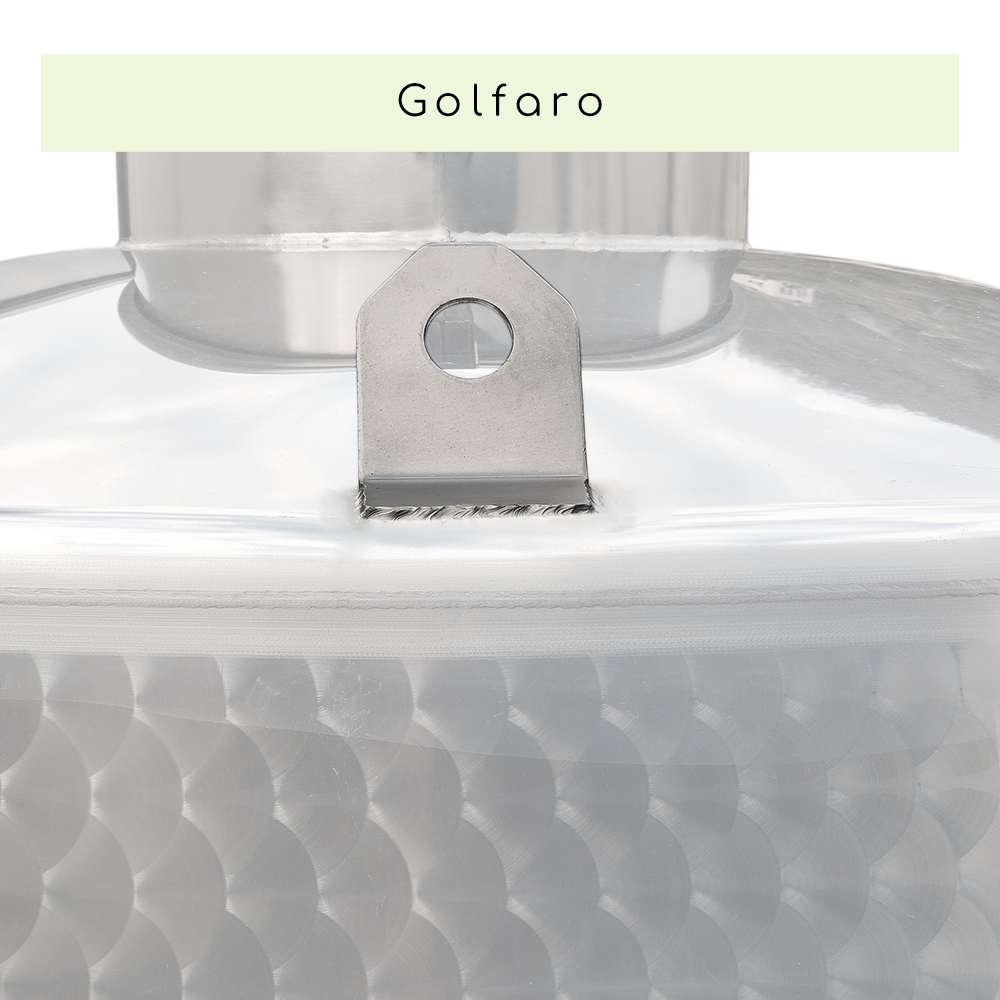

Storage tank conical bottom custom ø 1600 from 4300 to 6300 lt
Storage tank conical bottom custom ø 1600 from 4300 to 6300 lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
The storage tank with a conical bottom is the ideal solution for those who wish to store oil, wine, and food liquids in the best conditions. Made of stainless steel AISI 304, it ensures durability, hygiene, and long-lasting resistance, exactly what is needed for those who do not compromise on quality.
Main Technical Specifications:
- Effective diameter: Ø 1600 mm
- Conical bottom with an inclination of 11% for complete and easy emptying

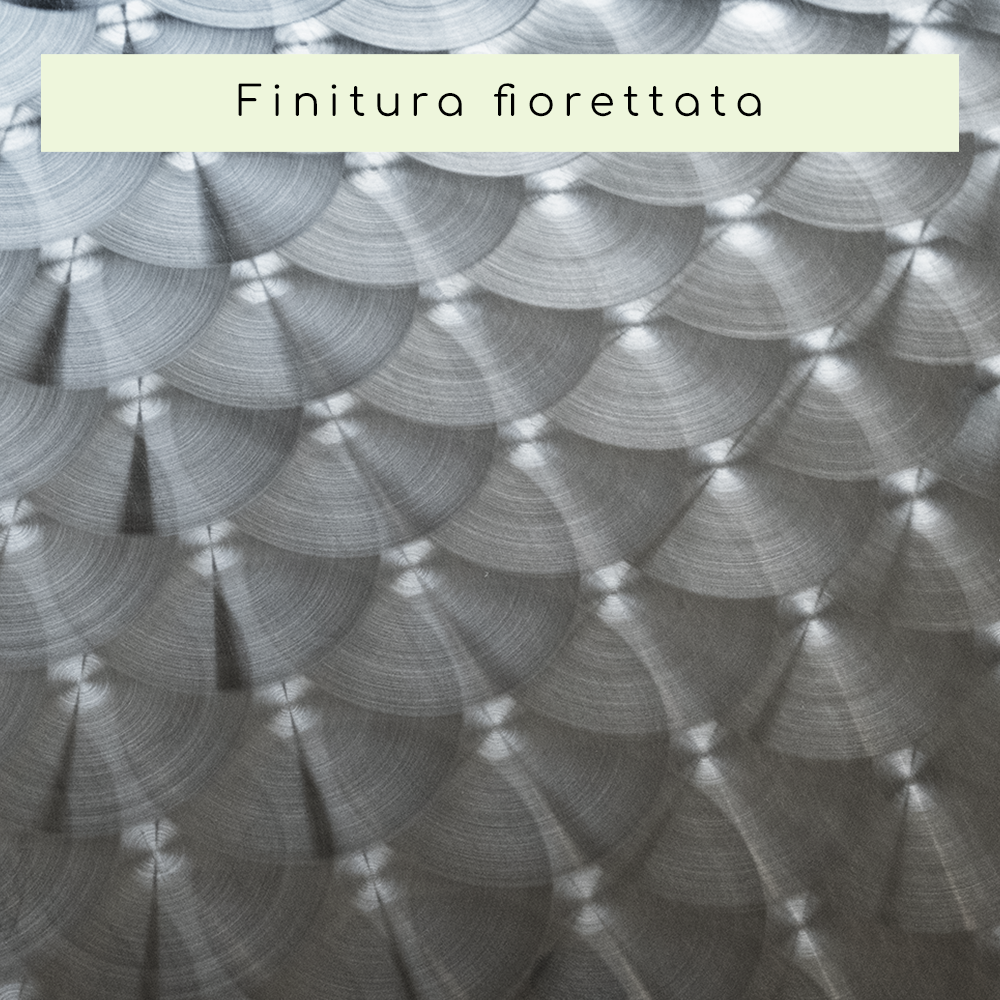

- External satin finish and internal polished finish for maximum cleanliness
Capacity Choice:
- 4300 liters: total height 2880 mm
- 5300 liters: total height 3380 mm
- 6300 liters: total height 3880 mm
Structural Robustness:
- Bottom steel thickness: 2 mm
- Roof and shell steel thickness: 1.5 mm
Integrated Cooling Jacket:
- Height: 750 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 3.4 sqm
- Operating pressure: 3 bar (max)
- Inlet/outlet connections: 3/4" Gas male stub
- Includes thermometer and probe holder
Complete Standard Equipment:

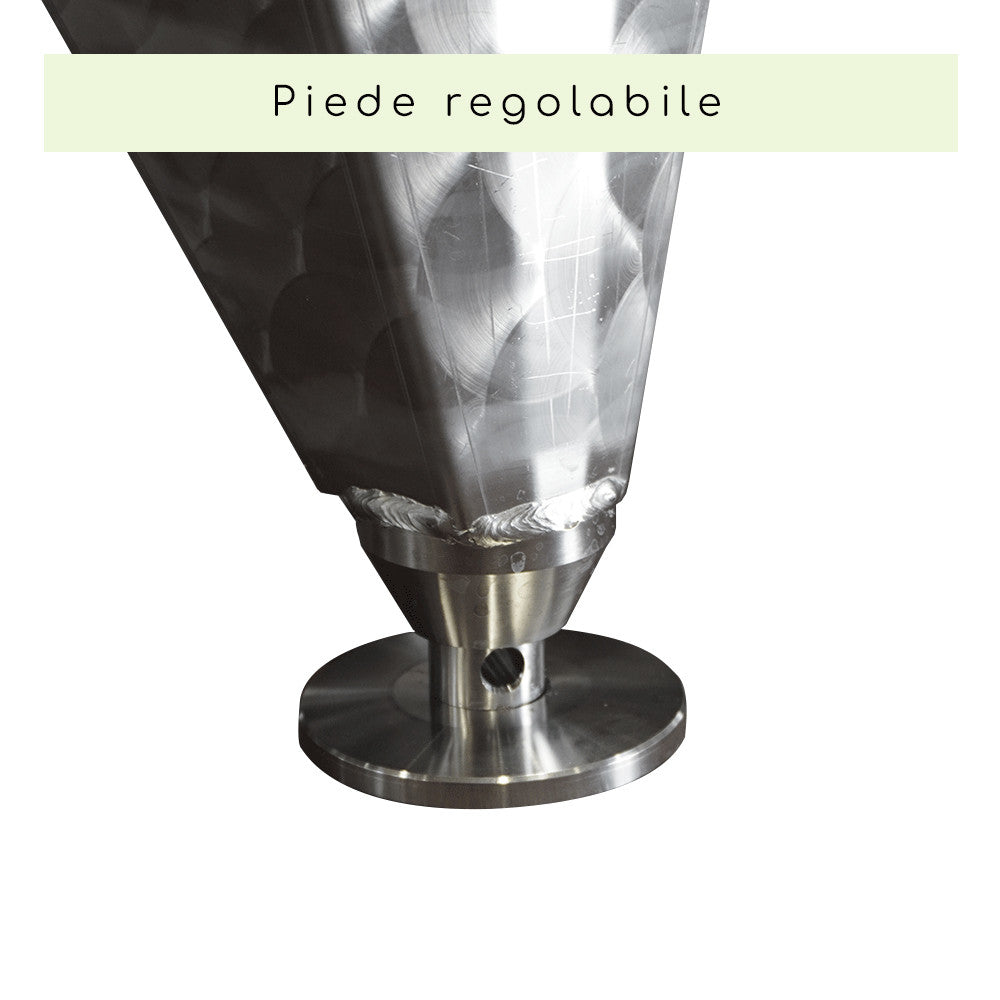

- 3 welded steel feet, height 500 mm
- Drain with valve (optional)

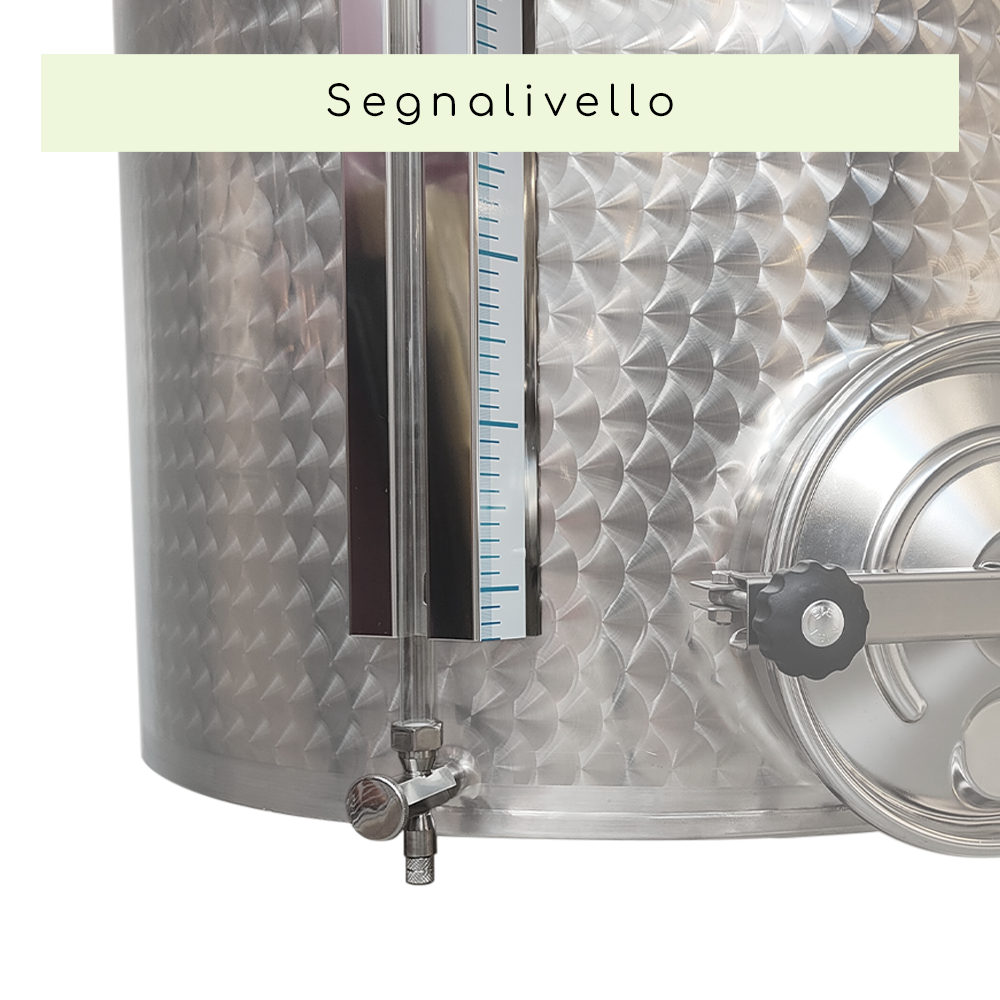

- Stainless steel protective level indicator with plexiglass tube and stainless steel protection, adhesive millimeter indication, shut-off valve, and column drain

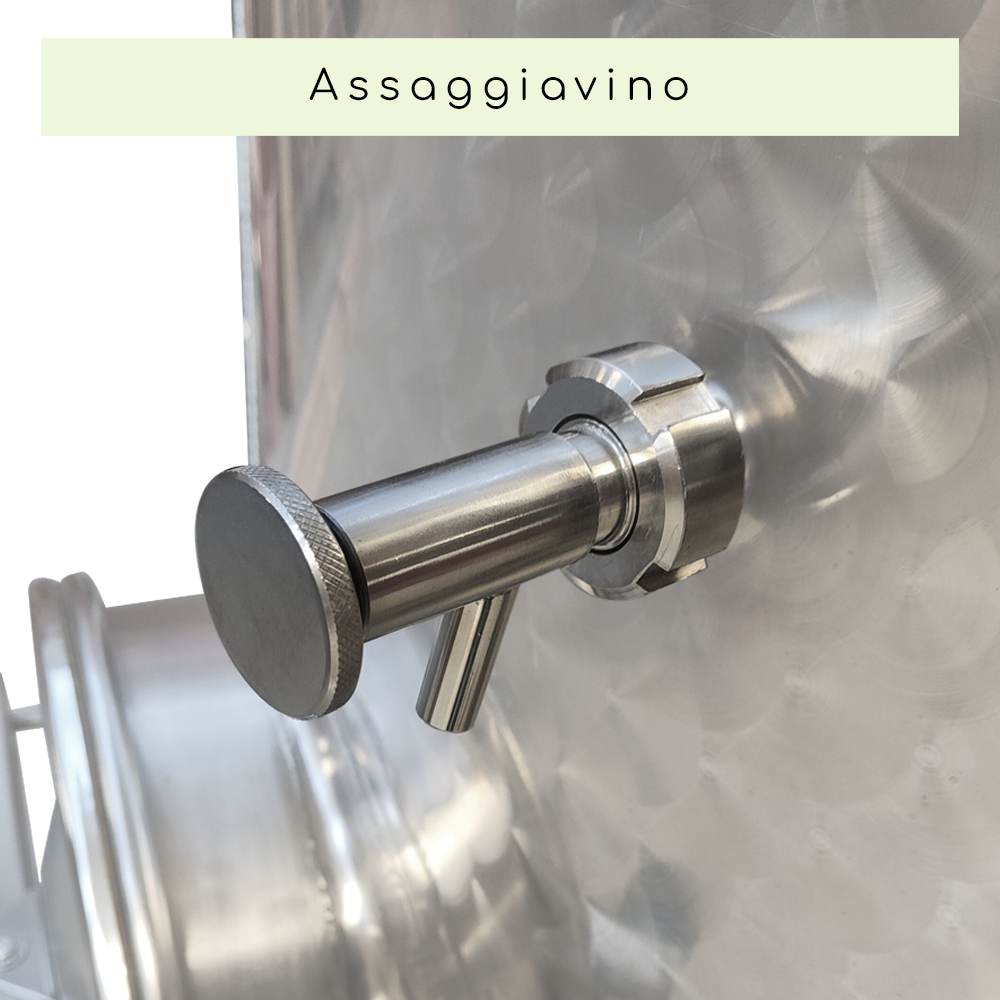

- Stainless steel screw sample tap with DIN 15 connection

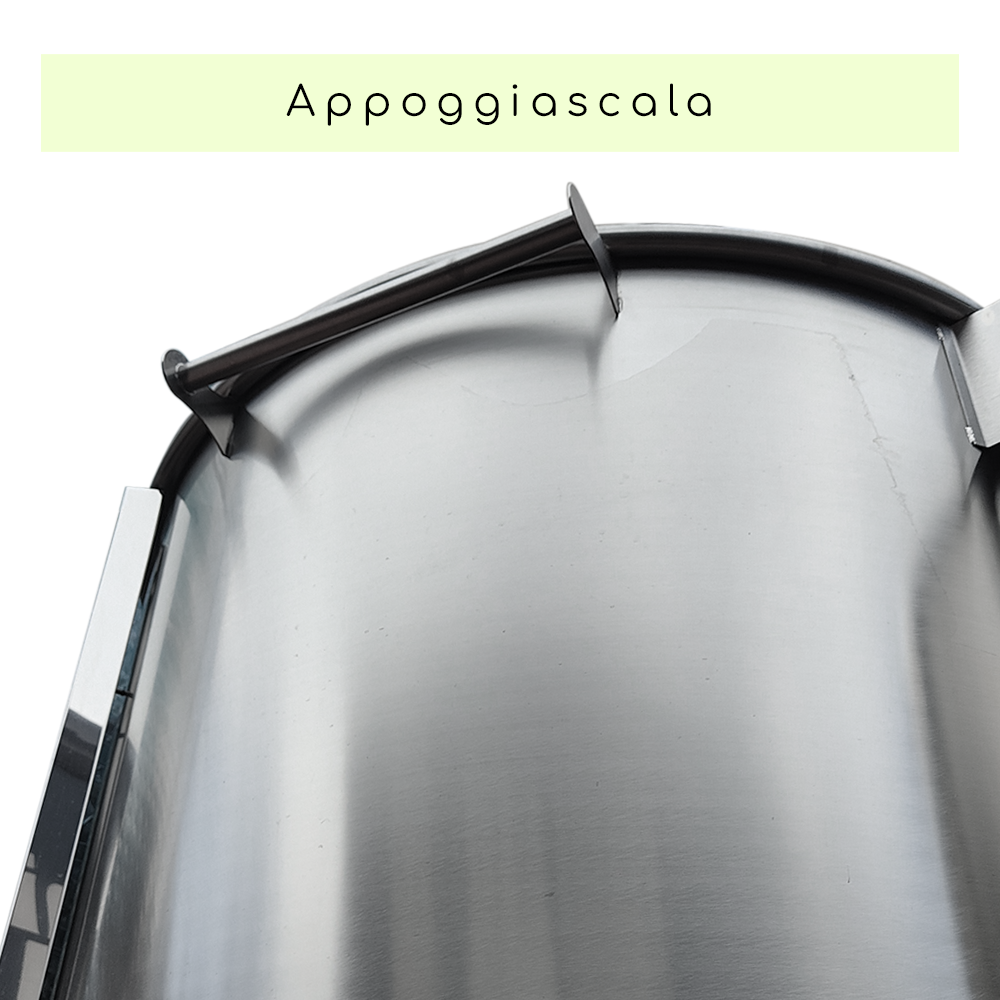

- Stainless steel ladder rest, length 500 mm, positioned at the top

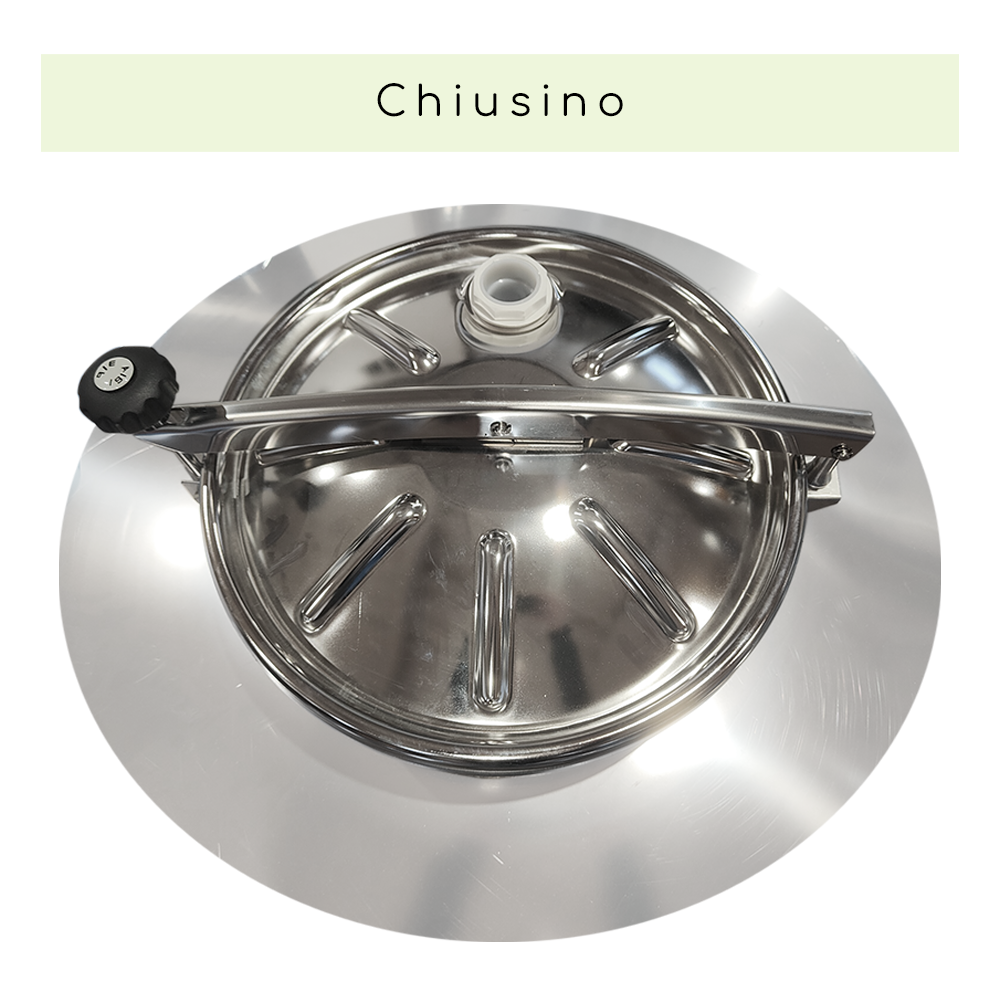

- Upper manhole with PVC vent valve
Proudly Made in Italy: An authentic product, entirely made in Italy with excellent quality materials, for those who want the best without shortcuts.
