Always full air tank inclined flat bottom custom ø 2230 from 10500 to 21000 lt
Always full air tank inclined flat bottom custom ø 2230 from 10500 to 21000 lt
Contact us easily by phone, email, or directly on WhatsApp!
Description
Description

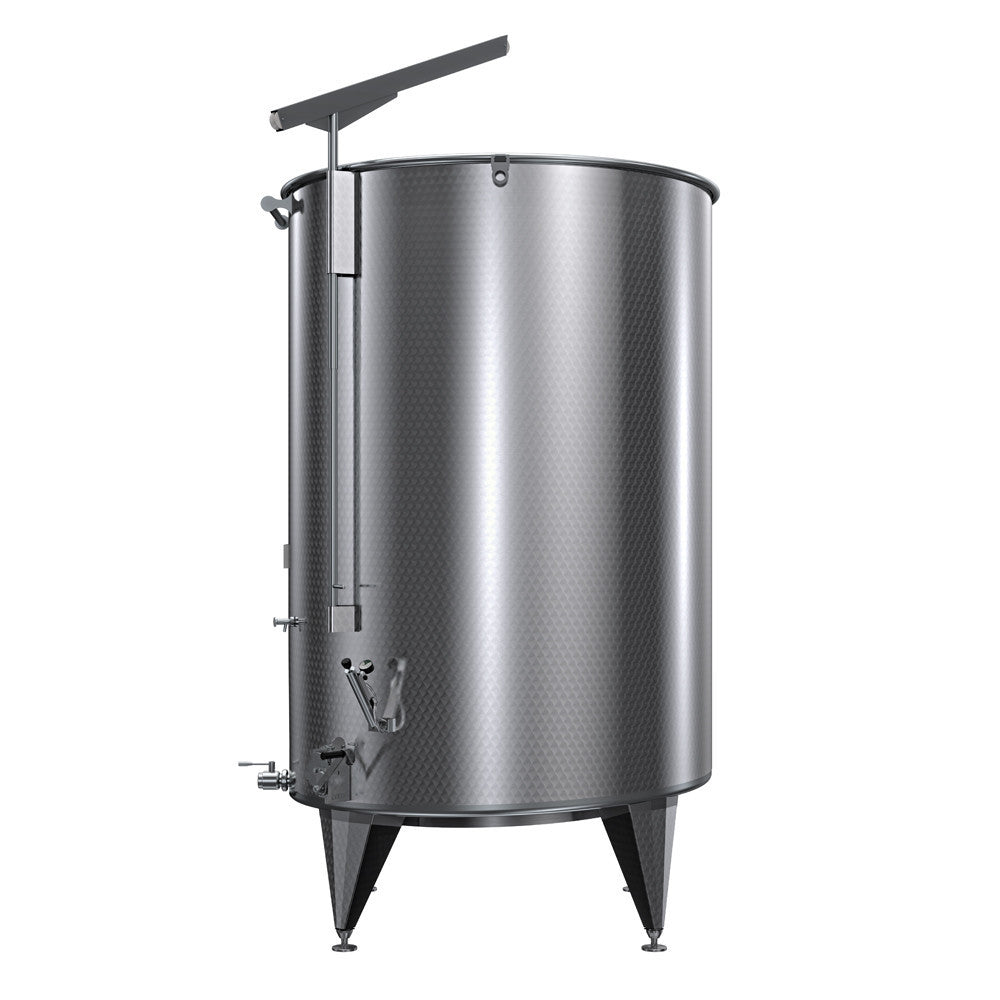

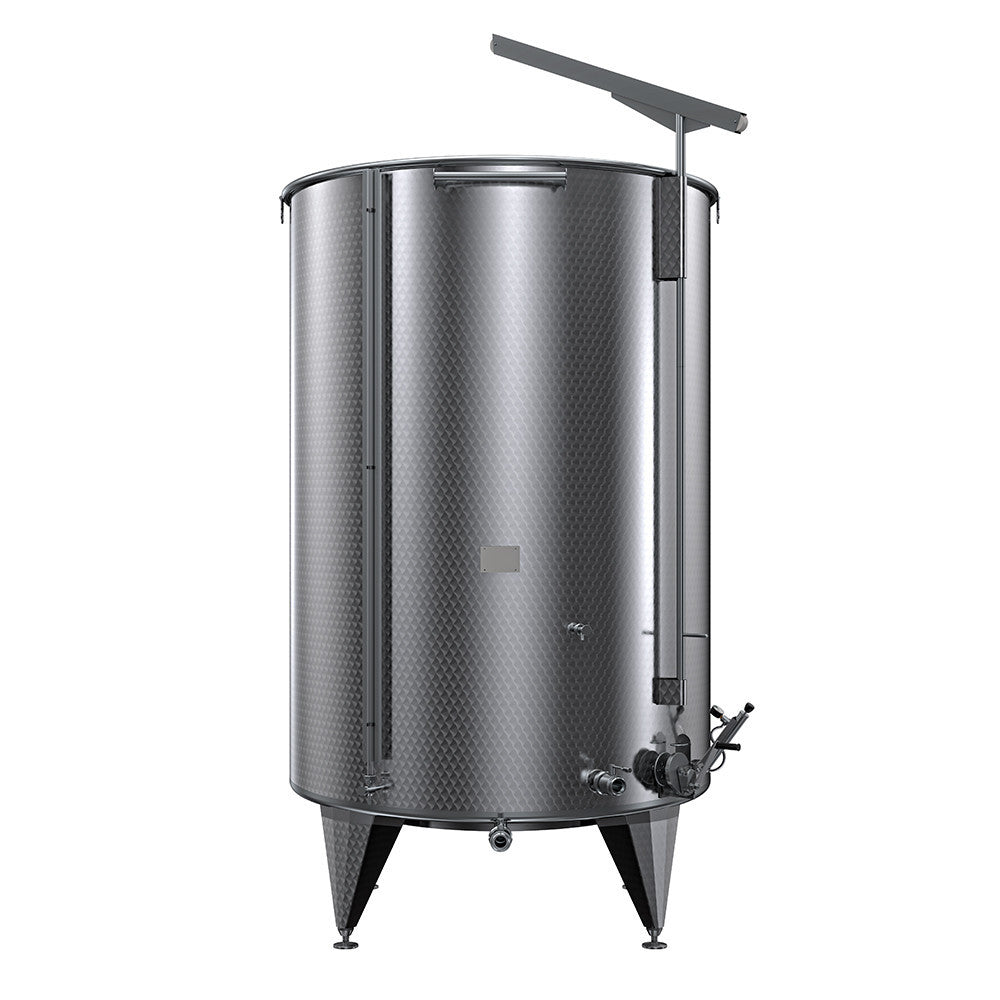

Always full pneumatic air tank in AISI 304 stainless steel, the ideal solution to store and protect oil, wine, and food liquids with maximum reliability. Robust and versatile construction, available from 10,500 to 21,000 liters to suit your winery and agricultural business needs.
Construction Features:
- Flat bottom inclined at 4% for complete drainage and easy cleaning

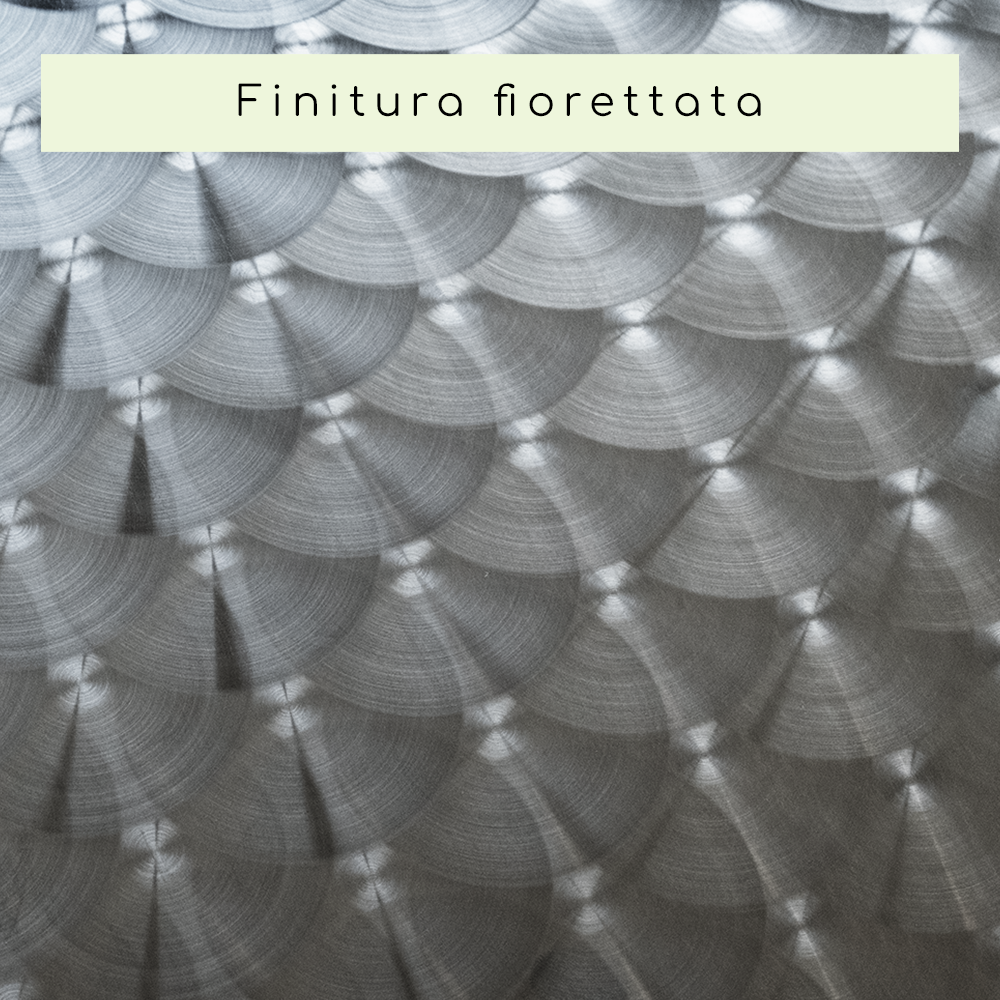

- Elegant and durable brushed external finish
- Shiny internal finish to maintain the organoleptic qualities of your products
- Effective diameter (Øe): 2230 mm
Available Dimensions (Total Height):
-
With lifting arm:
- 10,500 LT: 4,125 mm
- 11,500 LT: 4,375 mm
- 15,500 LT: 5,375 mm
- 21,000 LT: 6,875 mm
-
Without lifting arm:
- 10,500 LT: 3,375 mm
- 11,500 LT: 3,625 mm
- 15,500 LT: 4,625 mm
- 21,000 LT: 6,125 mm
Technical Specifications:
- Steel thickness bottom: 3 mm
- Steel thickness shell: 1.5 mm
- Inlet/outlet connections: 3/4" male gas fitting
Cooling Jacket included:
- Height of jacket: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 5.2 m²
- Operating pressure: max 3 bar
- Includes thermometer and probe holder
Complete Equipment:
- Welded feet (from 5 to 7 depending on diameter)

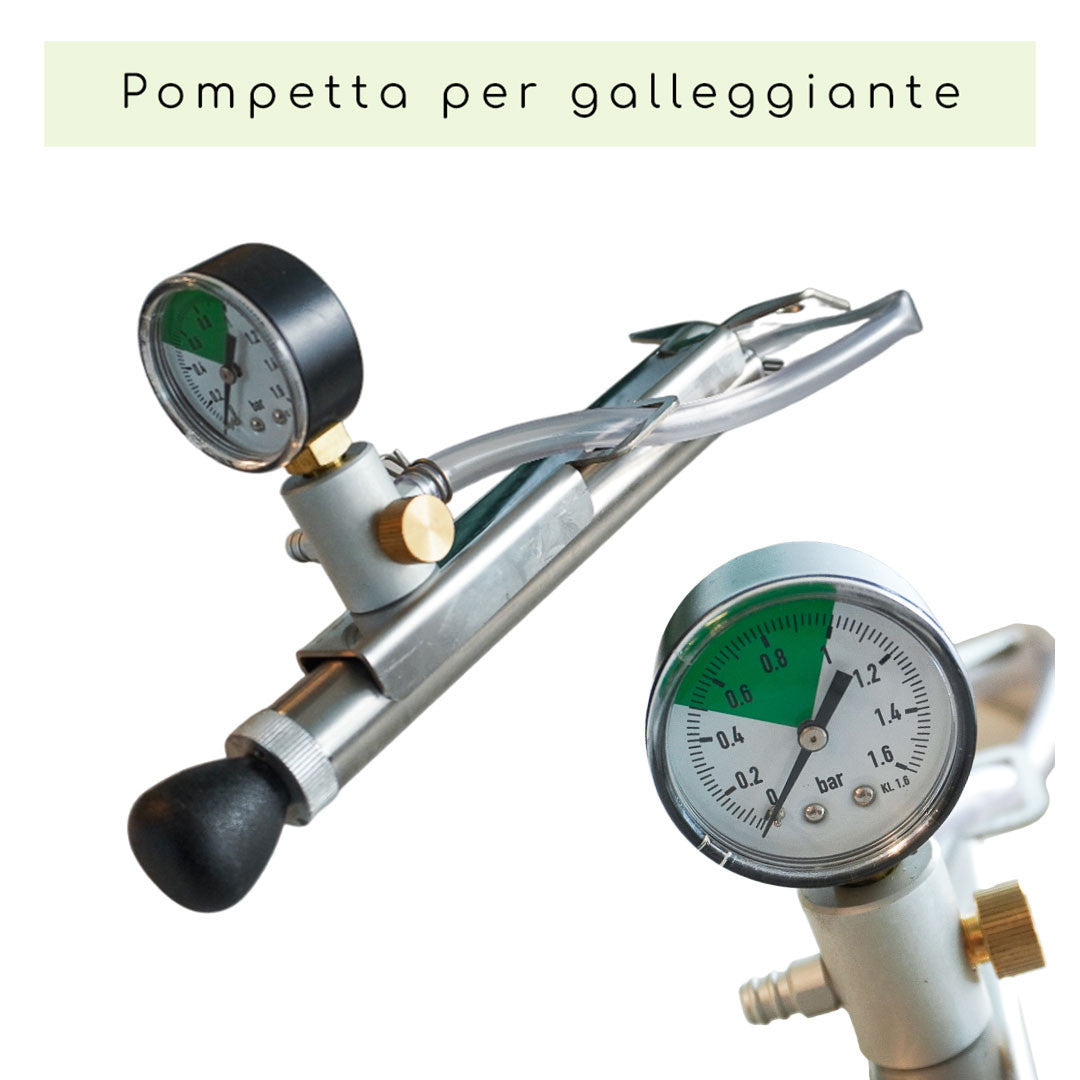

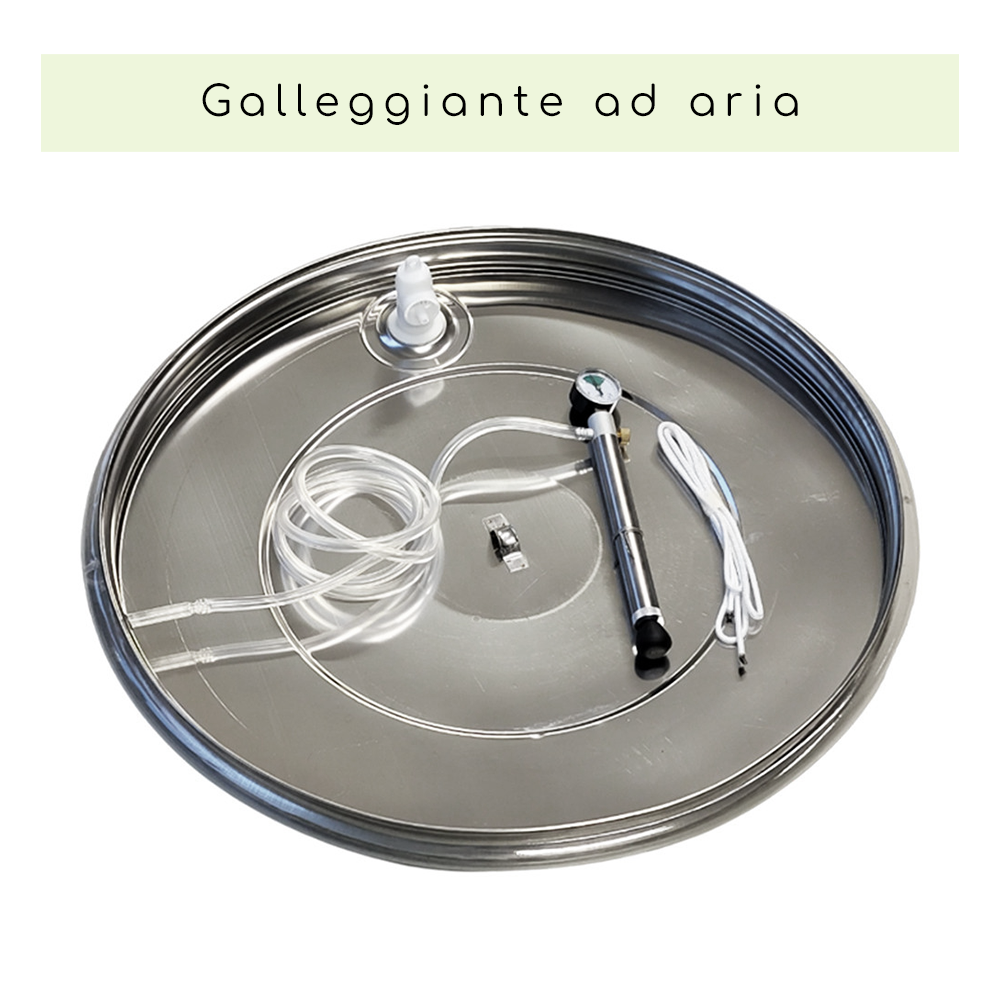

- Floating air chamber lid with complete kit (air chamber, pump, plastic vent valve)
- Drain with selectable valve

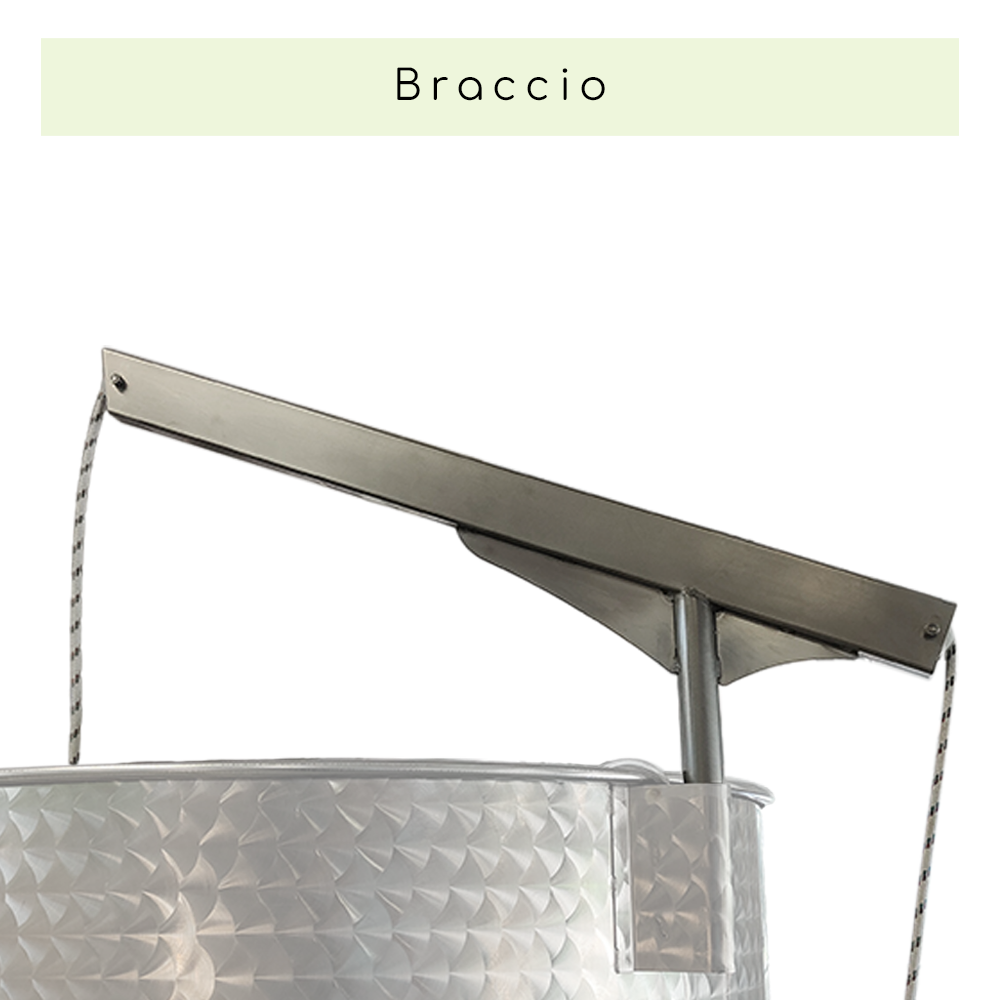

- Removable and pivoting floating lifting arm in AISI 304 stainless steel

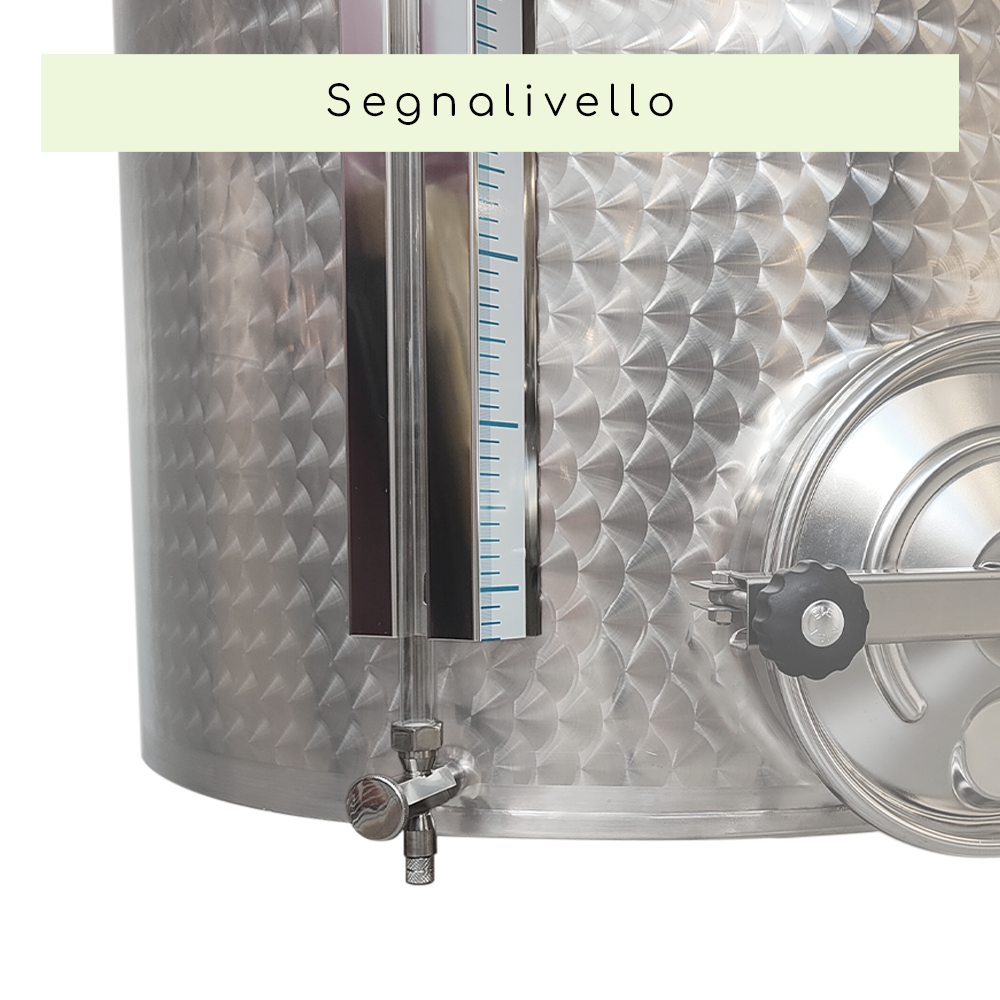

- Inox protection level indicator with plexiglass tube and stainless steel protection, adhesive millimeter indication, shut-off tap, and column drain

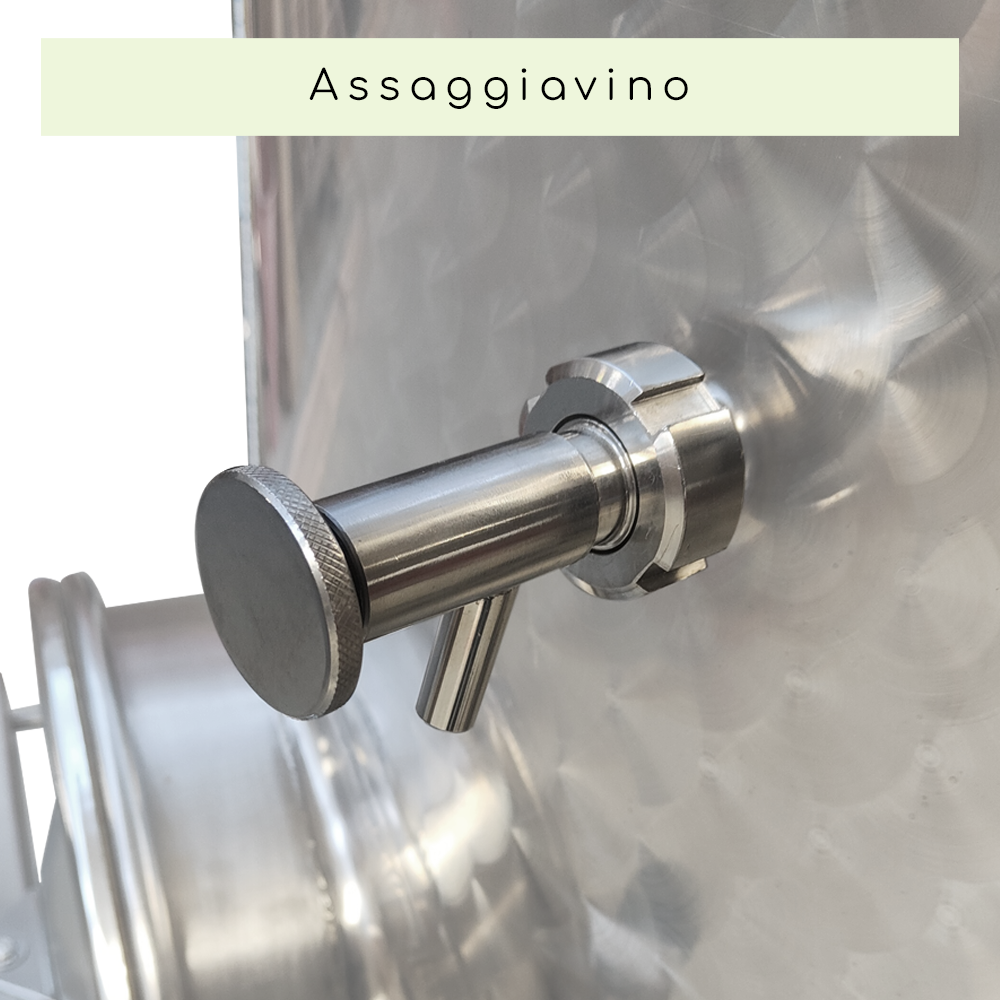

- Stainless steel sample tap with DIN 15 connection

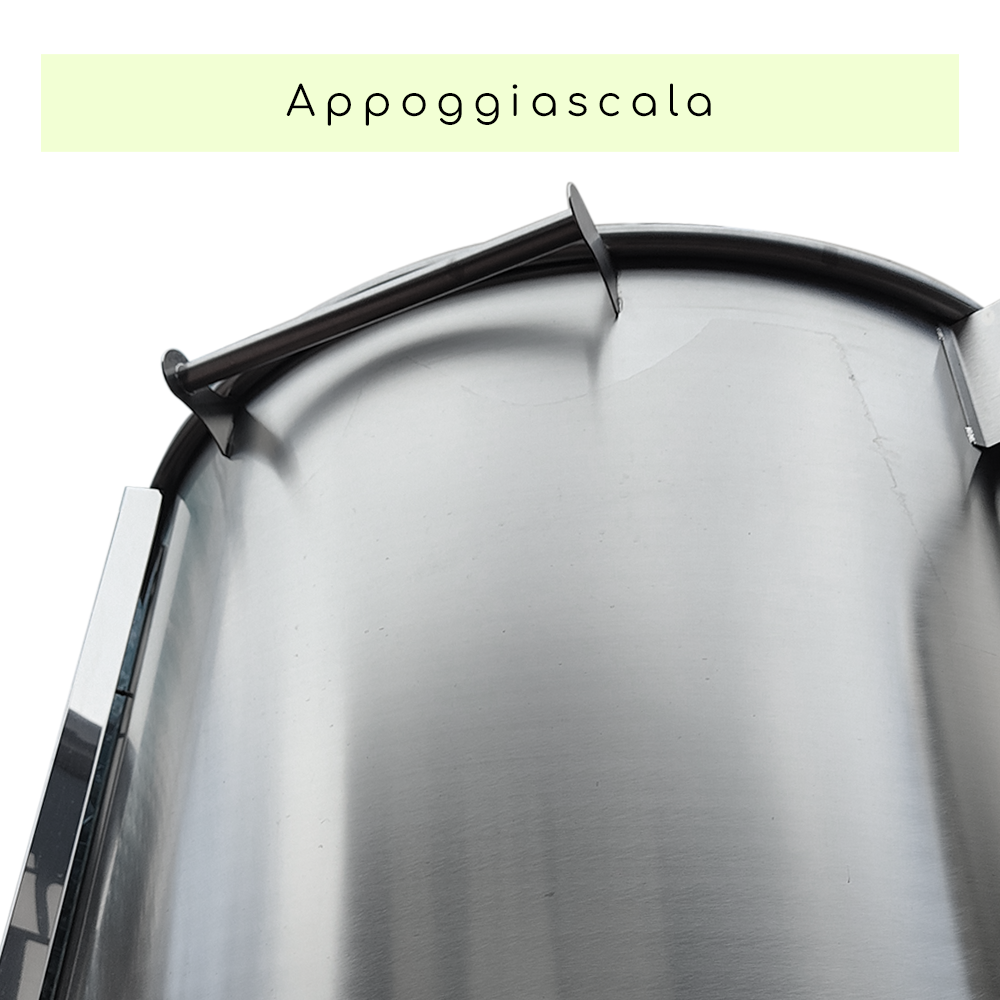

- Stainless steel ladder support length 500 mm (positioned on top)
- Floating lifting winch in painted galvanized steel
Pride of Made in Italy: product entirely made in Italy with excellent quality materials, a guarantee of excellence and reliability over time.
