Always full air tank flat inclined bottom custom ø 1800 from 5200 to 8000 lt
Always full air tank flat inclined bottom custom ø 1800 from 5200 to 8000 lt
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
Your professional tank for storing wine, oil, and food liquids with the highest quality

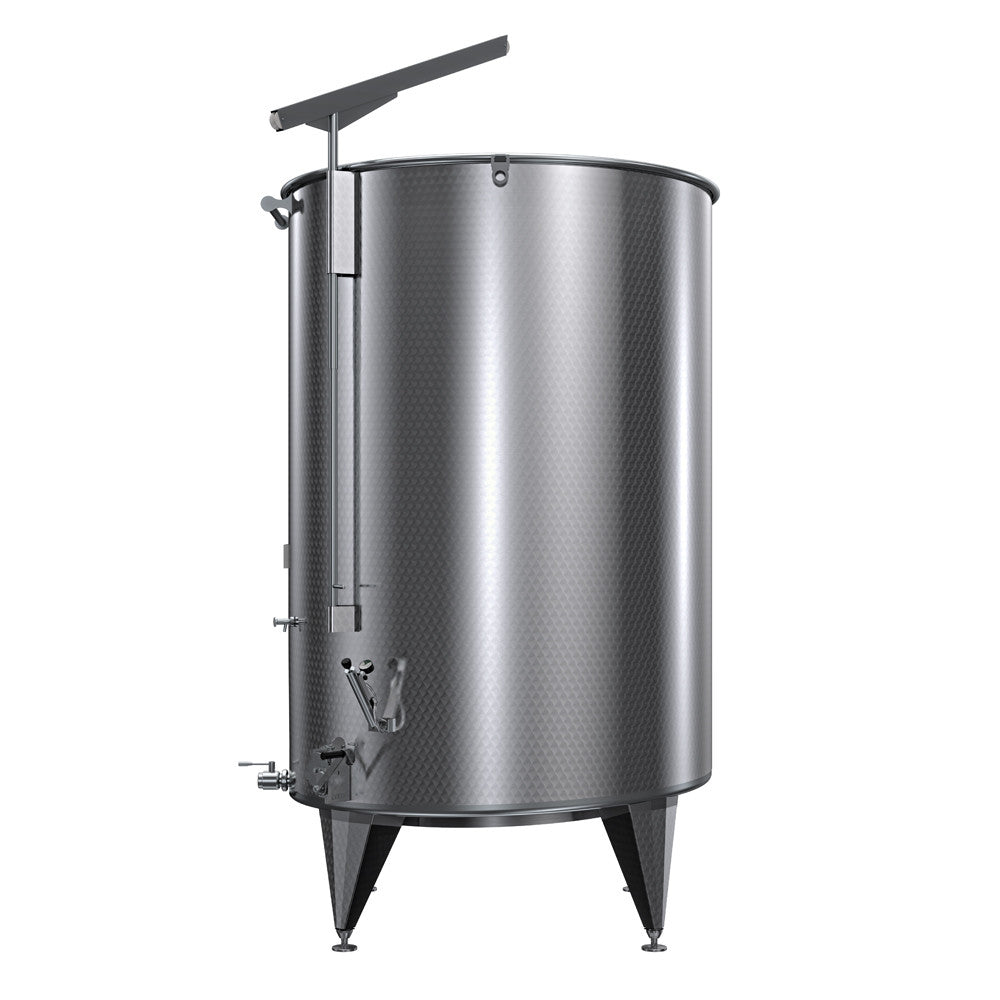

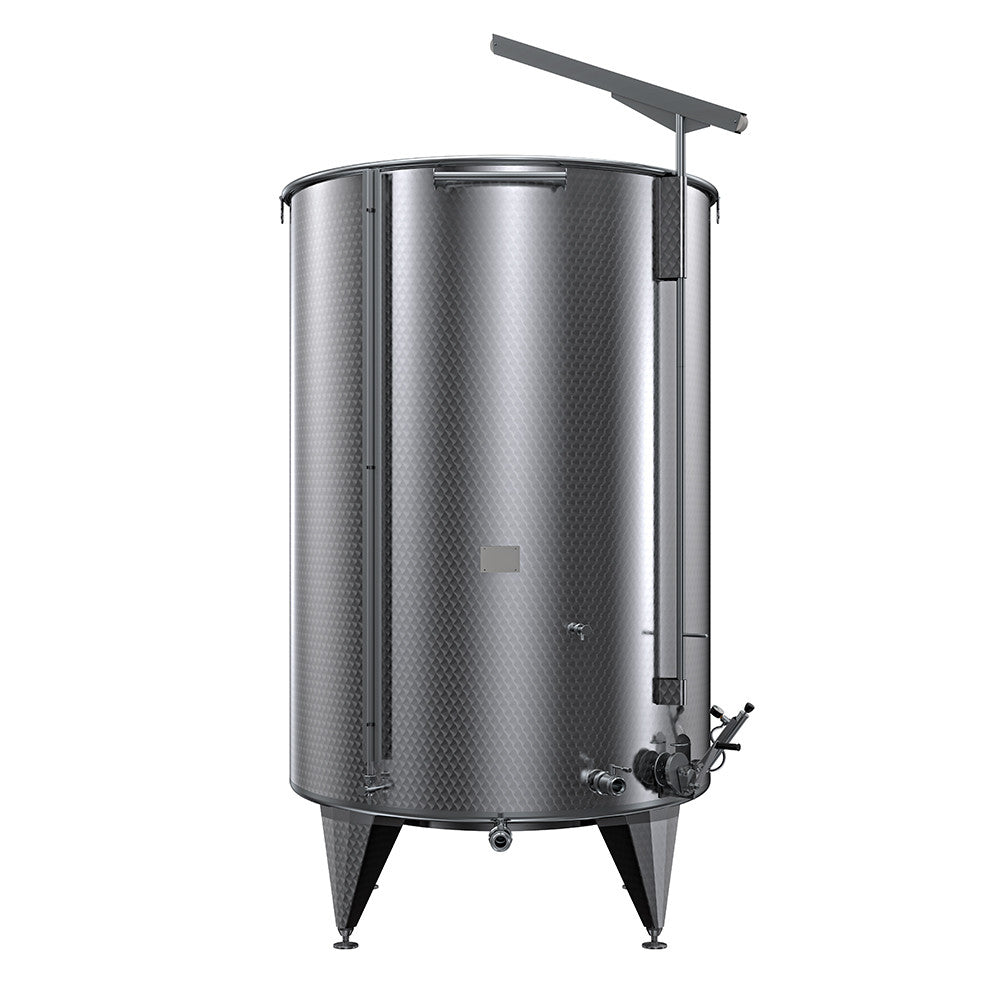

Discover the Air-Filled Always Full Tank with an inclined flat bottom, the ideal solution for those who demand excellence in preservation. Entirely constructed from stainless steel AISI 304, it ensures durability, hygiene, and superior performance over time.
Why choose this tank:
- 4% inclined flat bottom for complete and natural emptying

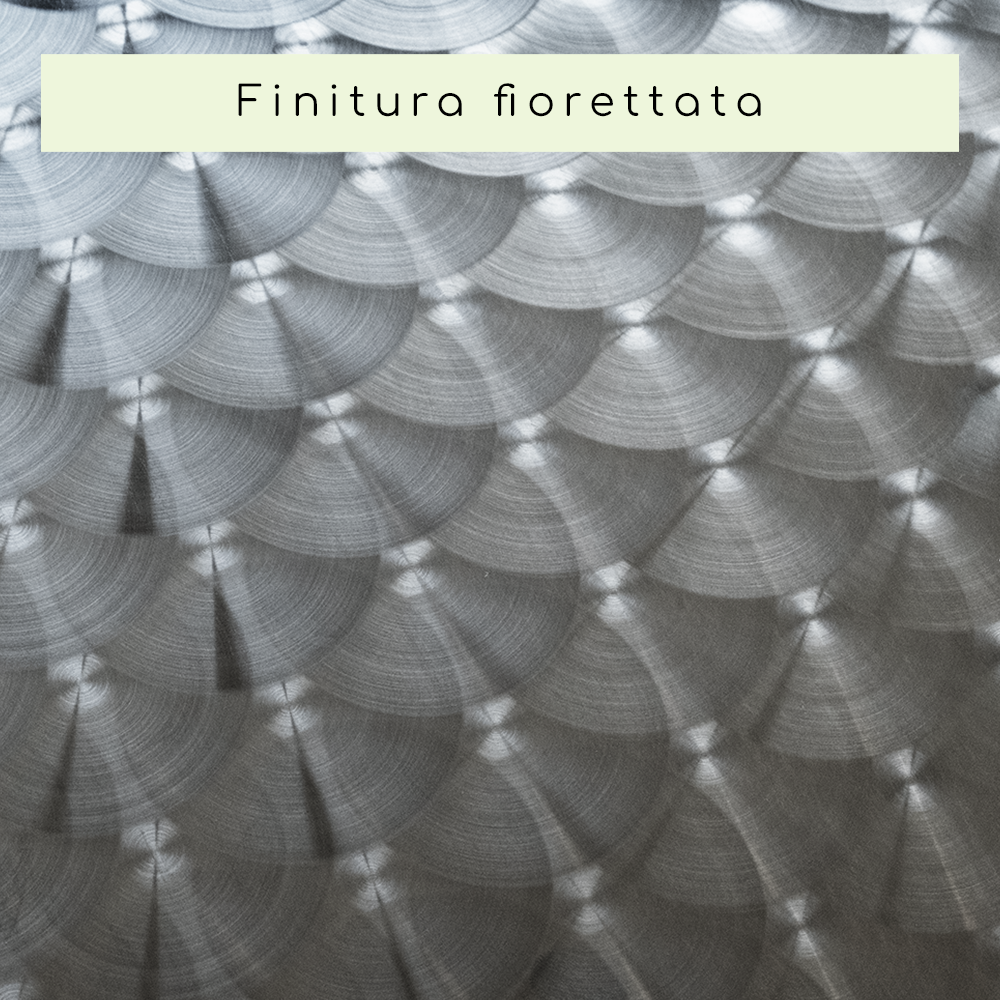

- Elegant brushed external finish and polished internal finish for maximum cleanliness
- Pneumatic always full system for constant level control
- Effective diameter of 1800 mm for optimal stability
- Capacity from 5200 to 8000 liters to suit your needs
Detailed technical specifications:
Dimensions (Diameter Ø 1800 mm):
- LT 5200: Height with arm 3120 mm | without arm 2520 mm
- LT 6000B: Height with arm 3370 mm | without arm 2770 mm
- LT 6500: Height with arm 3620 mm | without arm 3020 mm
- LT 7200: Height with arm 3870 mm | without arm 3270 mm
- LT 8000: Height with arm 4120 mm | without arm 3520 mm
Materials and thicknesses:
- Bottom steel thickness: 2 mm
- Shell steel thickness: 1.5 mm
Cooling band (includes thermometer and probe port):
- Band height: 900 mm
- Steel thickness: 0.7 mm
- Heat exchange surface: 4.0 sqm
- Operating pressure: 3 bar max
- Inlet and outlet connections: 3/4" Gas male stub
Complete accessories included with the tank:
- No. 4 welded feet height 500 mm for guaranteed stability

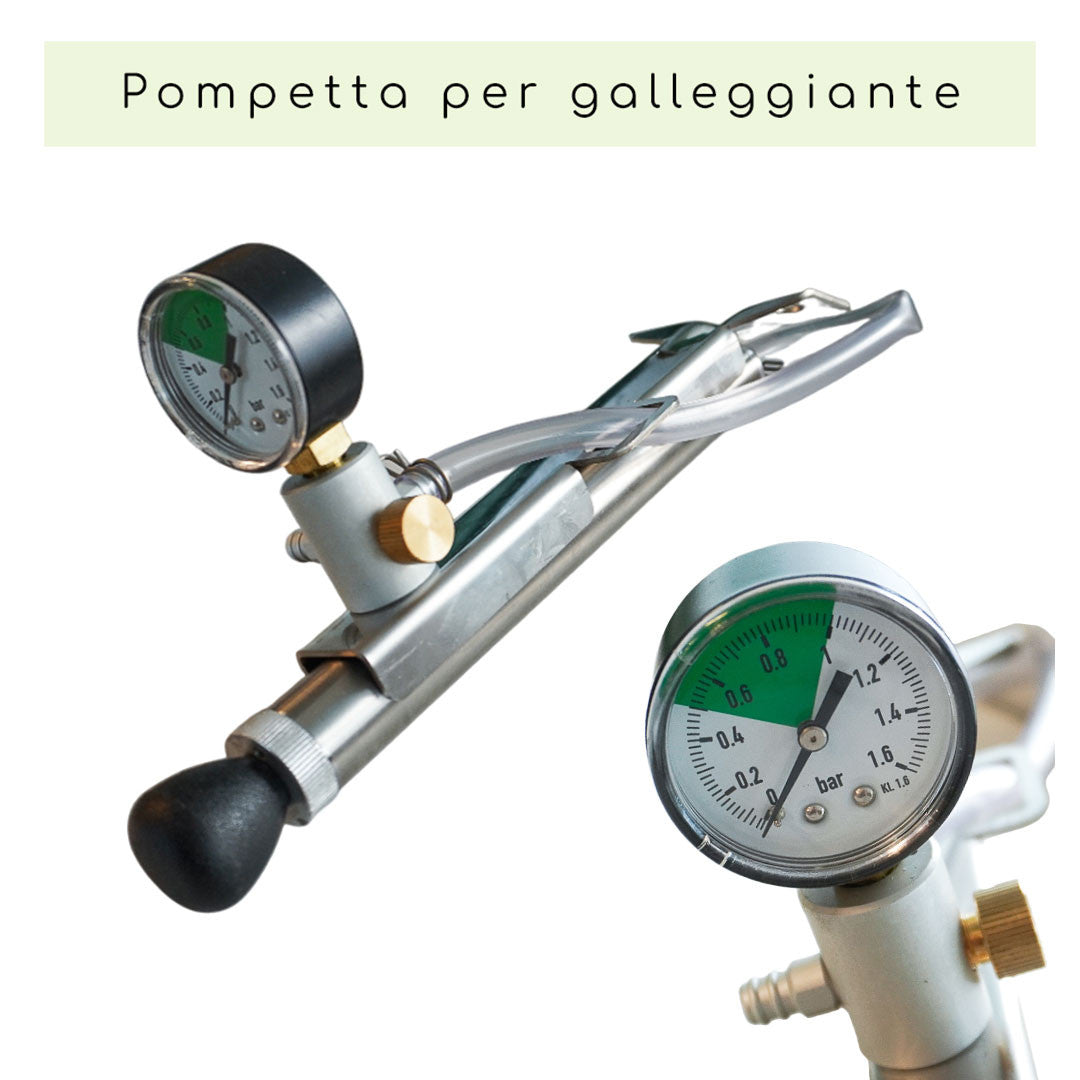

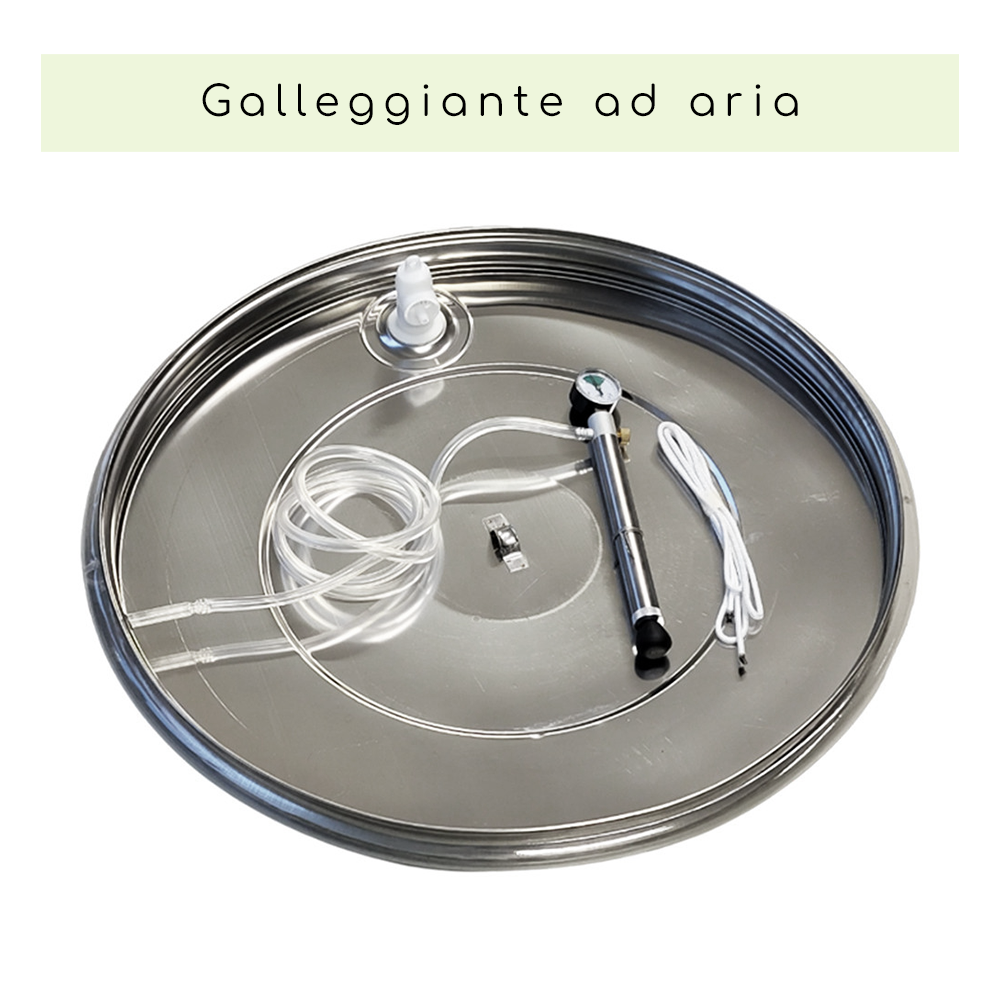

- Floating lid with air chamber complete kit: air chamber, pump, and plastic vent valve
- Drain with customizable valve choice

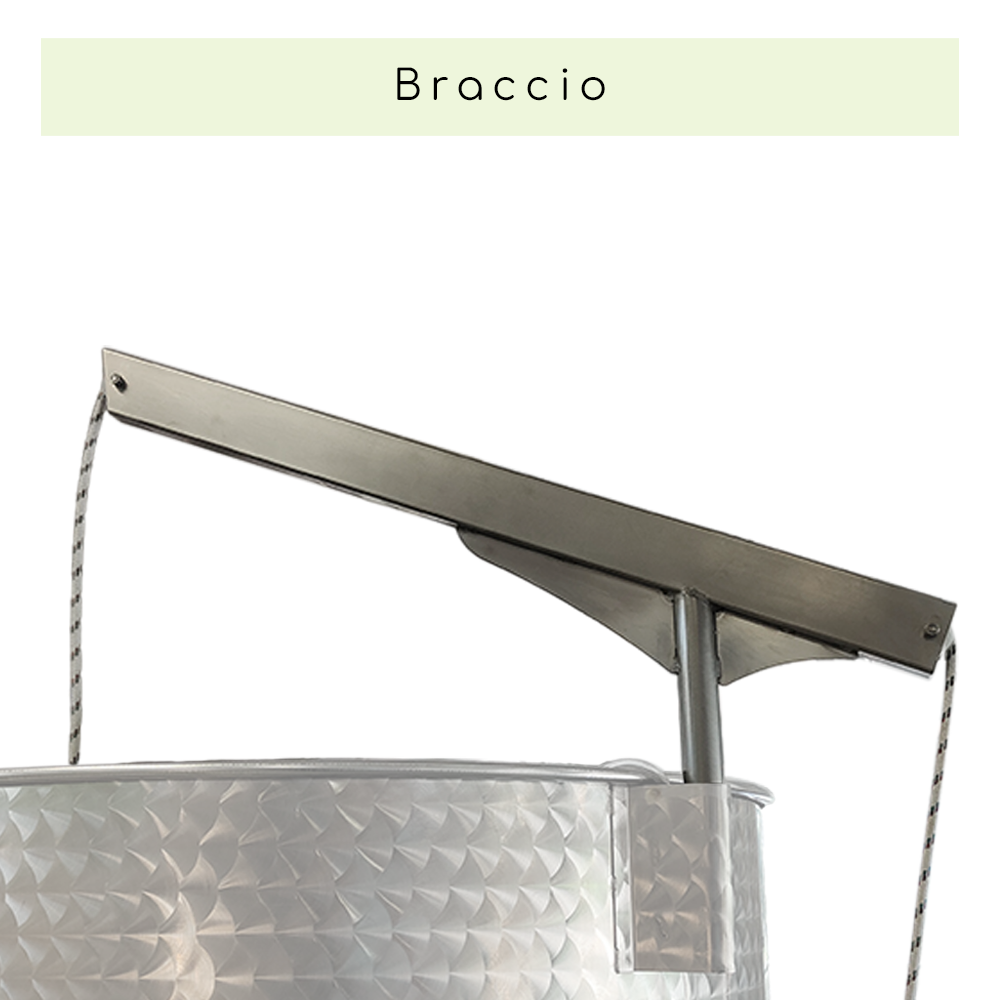

- Detachable and pivoting floating lifting arm in AISI 304 steel

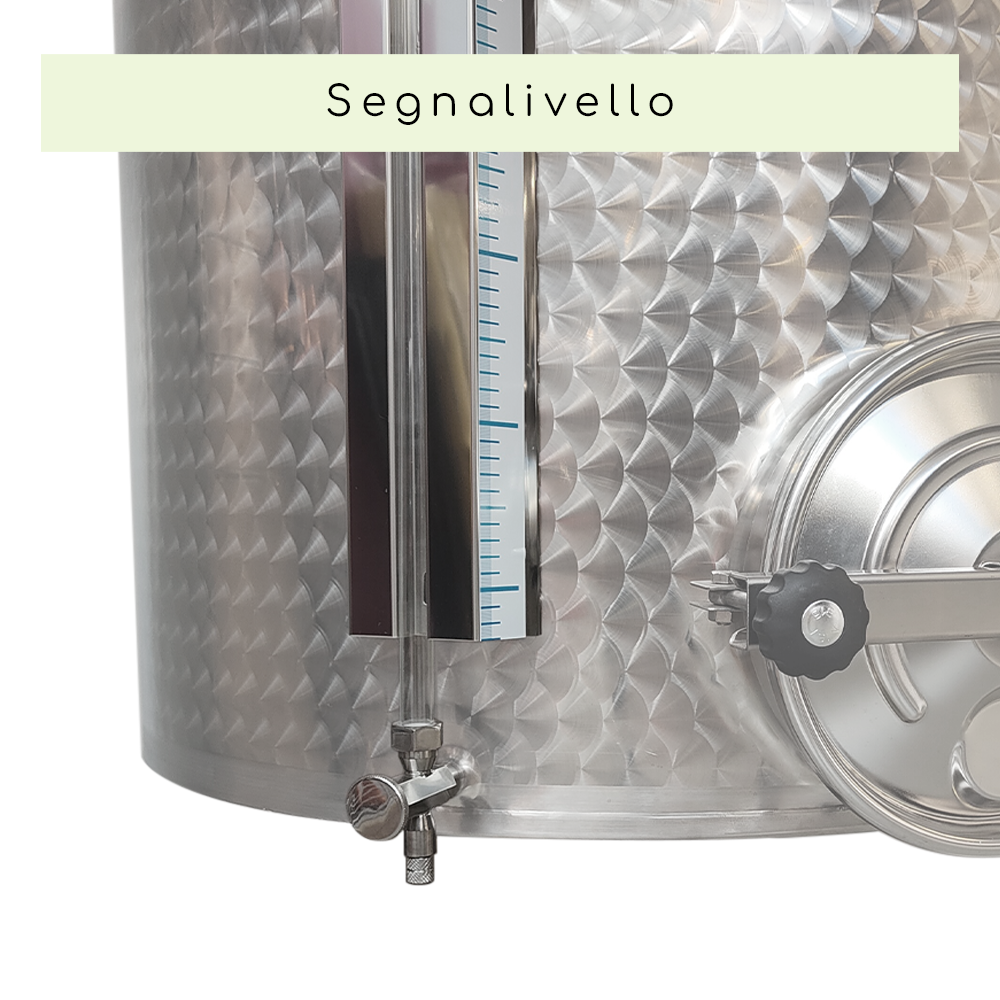

- Stainless steel level indicator with transparent plexiglass tube, stainless steel protection, adhesive millimeter indication, shut-off tap, and column drain

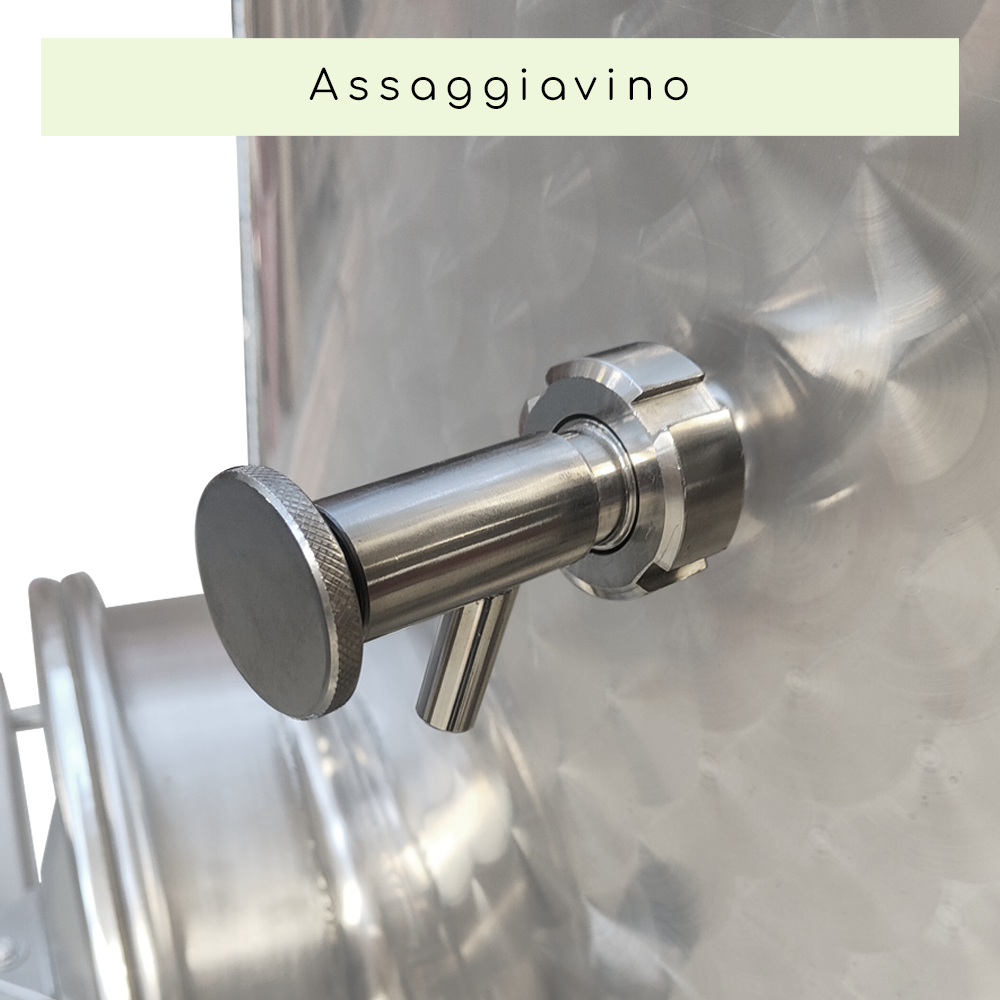

- Screw sample tap in stainless steel with DIN 15 connection

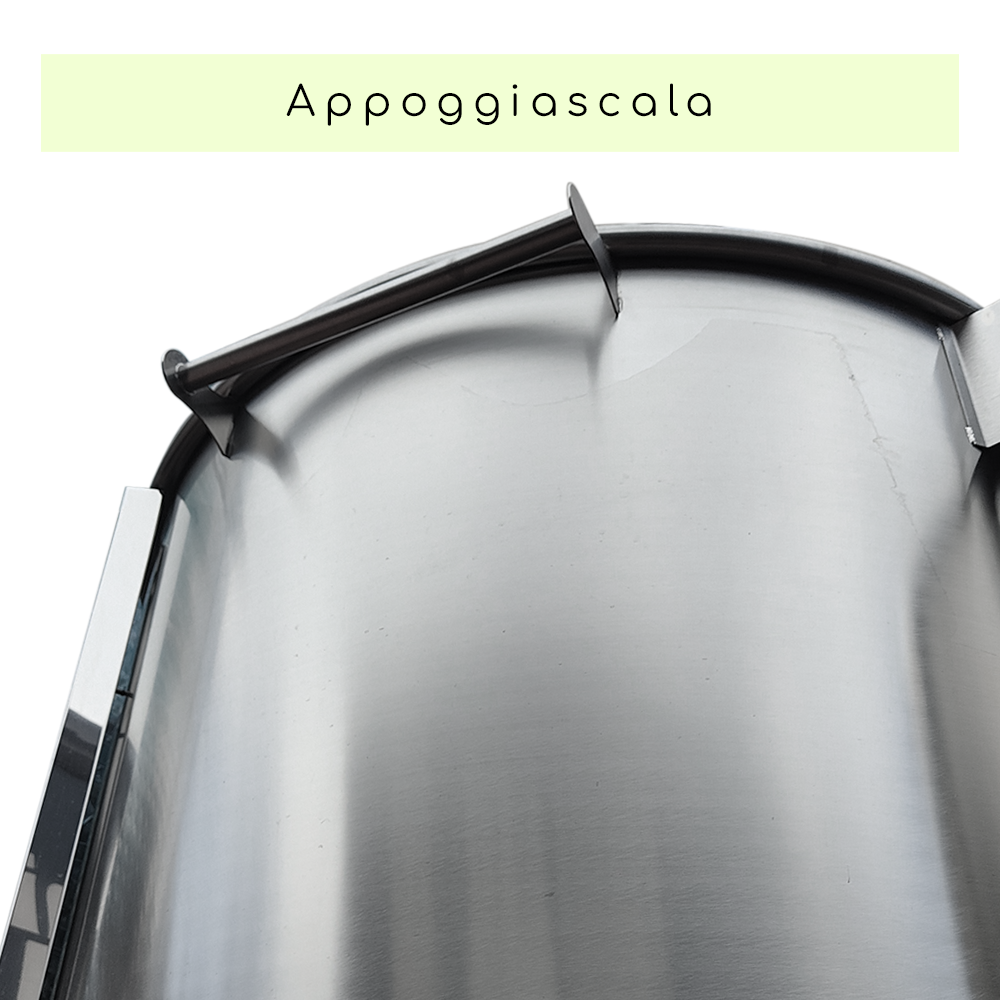

- Stainless steel ladder rest length 500 mm positioned at the top for easy access
- Painted galvanized steel floating lifting winch
100% Made in Italy – Guaranteed quality
Product entirely made in Italy with excellent materials: the right choice for those who do not compromise on quality and durability.
