Refrigerant coil a304 h. 1915 mm
Refrigerant coil a304 h. 1915 mm
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
The Ideal Solution for Temperature Control in the Cellar

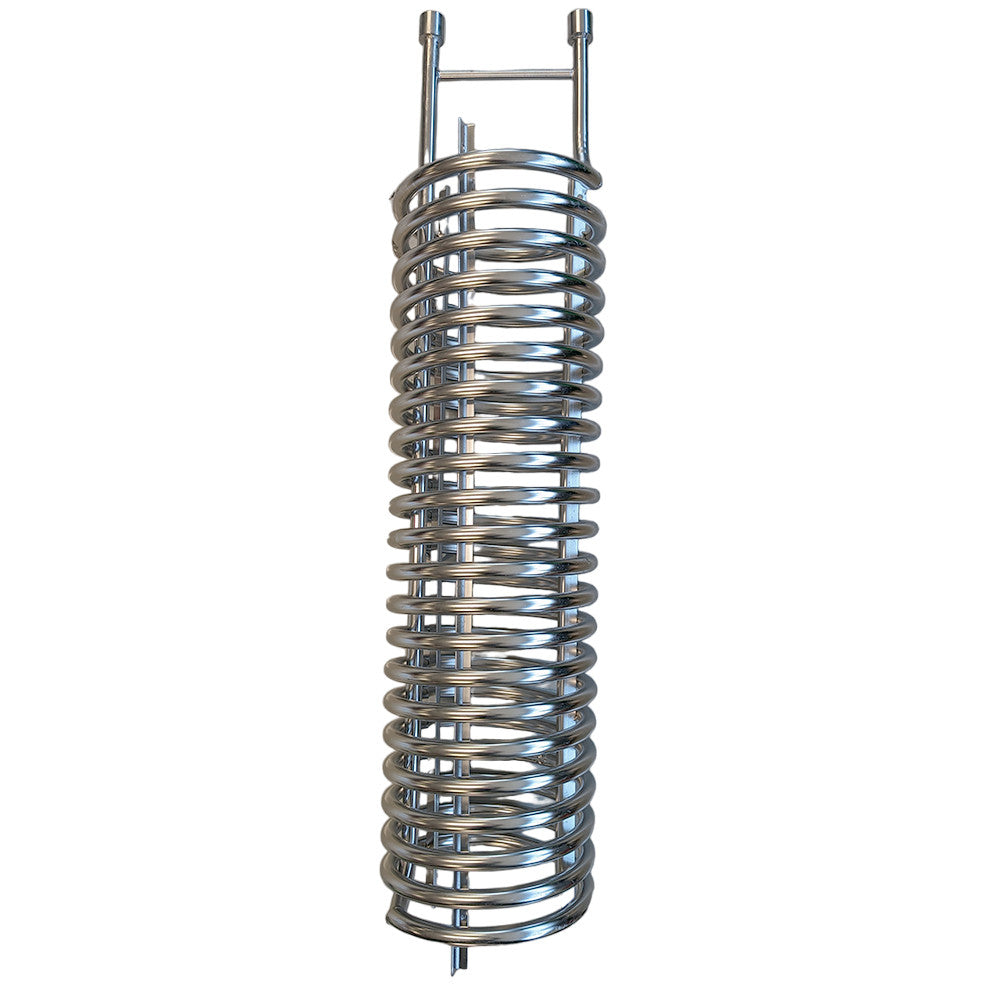

The A304 cooling coil is a sophisticated heat exchange device, perfect for those who wish to keep the temperature under control during winemaking. Thanks to its intelligent design, it allows the circulation of hot or cold liquids with an excellent heat exchange coefficient, ensuring precise and reliable management of the must and wine temperature.
By simply immersing the coil in the wine, you can benefit from optimal heat exchange without any risk to the quality of the harvest. There are no thermal bridges to the outside, no sudden thermal shock, and no unwanted mechanical effects. The construction principle of the coil allows for high-speed circulation of the heat transfer fluid, maximizing exchange efficiency and ensuring superior results.
Technical Specifications:
- Exchange coefficient: from 200 to 700 kcal/h·m²·°C
- Exchange surface: from 0.6 m² to 2.8 m²
- Material: AISI 304 stainless steel with electrochemical polishing finish
- Tube diameter: 22 mm | Thickness: 1.2 mm | Total footprint Ø: 340 mm
- Height: 1915 mm
- Connections: 1/2" male thread - length 200 mm
- Maximum operating pressure: 3 bar
Your payment information is processed securely. We do not store credit card data nor do we have access to your card information.
Description
Description
The Ideal Solution for Temperature Control in the Cellar
The A304 cooling coil is a sophisticated heat exchange device, perfect for those who wish to keep the temperature under control during winemaking. Thanks to its intelligent design, it allows the circulation of hot or cold liquids with an excellent heat exchange coefficient, ensuring precise and reliable management of the must and wine temperature.
By simply immersing the coil in the wine, you can benefit from optimal heat exchange without any risk to the quality of the harvest. There are no thermal bridges to the outside, no sudden thermal shock, and no unwanted mechanical effects. The construction principle of the coil allows for high-speed circulation of the heat transfer fluid, maximizing exchange efficiency and ensuring superior results.
Technical Specifications:
- Exchange coefficient: from 200 to 700 kcal/h·m²·°C
- Exchange surface: from 0.6 m² to 2.8 m²
- Material: AISI 304 stainless steel with electrochemical polishing finish
- Tube diameter: 22 mm | Thickness: 1.2 mm | Total footprint Ø: 340 mm
- Height: 1915 mm
- Connections: 1/2" male thread - length 200 mm
- Maximum operating pressure: 3 bar
