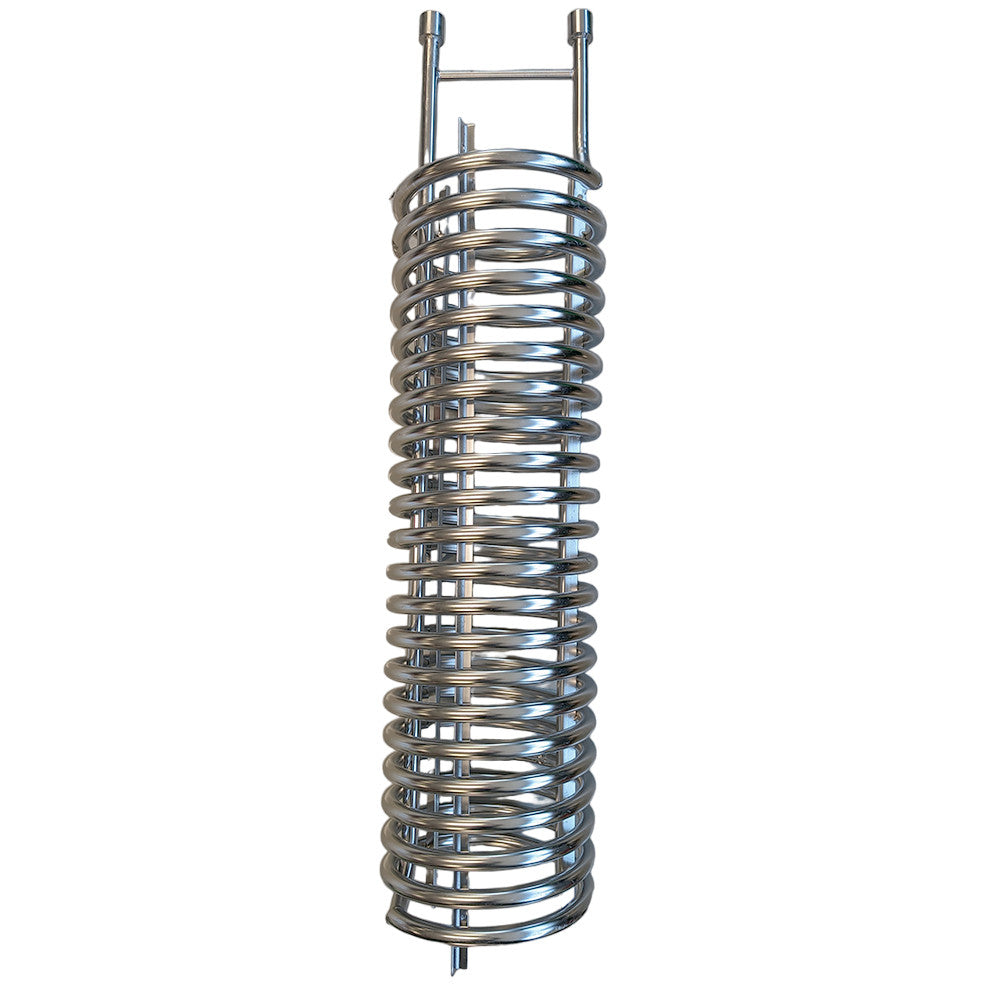

Refrigerant coil a304 h. 1010 mm
Refrigerant coil a304 h. 1010 mm
Contact us without hesitation via phone, email, or directly on WhatsApp!
Description
Description
The Ideal Solution for Temperature Control in the Cellar
The A304 cooling coil is the essential heat exchange device for precisely managing temperature during winemaking. Thanks to its innovative self-wrapped tube design, it ensures an excellent heat exchange coefficient, allowing high-speed circulation of the refrigerant to maximize cooling efficiency.
Benefits for Your Cellar:
- Direct immersion in the must or wine without thermal bridges to the outside
- No risk of thermal shock or mechanical damage to the quality of the harvest
- Reliable and uniform control of fermentation temperature
- Optimal performance thanks to the high-speed circulation principle
Technical Specifications:
- Height: 1010 mm
- Exchange coefficient: from 200 to 700 kcal/h.m²·°C
- Exchange surface: from 0.6 sqm to 2.8 sqm
- Material: Stainless steel AISI 304
- Tube: diameter 22 mm, thickness 1.2 mm, total footprint Ø 270 mm
- Connections: 1/2" with male thread, length 200 mm
- Maximum operating pressure: 3 bar
- Finish: Electrochemical polishing for maximum hygiene and durability
Choose the A304 cooling coil for controlled and superior quality winemaking, with the assurance of a reliable product built to the highest enological standards.
Your payment information is processed securely. We do not store credit card data nor do we have access to your card information.
Description
Description
The Ideal Solution for Temperature Control in the Cellar
The A304 cooling coil is the essential heat exchange device for precisely managing temperature during winemaking. Thanks to its innovative self-wrapped tube design, it ensures an excellent heat exchange coefficient, allowing high-speed circulation of the refrigerant to maximize cooling efficiency.
Benefits for Your Cellar:
- Direct immersion in the must or wine without thermal bridges to the outside
- No risk of thermal shock or mechanical damage to the quality of the harvest
- Reliable and uniform control of fermentation temperature
- Optimal performance thanks to the high-speed circulation principle
Technical Specifications:
- Height: 1010 mm
- Exchange coefficient: from 200 to 700 kcal/h.m²·°C
- Exchange surface: from 0.6 sqm to 2.8 sqm
- Material: Stainless steel AISI 304
- Tube: diameter 22 mm, thickness 1.2 mm, total footprint Ø 270 mm
- Connections: 1/2" with male thread, length 200 mm
- Maximum operating pressure: 3 bar
- Finish: Electrochemical polishing for maximum hygiene and durability
Choose the A304 cooling coil for controlled and superior quality winemaking, with the assurance of a reliable product built to the highest enological standards.
